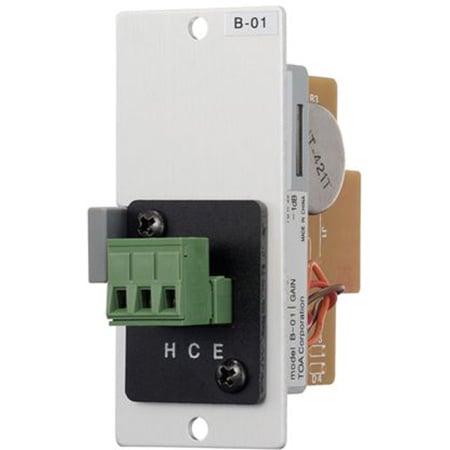

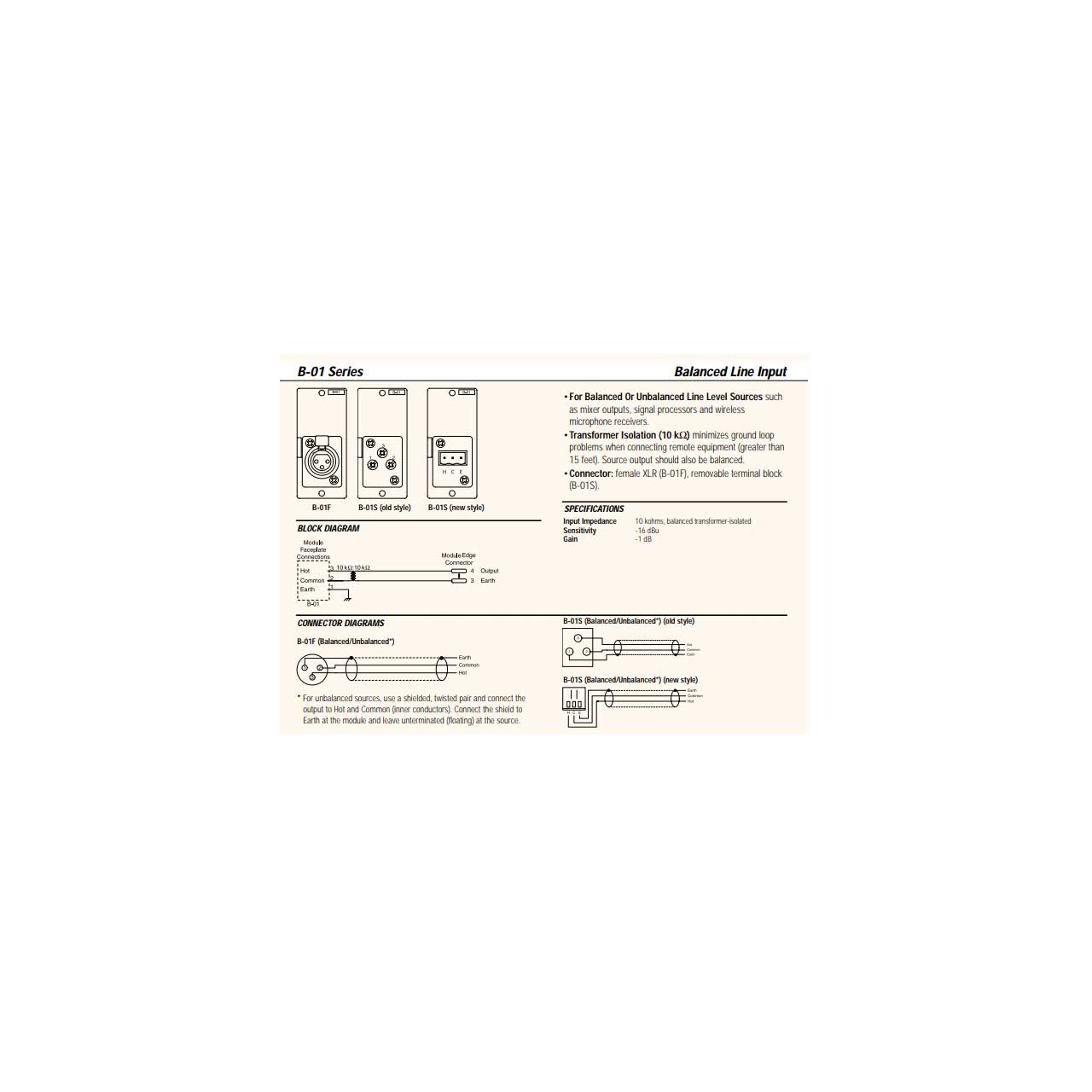

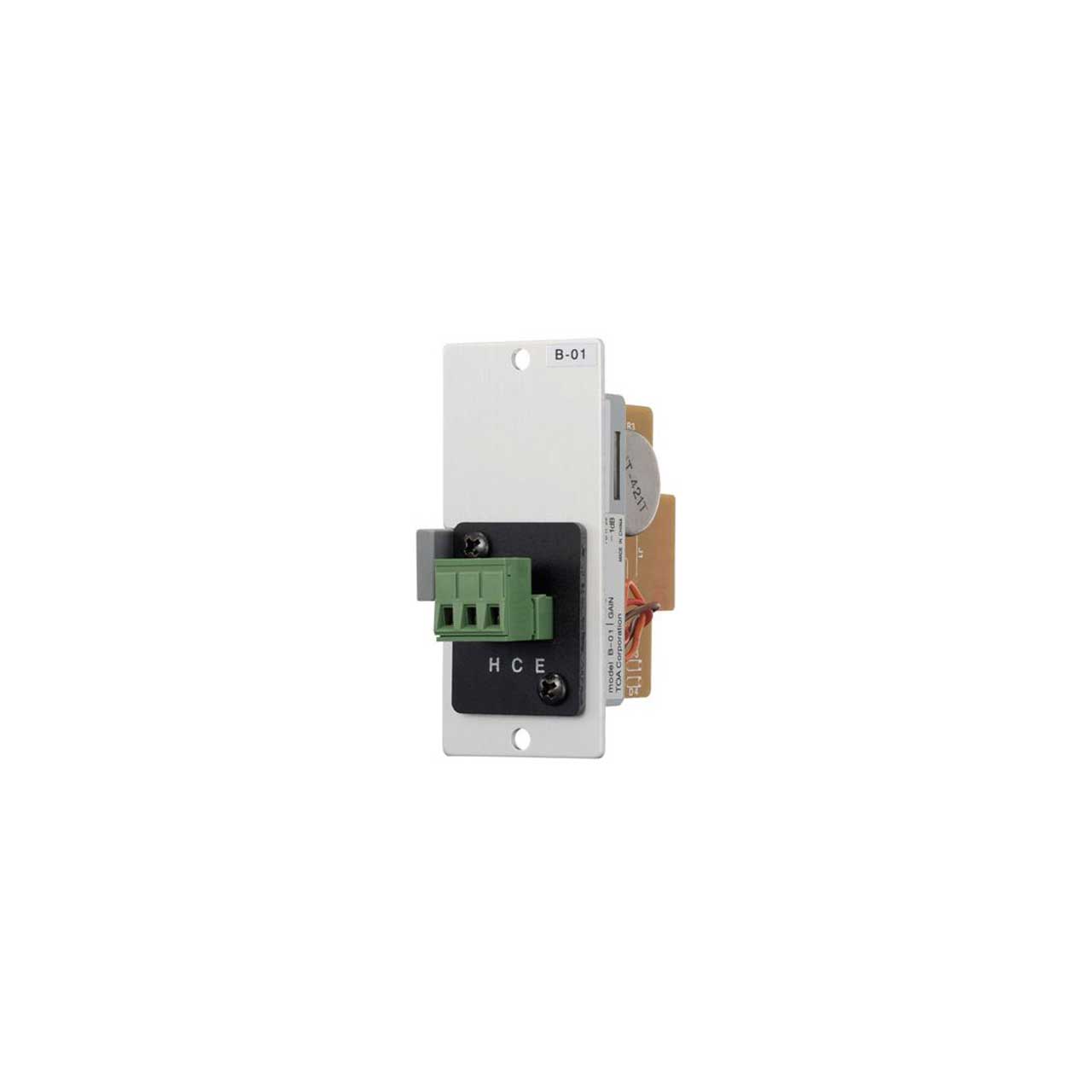

For Balanced or Unbalanced Line Level Sources such as mixer outputs, signal processors and wireless microphone receivers use. TOA B-01S T Transformer Isolation (10k ohms) minimizes ground loop problems when connecting remote equipment (greater than 15 feet). Source output should also be balanced. Connector: removable terminal block.
Note: For unbalanced sources, use a shielded, twisted pair and connect the output to Hot and Common (inner conductors). Connect the shield to Earth at the module and leave unterminated (floating) at the source.
