    CL5708MUKIT - Overview

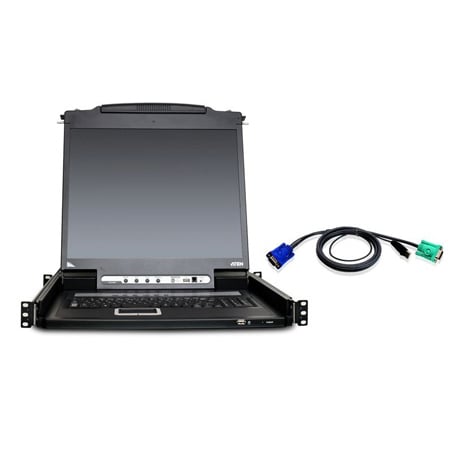

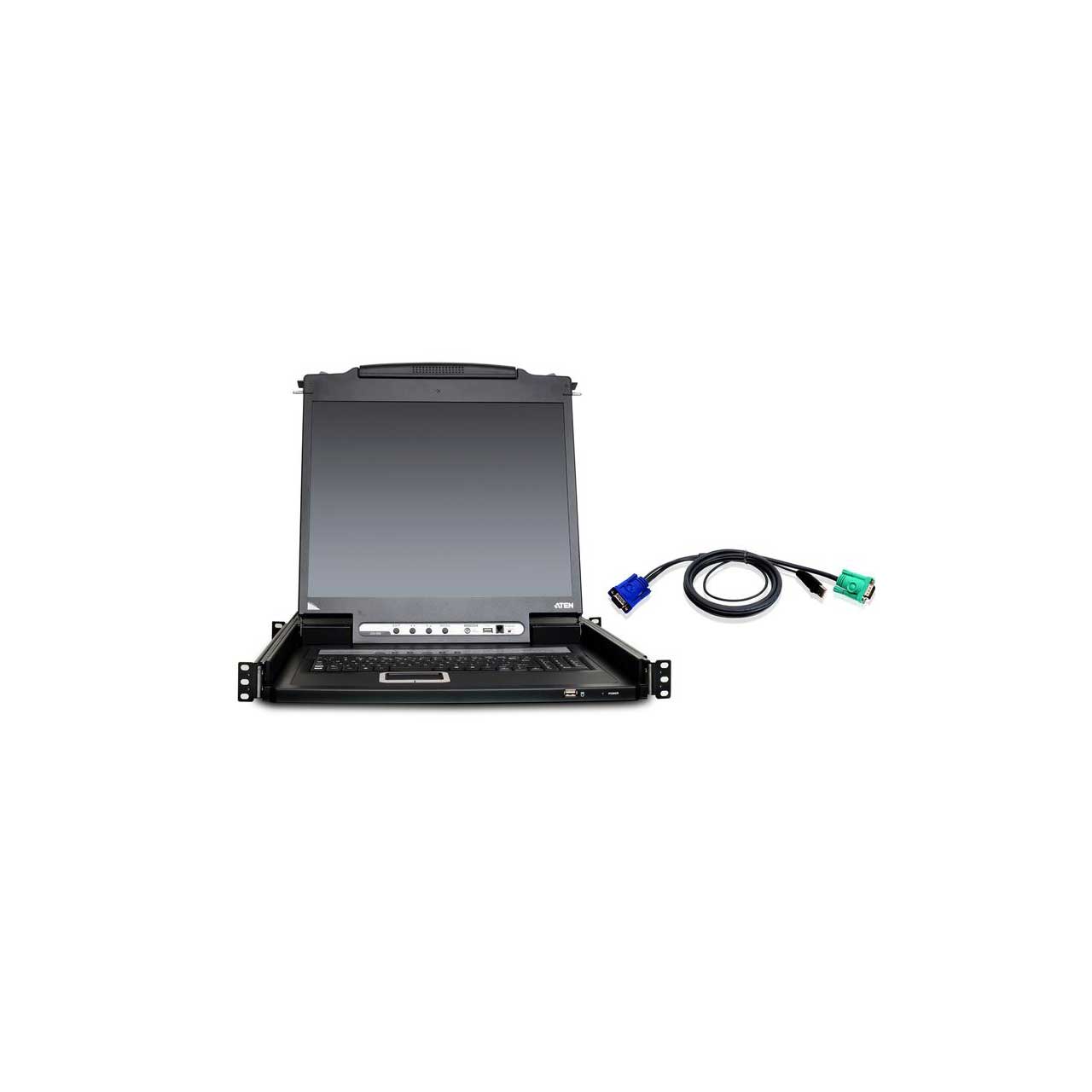

    The CL5708M Slideaway LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console.

    • Features:

      • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
      • Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway housing
      • Available with or without Fingerprint Identification Reader**
      • Space saving technology - up to two consoles (one bus) control up to 8 computers
      • Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
      • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
      • LCD module USB port allows each computer to access USB peripherals*
      • LCD module rotates up to 115 degrees for a more comfortable viewing angle
      • Multiplatform support - Windows, Linux, Mac, and Sun
      • Supports multimedia USB keyboards for PC, Mac and Sun
      • Auto PS/2 and USB interface detection
      • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
      • Supports external USB mouse
      • Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
      • No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
      • Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
      • Port names automatically reconfigured when station sequence is changed
      • Two level password security - only authorized users can view and control computers
      • Supports one administrator and four user accounts with separate profiles
      • Auto Scan mode enables continuous monitoring of user-selected computers
      • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
      • Hot pluggable - add or remove computers without having to power down the switch
      • Beeper on/off via hotkey and OSD
      • Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
      • Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
      • * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
      • **The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.
    • Specifications:

      • Computer Connections
      • Direct 8
      • Daisy Chain or Cascading 256(via Daisy-Chain)
      • Port Selection OSD, Hotkey, Pushbutton

      • Console Connectors
      • Keyboard, Mouse, and Monitor 1 x SPHD-18 Male (Yellow)
      • Monitor 1 x USB Type-A Female (White)
      • Flash ROM Upgrade 1 x RJ-11 Female

      • Connectors
      • Computer/KVM 8 x SPHD-15 Female (Yellow)
      • Power 1 x 3-prong AC Socket
      • USB 1 x USB Type-A Female (White)

      • Switches
      • Power 1 x Rocker
      • LCD Power 1 x Pushbutton
      • LCD Adjustment 4 x Pushbuttons
      • Port Selection 2 x Pushbuttons [port] 2 x Pushbuttons[station]
      • F/W Upgrade 1 x Slide
      • Reset 1 x Semi-recessed Push Button

      • LEDs
      • Port ID 2 x 7-segment LED [Yellow]
      • Power On 1 (Dark Green)
      • LCD Power 1 (Orange)
      • Station ID 2 x 7-segment LED [Yellow]
      • On Line 8 (Orange)
      • Video Resolution 1280 x 1024 @ 75 Hz (DDC2B)
      • Daisy Chain 1 x DB-25 Male (Black)
      • Emulation
      • Keyboard PS/2, USB
      • Mouse PS/2, USB
      • Scan Interval 1 - 255 sec.

      • Power
      • Amps 1 A
      • Voltage 110 - 230 VAC 50 - 60 HZ
      • Power Consumption 120V, 15.2W / 230V, 16W
      • Environment
      • Storage Temperature -4~140F (-20~60C)
      • Humidity 0 ~ 80% RH, Noncondensing
      • Operation Temperature 32~122 F(0~50 C)
    • Item Includes:

      • 1-CL5708M: 8-Port LCD KVMP
      • 2-2L5201U 4 ft. USB KVM Cable
      • 4-2L5202U 6 ft. USB KVM Cable
      • 2-2L5203U 10 ft. USB KVM Cable
      • 1 x 5-in-1 console cable
      • 1 x Firmware Upgrade Cable
      • 1 x Power Cord (6ft)
      • 1 x Grounding Wire (4ft.)
      • 1 x User Manual
      • 1 x Quick Start Guide
    • Requirements


      • Computers with PS/2 or USB mouse and keyboard connections
      • VGA or SVGA video out
