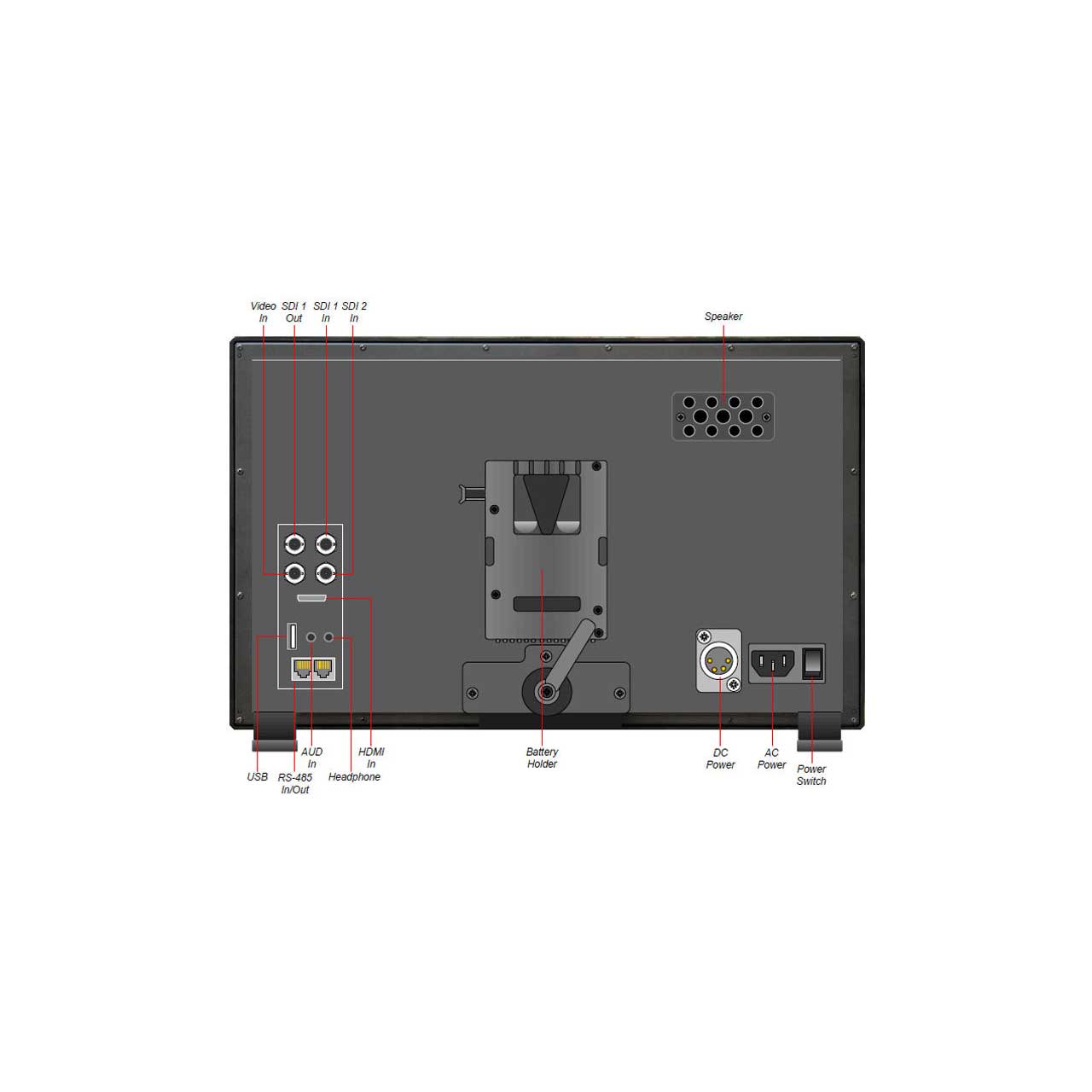

The RMT-170-3G-RM monitors set a new standard in LCD monitors for broadcast and professional video applications. They provide a 17 inch, 10 bit, 1920 x 1080 resolution, 16:9 format, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12 bit digital processing, precision scaling, and gamma correction to produce the best images possible. A standard XLR-4F connector can plug into the XLR-4M connector to supply 11 to 17 VDC at 3A to the product as an alternative to AC power.

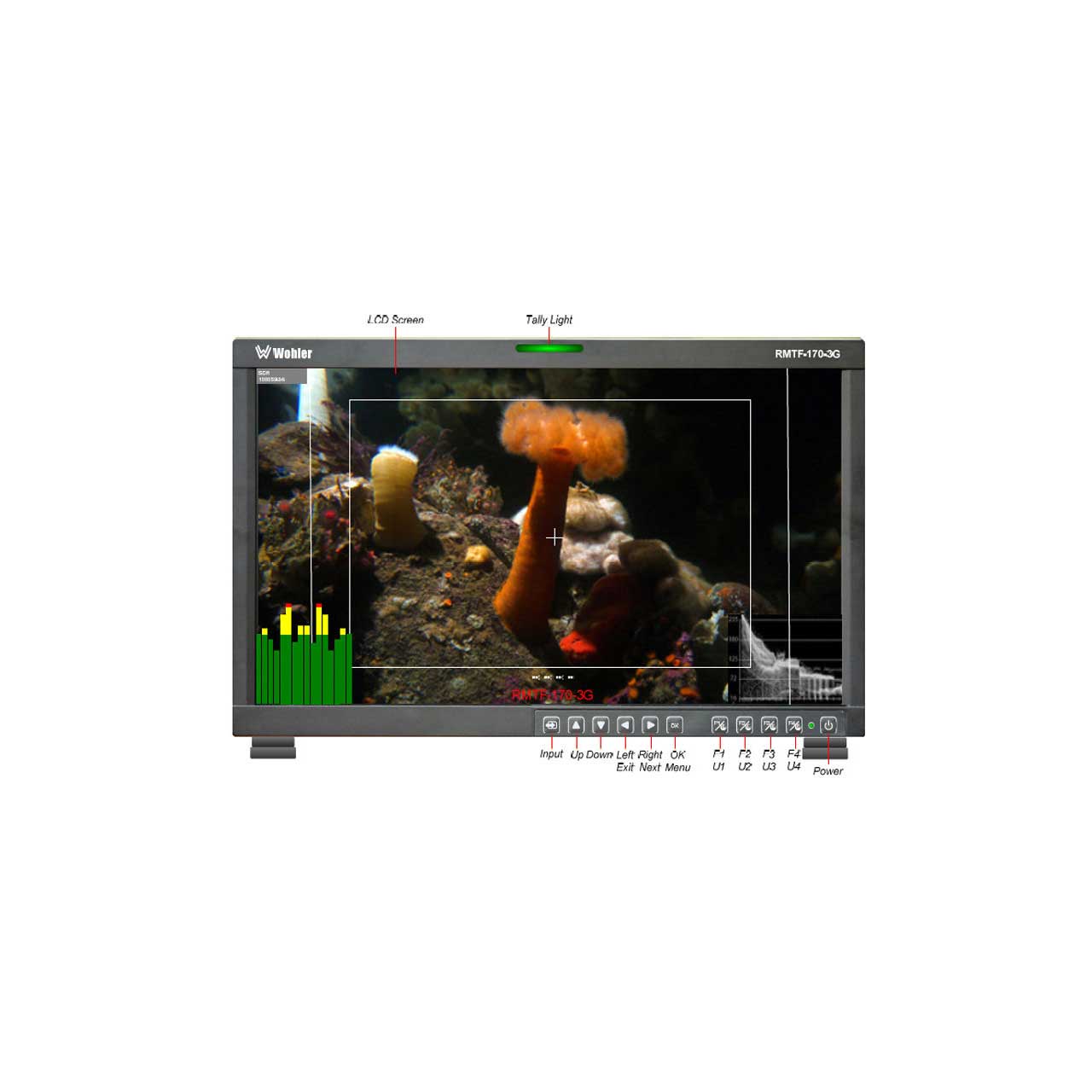

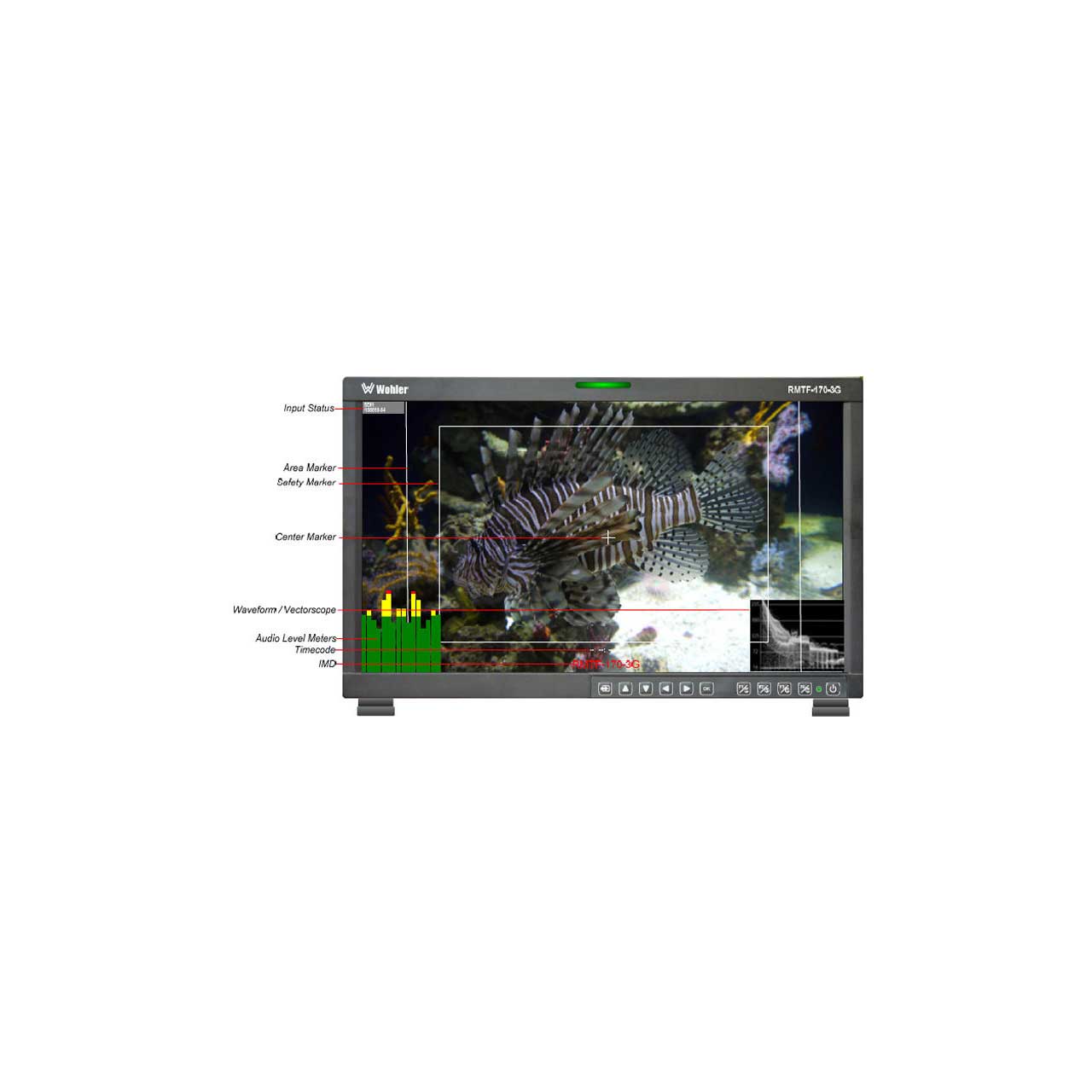

This light and nimble monitor comes with a plethora of in-monitor display features including IMD, Tally, timecode, in-screen audio level metering, format display, and area/title safe markers. The RMTF also provides a host of audio tools including 16-channel level metering and built-in speaker monitoring of its dual stereo analog inputs or SDI embedded audio. Stand or rack-mount configurations are available.
Please Note: Only EIA 608 captions are supported in this product, it will not decode/monitor HD captions. This product is designed to be mounted in 6RU of a standard 19" rack. It may be tilted forward for easier viewing. Position either unit at ear/eye level for best high frequency response and visual observation of the display screen. Images are for reference only!
