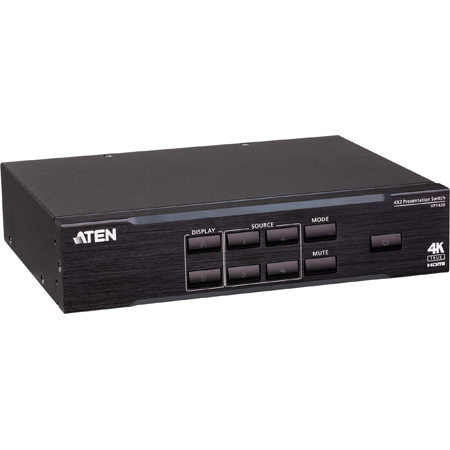

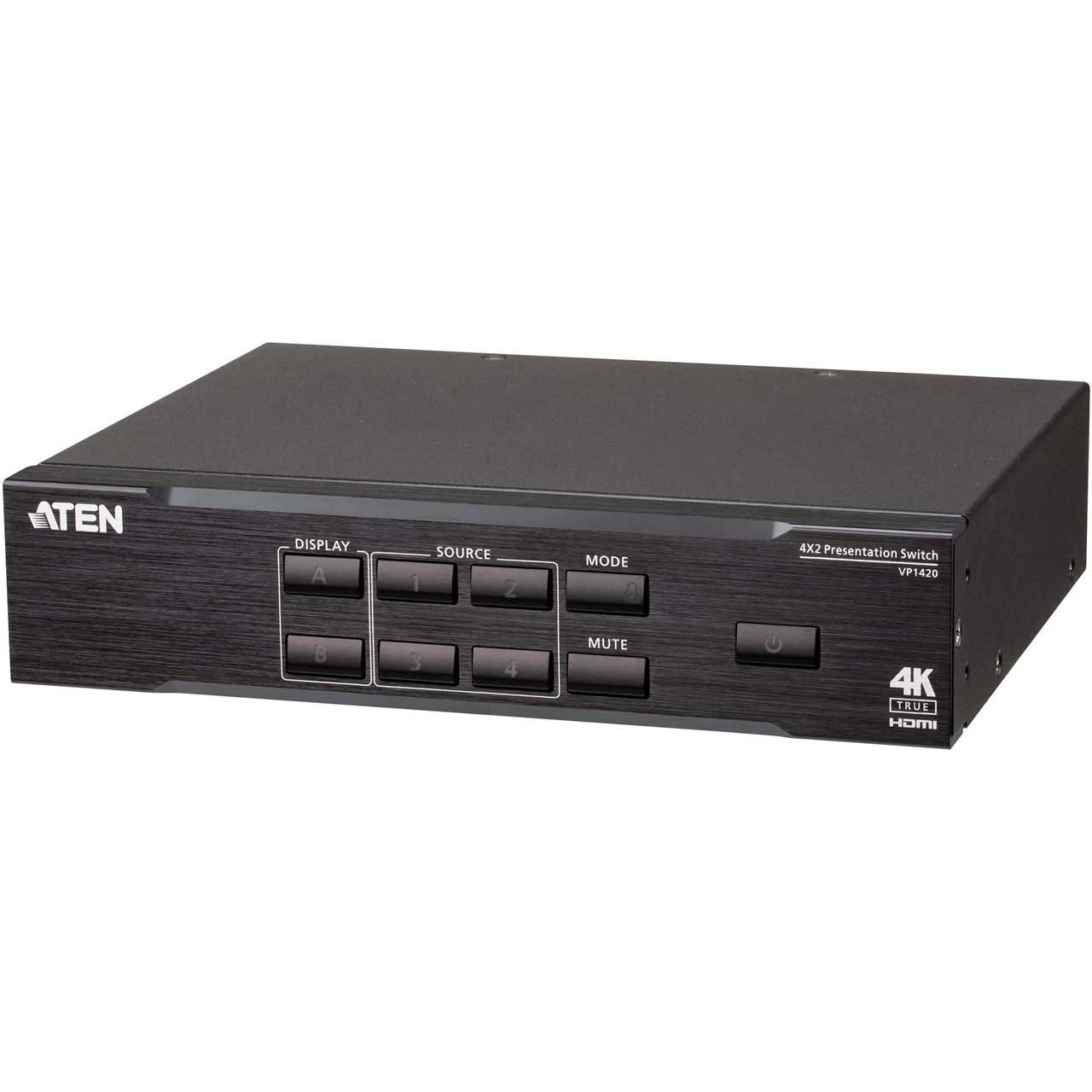

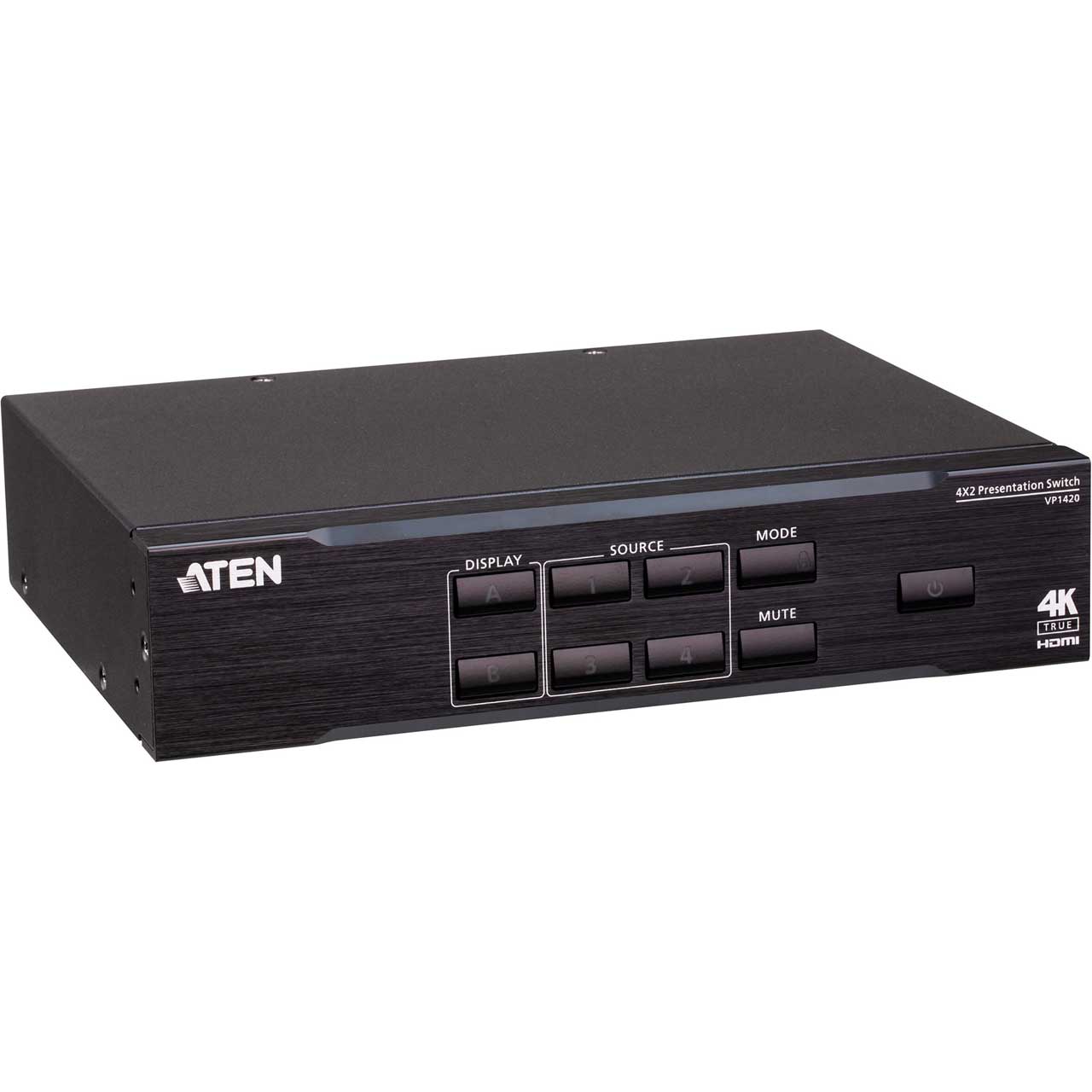

ATEN VP1420 4x2 True 4K Presentation Matrix Switch

ITEM #: ATEN-VP1420 MFG #: VP1420

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$724.00

Our Price:

$687.80

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    VP1420 - Overview

    The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

    With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels.

    Smooth AV Switching Scaled to Perfection

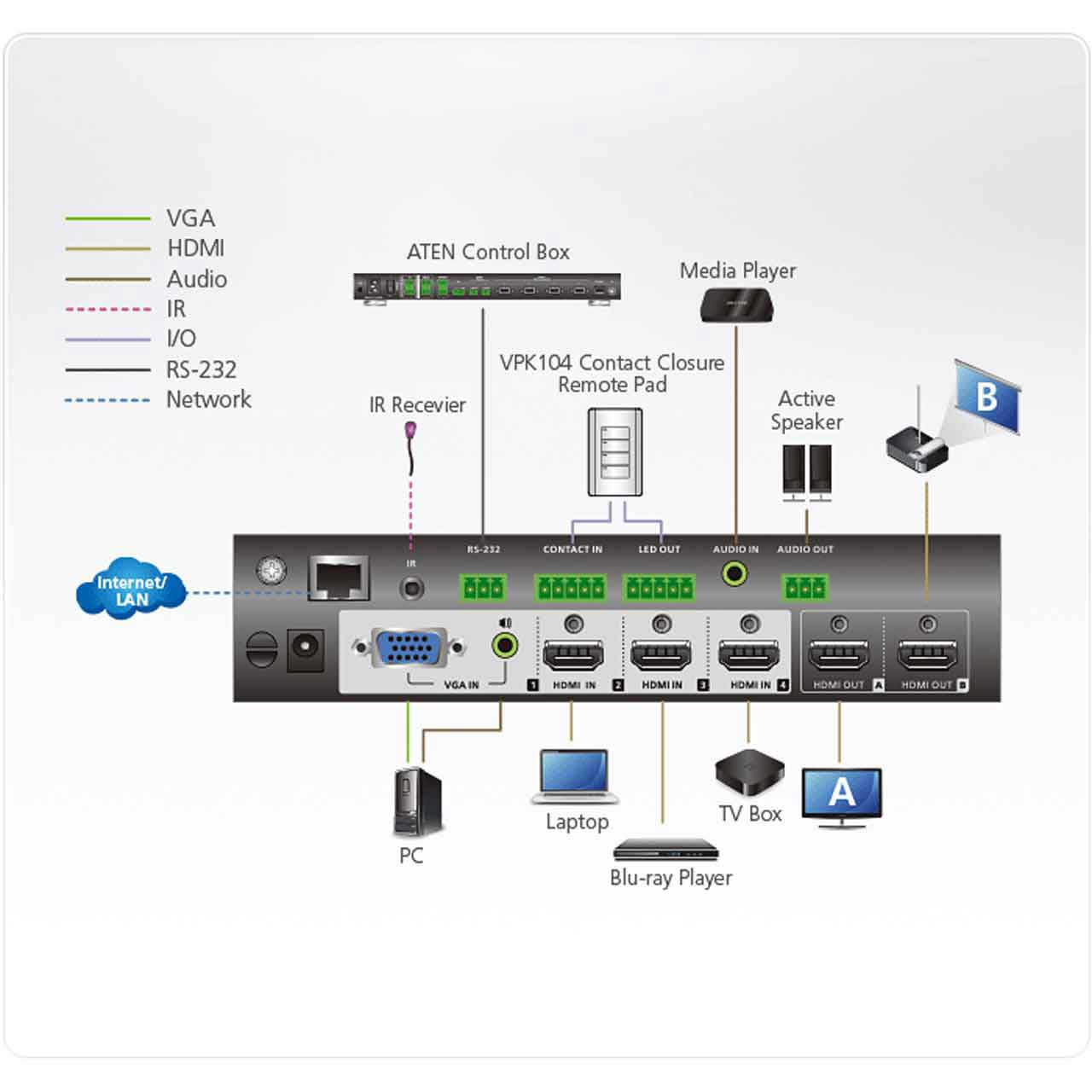

    Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.

    Flexible Audio Embedding / De-Embedding
    Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.

    Versatile Control, Streamlined Operations
    Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.

    • Features:

      • Analog/Digital AV Matrix Switching - switch among 3 HDMI and 1 VGA inputs to 2 HDMI outputs and support of audio embedding/de-embedding
      • Multiple control options - flexible control via front-panel pushbuttons, IR remote control, RS-232, Contact Closure, and web-based GUI through Ethernet
      • Superior video quality - True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI); HDR support
      • Scaler - supports video upscaling to 4K for display A and downscaling to 1080p for display B

    • Specifications:

      • Video Input
      • Interfaces: 3 x HDMI Type A female (Black)
      • 1 x VGA (HDB-15) Female (Blue)
      • Max. Distance: HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m
      • VGA: 1080p@60Hz at 15m

        Video Output
      • Interfaces: 2 x HDMI Type A female (Black)
      • Max. Distance: HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m

        Video
      • Max. Resolution: HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
      • VGA: Up to 1080p@60Hz
      • Compliance: HDMI 2.0 (3D, Deep Color, 4K); 4K HDR
      • HDCP 2.2 Compatible; Consumer Electronics Control (CEC)

        Audio
      • Input: Stereo Audio (VGA): 1 x mini stereo Jack female (Green)
      • Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
      • Output: Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole

        Control
      • RS-232: 1 x Captive Screw Connector, 3-pole
      • IR: 1 x Mini Stereo Jack Female (Black)
      • Ethernet: 1 x RJ-45 Female (Silver)
      • Contact In: 1 x Captive Screw Connector, 5-pole
      • LED Out: 1 x Captive Screw Connector, 5-pole
      • LED out power: +5 VDC, 0.2 A

        Switches

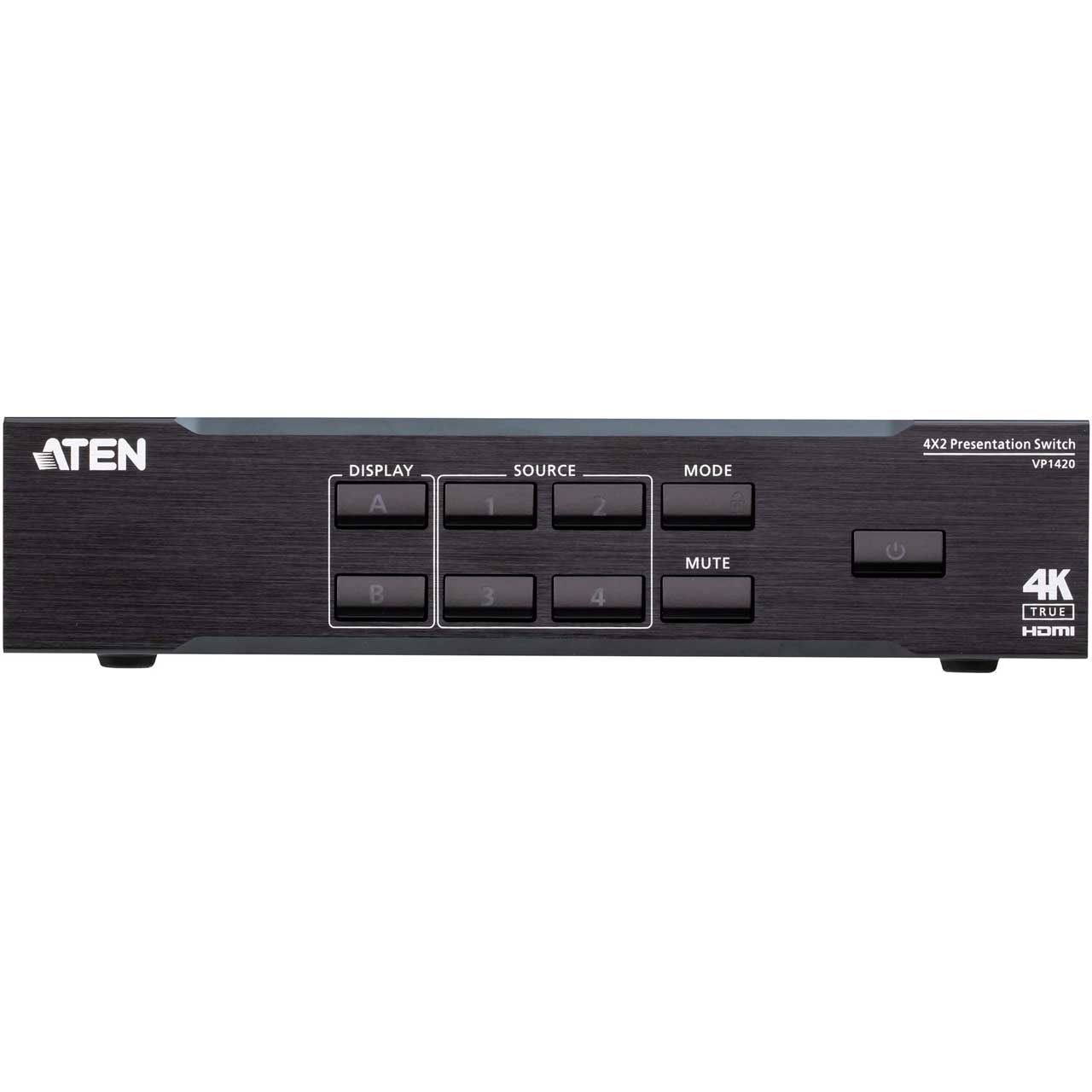

      • Power: 1 x Pushbutton (LED: Green / Orange)
      • Video Input Port Selection: 4 x Pushbutton (LED: Green)
      • Video Output Port Selection: 2 x Pushbutton (LED: Orange)
      • Selection: Mute: 1 x Pushbutton
      • Mode / Unlock: 1 x Pushbutton
      • EDID Settings: EDID Mode: ATEN Default / Display A / Remix

        Connectors
      • Power: 1 x DC Jack (Black)
      • Power Consumption: DC5V:7.21W:38BTU

        Environmental
      • Operating Temperature: 0-40°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties
      • Housing: Metal
      • Weight: 1.09 kg ( 2.4 lb )
      • Dimensions (L x W x H): 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.)

    • Item Includes:

      • 1x VP1420 4 x 2 True 4K Presentation Matrix Switch
      • 1x IR Receiver
      • 1x IR Remote Control
      • 2x 3-pole Terminal Blocks
      • 2x 5-pole Terminal Blocks
      • 1x Power Adaptor
      • 1x User Instructions

    • GTIN:

      0672792010873
