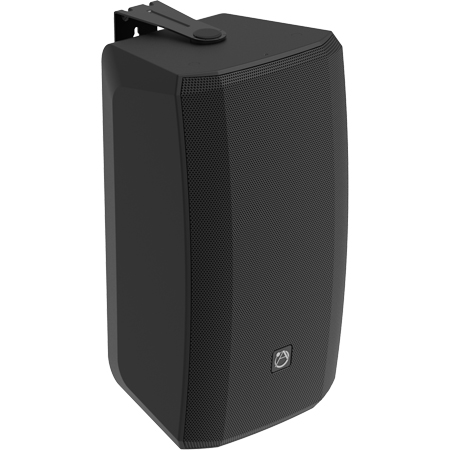

AtlasIED AS-10T-B AS Series 2-Way 10-Inch Weather Resistant Surface Mount 960 Watt Loudspeaker - Passive - Black

ITEM #: ATL-AS-10T-B MFG #: AS-10T-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$900.00

Our Price:

$720.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AS-10T-B - Overview

    Equipped with a low insertion loss 120W transformer for 70V or 100V distributed application!

    The AtlasIED AS-10T is a high performance, two-way Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for distributed sound reinforcement applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

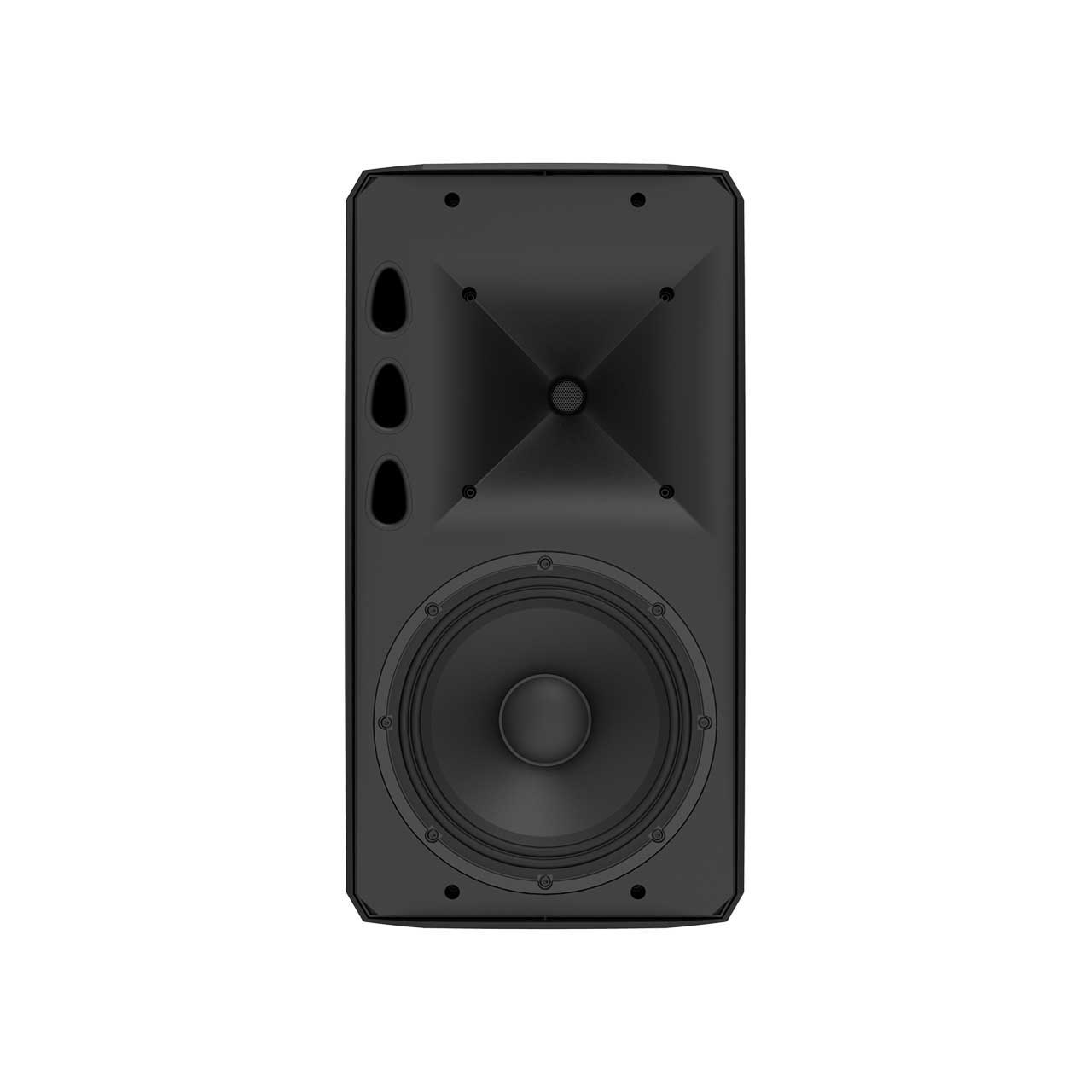

    Featuring a high excursion 10" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-10T delivers a consistent and accurate broadband frequency response, both on and off axis.

    Available in textured black or white, the outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

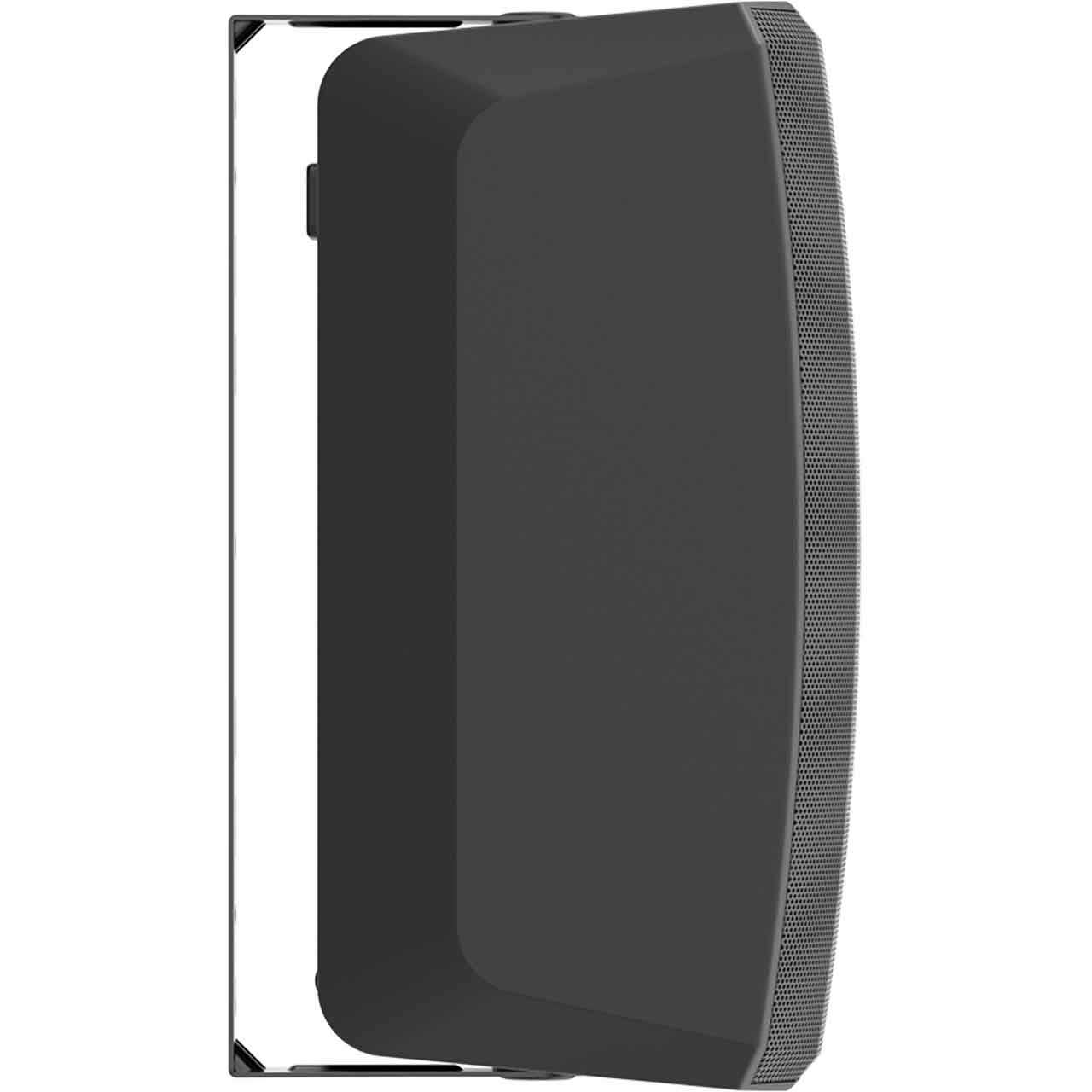

    Safe and effective Installation of the AS-10T is made simple by way of the included slip free yoke mount.

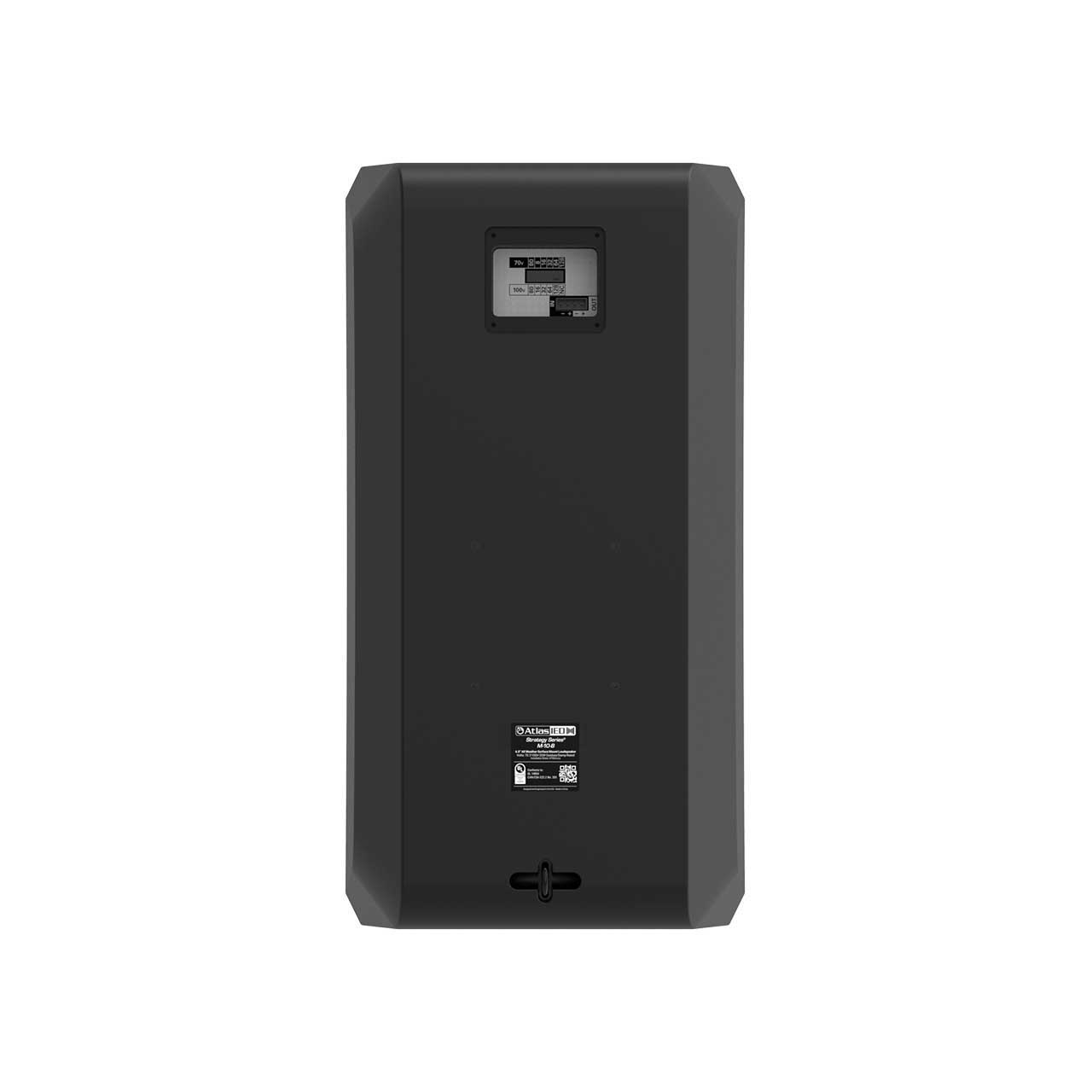

    Equipped with a low insertion loss 120W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

    The AS-10T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used.

    • Features:

      • Minimalistic and clean industrial design for sensitive architectural constraints
      • Effective coverage for systems with space limitations
      • Extremely consistent off axis performance
      • Ultra-low insertion loss 15W transformer for dynamic performance in distributed systems
      • High impact ABS enclosure with UV inhibitor
      • IP55 & UL1480A rated
      • Slip-Free yoke mount supplied. Optional pan and tilt bracket. Compatible with VESA mounts

    • Specifications:

      • System Specifications
      • Type: Two-Way, Full Range, Surface Mount Loudspeaker
      • Frequency Range (-10dB): 45Hz-20kHz
      • Frequency Response (+/- 3dB): 58Hz-18kHz
      • System Sensitivity (1W @ 1m): 93dB
      • Nominal Coverage Angle (HxV -6dB): 100° x 90°

        Power Handling
      • Average: 240W
      • Programme: 480W
      • Peak: 960W
      • Recommended Amplifier Power: 480W @ 8 Ohms
      • Nominal Impedance: 8 Ohms (Min 8.15 Ohms)

        Rated Maximum SPL
      • Average: 117dB
      • Peak: 123dB
      • With Max. Transformer Tap - Average: 114dB
      • Transformer Taps- via slide selector switch: 120W, 60W, 30W, 15W ( 7.5W 70V) & Low Z operation
      • Directivity Index (dB): 8.5

        Transducer
      • Low Frequency: 10" (250mm) Weather Treated Paper, Fabric Double Roll Surround
      • High Frequency: 25 mm (1 in) exit compression driver, PPT Protection

        Physical
      • Enclosure: High Impact ABS UL-V0
      • Grille Material: Aluminum, Powder Coated
      • Connectors: Euroblock with screw connections and loop output
      • Safety Agency Rating: UL1480A, CE
      • Ingress Protection: IP55
      • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
      • Product Dimensions (HxWxD): 23.4" x 12.25" x 11.74" (594.4mm x 311.2mm x 298.2mm)
      • Net Weight - (per unit): 35.63lbs (16.16kg)

    • Item Includes:

      • 1x AtlasIED AS-10T-B 10-Inch AS Series Surface Mount Loudspeaker - Black
      • 1x Slip Free U-Bracket

    • Warranty:

      • 5-Year Limited Warranty
