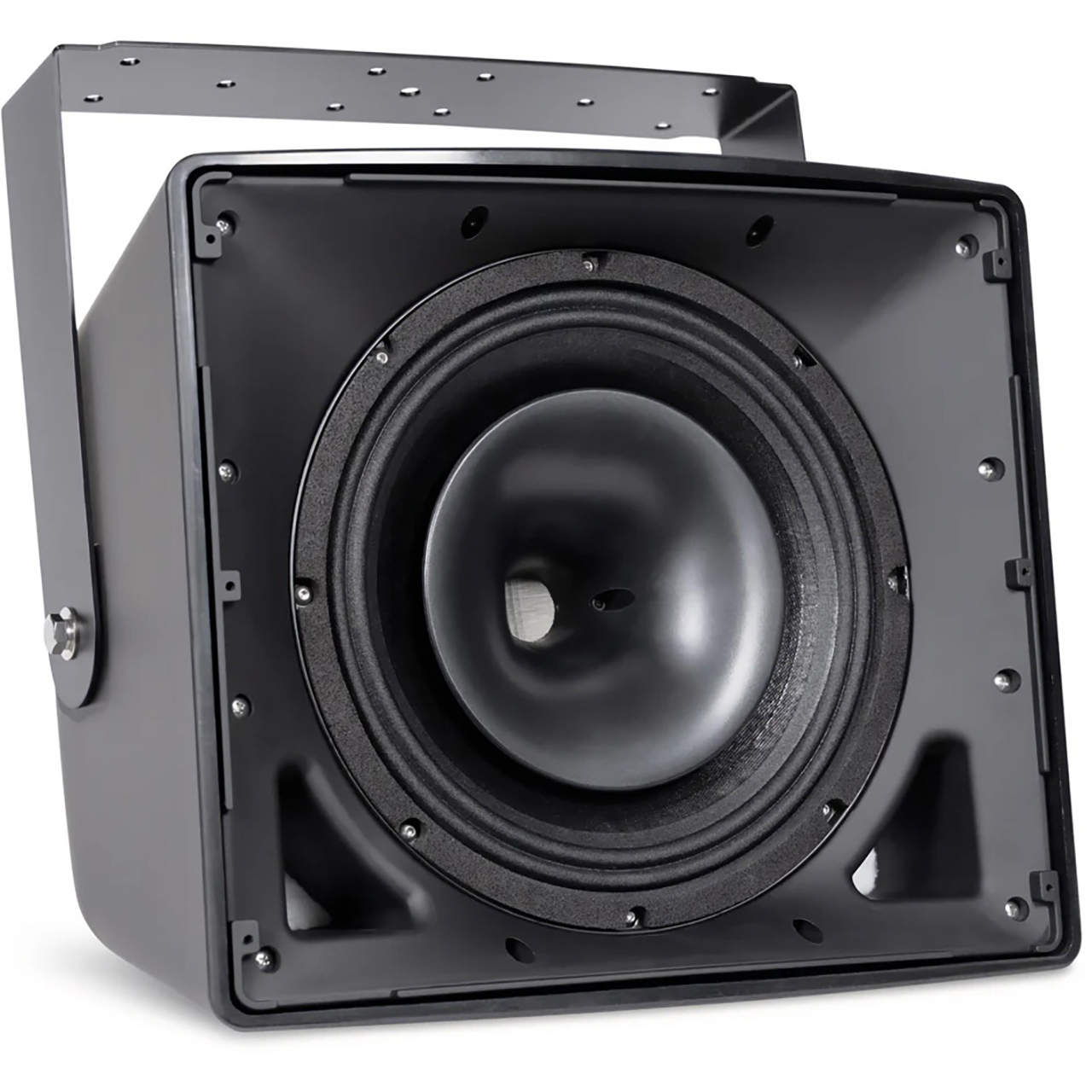

Pure Resonance Audio S12 12-Inch High Output 2-Way Full-Range All-Weather Loudspeaker

ITEM #: PRA-S12 MFG #: PRA-S12

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$983.99

Our Price:

$819.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PRA-S12 - Overview

The Pure Resonance Audio S12 is a 12" multipurpose 2-way full-range all-weather outdoor speaker that offers a wider frequency range, more powerful sound, and enhanced coverage compared to its smaller sibling, the S10 10" speaker. While the S10 is a reliable and economical choice, the S12 provides a step up in size and performance for those seeking greater capabilities. This outdoor stadium speaker boasts an IP66 rating, ensuring it is dust-tight and protected against high water pressure. The S12 is made to withstand harsh environmental conditions with a stainless steel enclosure, fiber-reinforced plastic cover, and a metal grill. Equipped with a 12" coaxial woofer and 1.5" tweeter, it delivers a full-frequency response and precise speech reproduction over a wide area. This 70V outdoor speaker features a built-in 300W 70V/100V multi-tap transformer with an 8Ω bypass for high-output sound. Easy to mount with an included wall bracket, the S12 speaker is perfect for music, paging, and general public address in stadiums, gymnasiums, schools, parks, warehouses, and other outdoor commercial applications.

  • Features:

    • Weatherproof: Highly weatherproof IP66-rated construction with fiber-reinforced plastic, stainless steel enclosure, and a metal grill ensures complete protection against direct high-pressure water jets, dust, and other particles for long-term reliability in severe outdoor environments.
    • Quality Performance: The coaxial 12 Inch LF paper cone and 1.5Inches HF thermoplastic drivers produce a full-range frequency response of 70Hz - 20kHz and a max SPL of 120dB for stable organic sound with precise vocal reproduction and low distortion.
    • Built-In Transformer: Recessed screw terminal connector, 70V and 100V multi-tap transformer (with an 8Ω bypass), and a waterproof seal cover provide a weather-safe connection.

  • Specifications:

    • Power Rating: 300W RMS; 600W Peak
    • Frequency Response (±10dB): 70Hz - 20kHz
    • Sensitivity (@ 1w/1m): 105dB
    • Max SPL: 120dB
    • Dispersion: 90° x 90°
    • Impedance:
    • Transformer Taps:
      - 70V: 18.75W, 37.5W, 75W, 150W, 300W
      - 100V: 37.5W, 75W, 150W, 300W; 8Ω Bypass
    • Woofer: 12" Paper cone with 3" voice coil
    • Tweeter: 1.5" Thermoplastic
    • Grill: Metal
    • Material: Fiber-reinforced plastic and stainless steel enclosure
    • Protection Rating: Weatherproof IP66
    • Connection: Screw terminal
    • Mount: Wall mounting bracket and M8 eyebolt
    • Dimensions (HxWxD): 14.76" x 15.55" x 17.13" (375mm x 395mm x 435mm)
    • Weight: 44.75lbs (20.3kg)
    • Shipping Dimensions (HxWxD): 19.49" x 21.06" x 19.69" (495mm x 535mm x 500mm)
    • Shipping Weight: 48lbs (21.65kg)

  • Item Includes:

    • 1x S12 All-Weather Outdoor Stadium Speaker
    • 1x Wall Mounting Bracket
    • 1x M8 Eye Bolt

  • GTIN:

    0810093052325
