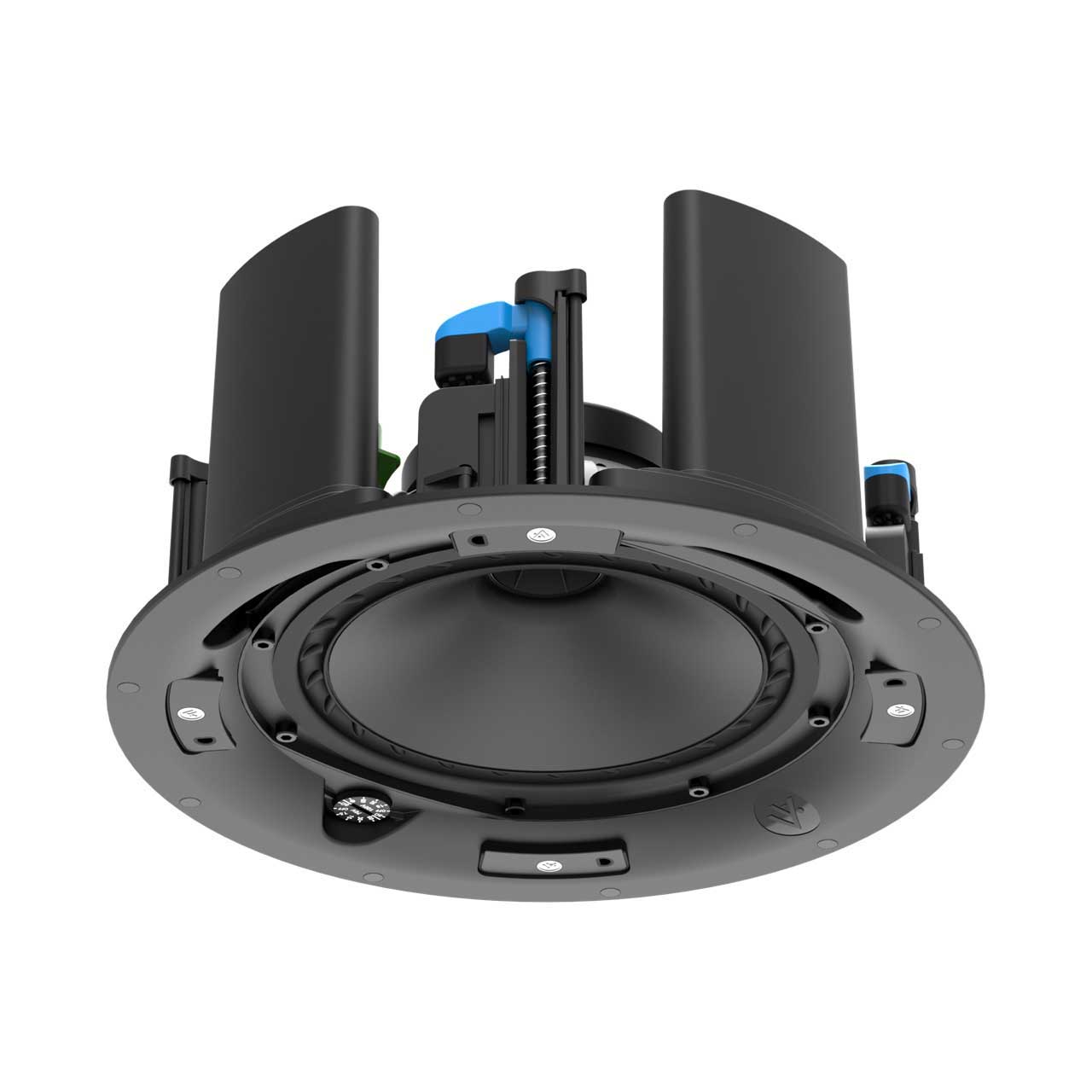

AtlasIED FC-8DRV IsoFlare 8-Inch Wide Bandwidth/High Sensitivity 360 Watt Speaker Pre-Install Driver

ITEM #: ATL-FC-8DRV MFG #: FC-8DRV

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$429.00

Our Price:

$343.00

Availability: Preorder
iAvailability Description Popup


    FC-8DRV - Overview

    The AtlasIED IsoFlare FC-8DRV is a full bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

    Designed for use in applications requiring pre-installed backcans, where the first fix can be carried out during the electrical installation without the worry of damaging the loudspeaker parts during the building construction phase.

    The IsoFlare FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare to the premium commercial space in an integrated package.

    Unlike most ‘coax’ offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

    Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

    The FC-8TPI is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

    • Features:

      • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation.
      • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.
      • Ferrofluid cooled titanium HF with neodymium magnet system.
      • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange.
      • Fluted Surround Technology - Conventional driver surround profiles can reflect energy back down the cone causing coloration. Optimized smooth transition baffle (no sharp edges which cause diffraction).
      • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer.
      • High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors).
      • Easy Access Tap Rotary Selector Switch.
      • Enhanced voicing presets available via AtlasIED Atmosphere platform.

    • Specifications:

      • General Specifications
      • Type: Direct Radiating Ceiling Subwoofer (Blind Mount)
      • Frequency Range (-10dB): 44Hz - 30kHz
      • Frequency Response (+/- 3dB): 59Hz - 25kHz
      • System Sensitivity (1W @ 1m): 92dB
      • Nominal Coverage Angle (-6dB): 90deg;
      • Directivity Index (dB): 7.5

        Power Handling
      • Average: 90W
      • Programme: 180W
      • Peak: 360W
      • Recommended Amplifier Power: 160W @ 8 Ohms
      • Nominal Impedance: 8 Ohms
      • Transformer Taps - Via Rotary Selector Switch: 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation

        Rated Maximum SPL
      • Average: 112dB
      • Peak: 118dB
      • With Max. Transformer Tap - Average: 110dB

        Transducers
      • Low Frequency: 8" (200mm) Bass/Mid, mineral loaded polypropylene
      • High Frequency: 1" (25mm) titanium dome with neodymium magnet system, Ferrofluid cooled

    • Item Includes:

      • 1x AtlasIED FC-8DRV 8-Inch Premium Ceiling Speaker Pre-Install Driver

    • Warranty:

      • 5-Year Limited Warranty
