AtlasIED IP-12SYSP Indoor 1 x 2 Foot 8 Ohm Suspended Ceiling Mount Extension Speaker for IPX Series

Name: AtlasIED IP-12SYSP Indoor 1 x 2 Foot 8 Ohm Suspended Ceiling Mount Extension Speaker for IPX Series
Brand: AtlasIED
SKU: ATL-IP-12SYSP
Price: 142.99 USD
Availability: PreSale

ITEM #: ATL-IP-12SYSP MFG #: IP-12SYSP

AtlasIED

List Price:

$176.99

Our Price:

$142.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

IP-12SYSP - Overview

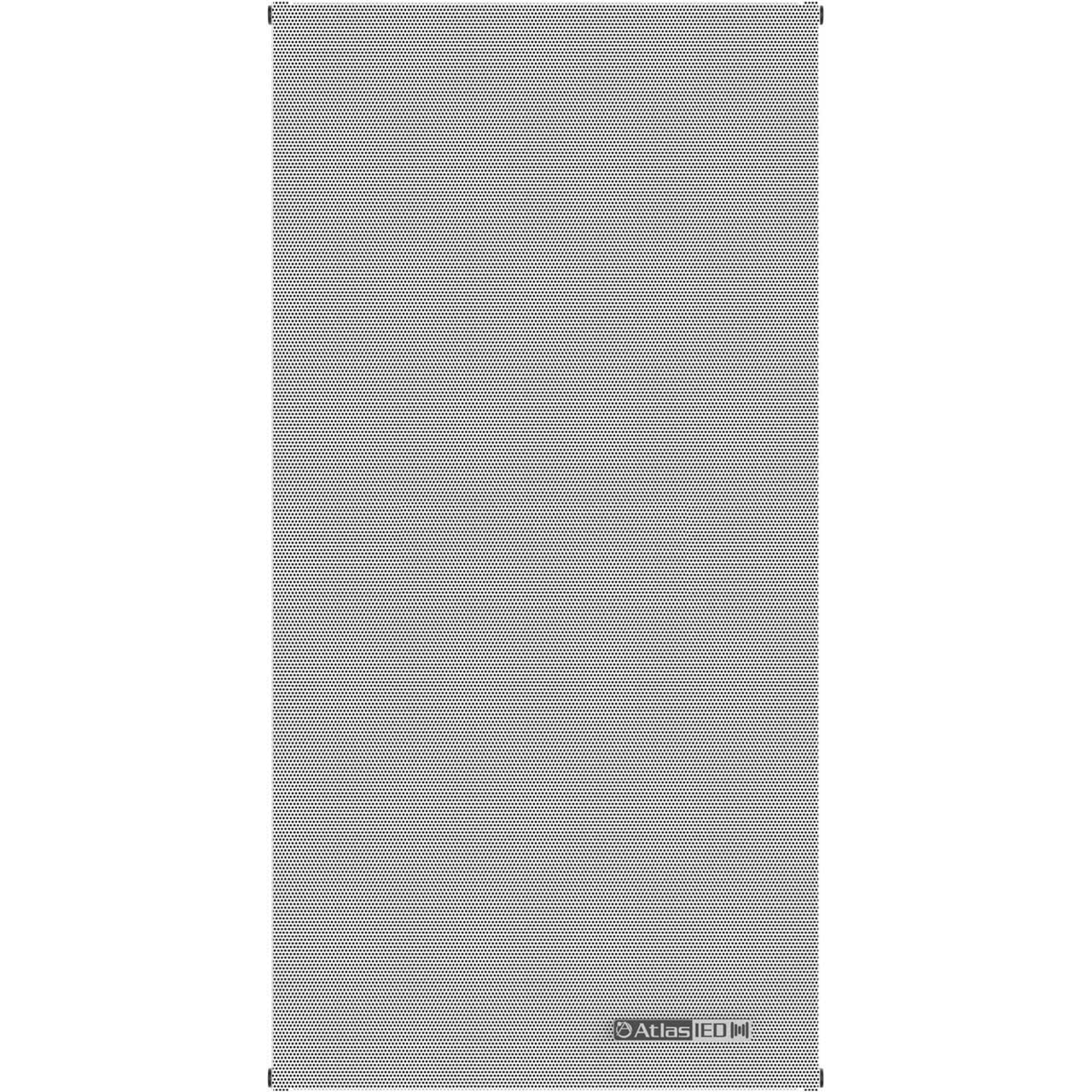

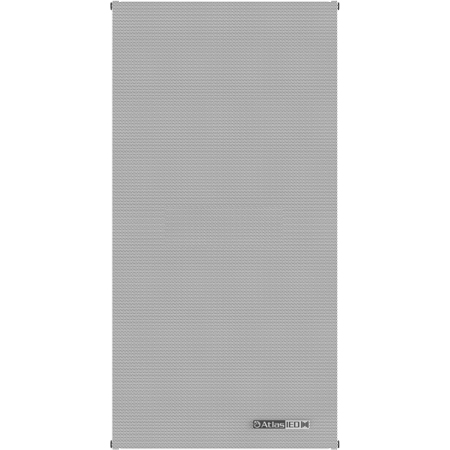

The AtlasIED IP-12SYSP is an installer friendly suspended ceiling mount passive speaker designed to be used with other powered IPX products. The IP-12SYSP is the perfect companion product to expand announcement and background music coverage in large spaces. With the same industrial design as the popular IP-12SYSM, mixed systems of passive and active speakers are now visually seamless.

Specifically designed as an accessory to the existing IPX products the IP-12SYSP is designed as an 8 ohm only speaker avoiding the cost and complexity of traditional 70/100V speakers.

Features:
- Fully Perforated Grille
- Direct Drive 8" Loudspeaker
- Wide Dispersion Angle for Large Coverage Area
- Durable Metal Backcan and Baffle
- IP-22SYSM Matching Industrial Design
- Metal Electrical Box for Cable Termination
Specifications:
- Acoustical Specifications
- Frequency Response (-10dB): 110Hz - 6kHz
- Sensitivity (1W/1m Half Space): 95dB SPL
- Maximum SPL @ 1m: 105dB SPL Calculated
- Dispersion Angle (Vertical): 130°
- Dispersion Angle (Horizontal): 120°

  Mechanical Specifications
- Grille Material: STL 0.8mm PERF -> PERF Pattern = 1.60mm X 3.4mm Pitch
- Grille Color: RAL 9016 Traffic White, Atlas White
- Baffle Material: 1mm CRS
- Backcan Color: RAL 9017 Traffic Black, IED Black
- Connector Type: 22 GA. DQSK Bare Wire Leads
- Product Dimensions (HxWxD): 5.01" x 23.69" x 12.10" (127mm x 602mm x 307mm)
- Net Weight - lbs: 9.25 lbs (4.20kg)
Item Includes:
- 1x AtlasIED IP-12SYSP Suspended Ceiling Mount Passive Extension Speaker
Warranty:
- 1-Year Limited Warranty
