Atlas MYNA2-2 Atlas Learn Dual MYNA Wireless Mic and Dual IR Dome Kit

ITEM #: ATL-MYNA2-2 MFG #: MYNA2-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATL-MYNA2-2

MYNA2-2 - Overview

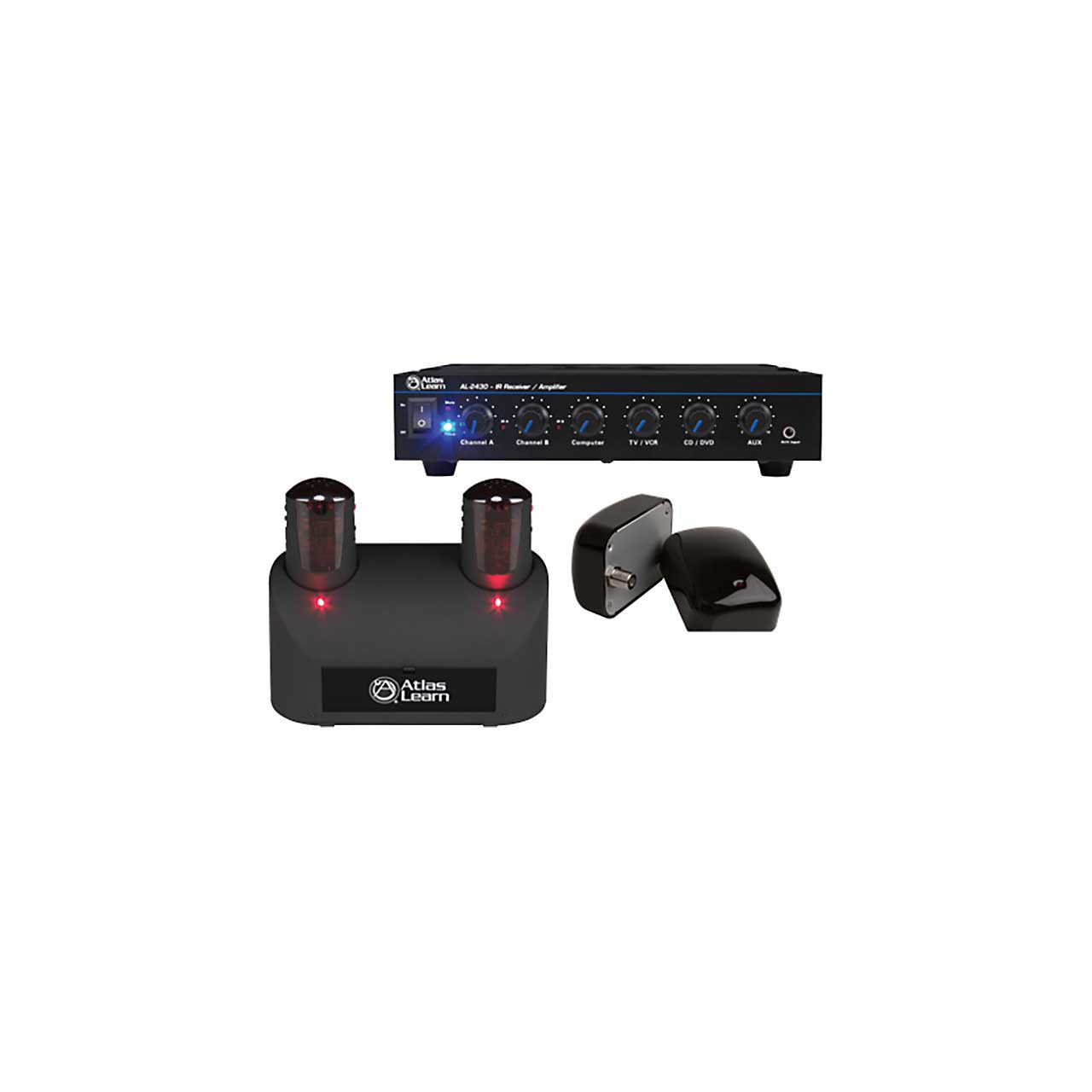

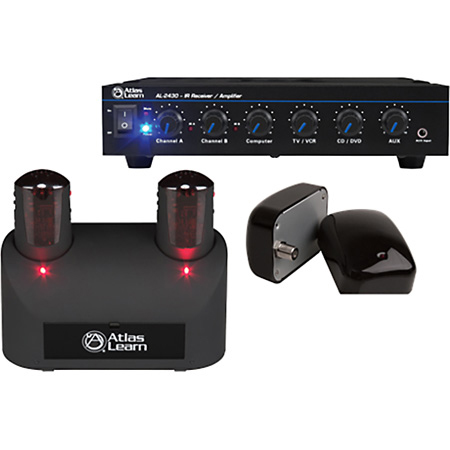

The Atlas Learn MYNA2-2 complete kit is the ideal solution for larger classrooms or boardrooms where two microphones are required. This kit allows you to get all the benefits of the Atlas Learn system without paying for parts or accessories that are not needed.

AtlasIED offers a full line of compatible in-ceiling and surface mount loudspeakers that can be used with an Atlas Learn system.

  • Features:

    • AL2450 6 Input Mixer with Priority Page Override
    • Front Panel Source Volume Control
    • Operates Using 2 AA Rechargeable Batteries
    • Dual Mode Operation
    • Supports Up to Three Infrared Wireless Microphone Transmitters
    • AL-MYNA Wireless Infrared Microphone Transmitter
    • AL-IRDS Includes 10m Coaxial Cable for Connection to AL2430


  • Specifications:

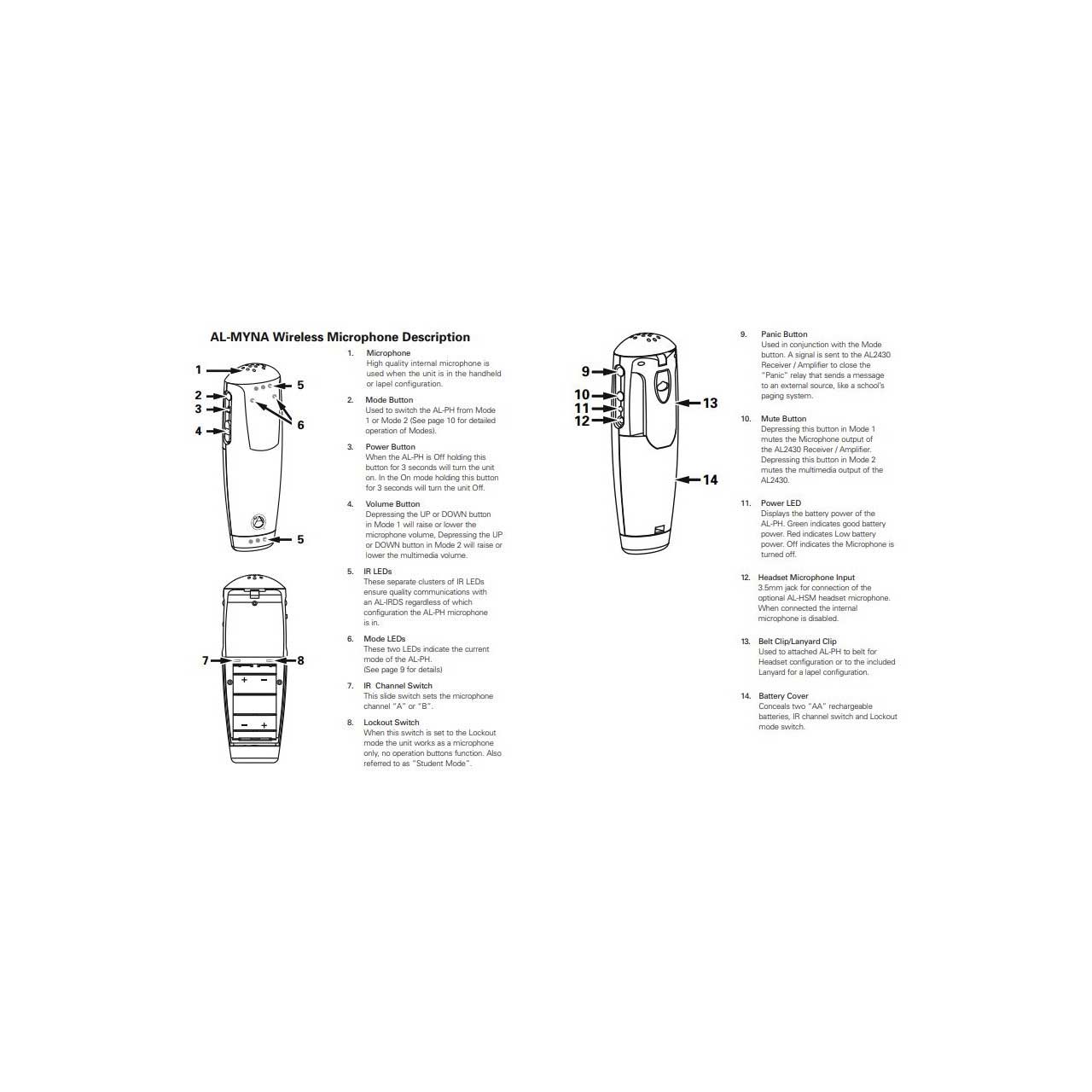

    • AL-MYNA Microphone
    • IR Led's: 6
    • Aux Input: 1, 3.5mm Phono Jack, Mic Level
    • External Controls: Power, Panic, Mic Volume
    • Internal Controls: Lockout, Mic A/B Channel
    • Indicator LED's: Mode (2 Blue), Lockout (1Red), PWR/BATT (1 Green/ Red)
    • Dimensions: 5.25 in x 1.75 in x 1.15 in (133mm x 44mm x 29mm)
    • Weight With Battery: 4.23 oz (120 g)
    • Weight Without Battery: 2.1 oz (60 g)

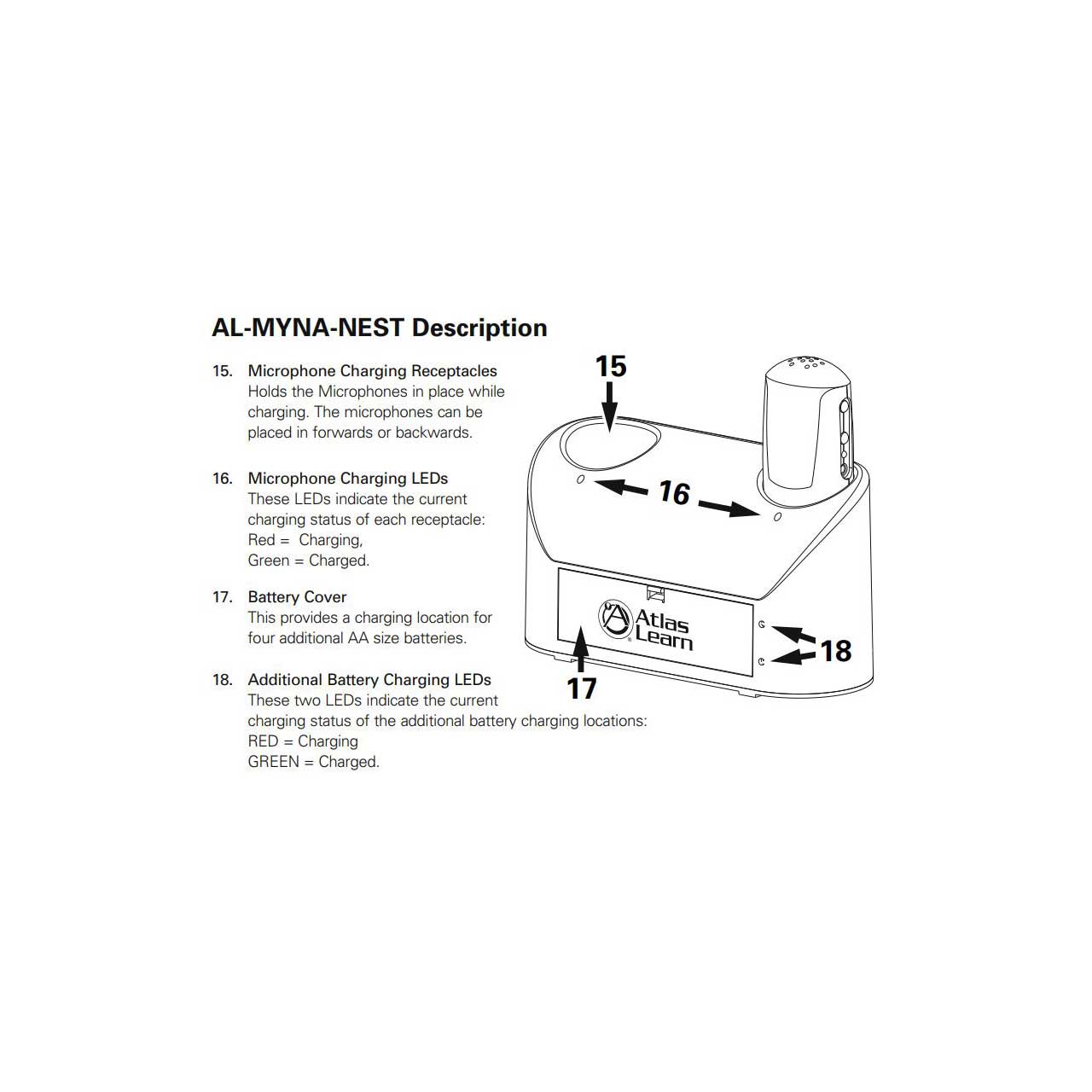

      AL-MYNA-NEST Microphone
    • AL-MYNA Ports: Two Charging Ports
    • Charge Indicator LED's: 4 (Red-Charging, Green-Charged)
    • PSU Type: 120V Input, 9VDC, 1A Output
    • Dimensions: 4.17 in x 7.44 in x 2.75 in (106mm x 189mm x 70mm)

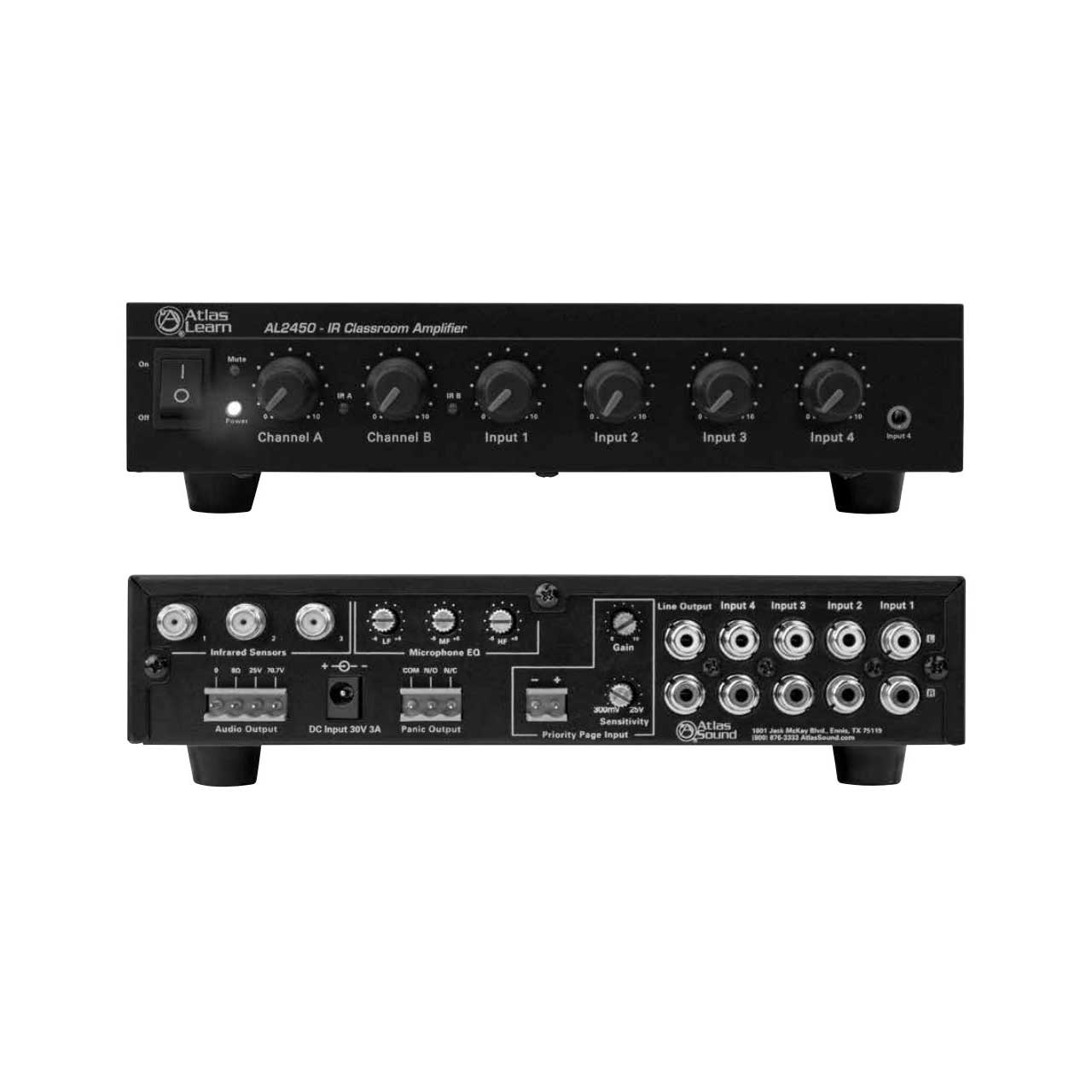

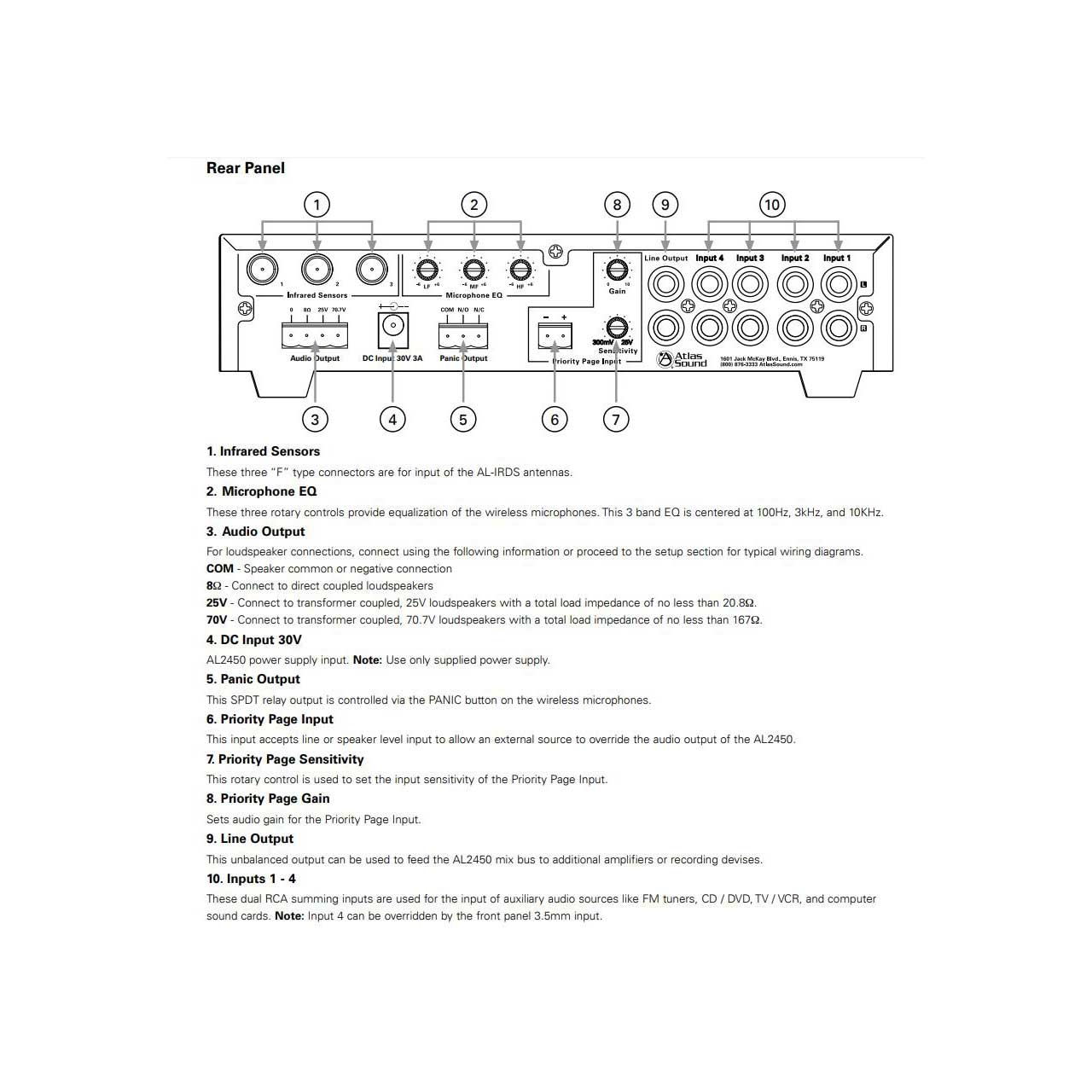

      AL2450 AtlasIED Amplifier
    • Multimedia Input Sensitivity: -10dB
    • Priority Page Input Sensitivity: 14dB
    • Computer Input Impedance: 56K
    • Multimedia Input Impedance: 22K
    • Multimedia Input Connector Type: Dual RCA
    • AUX Front Input Connector Type: 3.5mm
    • Line Output Impedance: 1K
    • Line Output Voltage: 1.3V
    • Line Output Connector Type: Dual RCA
    • Mic EQ (100Hz, 3kHz, & 10kHz) Adjustment: ±10dB
    • IR Input Impedance / Connector Type 75Ω F Connector
    • Panic Output Contact Rating: 5A@ 36V
    • Speaker Output 50W RMS @ 8Ω 25V or 70.7V
    • In Line PSU Type 100V-240V In, 24VDC / 2.5A Out
    • Dimensions(W x H x D): 8 1/2 in x 1 3/4 in x 13 1/2 in (216mm x 45mm x 343mm)
    • Weight 5.75lbs (2.6kg)


  • Item Includes:

    • (1) AL2450 amplifier/receiver
    • (2) AL-MYNA wireless microphone
    • (1) AL-MYNA-NEST charging station
    • (2) AL-IRDS infrared dome transmitters
    • (20) meters (65 feet) of coaxial cable to connect the AL-IRDS with the AL2450
