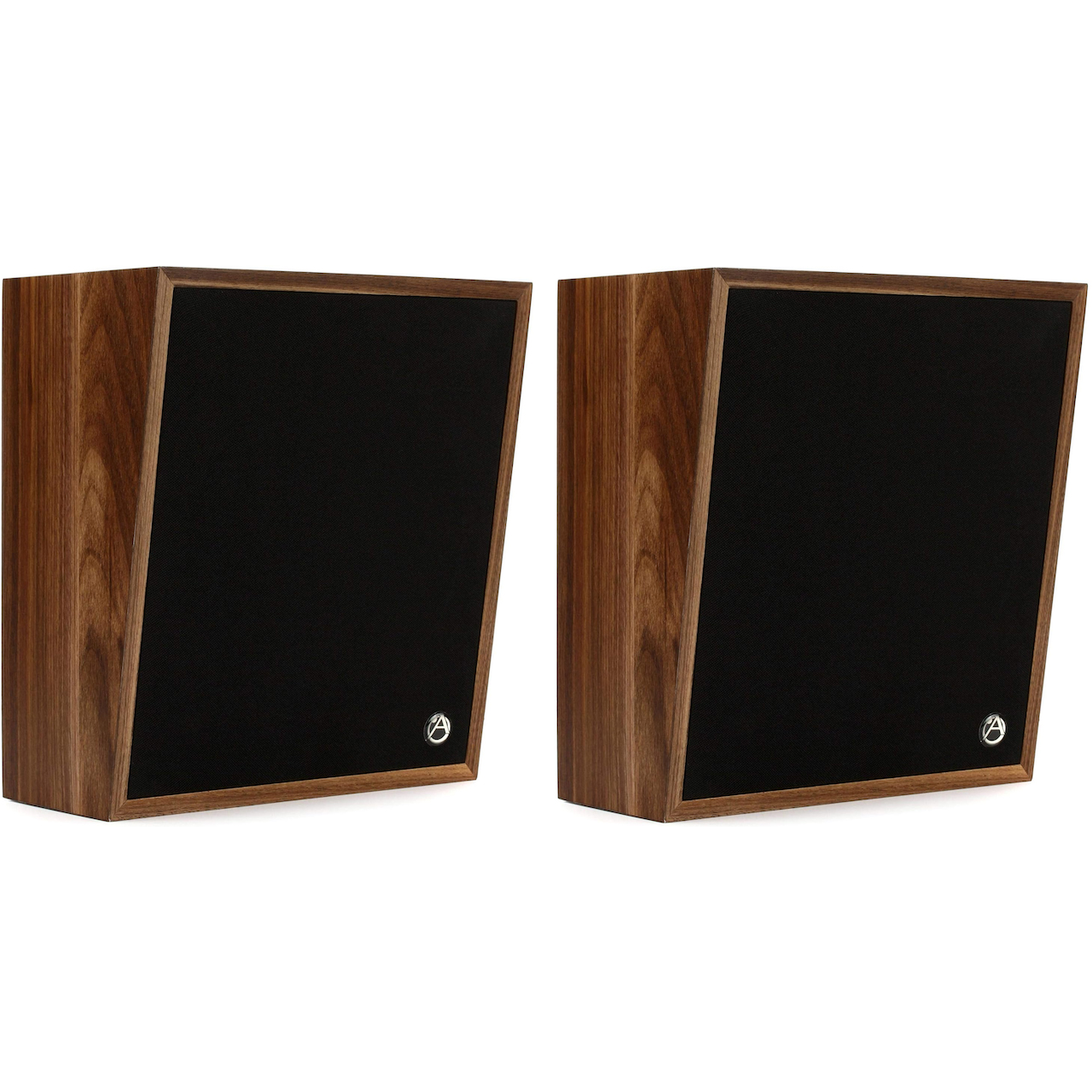

Atlas WD417 72V 8-Inch 9.5° Loudspeaker & Surface Baffle - 25 / 70.7V-4W xfmr with Volume Control - Pair

WD417-72V - Overview

For a wide variety of surface-mount applications where aesthetics and high-quality sound reproduction are primary concerns!

• Features:

  • 9.5° Sloped Design Offers Directional Sound Projection
  • Attractive Design is Suitable for Use in a Variety of Surface- Mount Applications
  • Includes High-Quality 8" Loudspeaker with Line Transformer
  • Knob/Screwdriver-Adjust Volume Control


• Specifications:

  Loudspeaker
  • Size: 8"
  • Magnet: 5.0oz (132g) Ceramic
  • V.C. Diameter: 1" (25mm)
  • V.C. Impedance: 8Ω
  • Flux Density: 9,200 Gauss
  • Sensitivity: 96dB @ 1W/1M
  • Watts (Program): 15
  • Frequency Response: 50Hz - 15kHz

    Transformer
  • Power Taps: 0.5, 1, 2, 4
  • Primary Volts: 25/70.7
  • Secondary: 8Ω
  • Core Size: 1/2" x 5/8" (13mm x 16mm)
  • Power: 4W
  • Leads: Color Coded, Stripped & Tinned


• Item Includes:

  • 1x Atlas WD417 72V 8" Slant Wall Mount Speaker & Baffle Package - 25/70.7V-4W xfmr with Volume Control - Pair
