Atlona AT-VGW-HW-T2 Velocity Hardware Gateway for AV Control and Management / Room Scheduling - 20 Rooms

AT-VGW-HW-T2 - Overview

Hardware Gateway for AV Control and Management plus Room Scheduling

• Features:

  • Velocity hardware gateway for AV control, room scheduling, and device management
  • Supports 20 rooms of AV control, 40 rooms of scheduling, and up to 1,000 IP devices
  • Up to 10 additional rooms may be added via optional AT-VRL-SW licenses if excess resources are available
  • Fast streamlined configuration with an intuitive, browser-based setup and options for pre-configured or custom touch panel user interfaces
  • Configurations can easily be duplicated across devices, rooms, and sites
  • Create role-based accounts for integrator, client, and AV/IT staff members, each with clearly defined access privileges
  • Supports Velocity touch panels for user control as well as BYOD mobile devices at no extra cost
  • IP-based device control over the Ethernet network reduces components and simplifies cabling
  • Room scheduling server works with a variety of calendar applications including Google Workspace, Office 365, Microsoft Exchange, and Astra Schedule.
  • Dual Gigabit Ethernet ports for isolating a dedicated AV LAN from the facility or corporate network
  • Supports industry-standard, secure data communications through HTTP/2, HTTPS, SSH, SFTP, and WebSockets with TLS and AES-128 encryption.
  • Control system redundancy with automatic failover, available via primary and backup VGW-HW gateways
  • Includes Velocity Device Manager for configuring and managing Atlona devices on the network
  • Optional Velocity Premier Services - Remote Gateway (AT-VPS-RG), for remote configuration, management, and control over the Internet
  • Atlona's optional line of VCC IP command converters provide compatibility for devices that require control via RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), or relays / sensors (AT-VCC-RELAY-KIT).

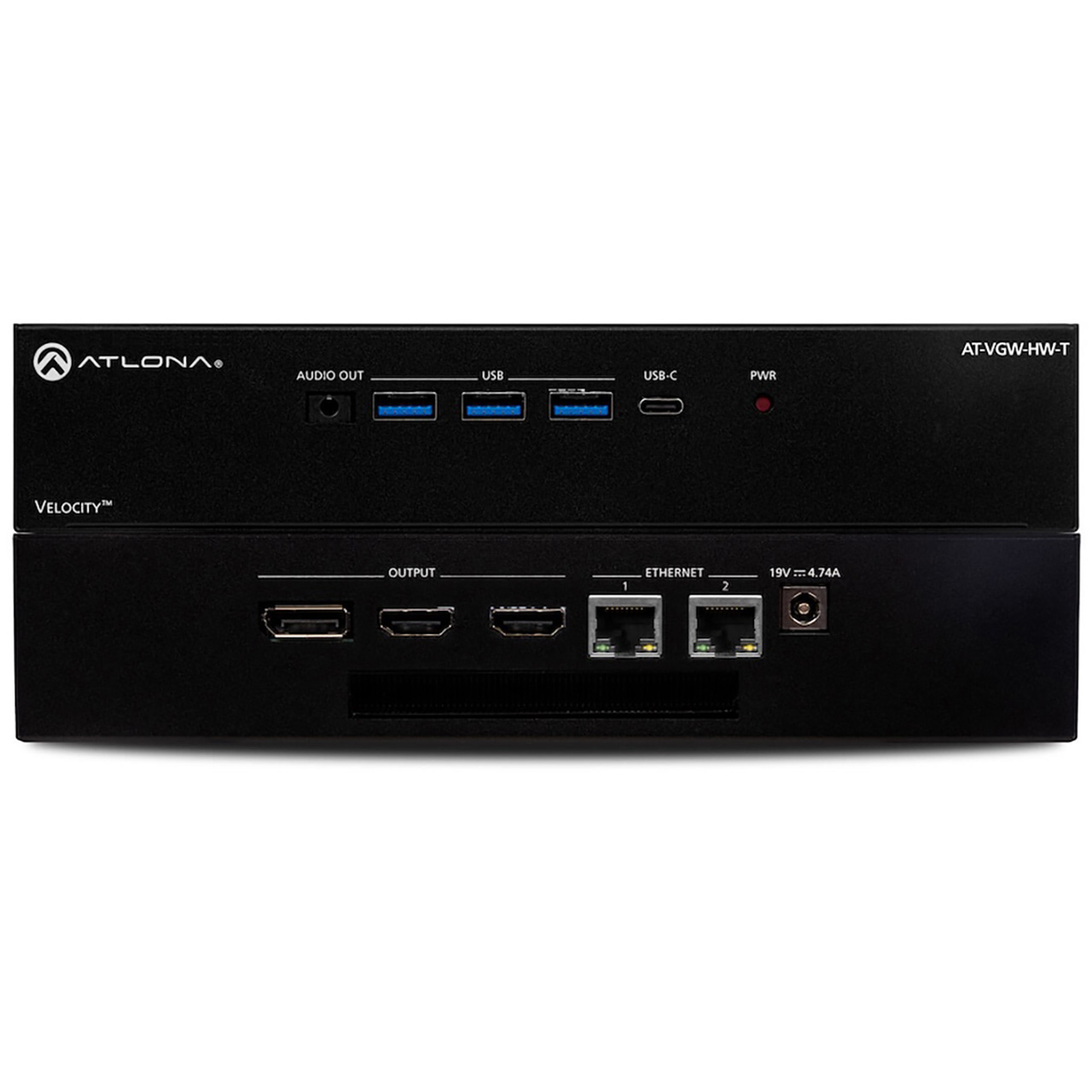

  • Rack-mountable 1U, half rack width enclosure.
  • Delivers up to 20 rooms for AV control, and up to 40 rooms for scheduling..


• Specifications:

  • NIC: Two Network Interface Controllers (NIC) - supports segregated AV and facility LANs
  • Ports: 2 x RJ45 ports, one to each NIC
  • Standards and Protocols: DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x.
  • Ethernet Speed: 10/100/1000 Mbps
  • Addressing: DHCP, static
  • Power Consumption: 90W
  • BTU/h: 307
  • Supply Input: AC100~240V 50/60Hz
  • Output: DC 19V / 4.74A
  • Control Software: Built-in web portal for system configuration and management.
