Atlona AT-OME-EX-WP-KIT Omega 4K/UHD HDMI Over HDBaseT TX Wallplate/RX with USB - Control and PoE

ITEM #: ATNO-ATOMEEXWPKT MFG #: ATOMEEXWPKT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,701.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ATOMEEXWPKT - Overview

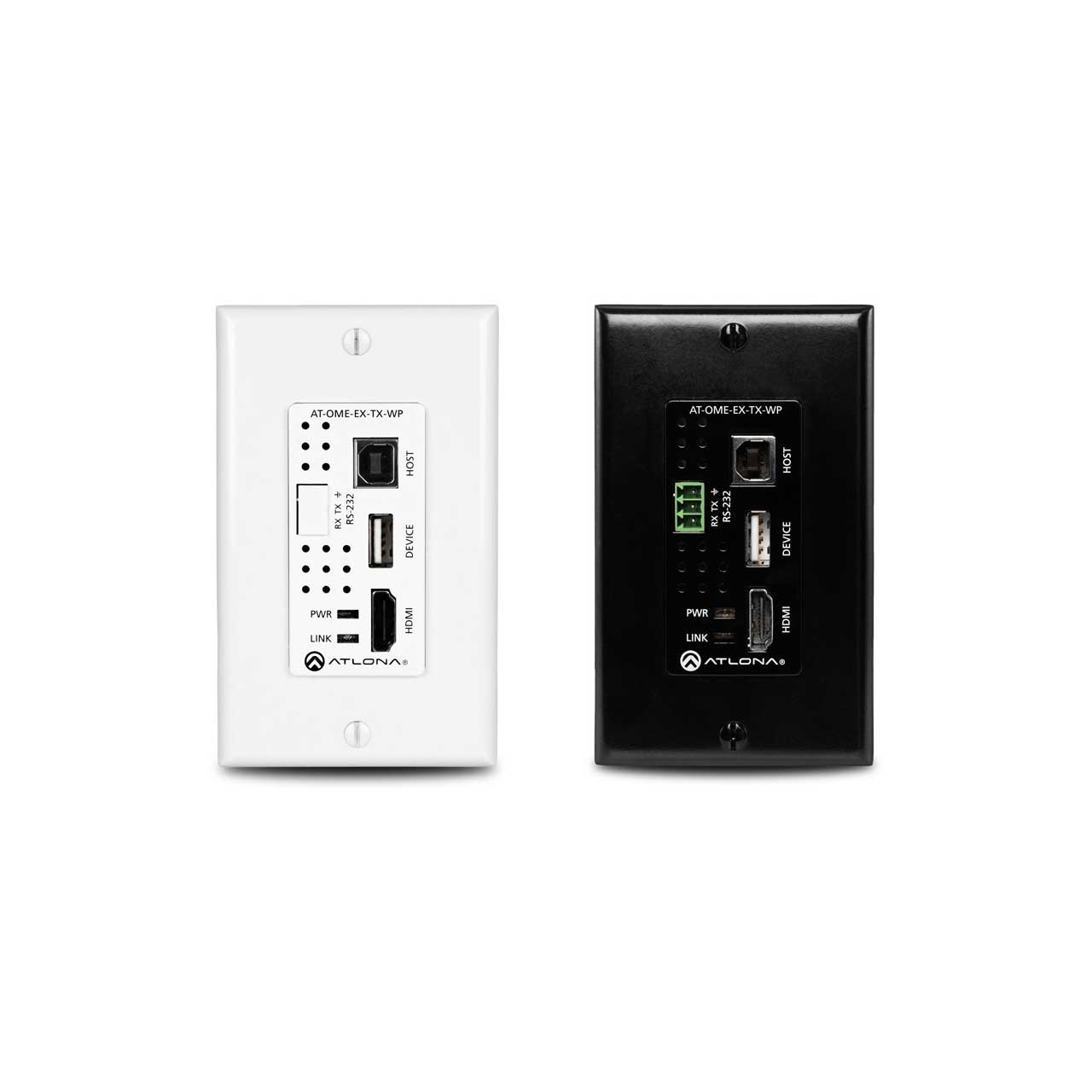

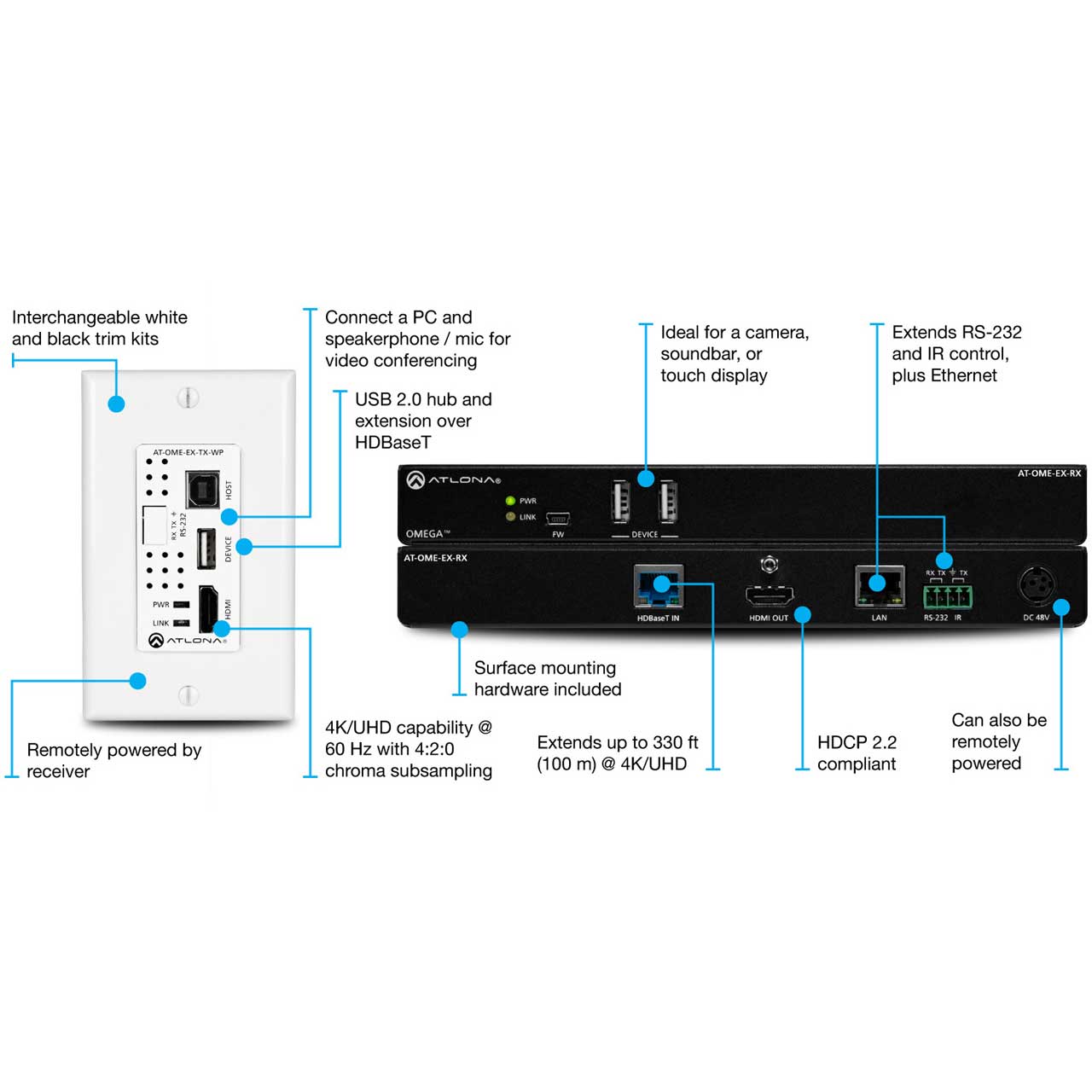

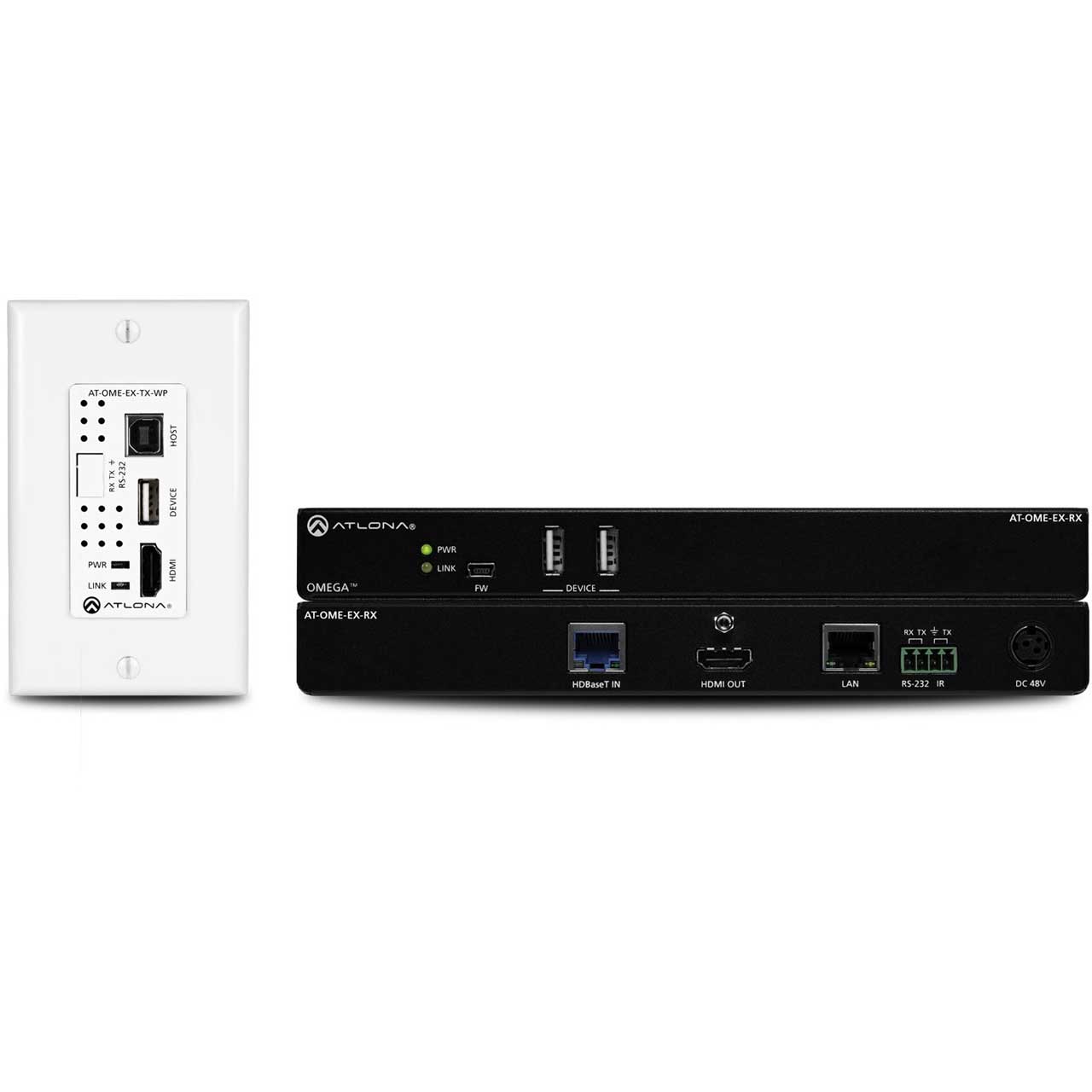

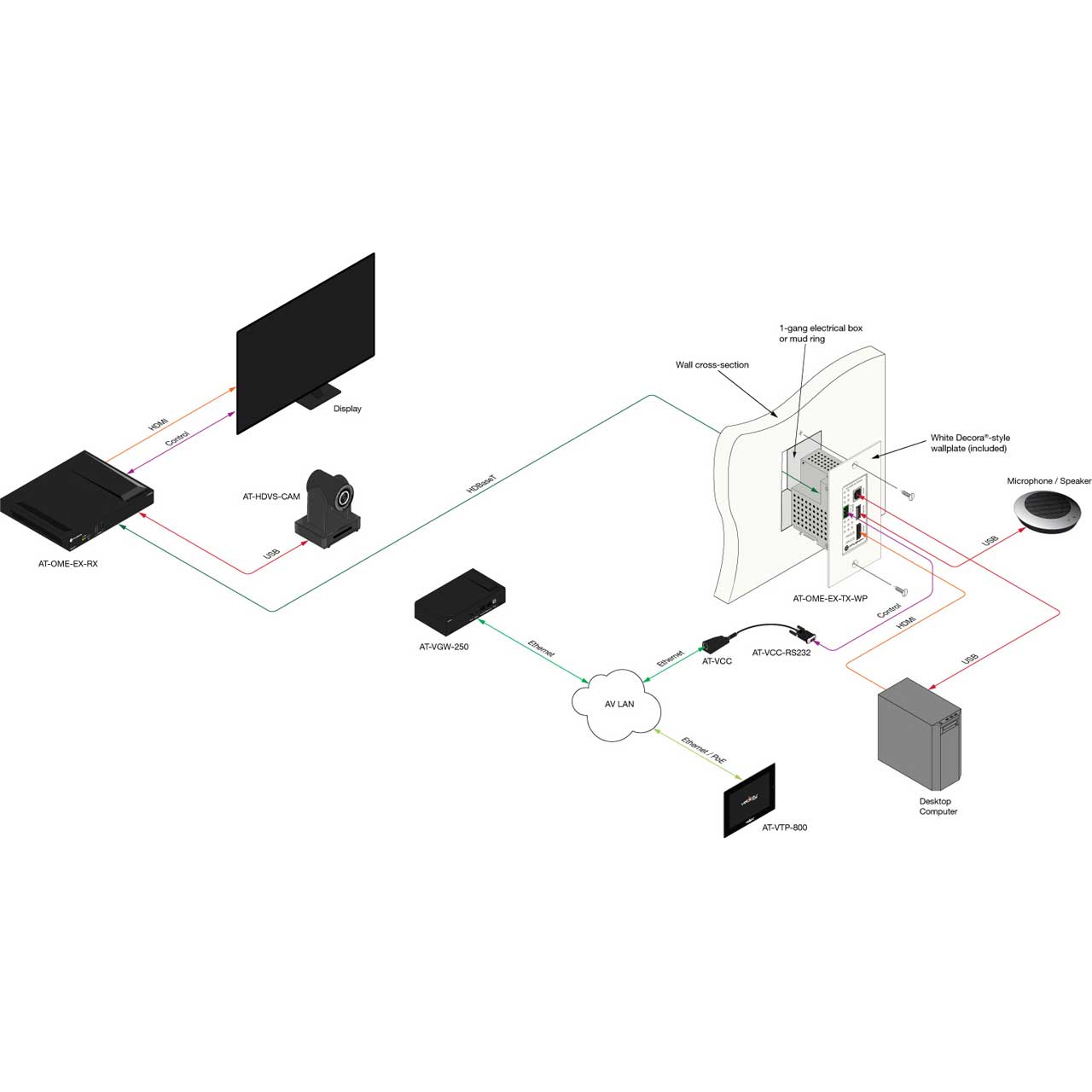

    The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The transmitter features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products. The OME-EX-WP-KIT features integrated USB extension over HDBaseT up to 330 feet (100 meters). This capability, plus interfacing for host PCs and USB peripherals makes the OME-EX-WP-KIT ideal for video conferencing and UC (unified communications) platforms such as Zoom, Skype® for Business, Microsoft® Teamsr, Cisco® Webex®, BlueJeans, and GoToMeetingr. Available from Atlona is the AT-HDVS-CAM PTZ camera with USB interface.

    Applications:
    Video conferencing
    Interactive displays

    • Features:

      • Video, audio, power, and data over category cable utilizing HDBaseT technology

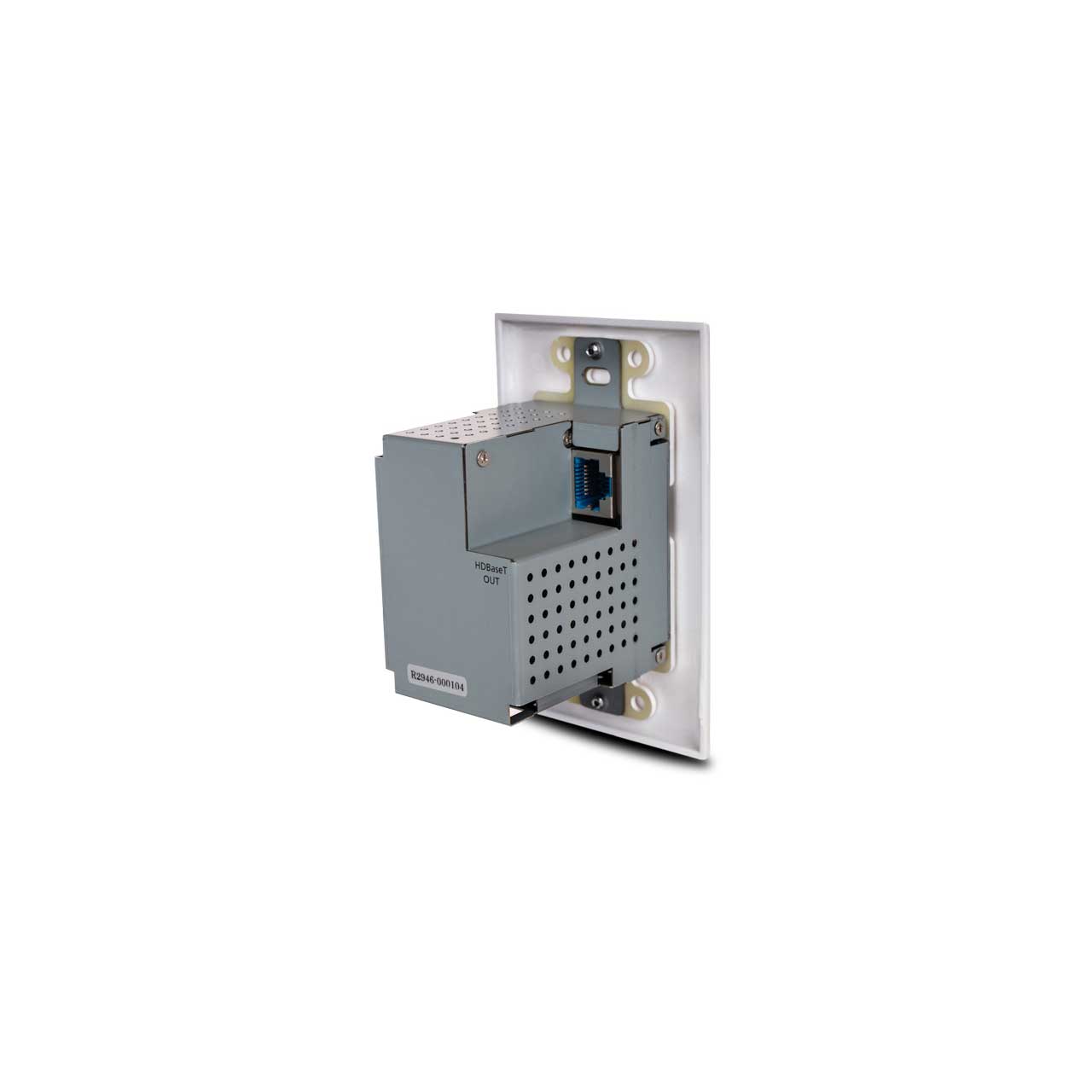

      • US one-gang enclosure for Decora-style wallplate openings -interchangeable black or white trim kits
      • USB 2.0 interfacing and extension* up to 330 feet (100 meters)
      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
      • HDCP 2.2 compliant
      • Transmitter powered by receiver via PoE (Power over Ethernet)
      • Multi-channel audio compliant
      • Field-updatable firmware
      • Front panel power and signal status LEDs
      • Low-profile, 1.02 inch (26 mm) high enclosure (receiver)

    • Specifications:

      • AT-OME-EX-TX-WP
      • Video
      • HDMI: HDMI 2.0, HDCP 2.2
      • TMDS Clock: 300MHz
      • UHD/HD: 4096x2160(DCI)@60(1)/30/24 Hz, 3840x2160(UHD)@60(1)/50/24/25/30 Hz, [email protected]/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Sub-Sampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit (1) Only supports 4:2:0
      • Audio
      • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolbyr Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Depth: Up to 24-bit
      • USB
      • Signal: 2.0
      • Maximum Data Rate: 120Mbps
      • Control
      • CEC: Pass-through
      • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
      • Connectors
      • HDMI IN: (1) Type A, 19-pin female
      • HDBaseT OUT: (1) RJ45
      • HOST: (1) USB Type-B
      • DEVICE: (1) USB Type-A
      • RS-232: (1) captive screw, 3-pin
      • Indicators and Controls
      • PWR LED indicator: 1 - LED, green
      • LINK LED indicator: 1 - LED, yellow
      • Resolution/Distance: 4K/UHD/1080p
      • HDMI IN/OUT: 15' (5m)/30' (10m)
      • CAT5e: 295' (90m)/330' (100m)
      • CAT6/6a/7: 330' (100m)/330' (100m)
      • Power:
      • Consumption: 11.18W (includes 2.5W for USB, powered by RX)
      • USB Power: 2.5W per USB device interface
      • General
      • Operating Temp: 0r - 122rF (0r - 50rC)
      • Storage Temp: -4r - 140rF (-20r - 60rC)
      • Humidity (RH): 20 to 90% (non-condensing)
      • Dimensions (HxWxD): 4.07 x 1.80 x 2.63" (103.50 x 45.80 x 67mm)
      • Weight: 0.40Lbs (180g)
      • Safety: CE, RoHS, FCC
      • Installation guide
      • Interchangeable Black And White Wallplates and Faceplates,
      • Surface Mounting Hardware
      • External Universal Power Supply

        AT-OME-EX-RX
      • Video
      • HDMI Specification: HDMI 2.0, HDCP 2.2
      • TMDS Clock: 300MHz
      • UHD/HD: 4096x2160(DCI)@60*/30/24Hz, 3840x2160(UHD)@60*/50/24/25/30Hz, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@25/29.97/30Hz, 720p@30/50/59.94/60Hz
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8bit, 10bit, 12bit
      • Note: *4K/UHD @ 60Hz only supports 4:2:0.
      • Audio
      • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolbyr Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmosr, DTSr, DTS-HD Master AudioT, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Depth: Up to 24bit
      • USB
      • Signal: 2.0
      • Maximum Data Rate: 120Mbps
      • Control
      • CEC: Pass-through
      • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
      • IR: Pass-through from control system to sink device
      • IP: Pass-through from control system to sink device up to 100Mbps over HDBaseT

    • Warranty:

      • Award-Winning 10 Year Limited Product Warranty

    • Specfictions Continued

      :

      • Connectors
      • HDMI Out: 1- Type A, 19pin female
      • FW: 1- mini-USB
      • HDBaseT Out: 1- RJ45
      • Device: 2- USB Type-A
      • LAN: 1- RJ45, 10/100 Mbps
      • RS-232/IR: 1- captive screw, 4pin
      • DC 48V: 1- 3pin DIN
      • Indicators and Controls
      • PWR LED indicator: 1-LED, green
      • LINK LED indicator: 1-LED, yellow
      • Resolution/Distance (4K/UHD)
      • HDMI In/Out: 15' (5m)
      • CAT5e: 295' (90m)
      • CAT6/6a/7: 330' (100m)
      • Resolution/Distance (1080p)
      • HDMI In/Out: 30' (10m)
      • CAT5e: 330 (100m)
      • CAT6/6a/7: 330' (100m)
      • General
      • Power Consumption: 18.67W
      • USB Power: 2.5W per USB device interface
      • External Power Supply: Input: 100 - 240V AC, 50/60Hz; Output: 48V, 0.83A DC
      • Safety: CE, FCC, cULus
      • Operating Temperature: 0 - 122° F (0 - 50°C)
      • Storage Temperature: -4 - 140° F (-20 - 60°C)
      • Operating Humidity (RH): 20 - 90%, non-condensing
      • Dimensions (HxWxD): 1.02 x 8.62 x 5.98" (26 x 219 x 152mm)
      • Weight: 1.91LBs (870g)
      • Safety: CE, RoHS, FCC

    • GTIN:

      0846352006358
