Atlona AT-OME-MS42-HDBT 4K/UHD 4x2 Matrix Switcher with USB Hub - HDMI and HDBaseT Inputs

ITEM #: ATNO-OMEMS42HDBT MFG #: AT-OME-MS42-HDBT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,450.00

Availability: Preorder
iAvailability Description Popup


    AT-OME-MS42-HDBT - Overview

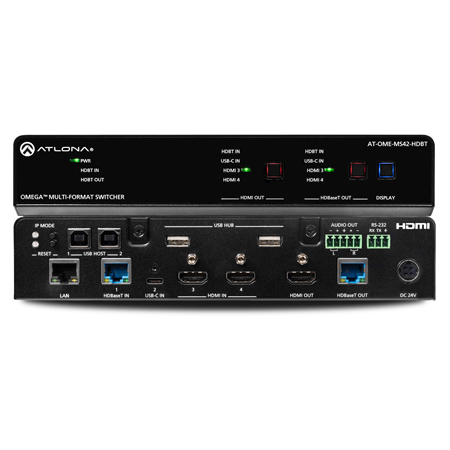

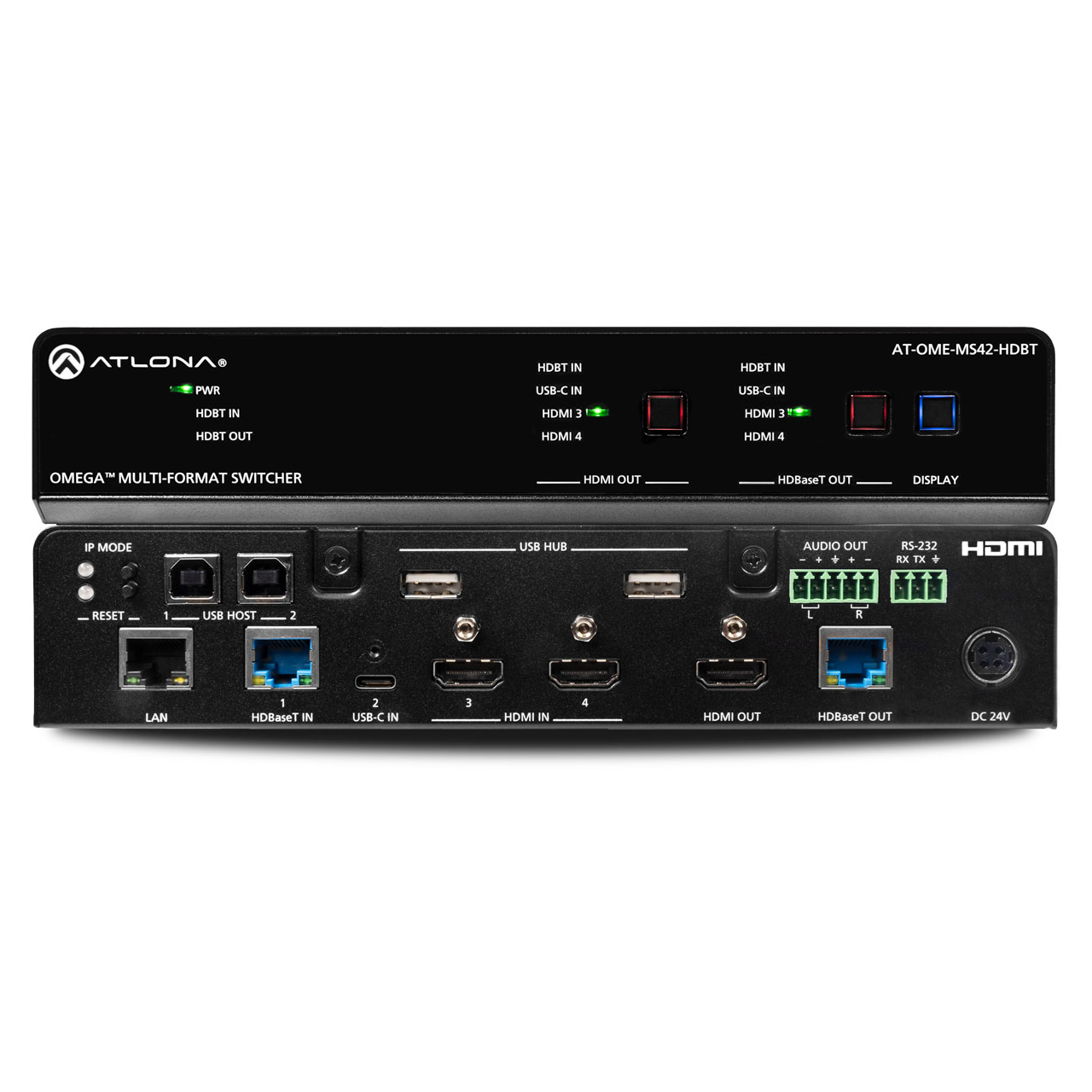

    The Atlona AT-OME-MS42-HDBT is a 4x2 matrix switcher with USB-C, HDBaseT, and HDMI inputs, plus HDMI and HDBaseT outputs. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-MS42-HDBT is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The local HDMI and USB-C inputs, and HDMI output support 4K HDR and 4K/60 4:4:4 at data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42-HDBT features switching for up to four host PCs through USB 2.0 type B and USB-C ports, and remotely over HDBaseT. A built-in USB 2.0 hub provides connectivity for two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse.

    USB Extension for Video Conferencing with Zoom, Skype for Business, Microsoft Teams, and More - The OME-MS42-HDBT features integrated USB extension over HDBaseT up to 330 feet (100 meters). This capability, plus interfacing for host PCs and USB peripherals makes the OME-MS42-HDBT ideal for video conferencing and UC (unified communications) platforms such as Zoom, Microsoft Teams, Cisco Webex, and GoTo Meeting.

    Versatile Matrix Switcher, Scaler, and Extender - The OME-MS42-HDBT is ideal for video conferencing and many other 4K presentation applications. It combines the benefits of auto-switching for AV and USB, integrated display control, USB extension, and more. The OME-MS42-HDBT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The USB-C input is ideal for AV interfacing with newer laptops and mobile devices, plus USB data connectivity (to the local USB hub and over HDBaseT). The OME-MS42-HDBT can be locally powered with the included AT-PS-245-D4 power supply, and charge laptops and mobile devices through the USB-C port. For additional integration convenience, the OME-MS42-HDBT features audio de-embedding and remote management with Velocity Device Manager.

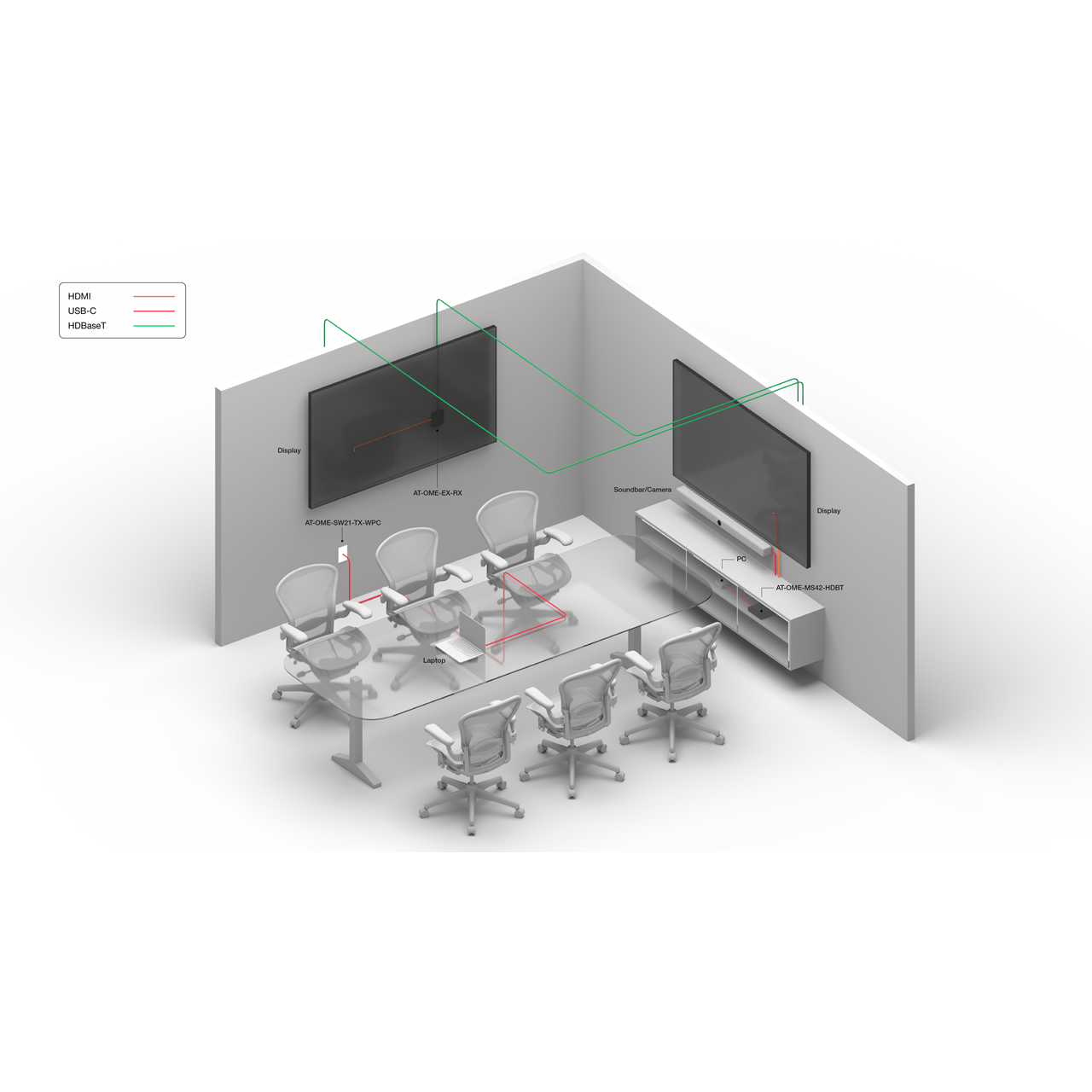

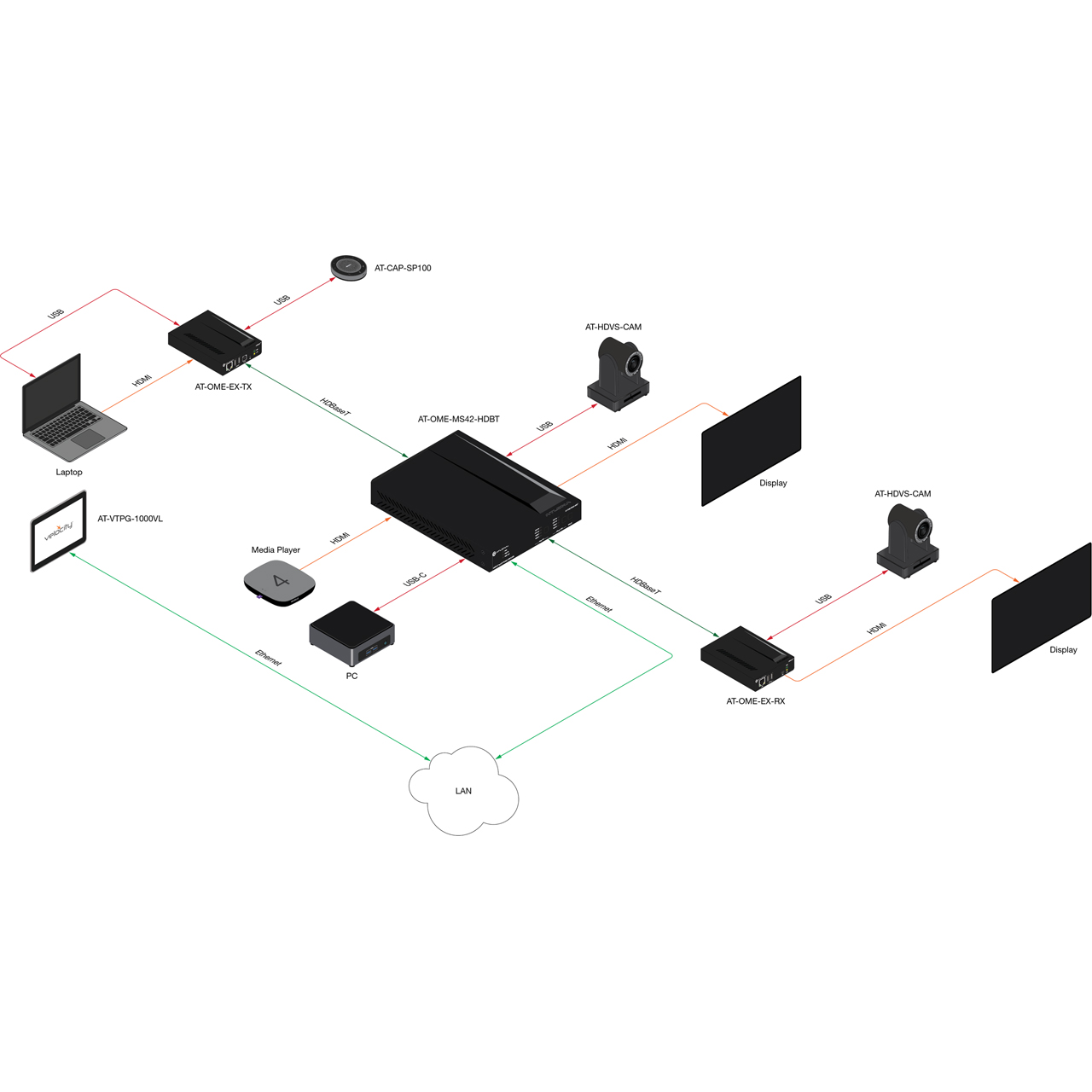

    Ideal for meeting rooms - The OME-MS42-HDBT can be the centerpiece of a modern meeting space. It can be installed in a credenza while feeding two displays, and receiving AV input over HDBaseT from a transmitter at the meeting table. Please refer to the application diagram for an example.

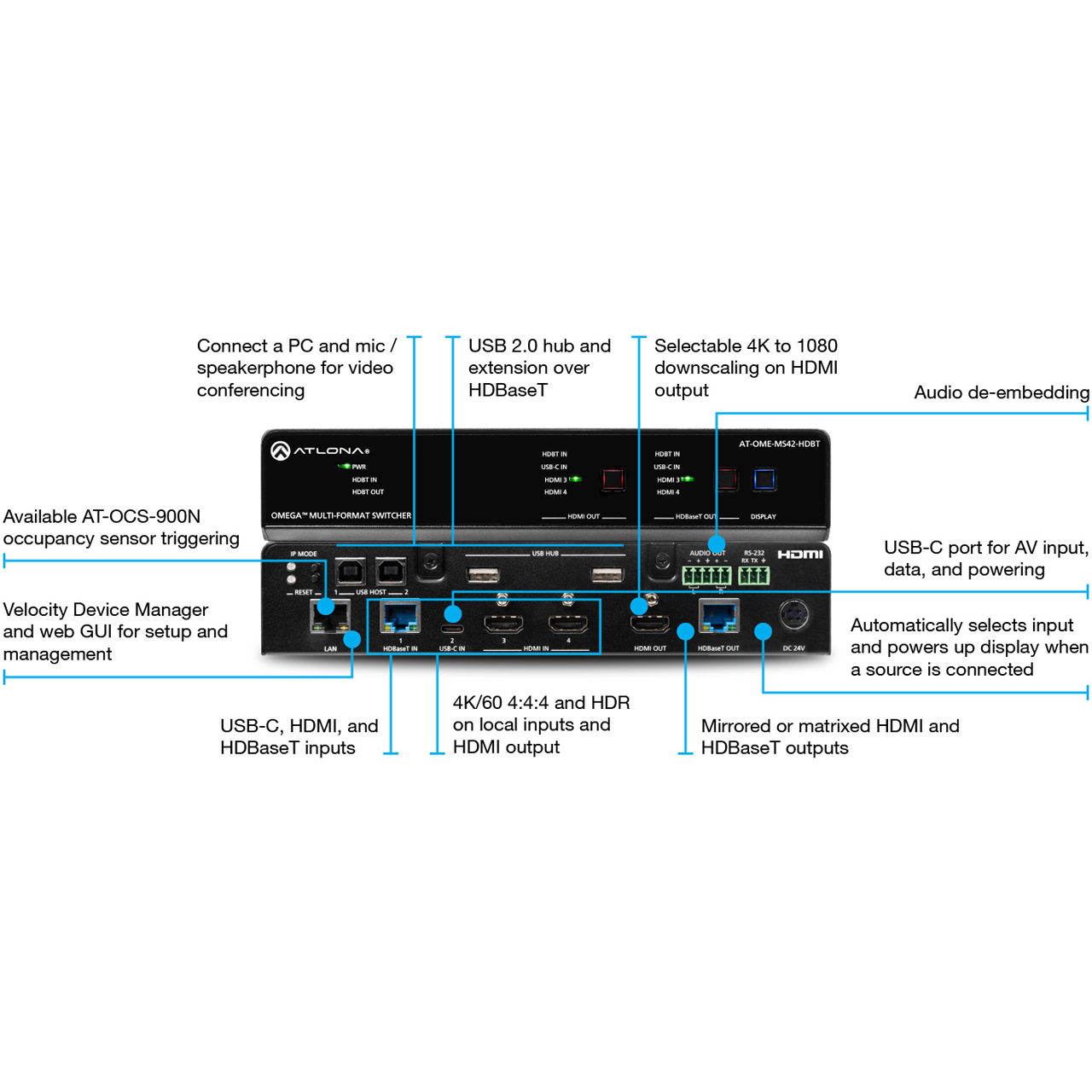

    • Features:

      • 4x2 AV matrix switcher with USB-C, HDBaseTTM, and HDMI inputs
      • USB-C input for AV, data, and device charging
      • HDBaseT and HDMI outputs with selectable AV switching modes
      • USB 2.0 interfacing and extension up to 330 feet (100 meters)
      • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling (local ports)
      • Switch between multiple USB host sources
      • Selectable 4K to 1080p downscaling
      • HDCP 2.2 management
      • TCP/IP and RS-232 control
      • IP to RS-232 translation

    • Specifications:

      • Video
      • HDCP: 1.4 / 2.2
      • Pixel Clock: 300 MHz
      • UHD/HD/SD:
        -4096x2160@60/50/30/25/24 Hz
        -3840x2160@60/50/30/25/24 Hz
        -1080p@60/59.9/50/30/29.97/25/24/23.98 Hz
        -1080i@30/29.97/25 Hz
        -720p@60/59.94/50 Hz
        -576p@50 Hz
        -576i@25 Hz
        -480p@60/59.96 Hz
        -480i@30 Hz
      • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
      • USB-C: Up to 4K/UHD @ 60 Hz
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision @ up to 60 Hz; HDMI and USB-C inputs only

        Audio
      • HDMI / HDBaseT Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1
      • Bit Depth: Up to 24 bits

        Analog Audio
      • Format: Stereo 2-Channel
      • Balanced Output: +4 dBu nominal gain, +20 dB headroom
      • Frequency Response: 20 Hz to 20 kHz, ± 0.5 dB
      • THD+N: < 0.004% at 20 Hz to 20 kHz
      • SNR: > 105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

        USB
      • Signal: 2.0
      • Maximum Data Rate: Local = 480 Mbps; HDBaseT = 120 Mbps
      • USB-C: Supports Audio, Video, device and host data, and up to 60W power charging
      • Internal Hubs: 1 USB hub when connected to USB type B host port, 2 cascaded USB hubs when connected to USB-C port

        Resolution Distance
      • HDMI IN/OUT: 4K/UHD: 15 ft (5 m) 1080p: 30 ft (10 m)
      • CAT5e: 4K/UHD: 295 ft (90 m) 1080p: 330 ft (100 m)
      • CAT6/6a/7: 4K/UHD: 330 ft (100 m) 1080p: 330 ft (100 m)

        Ethernet
      • Port: 1x RJ45
      • Standards and Protocols: HTTPS, Telnet, mDNS
      • Speeds: 10/100/1000 Mbps
      • Addressing: DHCP, Static - selectable through rear panel, IP & RS-232 commands, and built-in
      • web server

        RS-232
      • Port: 1x 3-pin captive screw; TX, RX, GND
      • Use: Device control and configuration, Bidirectional pass-through from control system over HDBaseT
      • Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • Data flow: Bidirectional

        CEC
      • Port: HDMI, Type A, 19-pin female
      • Triggering: Through IP, RS-232, and built-in web server

        Environmental
      • Operating Temperature: 32°F to 122°F (0°C to 50°C)
      • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
      • Operating Humidity (RH): 20% to 90%, non-condensing
      • Maximum Operating Altitude: 2000 meters

        Power
      • Consumption: Unit only: 8.6 W Full load: 104 W
      • BTU/h: Unit only: 29.3 Full load: 354.8
      • External Power Supply: Input: 100 - 240 V AC, 50/60 Hz Output: 24 V / 5 A DC

        Weight and Dimensions:
      • Weight: 3.46 lbs (1.57 kg)
      • Dimensions: 1.73 in x 8.64 in x 10 in (44 mm x 219.5 mm x 254 mm)

    • Item Includes:

      • 1x Atlona AT-OME-MS42-HDBT 4x2 Matrix Switcher
      • 1x Installation guide
      • 1x Surface mounting hardware
      • 1x 6.5 ft USB-C male-to-male cable (USB 3.2 Gen 1)
      • 1x Short Rack Ears
      • 1x Long Rack Ears
      • 1x External universal power supply

    • Warranty:

      • 3-Year Limited Warranty
