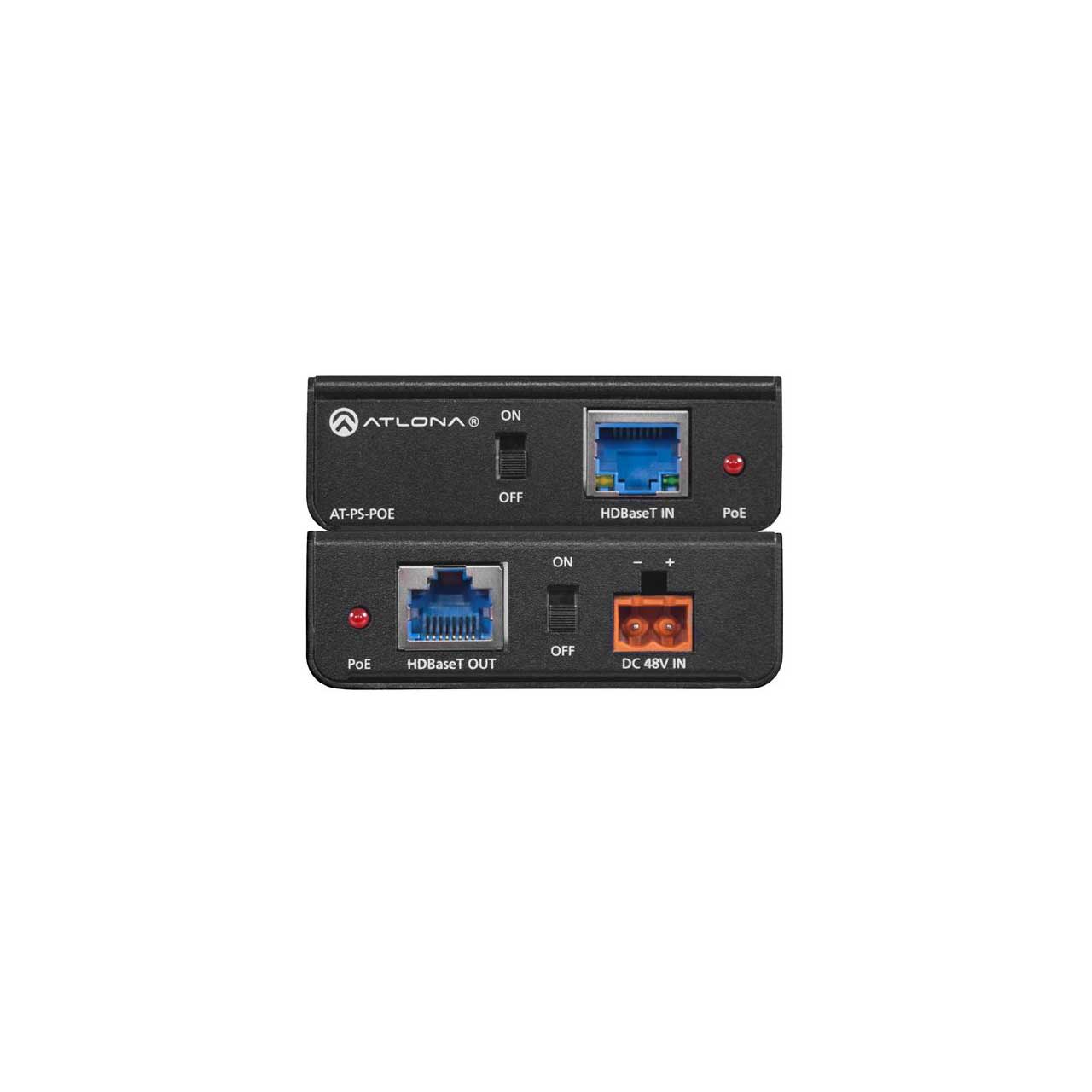

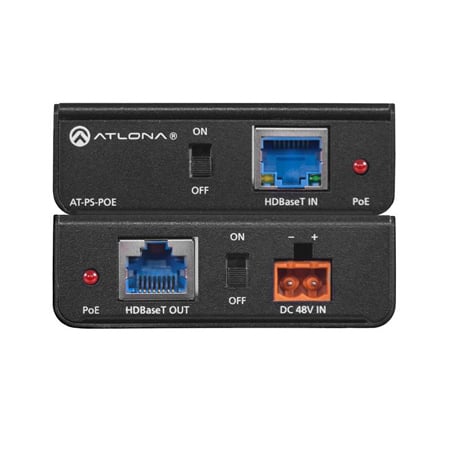

Atlona AT-PS-POE POE Mid-Span Power Supply


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

AT-PS-POE - Overview

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together.

The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.

Power Source Equipment (PSE) devices have an internal power supply or plug into external power supply and provide power to the HDBaseT cable. Powered Devices (PD) receive their power from the HDBaseT cable.

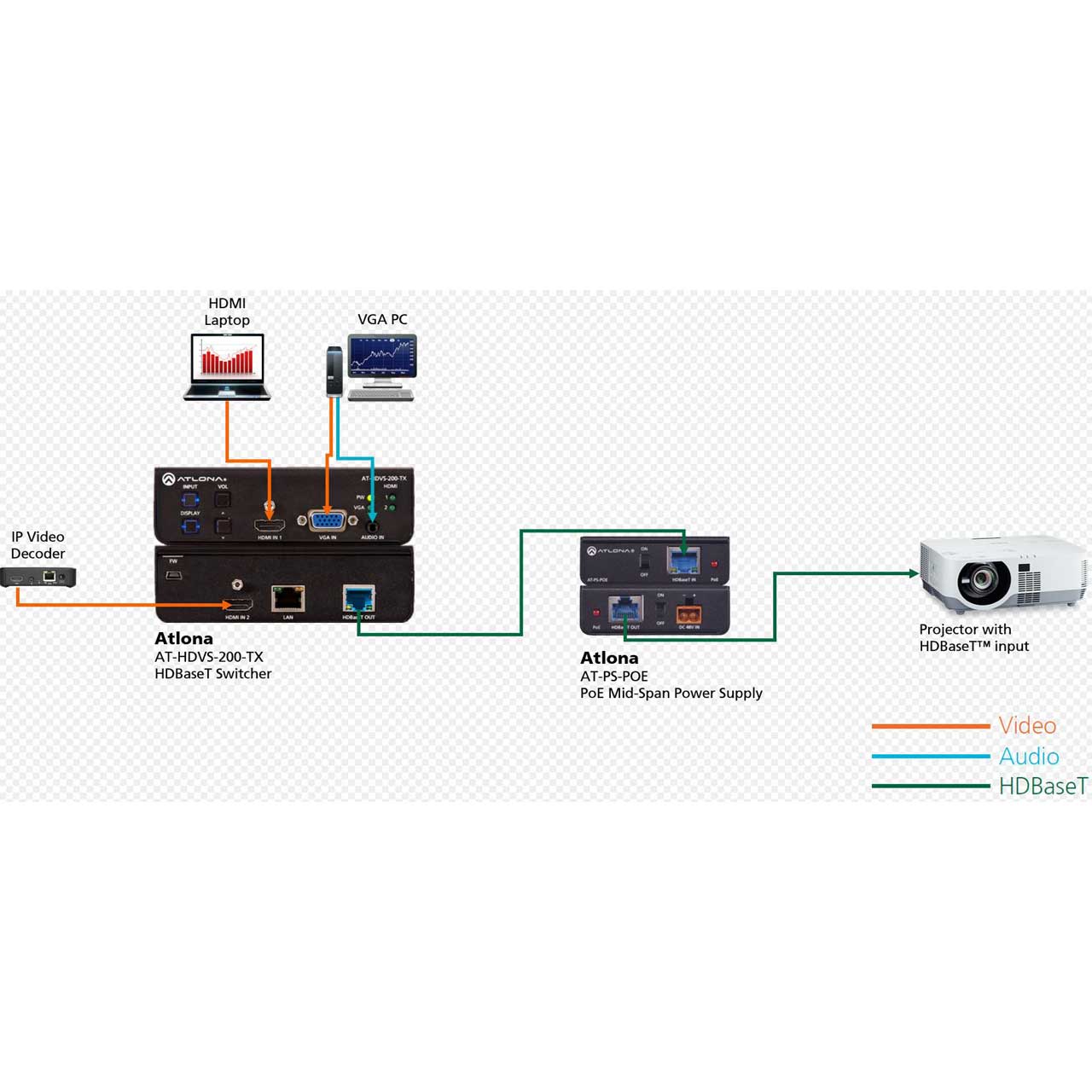

The PS-POE can be used with Atlona HDVS-200 and UHD-EX Series HDBaseT endpoint devices requiring remote PoE powering, especially when used with HDBaseT-equipped products that do not provide PoE, including displays, switchers, or third-party endpoints.

  • Features:

    • Supplies 48 VDC to products using IEEE 802.03af Power over Ethernet
    • Industry standard powering scheme for HDBaseT products
    • Routes powers to up- and down-stream lines simultaneously
    • Saves cost by eliminating duplicate devices
    • Power can be turned off in the direction of a non-PoE device
    • Sends power only in the required direction
    • 10.2 Gbps bandwidth power supply supports 4K/UHD resolutions, multi-channel audio formats, HDCP 2.2, and offers full 3-D pass-through
    • Ideal for ultra-high resolution signals
    • Allows UHD-EX Series receivers to be used with PRO2HD Series or HD-CAT Series systems
    • Maintains ROI on legacy systems that need an additional signal extension or receiver upgrade/replacement
    • Easy insertion anywhere into HDBaseT transmission line including confined spaces
    • Keeps devices out-of-sight when placed in public spaces
    • Award-winning 10 year limited product warranty ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence
  • Specifications:

    • Resolution
    • Video: [email protected]/25/30/50/60Hz, [email protected]/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit

    • HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit

      Signal and Distance
    • Bandwidth: 10.2 Gbps
    • CEC: Compliant
    • HDCP: Compliant 2.2
    • Distance Per Product: Reduces HDBaseT cable distance by 10%

    • Operating Temperature: 32°F to 122°F
    • Storage Temperature: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing
    • Power Consumption: 15.2W
    • Power Supply: Input: AC100-240V - 50/60Hz ; Output: 48V/0.83A
    • Dimension (H x W x D): 0.96" x 2.87" x 2.77"
    • Weight: 0.09 lbs
    • Certification: Unit - CE, FCC; Power Supply - CE, FCC, Level VI, RoHS, cULus, RCM, CCC
  • Item Includes:

    • User guide
    • 48 VDC power supply
    • Mounting brackets
  • GTIN:
