AT-OME-RX21 - Overview

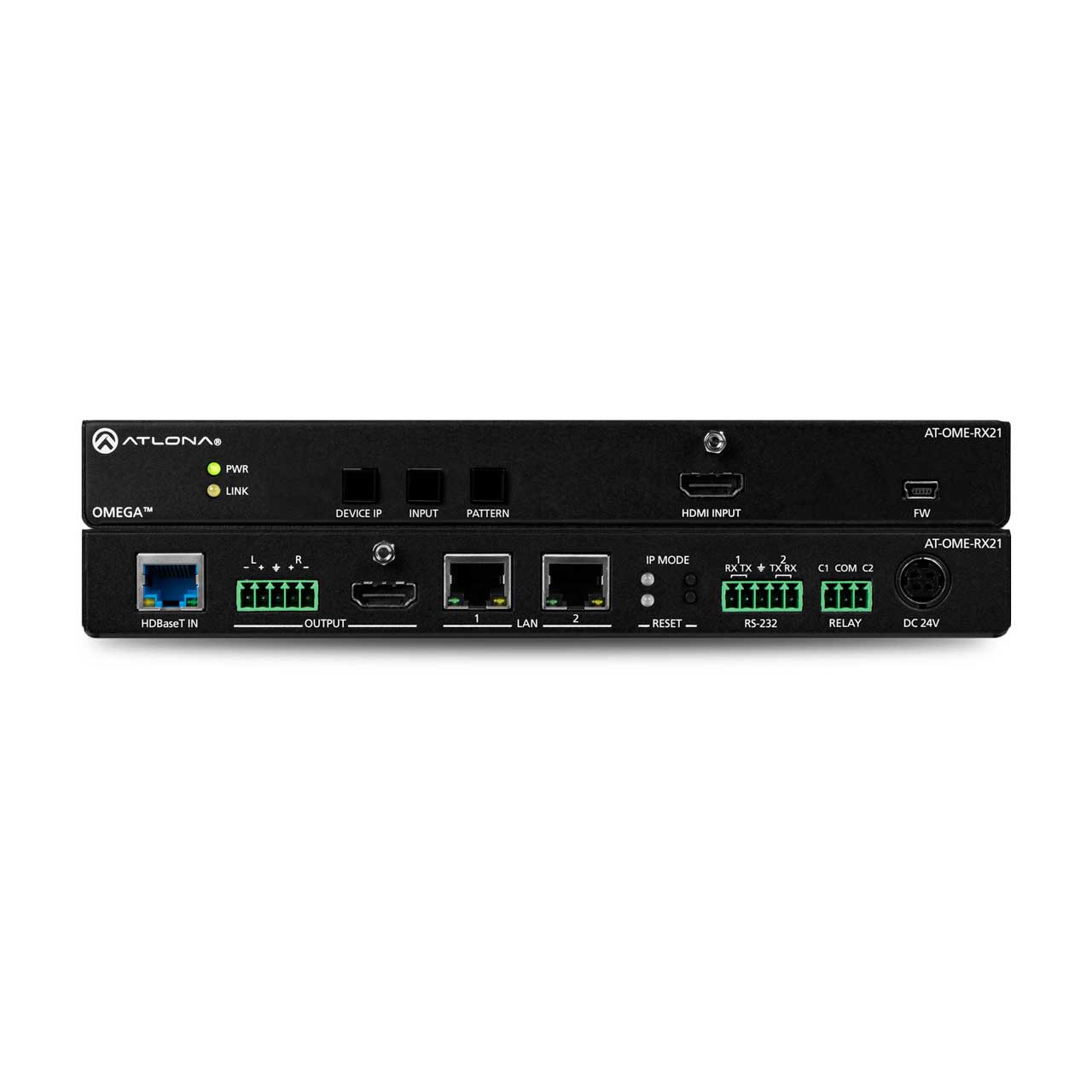

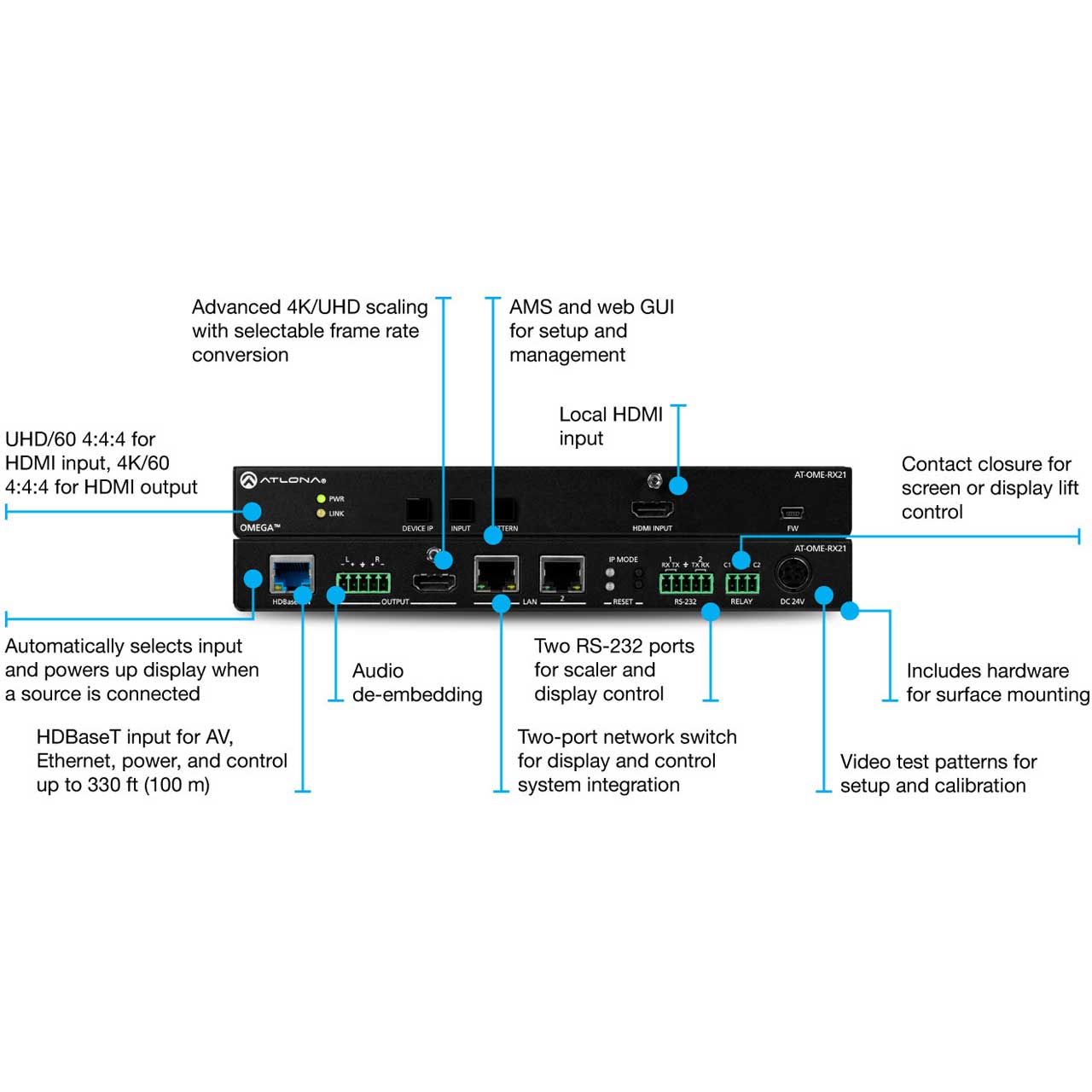

• Features:

  • HDBaseT™ receiver for HDMI®, Ethernet, power, and control
  • Local HDMI input
  • 4K/UHD downscaling and upscaling
  • Audio de-embedding
  • Dual Ethernet ports and integrated network switch
  • Contact closure for screen or display lift control


• Specifications:

  • Video
  • HDMI: 2.0
  • HDCP: 2.2
  • UHD/HD/SD: 4096x2160@60¹/50/30/25/24Hz, 3840x2160@60¹/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
  • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
  • Scaler Up/Down: 1024x768p60, 1280x720p50, 1280x720p60, 1280x768p60, 1280x800p60, 1360x768p60, 1600x1200p60, 1920x1080p24, 1920x1080p25, 1920x1080p50, 1920x1080p60, 1920x1200p60, 2048x1080p60, 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50, 4096x2160p60
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8bit, 10bit, 12bit

    Audio
  • HDMI Pass-Through Formats PCM 2.0, LPCM 5.1, LPCM 7.1, Dolbyr Digital, Dolby Digital PlusT, Dolby TrueHD, Dolby Atmosr, DTSr Digital SurroundT, DTS-HD Master AudioT, and DTS:Xr
  • Bit Rate 24 Mbits/s max
  • Analog Audio
  • Format Stereo: 2-Channel
  • Balanced Output: +4 dBu nominal gain, +20 dB headroom
  • Frequency Response: 20 Hz to 20 kHz, ± 0.5 dB
  • Impedance: 150 Ω
  • Stereo channel separation: > 90dB
  • THD+N: <0.03% at 20 Hz to 20 kHz
  • SNR: >90dB at 1kHz, 0 clipping @0dBFS, unweighted
  • EQ: 5 band, 63Hz, 85Hz, 250Hz, 1kHz, 4kHz
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

    Control
  • RS-232: 1-way connected display control; 2-way device control and monitoring; Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • CEC Support: Yes
  • Relay: Normally open (NO), adjustable Toggle and Pulse modes
  • Electrical rating: 48V@1A

    Resolution/Distance (4K/UHD):
  • HDMI IN/OUT: 15' (5m)
  • CAT5e: 295' (90m)
  • CAT6/6a/7: 330' (100m)
    Resolution/Distance (1080p):
  • HDMI IN/OUT: 30' (10m)
  • CAT5e: 330' (100m)
  • CAT6/6a/7: 330' (100m)

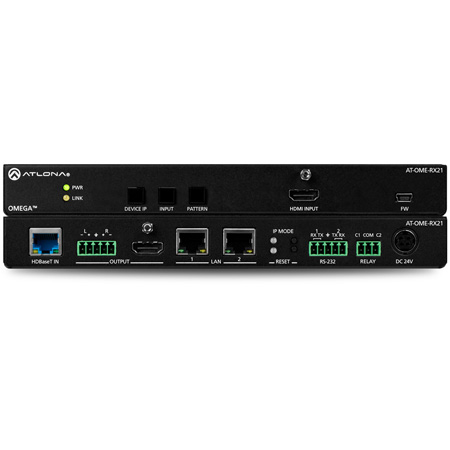

    Connectors, Controls, and Indicators
  • HDMI IN 1: Type A, 19-pin female
  • HDBaseT IN 1: RJ45, female
  • HDMI OUT 1: Type A, 19-pin female
  • AUDIO OUT 1: 5-pin captive screw, balanced / unbalanced 2-channel
  • RELAY 1: 3-pin captive screw
  • RS-232 2: 3-pin captive screw (bidirectional)
  • LAN 2: RJ45, 100Base-T
  • DC 24V 1: 4-pin, mini-DIN locking connector
  • PWR indicator 1: LED, green
  • LINK indicator 1: LED, yellow
  • Control Buttons: DEVICE IP, INPUT, PATTERN IP MODE, RESET 3: momentary, tact-type; 2: momentary, recessed
  • Function Indicators: IP MODE, RESET 2: LED, green

    General
  • Operating Temperature: 32 - 122°F (0 - 50°C)
  • Storage Temperature: -4 to 140°F (-20 - 60°C)
  • Humidity (RH): 20% - 60%, non-condensing
  • Power Consumption: TBD
  • Power Supply Input: 100: 240V AC, 50/60Hz
  • Output: 24 V / 2.7A DC
  • Dimensions (HxWxD): 1.02 x 8.62 x 5.98" (26 x 219 x 152mm)
  • Weight: 1.96LBs (0.89kg)
  • Certification: CE, FCC, UL
  • Note: ¹4K/UHD @ 60Hz is limited to 4:2:0 over HDBaseT, 4K/UHD@60Hz 4:4:4 is available via local HDMI.


• Item Includes:

  • 1 x Installation Guide
  • 1 x Surface Mounting Hardware
  • 1 x External Universal Power Supply


• GTIN:

  0846352006396
