    SHOGUNG2 - Overview

    The original Shogun gave filmmakers what they had been asking for. All the Ninja's talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today's Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera. Shogun is the Atomos dream writ large.

    Shogun is a leap forward in filmaking technology that captures your vision in ProRes RAW up to 6K 30P with full codec flexibility choice between ProRes RAW, ProRes, DNxHD & H.265 (HEVC). Shogun has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G SDI. Turn on its wireless and network capabilities, and you have the high performance Wi-Fi 6, Ethernet and AirGlu wireless sync technology - and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

    Shogun has been built with a new operating system AtomOS 11 that host new and exclusive monitoring and recording features that bring creativity to live in every project, from cinematic to social media. RecordAssist and PlayBackAssist cover pre-arranged or remote shots , while improved false color tools like Arri False Color or EL Zone system fit with today's creators needs. It opens up ultra-efficient cloud workflows, including dual record ProRes/H.265 for Camera to Cloud and 4K H.265 for instant publishing from the cloud. Share what's on your Atomos screen with other Atomos OS11 users, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with full audio comunication between devices in the included feature Atomos RemoteView. These new features bring even more versatility to the Shogun, providing professional I/O options for a multitude of cameras 12G-SDI, AirGlu wireless timecode and control and up to 4K NDI- from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras. Shogun supports WiFi 6 that boosts cloud video workflows offering more a stable conection.
    Atomos' close partnerships with major camera manufacturers ensure that Shogun works flawlessly with an increasing range of DSLR, mirrorless and cinematic cameras.

    • Features:

      • 7-inch 2000nit monitor-recorder
      • 12G SDI INÿand OUT and HDMI IN and OUT
      • Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs
      • Capture in ProRes RAW up to 6K30p
      • Flexible codec choice - ProRes RAW, ProRes, DNxHD & H.265 (HEVC)
      • New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features

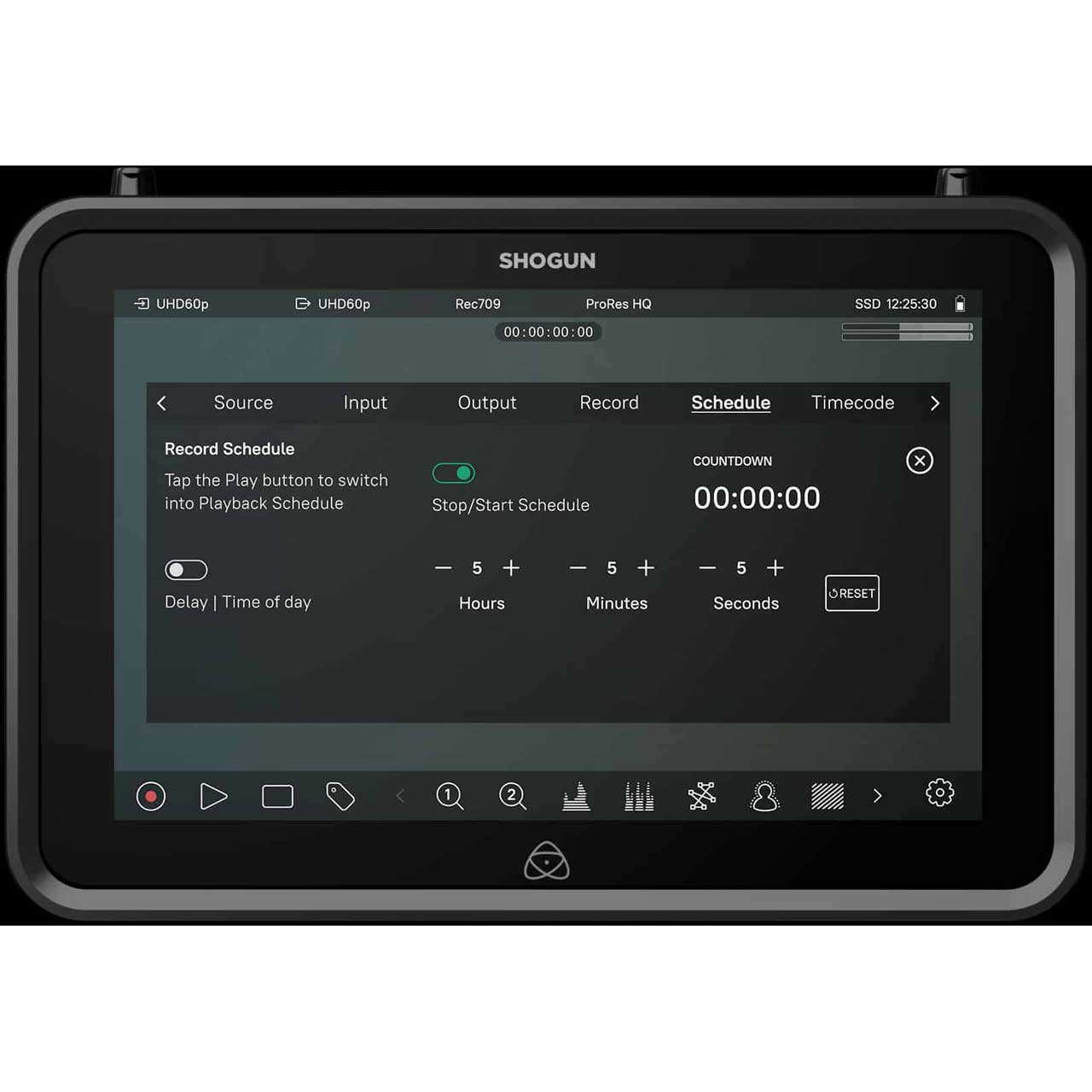

      • New monitoring tools to arrange in advance recording and playback with RecordAssist and PlayBackAssist.

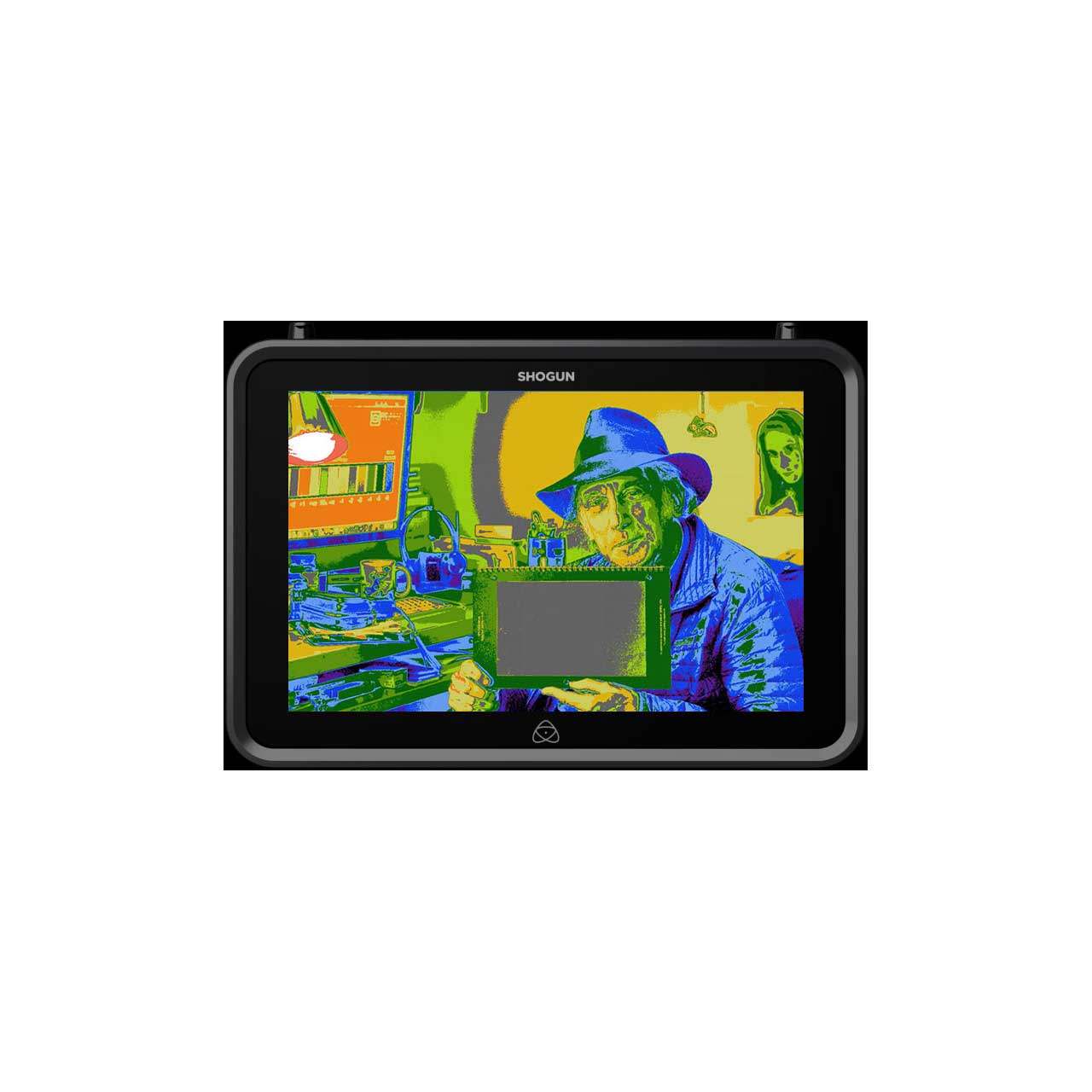

      • Additional advanced industry leading suite of monitoring tools with one-touch operation like SegmentPro, EL Zone System, ARRI False color added in combination with other monitoring tools like Vectorscopes, Zebra, Atomos False Color, Onion Skin, etc.
      • Publish directly from the cloud with 4K H.265 Camera to Cloud mode
      • Faster and stronger connectivity with Wi-Fi 6
      • Share what's on your Atomos screen with other AtomOS11 users, as well as, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with Atomos RemoteView.
      • Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
      • 1GbE Ethernet for high-speed robust hardwired network connection
      • Connectivity to Atomos Cloud Studio gateway of services

    • Specifications:

      • Mount points: Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points
      • Ambient operating temperature: Up to 104°F

        Construction & Control
      • Body: Aluminium alloy chassis with ABS Polycarbonate back plate
      • Cooling: Actively controlled fan and heat sink
      • Multi-function button: Power / lock Screen
      • Tally light: Yes

        Power
      • Input voltage: 6.2V to 16.8V
      • Compatible batteries: 1 x NP-F / L-Series
      • Battery voltage: 7.2V
      • DC in connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
      • D-Tap: Via optional D-Tap to DC cable

        Display
      • Touchscreen: SuperAtom IPS panel (capacitive touch)
      • Size: 7"
      • Resolution: 1920 x 1200
      • PPI: 325
      • Bit depth: 10-Bit (8+2 FRC)
      • Backlight Type: Edge lit
      • Brightness (cdm2 / Nits): 2000nit +/-10%
      • Aspect ratio: 16:9
      • Color Gamut: Rec.709
      • Calibration support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or Plus

        Video Input
      • HDMI: 1 x HDMI 2.0
      • SDI: 1 x 12G SDI
      • Bit Depth: 8 / 10 bit
      • Video Chroma Subsampling: YCbCr 420 & 422
      • HDR: Yes with HDMI Auto detection

        File Naming
      • Standard: S/S/T & Rolling

        Video Output
      • HDMI: 1 x HDMI 2.0
      • SDI loop out: 1 x 12G SDI
      • HDR: Yes with Auto detection

        Audio In/Out
      • Audio Quality: 24-Bit / 48kHz
      • Audio Codec: PCM
      • HDMI: 8ch 24Bit, input dependent
      • SDI: 12ch 24Bit, input dependent
      • Analogue Audio in: 3.5mm Jack - 5v power
      • Analogue Audio Out: 3.5mm Jack
      • Headphone out: 3.5mm Jack

        Network
      • Ethernet: 1GbE RJ45
      • Wi-fi: WI-FI 6
      • Wireless RF: AirGlu™ SYNC Time code Network
      • Cellular: Connect to Hot Spot via Wi-Fi

        Web Streaming
      • RTMP: Yes
      • RTMP / S: Yes

        Video Signal Conversion
      • HDMI to SDI: Yes
      • SDI to HDMI: Yes

    • Item Includes:

      • Shogun
      • 1x USB C PD to 2.1mm DC power lead
      • Master Caddy III
      • 2x Wi-Fi antennas
      • 1x AirGlu antenna
      • Antenna tips
      • 3.5mm to 3.5mm audio sync cable
      • QuickStart Guide

    • Warranty:

      • 1 year standard
      • 2 years with Atomos Care360 Enhanced

    • GTIN:

      0814164022828
