ATX BWH-BWLQ-R Brick Wall Low/Highpass Combo Filter (QAM) - R 54MHz - 65MHz (Pass Channels 2-5)

Name: ATX BWH-BWLQ-R Brick Wall Low/Highpass Combo Filter (QAM) - R 54MHz - 65MHz (Pass Channels 2-5)
Brand: ATX Networks
SKU: ATX-BWH-BWLQ-R
Price: 2290.00 USD
Availability: PreSale

ITEM #: ATX-BWH-BWLQ-R MFG #: BWH-BWLQ-R

ATX Networks

List Price:

$3,204.80

Our Price:

$2,290.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

BWH-BWLQ-R - Overview

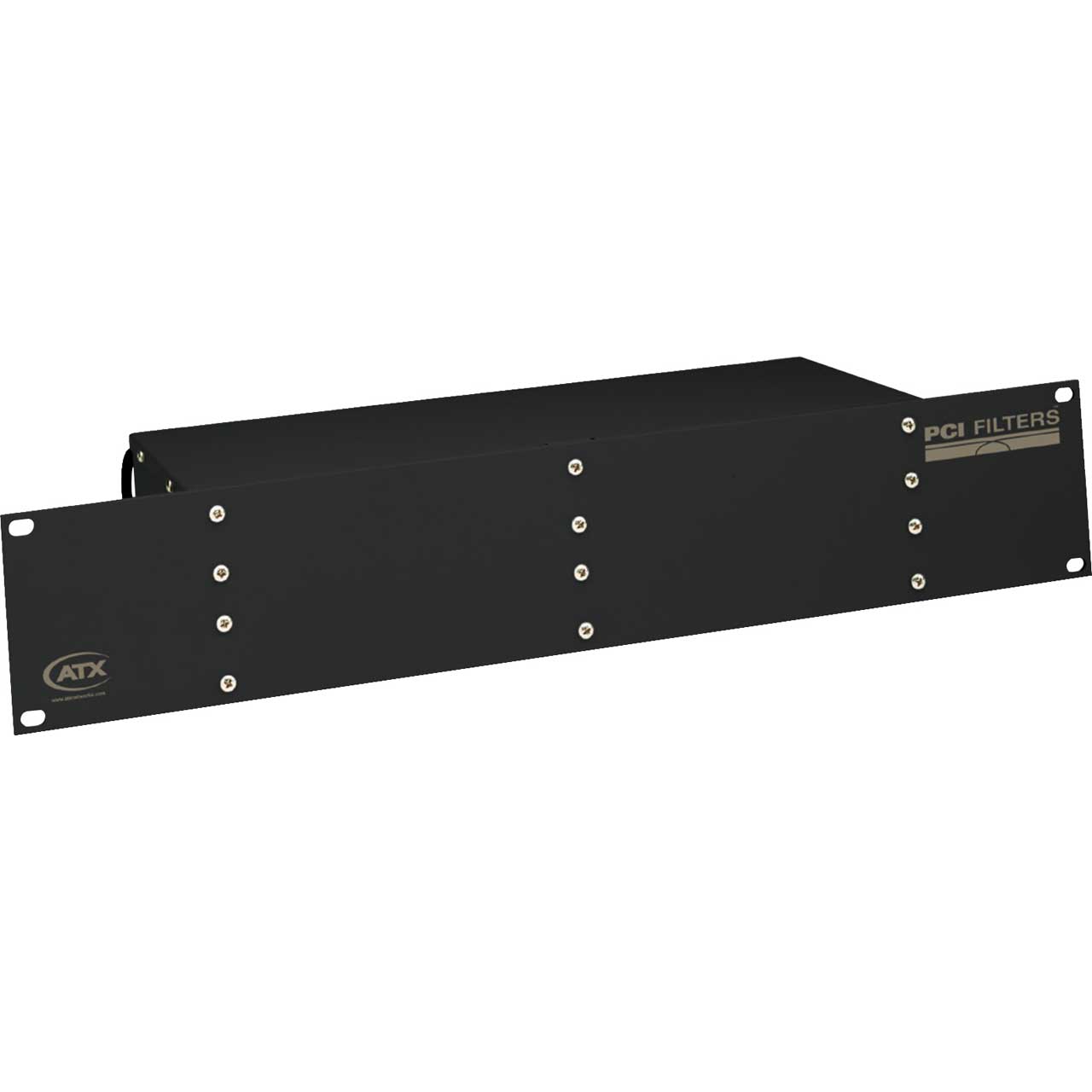

Models BWL-9050 & BWH-9060 (BWH-BWLQ-R) are extremely sharp cut-off, low & highpass filters designed primarily to uncombine a CATV cable feed to interface to a fiber optics link or for reinserting a block of new programming. Transition from knee to first channel to be rejected is 1.5 MHz. Two brick wall filters can be combined to make an extremely sharp band rejection or bandpass filter.

Features:
- Temperature stable
- Low frequency vibration stable
- Final production graph available on request
- 3.5" rack mounted version
- F-type connectors standard
- Customer specified cut-off frequency
Specifications:
- Passband: Customer Specified Cut-off Frequency or Channel
- Stopband: 55dB (min)
- Adjacent Channel Loss: 4dB
- Insertion Loss: 2dB
- Impedance: 75Ω
- Temperature Range: -4°F to 149°F (-20° to 65°C)
- Humidity: 5 to 95% (non-condensing)
- Dimensions (HxWxD):
- 2RU: 3.5 x 19 x 5.75" (8.89 x 48.26 x 14.6cm)
  4RU: 7 x 19 x 6" (17.8 x 48.26 x 29cm)
- Weight:
  2RU: 5.29Lbs (2.4kg)
  4RU: 10Lbs (4.55kg)
