Remee AUD12P22ISRW 22-12P Shielded Indoor CMR Outdoor Analog Audio Riser Cable with Waterblock - 2500 Foot

ITEM #: AUD12P22ISRW25K MFG #: AUD12P22ISRW25K

Primary Image
Remee Wire & Cable
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Shipped truck freight.
Report Lower PriceLarge Quantity Quote

AUD12P22ISRW25K - Overview

The Remee AUD12P22ISRW is a 2500ft, 12-pair, 22 AWG shielded analog audio cable designed for professional audio and communication installations, including wet-location applications. Typical applications include broadcast facilities, paging systems, intercoms, commercial AV systems, and other analog audio or communication circuits requiring high immunity to noise.

Please Note: Spools have a ±5% variance in length. Contact one of our sales reps for exact reel size.

  • Features:

    • 12 individually shielded pairs (24 conductors total) for excellent noise and crosstalk protection
    • 22 AWG stranded tinned copper conductors for flexibility and corrosion resistance
    • High-density polyethylene (HDPE) insulation on each conductor
    • Individual aluminum/polyester shields with drain wires on every pair, plus an overall shield and overall drain wire
    • Water-blocking tape and a black PVC outer jacket, making it suitable for wet locations
    • CMR (Riser-rated) and compliant with UL 444, UL 1666, and RoHS requirements
    • 300V working voltage rating


  • Specifications:

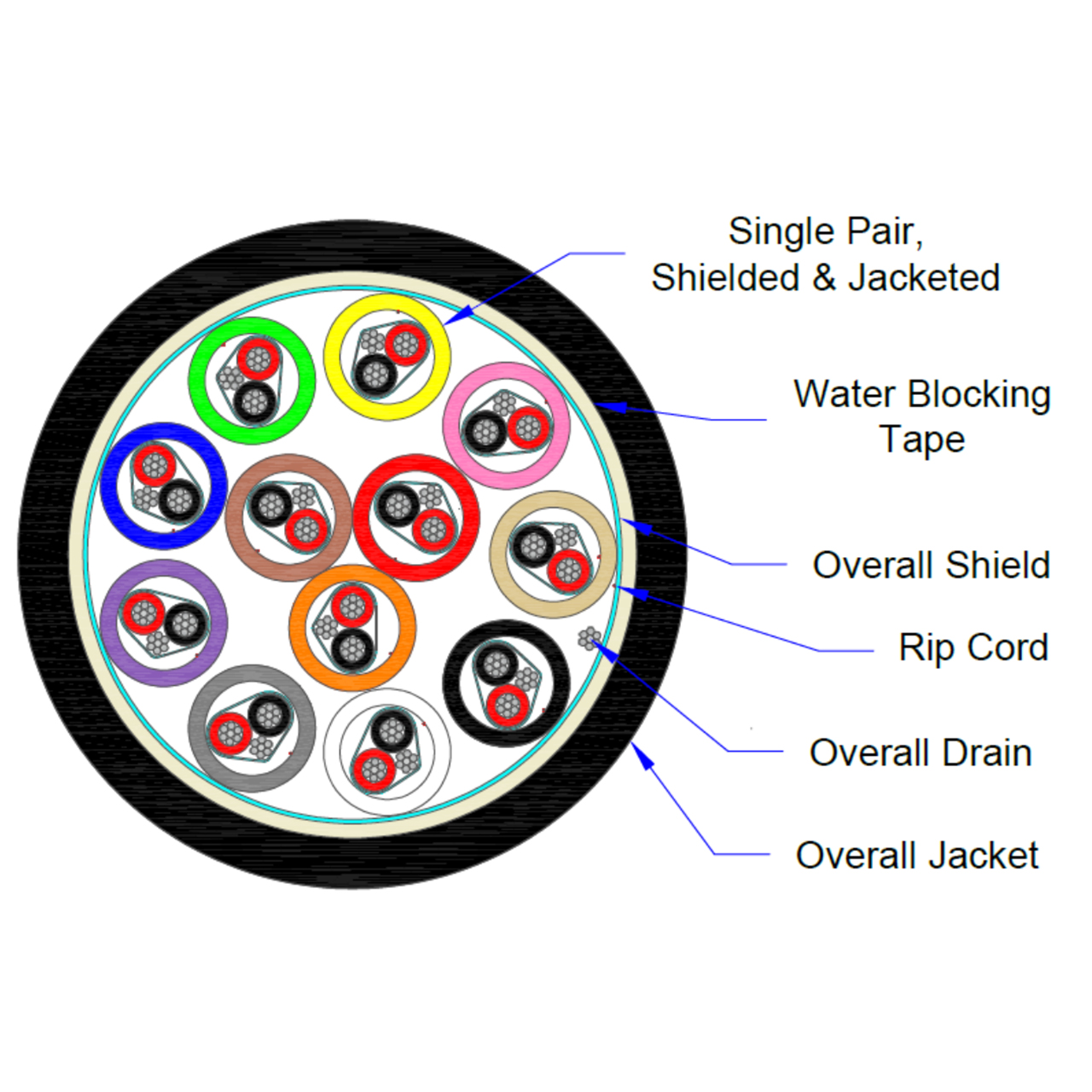

      Construction Details
    • Number of Pairs: 12-Pair
    • Conductor: 22AWG Stranded Tin Copper
    • Insulation Material: High Density Polyethylene
    • Nominal Insulation Thickness: 0.01" (0.3mm)
    • Color Code: Black paired with Red
    • Individual Drain: Stranded Tin Copper
    • Individual Shield: Alum./Polyester (100% Coverage)
    • Nominal Individual Jacket Dia.: 0.145" (3.7mm)
    • Individual Jacket Material: Polyvinylchloride
    • Individual Jacket Color Code: Brown (Pair 1); Red (Pair 2); Orange (Pair 3); Yellow (Pair 4); Green (Pair 5); Blue (Pair 6); Purple (Pair 7); Gray (Pair 8); White (Pair 9); Black (Pair 10); Tan (Pair 11); Pink (Pair 12)
    • Filler: As Required
    • Overall Shield: Aluminum/Polyester (100% Coverage)
    • Overall Drain Wire: Stranded Tin Copper
    • Tape: Water Blocking Tape
    • Overall Jacket Material: 0.06" (1.5mm) Polyvinylchloride
    • Overall Jacket Color: Black
    • Nominal Diameter: 0.72" (18.3mm)

      Electricals
    • Suggested Working Voltage: 300V
    • Nom. Conductor DC Resistance: 14.1Ω/1M'
    • Nom. DC Resistance Shield + Drain: 12.5Ω/1M'
    • Nom. Cap. Cond-Cond: 25.7pF/ft
    • Nom. Cap. Cond-Shield: 47.3pF/ft
    • Velocity of Propagation: 66%

      Other
    • Spool Length: 2500ft (762m)
    • Maximum Cable Pull Strength: 181lbs (82.1kg)
    • Minimum Bend Radius: 8" (203.2mm)


  • Item Includes:

    • 1x Remee AUD12P22ISRW 22-12P Shielded Indoor CMR Outdoor Analog Audio Riser and Waterblack - 2500 Foot


  • Warranty:

    • 1 Year Limited Warranty
