Remee AUD1P22SR 22AWG 1-Pair Shielded Analog Riser Cable - 2500 Foot

AUD1P22SRM1B25K - Overview

• Features:

  • 1 shielded pair (2 conductors) for analog audio signal transmission
  • 22 AWG stranded tinned copper conductors (7/30 stranding) for flexibility and reliable signal performance
  • Aluminum/polyester foil shield with 24 AWG drain wire providing 100% coverage for EMI/RFI noise protection
  • Polyethylene insulation and PVC jacket
  • CMR (Riser) rated for vertical building runs; suitable for riser spaces but not plenum spaces.
  • 300V suggested working voltage


• Specifications:

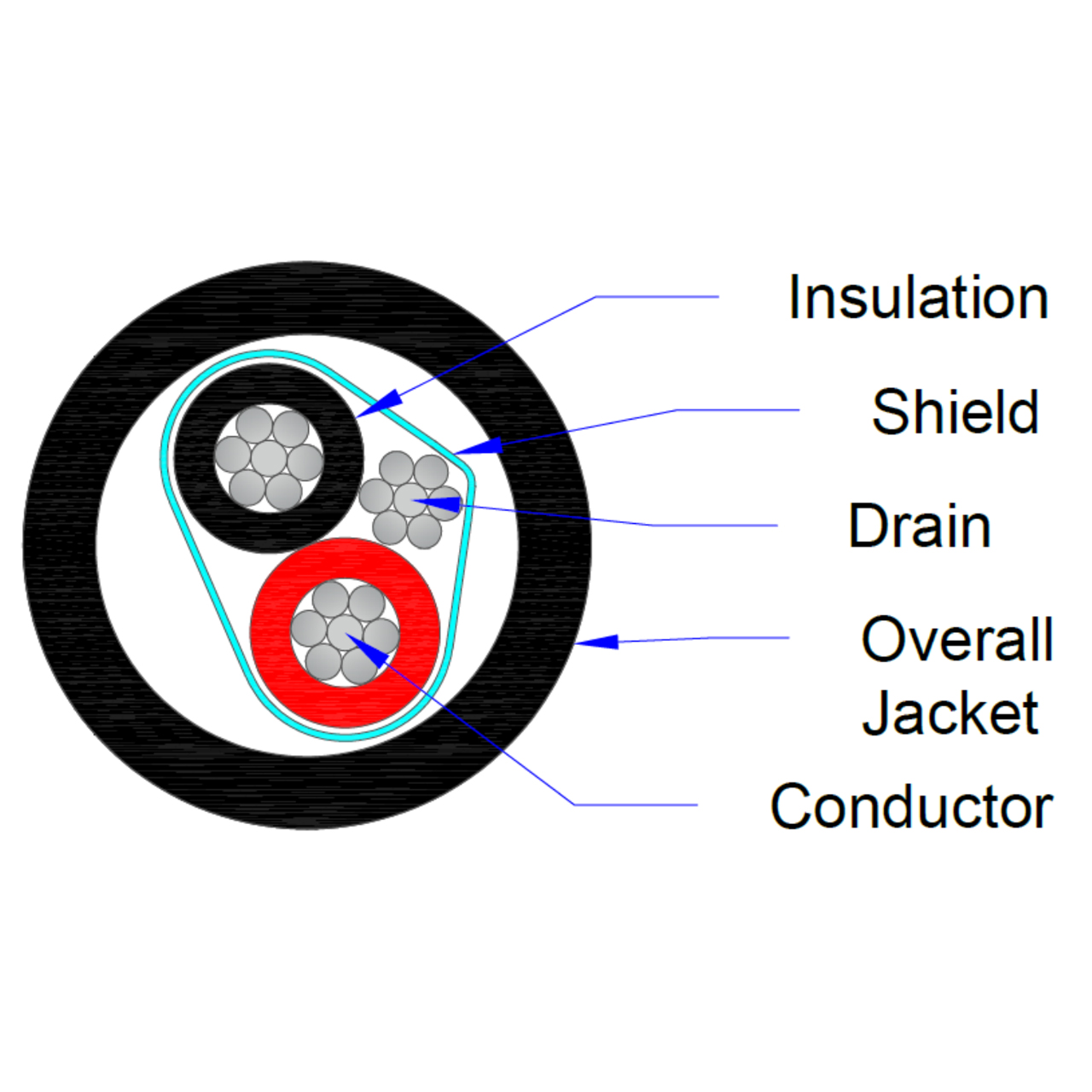

  Construction Details
  • Number of Conductors: 2/C
  • Conductor: 22AWG 7/30 Stranded Tin Copper
  • Insulation Material: Polyethylene
  • Nominal Insulation Thickness: 0.010" (0.25mm)
  • Color Code: Black, Red
  • Drain Wire: 24AWG Stranded Tin Copper
  • Shield: Aluminum/Polyester (100% Coverage)
  • Jacket Material: Polyvinyl Chloride
  • Jacket Color: Black
  • Nominal Jacket Diameter: 0.135" (3.4mm)

    Electricals
  • Suggested Working Voltage: 300V
  • Nom. Conductor DC Resistance: 14.1Ω/1M'
  • Nom. DC Resistance Shield + Drain: 12.5Ω/1M'
  • Nom. Cap. Cond-Cond: 25.7pF/ft
  • Nom. Cap. Cond-Shield: 47.3pF/ft
  • Velocity of Propagation: 66%

    Other
  • Spool Length: 2500ft (762m)
  • Maximum Cable Pull Strength: 14.8lbs (6.7kg)
  • Minimum Bend Radius: 1.6" (40.64mm)


• Item Includes:

  • 1x Remee AUD1P22SR 22AWG 1-Pair Shielded Analog Riser Cable - 2500 Foot


• Warranty:

  • 1 Year Limited Warranty
