DXB-8-BK - Overview

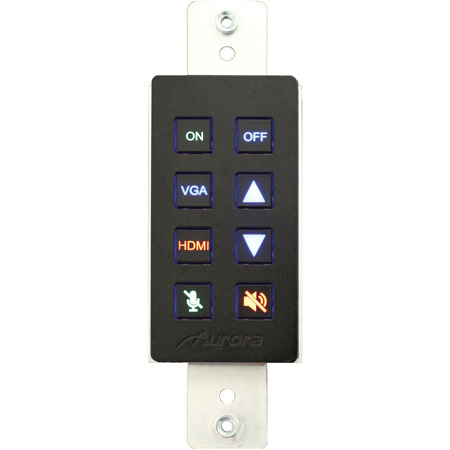

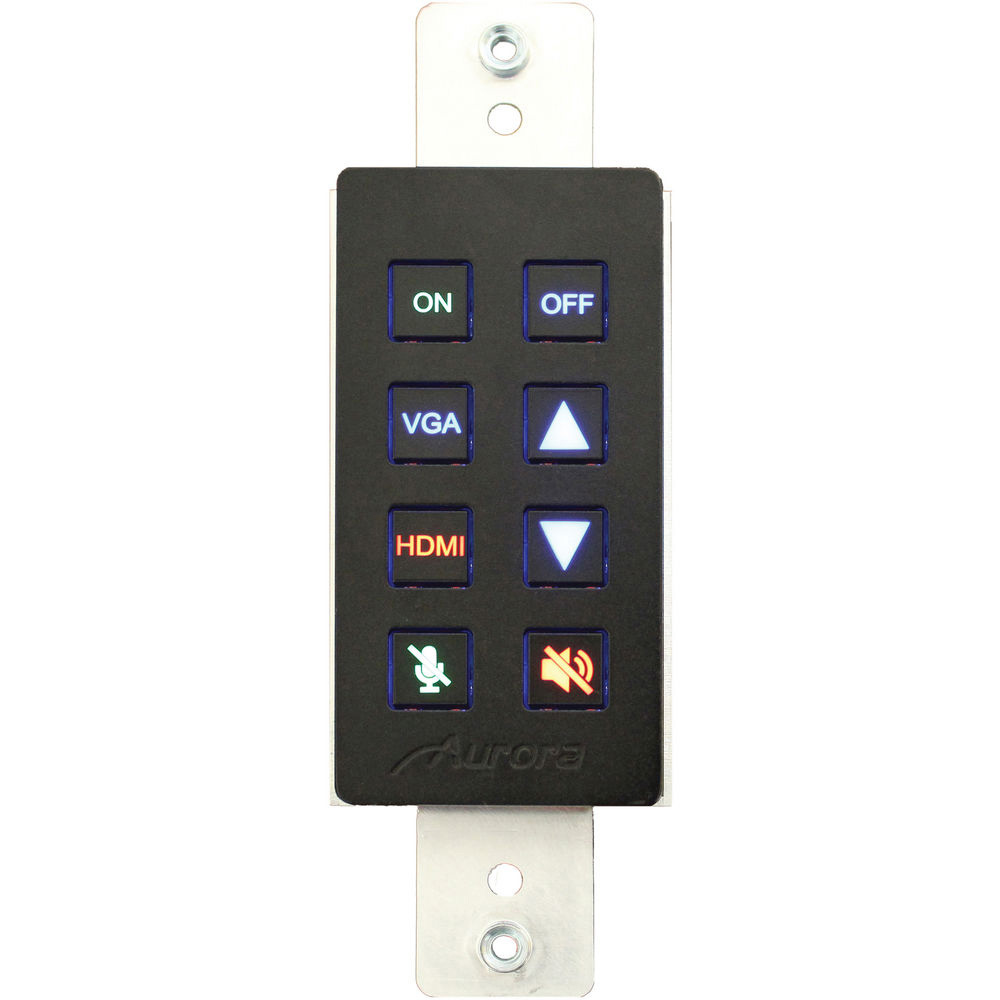

The DXB-8 is a low cost 8 button single gang button panel. Designed to work with just about any RS-232 device on the market, the DXB-8 allows any RS-232 string to be assigned to the press and release of each button. Even repeat on hold is available. The buttons can individually be lit red, green, or blue so in dimly lit areas it can be seen. Available in Decora white or black, the DXB-8 is designed to match.

Low cost, low power, simplicity, and compatibility with just about any device on the market makes the DXB-8 the simple sweet solution of choice.

Please note: Power Supply (P/N PS0045-5-PHX) NOT included, 5-24vdc operation available for newer units with serial number greater than SNA1618-0072.

  • Features:

    • 8 backlit buttons (Red, Green, Blue)
    • Fits in standard 1 gang Decora style outlet
    • 2 RS-232 ports
    • Buttons individually programmable for RS-232 command
    • 9600 - 115k Baud Rate Selectable
    • Designed to work seamlessly with DXW-2 Series
    • Customizable laser etched buttons
    • Daisy Chain up to 8 units for multi-gang button panels
    • Low Power
    • 5v DC powered
    • Low Depth .48" for Floor & Table Boxes

  • Specifications:

    • Technical
    • RS-232 Baud Rate: Max 115kbps (Factory default is 9600)
    • Front Selections: 8 Backlit Buttons (Red, Green, Blue)

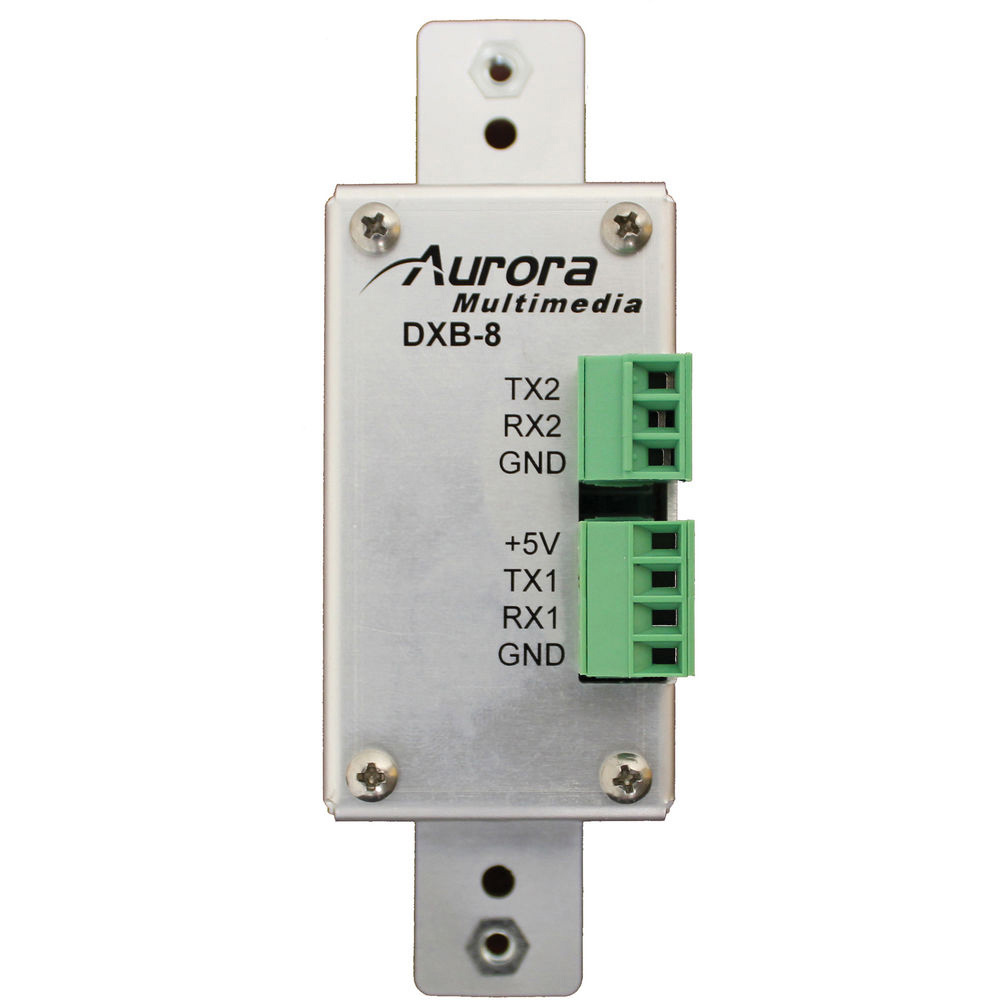

    • RS-232 Connector Port 1: 4 pin 3.81mm Euro
    • RS-232 Connector Port 2: RS-232 Connector Port 23 pin 3.81mm Euro
      Mechanical
    • Housing: Plastic front with aluminum rear enclosure
    • Dimensions: 1.44"L x 4.331"W x 0.76"D
    • Weight: 0.38lbs
    • Mounting: Wall-mounting Decora 1 Gang
    • Power supply: 5v 300mA DC
    • Power consumption: 1 Watts [max]
    • Operation temperature: 32 - 104°F
