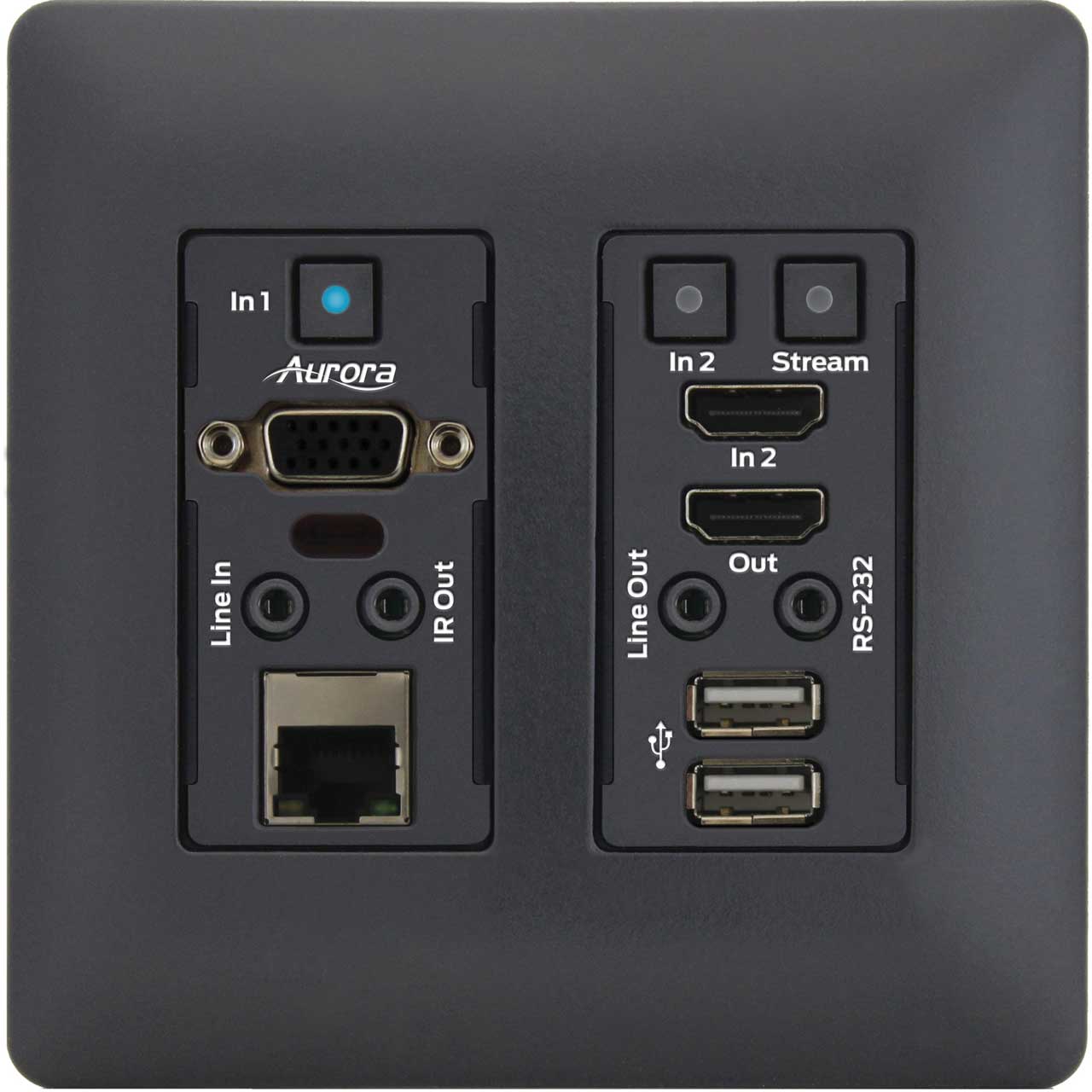

Aurora VLX-TCW2V-C-B 4K IP Audio/Video Distribution Wall Plate - Black

ITEM #: AURA-VLXTCW2VCB MFG #: VLX-TCW2V-C-B

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,298.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    VLX-TCW2V-C-B - Overview

    The VLX-TCW2V provides one of the most advanced IP Streaming solutions on the market utilizing Aurora’s IPBaseT technology, which synergizes various IP/AV standards to work together as one. It is the industry’s first 4K UHD transceiver with only 1.5 frame (25ms) latency and visually lossless compression. The VLX-TCW2V has 1 VGA and 1 HDMI port. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The VLX-TCW2 Series can be set up as either one to make installation, inventory, and troubleshooting easier.

    Note: The selected network switch needs to support: 1Gbps, Non-blocking IGMP & Jumbo Frame Packets. The raw network cabling as well as the patch cables are as important as the switch. When using copper, CAT5e, 6, or 6a cable is preferred for optimal performance and is important to follow the standard rules for running Ethernet cables. No sharp bends, coiling, putting near power lines, grouping tightly together with other LAN cables, etc. Shielding is not necessary but can be used for noisy environments.

    • Features:

      • 4K visually lossless over 1Gbps network
      • Low 1.5 frame latency
      • 1080p to 4K, 4K to 1080p scaling
      • HDMI 2.0/HDCP 2.2
      • Unlimited scalability (based on network topology)
      • Videowall with image rotation
      • PoE (Power over Ethernet)
      • Stereo line I/O
      • RS-232 and IR Control Ports
      • Auto sense switching
      • USB 2.0 Host and Device Ports
      • Dante IP audio option

    • Specifications:

      • Technical
      • Compression: 8:1
      • Latency 1.5 Frames (25ms)
      • Scaling: 1080p to 4K, 4K to 1080p
      • HDMI Inputs: 2 HDMI 2.0/HDCP2.2
      • HDMI Outputs: 1 HDMI 2.0/HDCP2.2
      • VGA/YPbPr Inputs: 1 15 Pin HD Female
      • Audio Analog: Stereo Line In/Out (3.5mm TRS)
      • 1G Copper Ethernet: RJ-45
      • LAN: RJ-45 10/100/1000M PoE (PSE)
      • Video Bandwidth: 340MHz
      • Video support: Up to 4K2K 4:2:0 @60Hz
      • Audio support: Up to 32 channels & Break-away Capable
      • RS-232: 2 qty Up to 115k Baud (3.5mm TRS)
      • IR: Bi-Directional (3.5mm TRS)
      • USB Connector: 1 USB 2.0 Type A, 1 USB 2.0 Type B 2 USB 1.1 Type A
      • Expansion Port: Dante Option
      • Interface: IR or Keypad via OSD, Webserver
        Mechanical
      • Housing: Aluminum
      • Dimensions (LxWxH): 2 Gang 3.728” x 2.83” (4.331” with tabs) x 1.404”
      • Weight: 2.5 lbs
      • Mounting: Wall-mounting Decora 2 Gang
      • Power supply: 48V DC (2 pin Euro) or 1G PoE
      • Power consumption: 9 Watts
      • Operation temperature: 32 - 104°F
      • Storage temperature: -4 - 140°F
      • Relative humidity: 20 - 90% RH (no condensation)

    • GTIN:

      0870001273976
