AuviTran AV-WALL-DT4o-B 2 XLR-M Analog Output Wall Plate w/ Dante Stereo Bluetooth Out - LED Status/Gain Selection Knob

ITEM #: AUT-AV-WALLDT4OB MFG #: AV-WALL-DT4O-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
AuviTran
Free Shipping with $49 Minimum Order

List Price:

$1,300.00

Our Price:

$1,170.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AV-WALL-DT4O-B - Overview

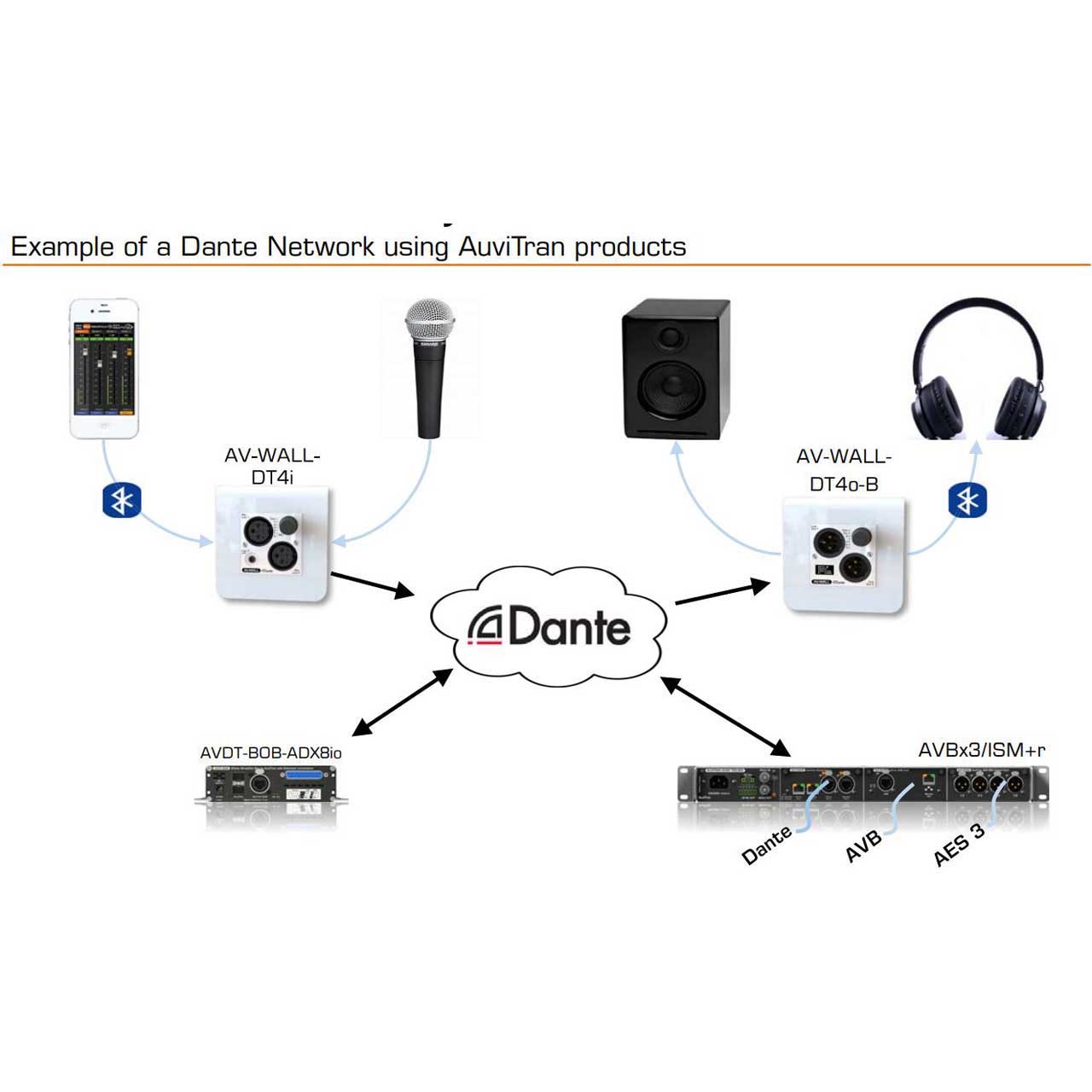

    The Auvitran AV-WALL-DT4o-B is a single-gang wall mounted Dante and Bluetooth output audio interface. The compact design provides a flexible and easy to use installation solution. It is PoE enabled so you only require one Cat5e/6 cable to connect the power, control and transmission.

    The AV-WALL-DT4o-B has a very simple pairing process accessed through a rotation push button that allows the user to select and view paired devices on a OLED screen. Gain can then be controlled locally or via the AVS Monitor and Dante Controller software. Direct selection of Dante sources, no external software required to create a patch.

    • Features:

      • Simple Bluetooth device pairing
      • Remote or local controlling options
      • Compatible with most known portable Apple and Android devices
      • Fits into a single-gang junction box (measures only 45x45mm)

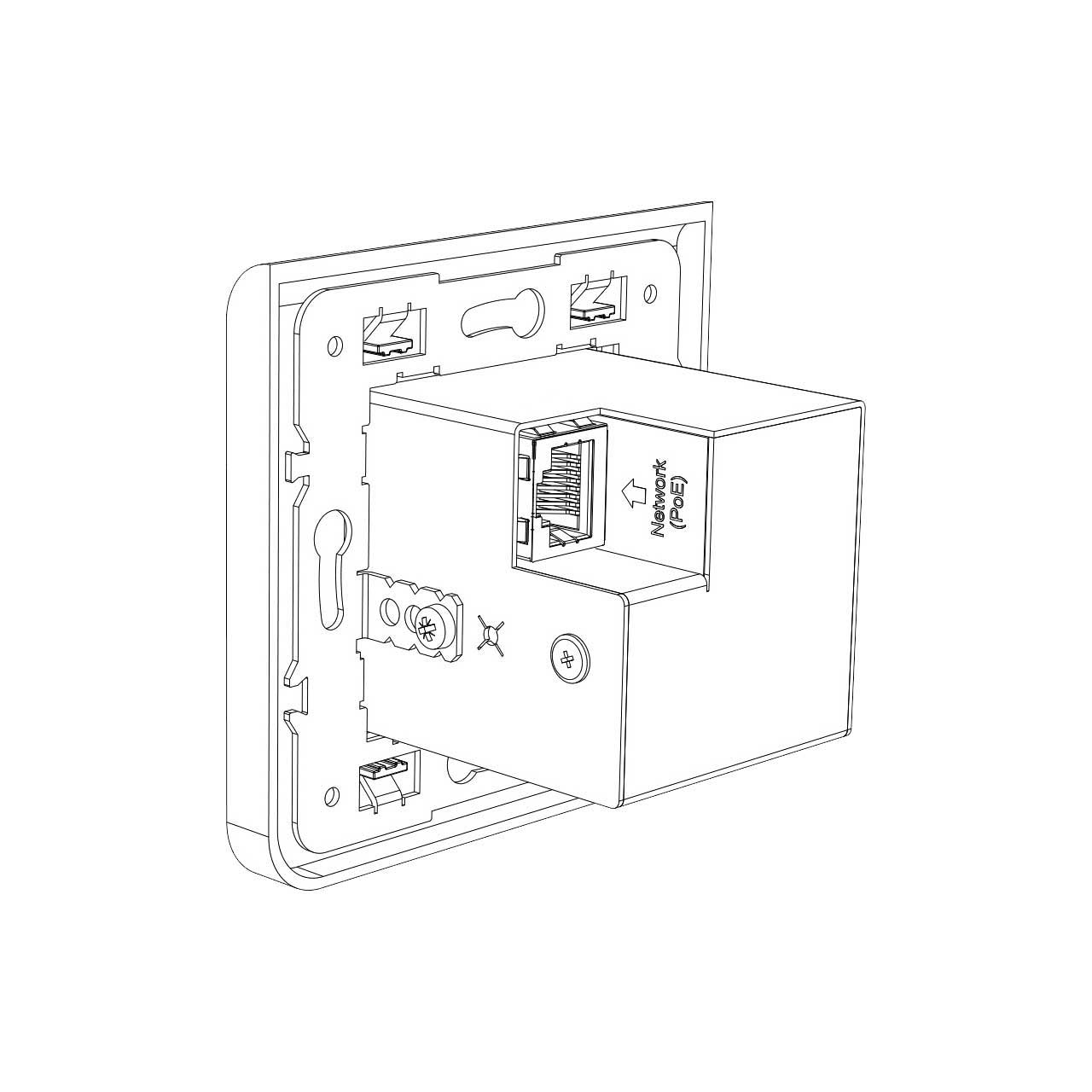

      • RJ45 connector for power and control

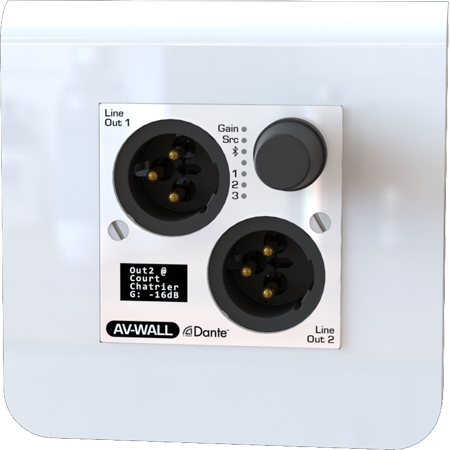

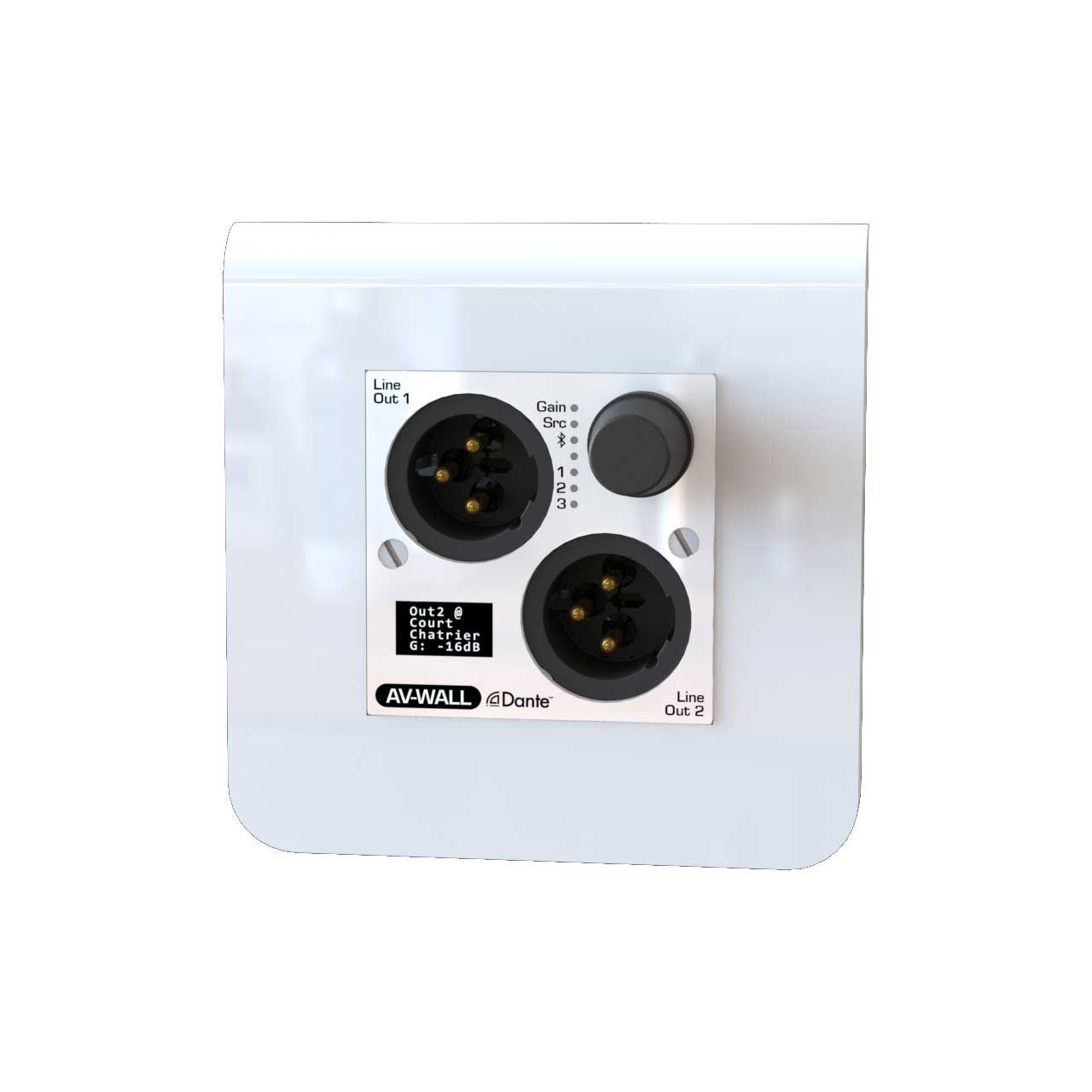

      • 2x male XLR analog line out connectors
      • OLED screen for direct Dante source selection
      • Easy selection of pre-set Bluetooth channels


    • Specifications:

      • General
      • Dimensions: Depth in Wall (HxLxW): 1.93 x 1.85 x 1.81 In (49 x 47 x 46mm) - Central part: 1.77 x 1.77 x 1.97 In (45 x 45 x 50mm) Fit in 1 gang box - Wall plate size may vary depending on the region.
      • Power Supply: PoE 802.3af compliant through RJ45. Maximum consumption 5.5W.
      • Sampling, A/D: 44.1 / 48 / 88.2 / 96 kHz on 24 or 32 Bits

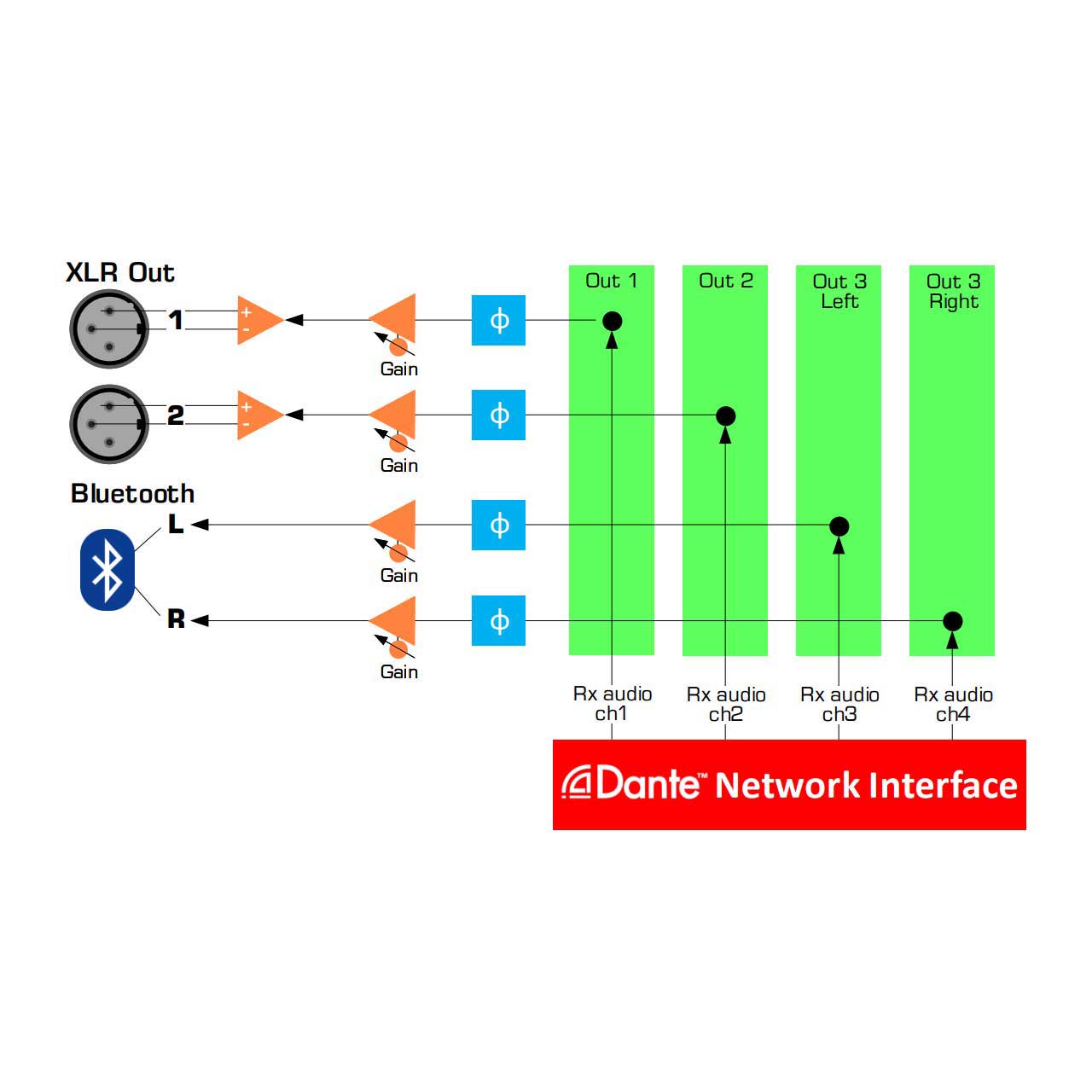

      • Outputs: 2x XLR for Line outputs 1-2, a stereo Bluetooth on AV-WALL-DT4o-B
      • Local Control: Rotary push button on AV-WALL-DT4o-B only
      • Display: OLED screen on AV-WALL-DT4oB only

        XLR (Balanced)
      • Output Max Level: +24dBu
      • Output Impedance: <100 kω (balanced)
      • Dynamic Range @+24dBu: >106dB A-weighted
      • THD+N @1KHz, G=0dB: <-92 dB (0.0025%)
      • Freq. Response @G=0: 20Hz-20kHz (+0 /-2.5dB)

        Mini Jack (Unbalanced)
      • Output Max Level: +18.7dBu
      • Output Impedance: 16 to 600 ω (unbalanced)
      • Dynamic Range @+24Bu: >104dB A-weighted
      • THD+N @1KHz, G=0dB: < -91 dB (0.0028%)
      • Freq. Response @G=0: 20Hz-20kHz (+0 /2dB)
      • Max Power: 250mW (@ 0.05% THD+N 1KHz, 32 ω load )
