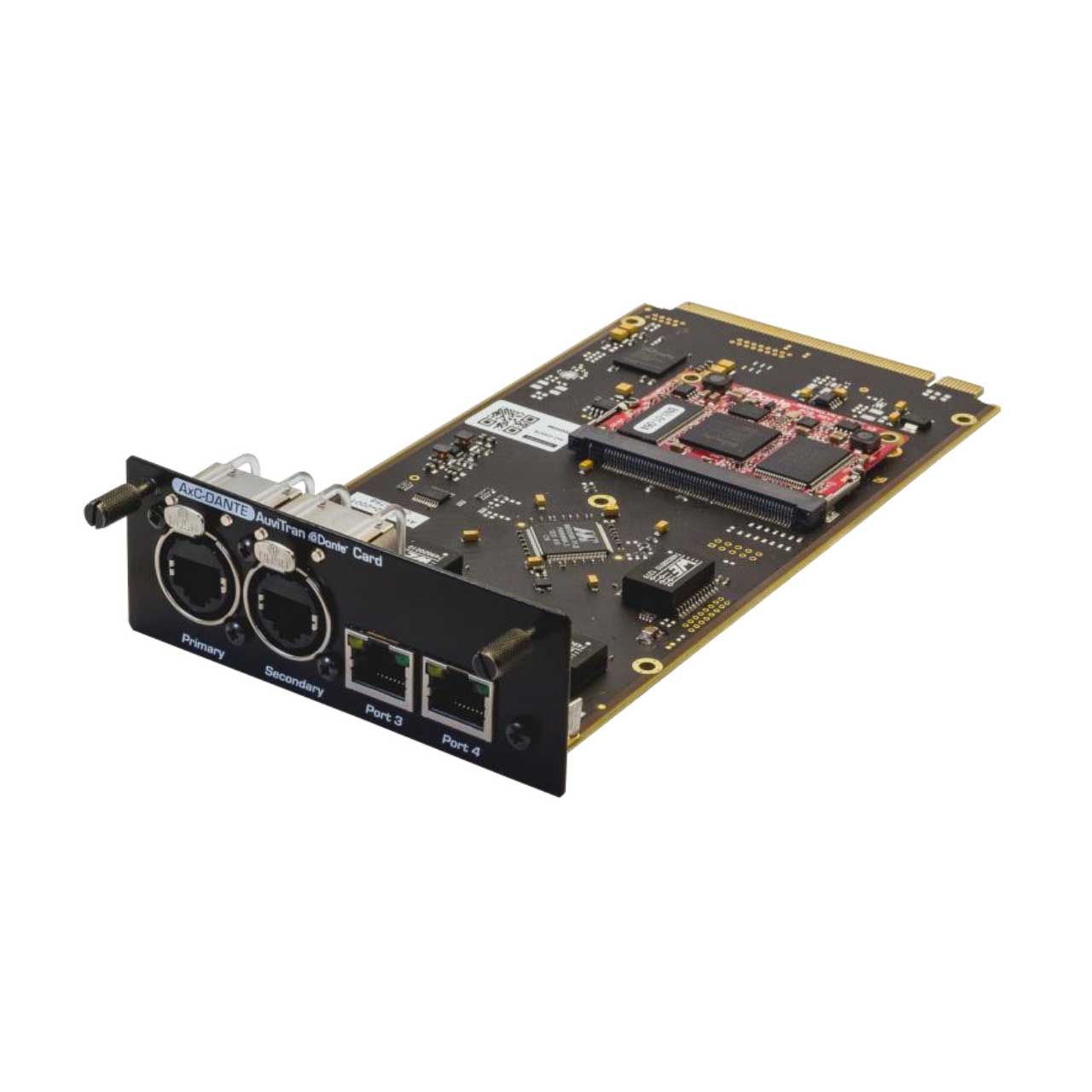

    AXC-DANTE - Overview

    Just as every AxC card within the Audio ToolBox range, the AxC-DANTE can equally be used in AVBx3 or AVBx7 platforms. Using one slot of either ToolBox, the AxC-DANTE allows to control Dante networks, but also to bridge them with other network configurations. Combined with other AuviTran Audio ToolBox cards, the AxC-DANTE card opens exciting possibilities to the professional audio systems.

    It can be transformed into a flexible analog StageBox, when combined with a ToolBox (AVBx3 or AVBx7), AxC-AX4M high class mic/line preamps cards and AxC-AX4O analog output card. It can also work as a Virtual Soundcard with any standard ASIO, WDM or Core Audio interface.

    Up to 24 analog mic inputs can be monitored directly from a Yamaha Dante console, just as RIO Stagebox. Dante bridges in combination with any other network AxC card such as Dante-MADI, Dante-Cobranet, Dante-EtherSound bridges, thus smartly mixing connectivity.

    • Features:

      • 64 Dante inputs and 64 Dante outputs
      • One integrated switch featuring 4x gigabit ports
      • Remote management with Dante Controller and AVS-Monitor software

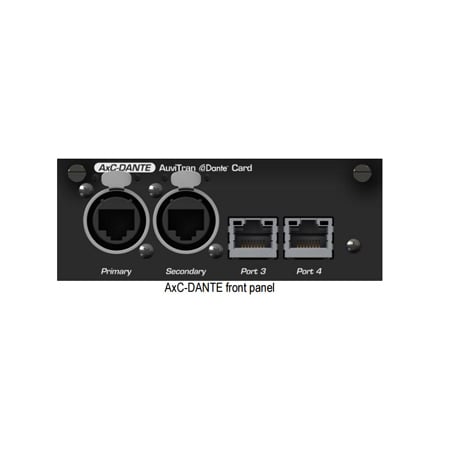

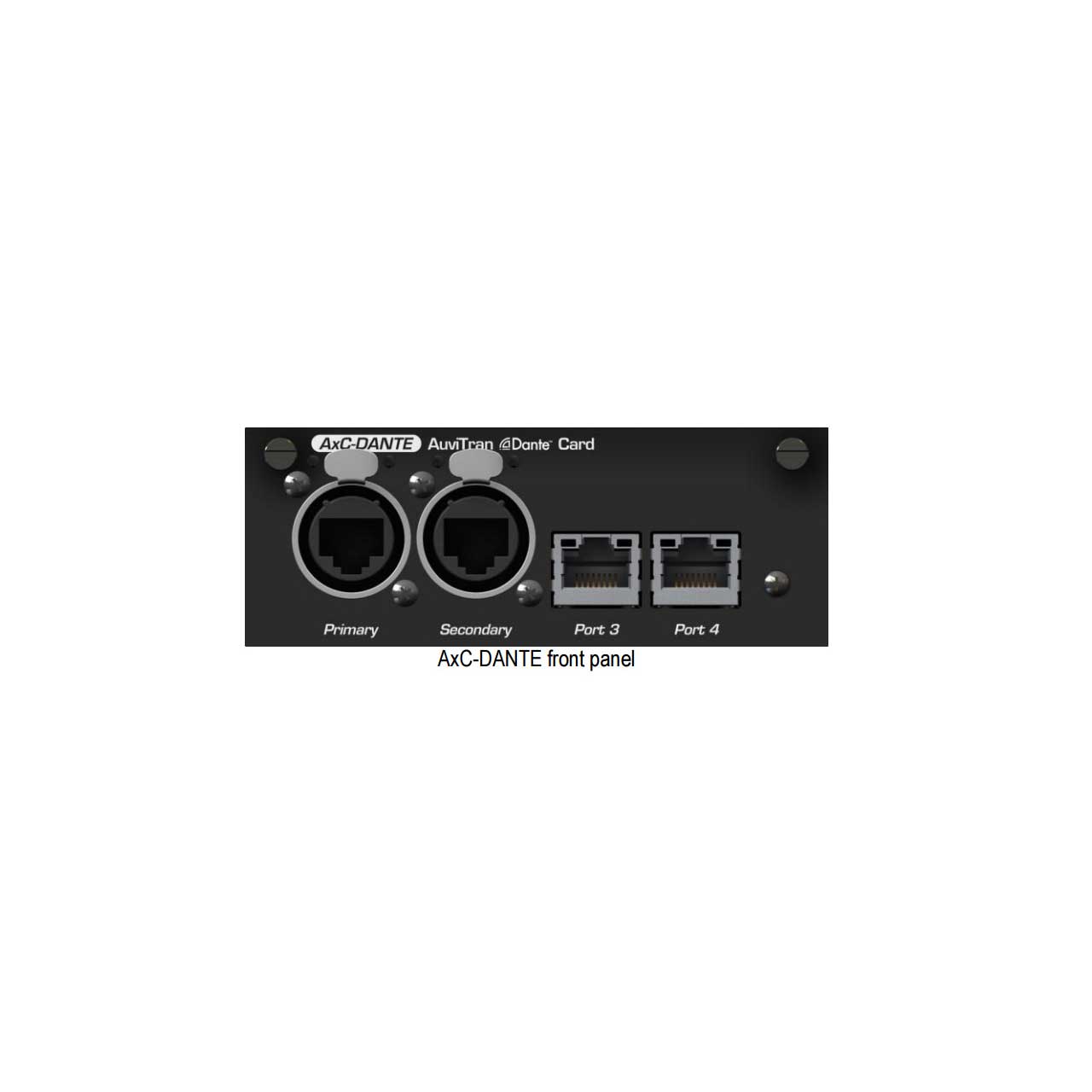

      • Two EtherCon connectors (Primary/Secondary) for connection in switch or redundant mode
      • Two Ethernet RJ45 connectors (port 3 and port 4) to be used as integrated Gigabit switch ports
    • Specifications:

      • General
      • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
      • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
      • Storage: Temp/Humidity (non-condensing): -5°C to 70°C / Max 95% (non-condensing)
      • Operating: Temp/Humidity (non-condensing): 0°C to 50°C / 5% to 90% (non-condensing)
      • Connectors: 2 x Neutrik EtherCon RJ45-XLR female connectors 2 x RJ45 connectors

        DANTE Specifications
      • Dante Operation modes: Switch - Integrated Gigabit switch Redundant with Primary and Secondary ports, replicated on ports 3 and 4
      • Audio Outputs: Up to 64 channels
      • Audio Inputs: Up to 64 channels
      • Sample format: 24 bit
      • Sample rate: 44.1 kHz, 48kHz, 88.2kHz, 96kHz
      • Synchronization: Automatic from Dante network

        Integration Environment
      • Audio ToolBox platform: AxC-DANTE is one of the cards for the AuviTran Audio ToolBox platform
      • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor an audio network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
      • OS Supported: Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions
