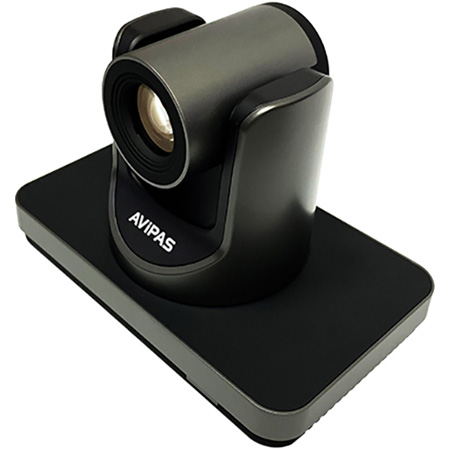

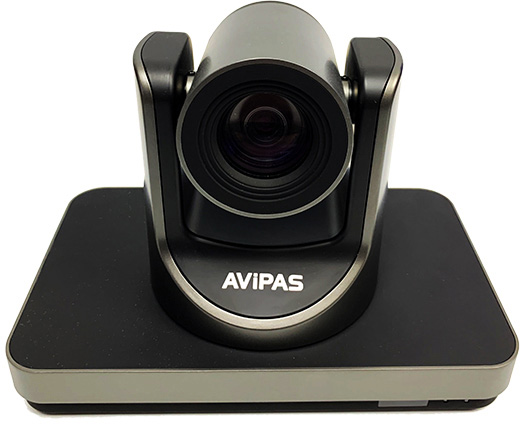

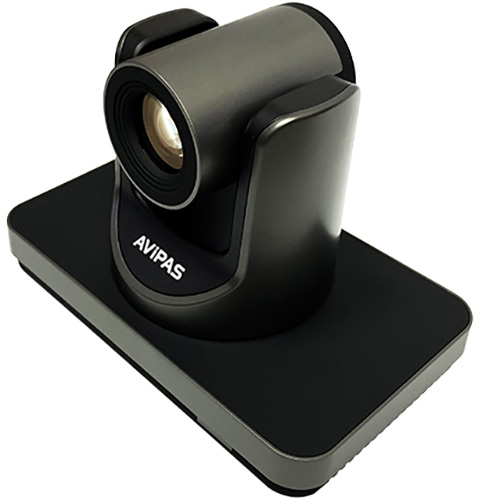

AViPAS AV-1560 20X-3GSDI/HDMI PTZ Camera with IP Live Streaming and USB Local Storage (PoE Supported)

ITEM #: AV-1560 MFG #: AV-1560

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    AV-1560 - Overview

    The AViPAS AV-1560 is a full HD 1080p camera with 20X optical zoom & 16X digital zoom, suitable for video conferencing, education and houses of worship. It has 3 outputs: 3GSDI, HDMI and LAN. It has a 1/2.7", 2.07 million effective pixel high-quality CMOS sensor to capture video images. Its f4.42mm~88.5mm, F1.8~F2.8 lens and a minimum illumination of 0.5 Lux is prefect for low-light conditions. AV-1560 features a Power over Ethernet (PoE) which delivers power, IP control and video over a single Cat5/6 cable. You can stream H.264/H.265/MJPEG content as well as monitoring uncompressed video via the camera's SDI&HDMI output. It uses a SOC solution instead of the traditional FPGA one, and supports dual streaming @ 60fps in different resolutions. AV-1560 also has a local storage module which allows recording video directly to a flash drive via its USB 2.0 port. The camera has RS232 in and out ports for communication, easy to cascade. AV-1560 also has a 3.5mm audio input. AV-1560 can be controlled by IR remote control, RJ45 over network or RS232/RS485 using serial commands.

    • Features:

      • Full HD 1920x1080p @ 60 fps
      • 2.07MP, 1/2.7" CMOS Sensor
      • f4.42mm~88.5mm, F1.8~2.8 Lens
      • 0.5Lux minimum illumination @ F1.8
      • Horizontal Angle of View: 60.7° ~ 3.36°
      • Vertical Angle of View: 34.1° ~ 1.89°
      • 2D&3D digital noise reduction
      • H.264/H.265/MJPEG Video streaming
      • PoE supported
      • AAC audio encoding
      • 3GSDI, HDMI and LAN simultaneous output
      • 255-preset positions via RS232/RS485 (10 preset positions using IR remote control)
      • IR remote & RS232I/O & RS485 & RJ45 for control
      • VISCA/Pelco-D/Pelco-P communication protocols
      • H/Vertical image flip
      • Standard wall / ceiling mounting
    • Specifications:

      • Camera Specifications:
      • Image Sensor: 1/2.7" CMOS sensor, 2.07MP
      • Shutter Speed: 1/30s ~ 1/10000s
      • Minimum Illumination: 0.5Lux @ (F1.8, AGC on)
      • SNR: >=55dB
      • White Balance: Manual, Auto, Indoor, Outdoor, One Push, VAR
      • Image Flip: H&V On/Off
      • Pan Rotation: ±170°; Tilt Rotation: -30°~+90°
      • PoE: Support
      • Local Storage: Sopport

        Lens Specifications:
      • Focal Length: 4.42 ~ 88.5mm
      • Zoom Ratio: 20x (Optical), 16x (Digital)
      • Horizontal Angle of View: 60.7° ~ 3.36°
      • Vertical Angle of View: 34.1° ~ 1.89°

        Input/Output Interfaces:

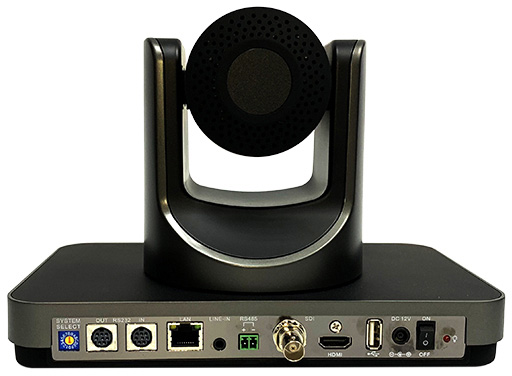

      • Output: 1 x 3GSDI, 1x HDMI, 1x LAN
      • Video Compression Format: H.264/ H.265/ MJPEG
      • Control Interface: RS-232I/O, RS485, RJ45
      • Protocol: VISCA, Pelco-D, Pelco-P

        General Specifications:
      • Power Requirements: DC 12V/ PoE (802.3af)
      • Power Consumption: 12W
      • Operating Temperature: 14°F~104°F(-10°C~40°C)
      • Storage Temperature: -40°F~140°F (-40°C~60°C)
      • Dimensions: 10"x6"x7"
      • Weight: 3.6lb
    • GTIN:
