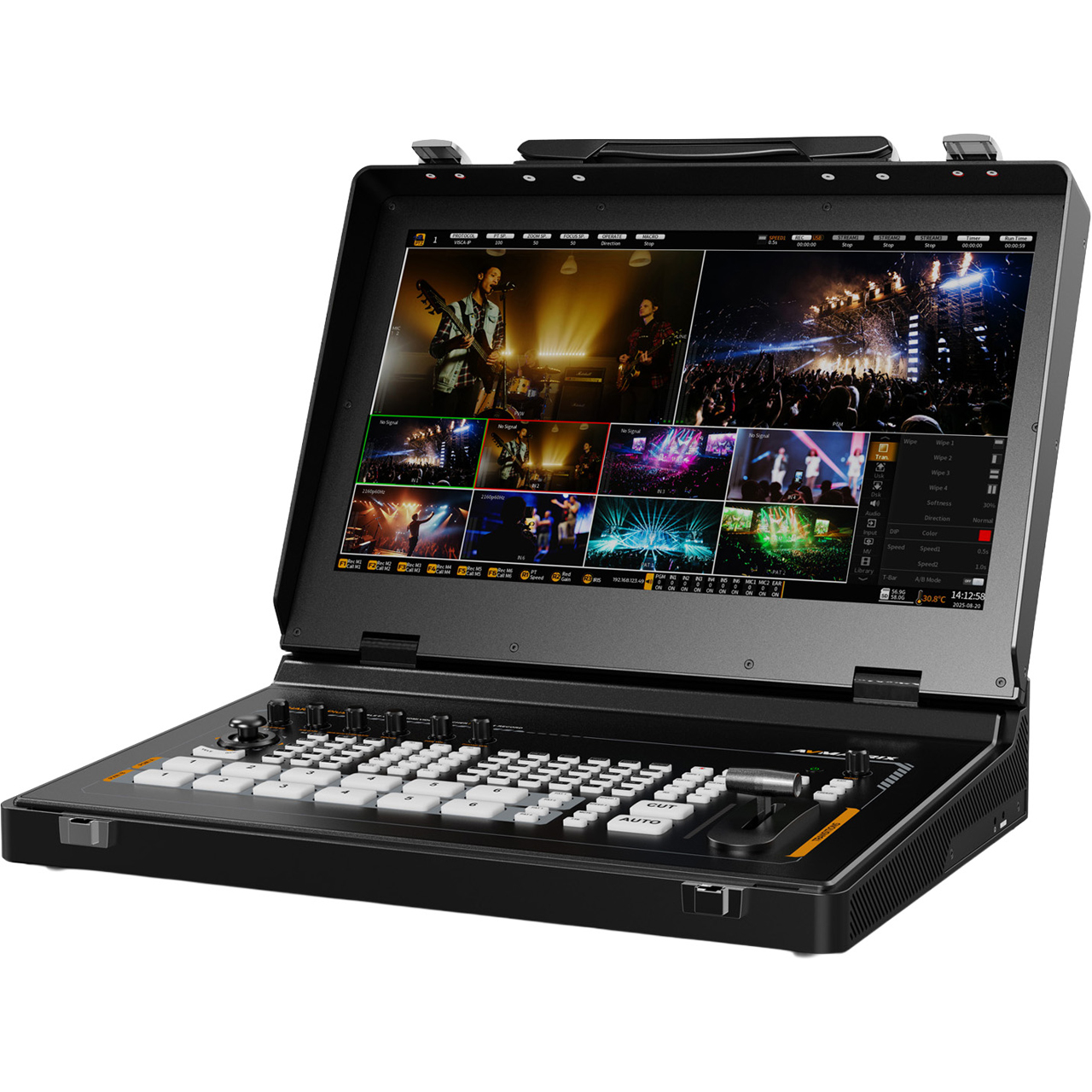

The AVMATRIX SHARK S6 PLUS is a 6 Channel SDI and HDMI portable video switcher. The built-in 17.3" HD IPS screen clearly displays PVW, PGM, audio bar, multiview, audio settings, PTZ camera settings, FN key configurations, and anything else you would need for your production.

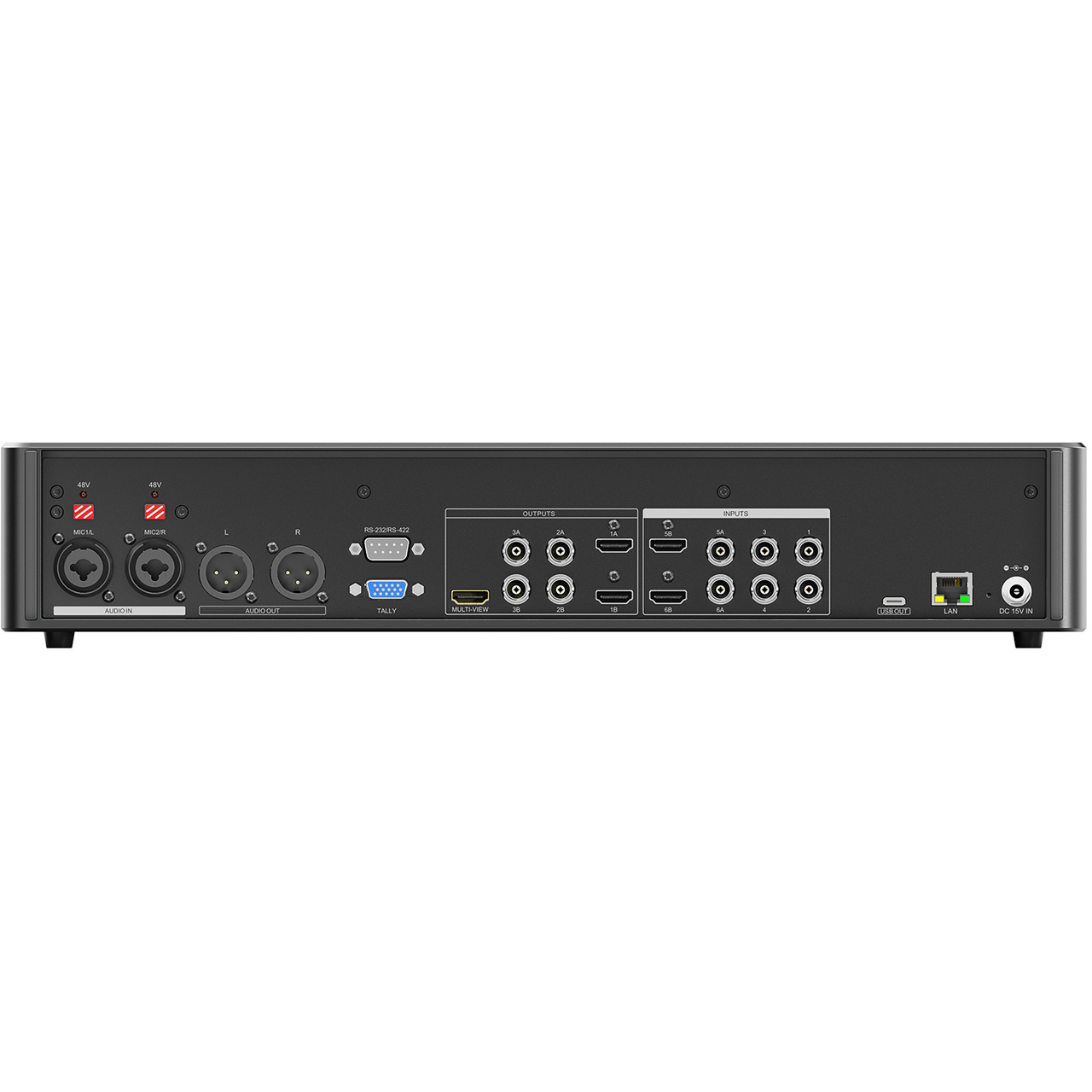

Versatile Inputs and Outputs
This switcher supports six inputs (four SDI and two SDI/HDMI) and seven flexible outputs (two HDMI, four SDI, and one multiview), handling up to 4K60 HDMI signals. It allows flexible source selection and configuration, ensuring high adaptability for professional production.
Convenient PTZ Control
The switcher features a PTZ controller supporting pan, tilt, zoom, and gain via RS232/RS485 and LAN. It controls up to six IP cameras and supports VISCA, ONVIF protocols.
Professional XLR Audio and 48V Phantom Power
The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. The user can configure AFV, audio mixing, and a 500ms audio delay, making it ideal for professional productions.
Advanced Keyer Functions
The switcher integrates three powerful upstream keys for users to configure PIP, LUMA Key, Chroma Key freely, and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or the menu knob.

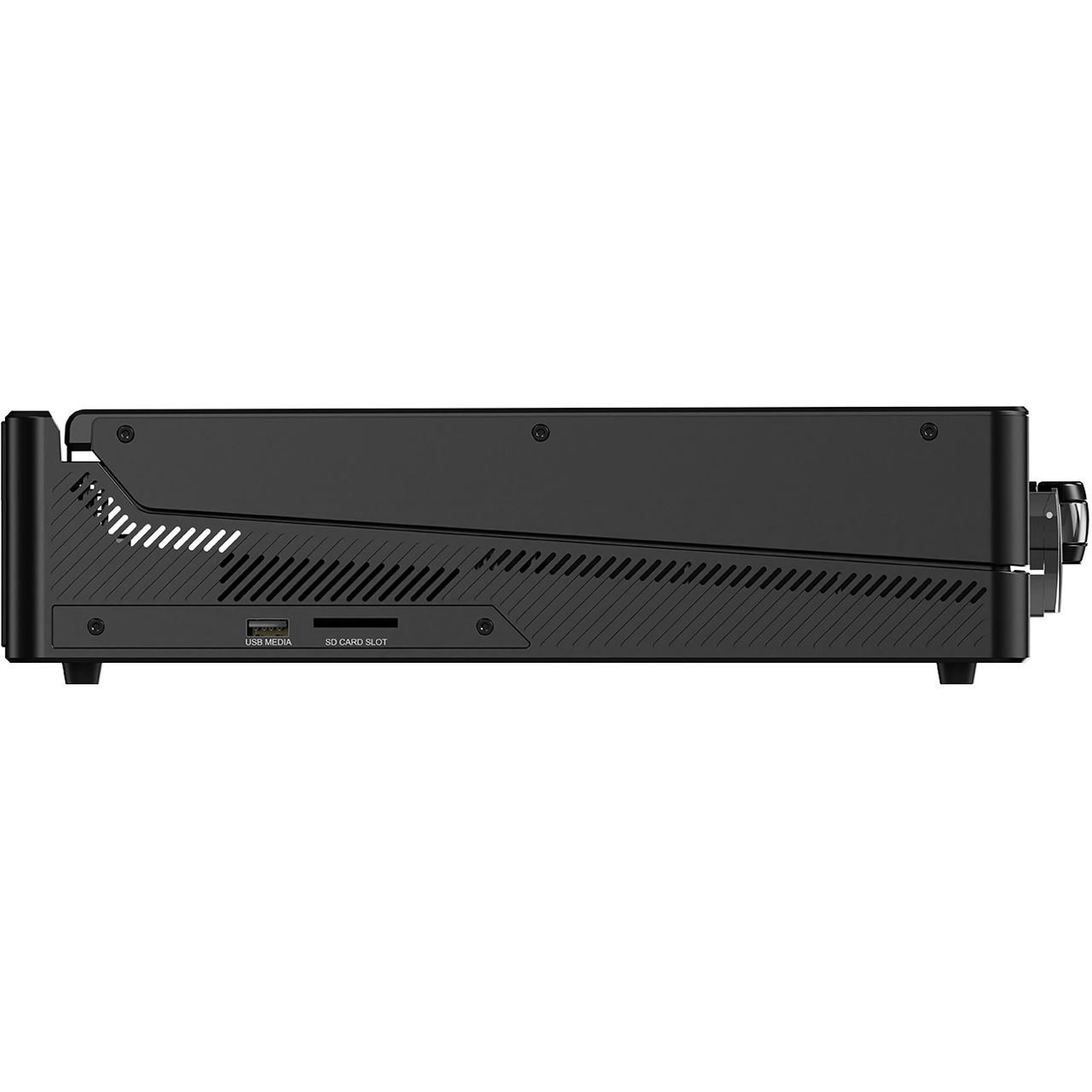

Build-In Recording
This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.
Uncompressed USB Capture
The USB Type-C port functions can be used as a webcam, supporting uncompressed video and audio capture. It streams to various software and platforms, including OBS, vMix, ZOOM, Teams, and VLC, and is compatible with Windows, Linux, and Mac systems. Capture Support RGB32,YUY2, NV12.
