HDM2-SPLITPRO-T4K-V3 - Overview

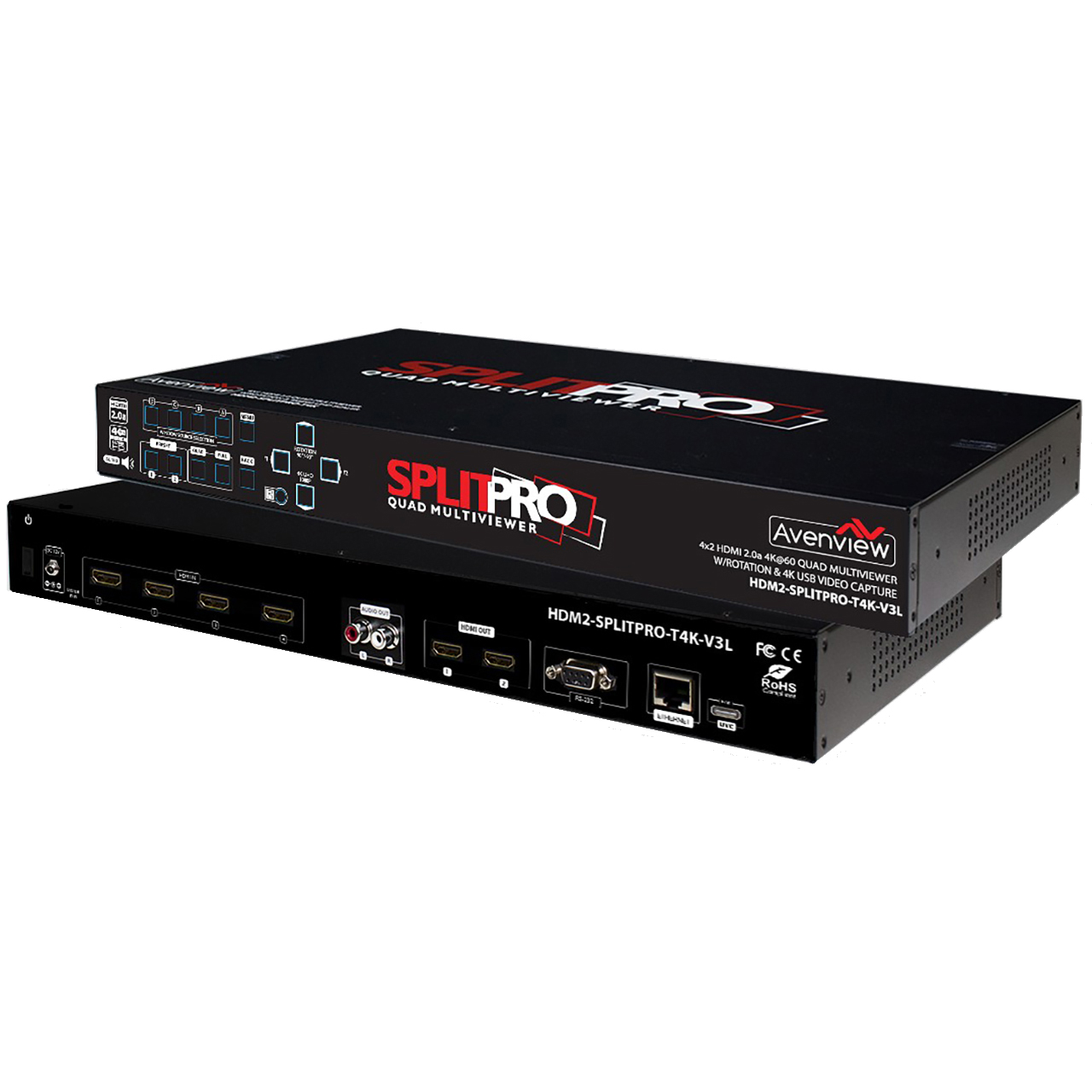

The Avenview HDM2-SPLITPRO-T4K-V3 is a 4 input x 2 output multiviewer that was developed for the purpose of supporting higher input and output resolutions up to (4K@60) for multiple sources on a single screen

USB Capture: Connect to the built in USB 3.0 UHD video capture to output 4K video to a computer for recording or streaming

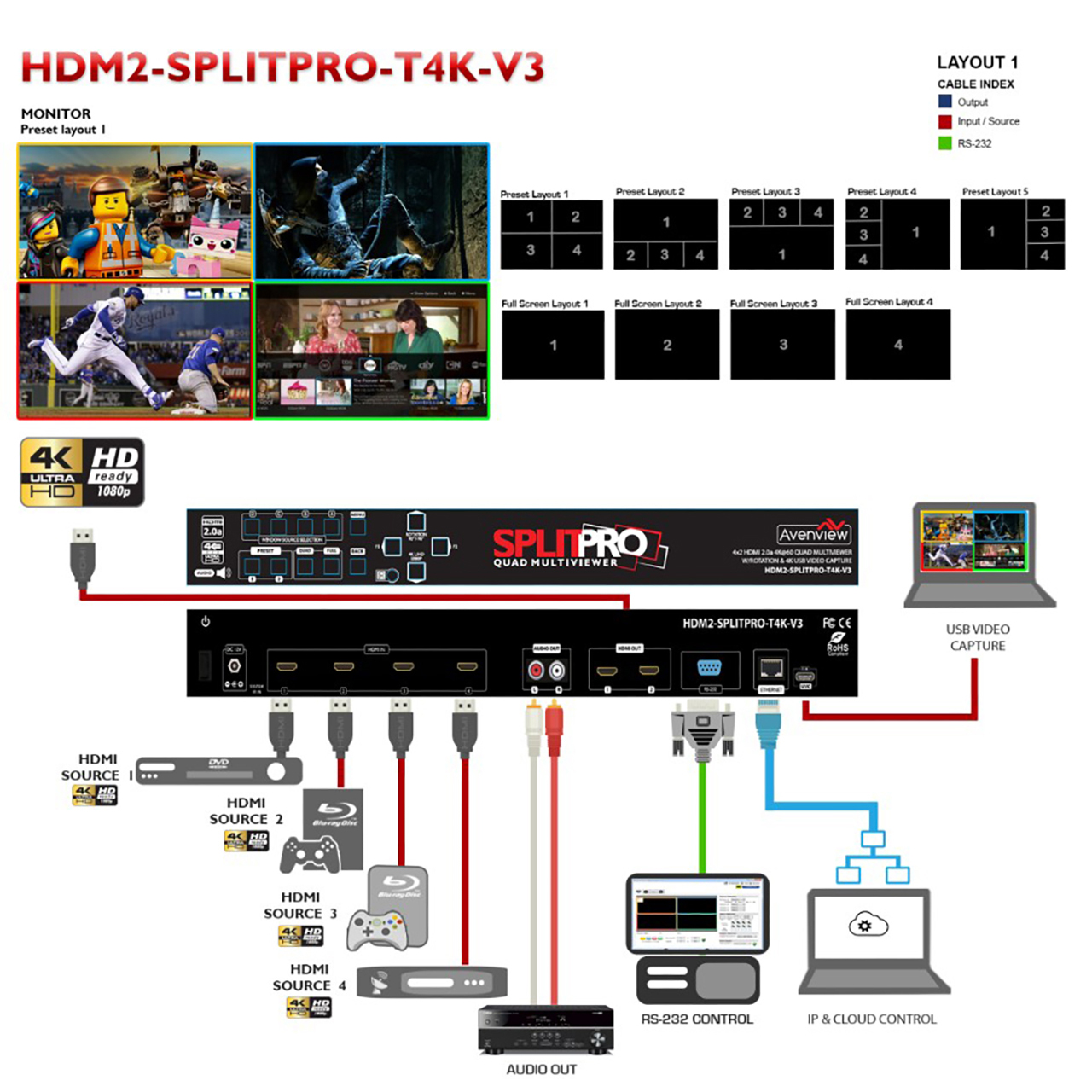

This HDMI device can accept 4 HDMI 4K input digital sources and combine (4) four video signals onto a single HDMI UHD or HD monitor The user can easily manage each input via the supplied Control Software and create any layout and position of any of the 4 (four) Inputs on a single monitor. This device supports full range of input video resolutions up to 4K with audio RCA breakout supported for external audio distribution systems. Audio channels can be selected to playback with input or can be muted.

Fast Switching
This device can input any 4 HDMI input digital sources and then combine, (4) four video signals onto a single HDMI UHD monitor. The user will benefit with from its processing power to switch between the 8 user defined function using control software via Ethernet or RS232, IR Remote.

Crop
This device can Crop any 4 HDMI input digital sources to remove black bars and then combine, (4) four video signals onto a single HDMI HD monitor. This device can be configured using the supplied Control software via Ethernet or RS232 to set the desired layout on the connected screens.

PIP, PAP, Overlay
This device can input any 4 HDMI digital sources and then combine, (4) four video signals onto a single HDMI HD monitor, which the user can select picture in picture (PIP), picture Aside picture (PAP) or overlay with the supplied Control Software via Ethernet or RS232 to set the desired layout configuration.

Window Scale and Position
The user can easily change the individual channel size and choose different position and layout on the single monitor with the Control Software via Ethernet or RS232 to set the desired layout configuration.

Scalable Rotation (90% & -90%)
The user can easily Rotate/Scale only a single input/window image 90% left and right. This device can be configured with the Control Software, IR Remote, Ethernet, RS232 or front panel buttons

  • Features:

    • 4 HDMI 4K Inputs & 2 HDMI 4K Outputs (with one HDMI loop out up to 4K2K@60 (YUV 4:4:4) interlaced or progressive)
    • Output resolution support up to 4K@60 (3840x2160)
    • Output resolution support Full HD or to 4K@60 (3840x2160)
    • USB 3.0 FHD Video Capture, UVC 1.0
    • HDCP 1.4/2.2 compliant
    • Fast switching between input channels and combined multiple images on single UHD display
    • Cropping the (4) four HDMI Input Channels
    • Supports PIP, PAP and multi-windows layout configurations
    • Single Input Rotation (90? left & right) functions
    • Background picture & logo support
    • Resize, position, zoom & pan and blend output video
    • Fade-in-&-out, wipe and dissolve transitions in full screen mode
    • 8 preset Hot keys with 4 Custom layouts and 4 Full screen layouts within the supplied control software
    • 4 Custom saved layout buttons via the IR Remote
    • Input resolution support full range of video resolutions up to WUXGA@60 (RB) or full HD1080p
    • Uncompressed 7.1ch digital over HDMI
    • USB-C port for Service mode and firmware upgrade
    • Supports RS 232, Ethernet, IR Remote and front panel buttons
    • Factory Reset feature


  • Specifications:

    • HDCP Compliance: 1.4, 2.2
    • Video Bandwidth: HDMI 600MHz (18Gbps)
    • HDMI Compliance: HDMI 2.0a
    • Video Format Support: HDMI 2.0
    • Input Supported Resolutions: 20p 50Hz, 720p 60Hz, 1080p 24Hz, 1080p 25Hz, 1080p 30Hz, 1080p 50Hz, 1080p 60Hz, 1920X1200 Hz, 3840x2160 60 Hz and 4K2K@60 (4:4:4 8bits)
    • Output Supported Resolutions: 20p 50Hz, 720p 60Hz, 1080p 24Hz, 1080p 25Hz, 1080p 30Hz, 1080p 50Hz, 1080p 60Hz, 1920X1200 Hz, 3840x2160 60 Hz and 4K2K@60 (4:4:4 8bits)
    • USB Video Support: Up to 4K2K@30
    • USB Video Format: YUY2 (USB3.0), MJPG (USB2.0/3.0)
    • USB Connector: USB 3.0 Type A (SuperSpeed USB)
    • AUDIO Support: LPCM

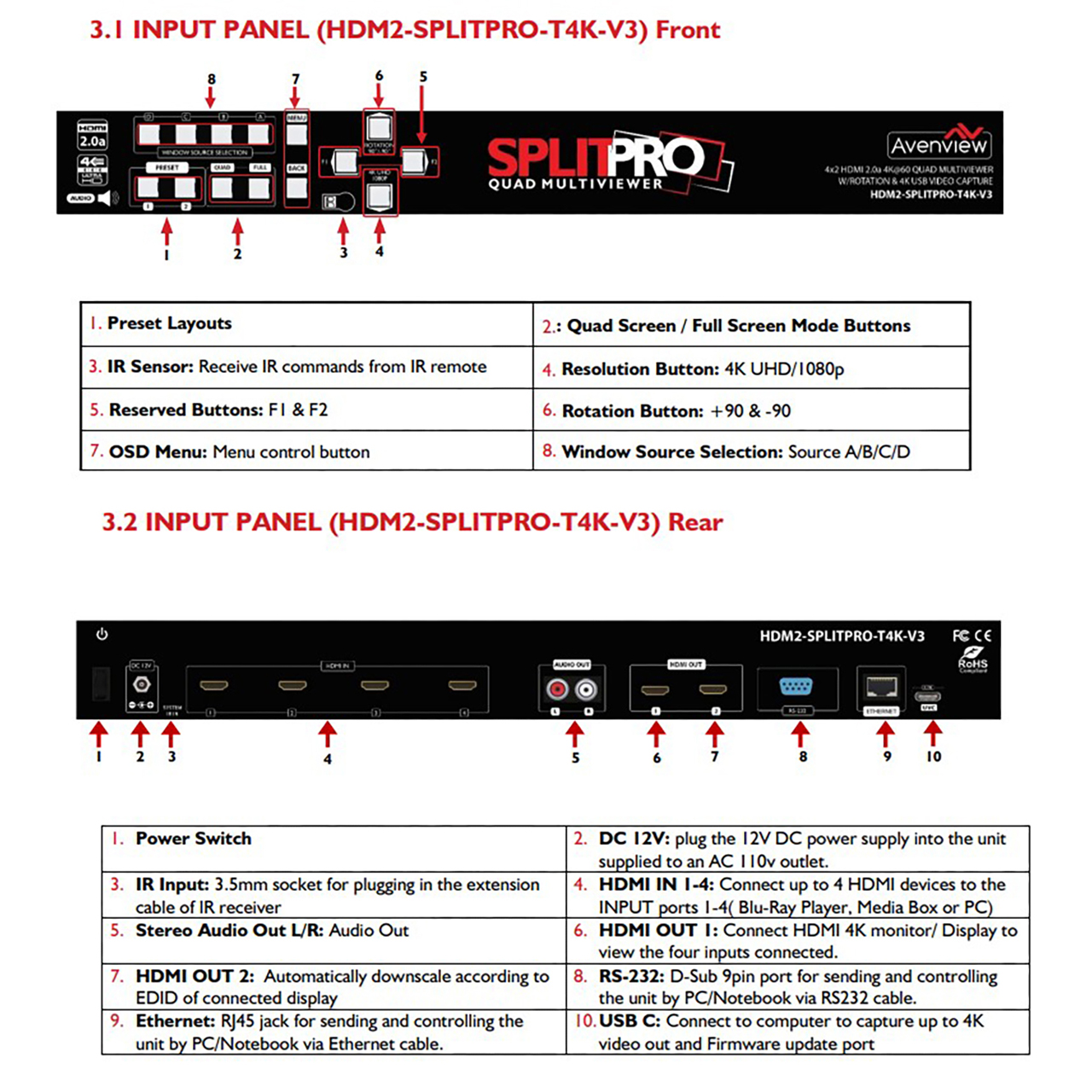

    • Input:
      - 4x HDMI
      - 1x RS-232
      - 1x RJ-45 (Ethernet)
      - 1x 3.5mm (IR)
    • Output:
      - 2x HDMI
      - 1x USB
      - 2x RCA
      - 1x 3.5mm
    • Control: RS-232/IP Control/IR/Front Panel
    • RJ45 Connector: WE/SS 8P8C with 2 LED indicators
    • Dimensions (LxWxH):
      - Unit: 1.4" x 9.3" x 1.7"
      - Package: 1.7" x 12.5" x 6.1"
    • Weight: 16.2lbs
    • Power Supply: 12V/5A DC (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 22W
    • Operating Temperature: 32°F - 104°F
    • Storage Temperature: -4°F - 140°F
    • Relative Humidity: 20% - 90% RH (no condensation)


  • Item Includes:

    • 1x HDM2-SPLITPRO-T4K-V3
    • 1x Power Supply (12V 5A)
    • 1x IR Remote
    • 1x Rackmount Bracket
    • 1x User Manual
    • 1x Software CD


  • GTIN:

    0606825937530
