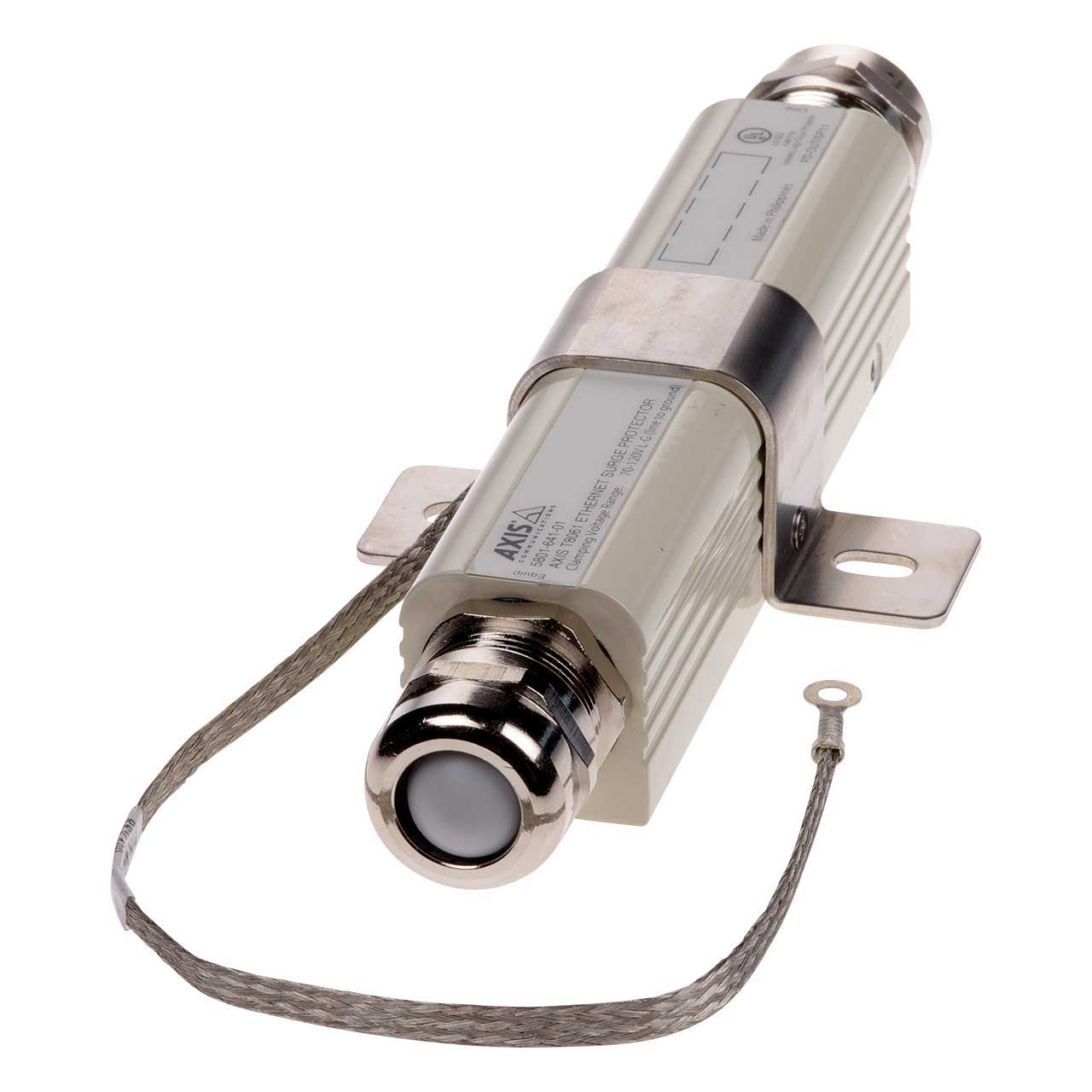

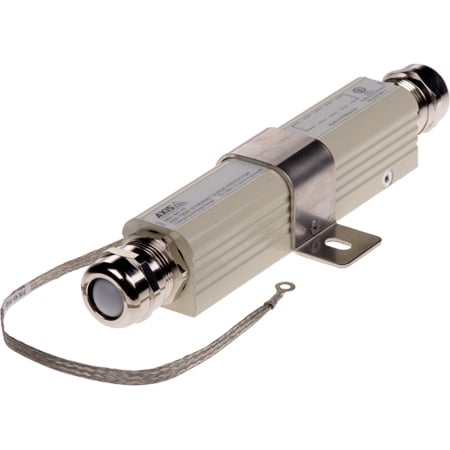

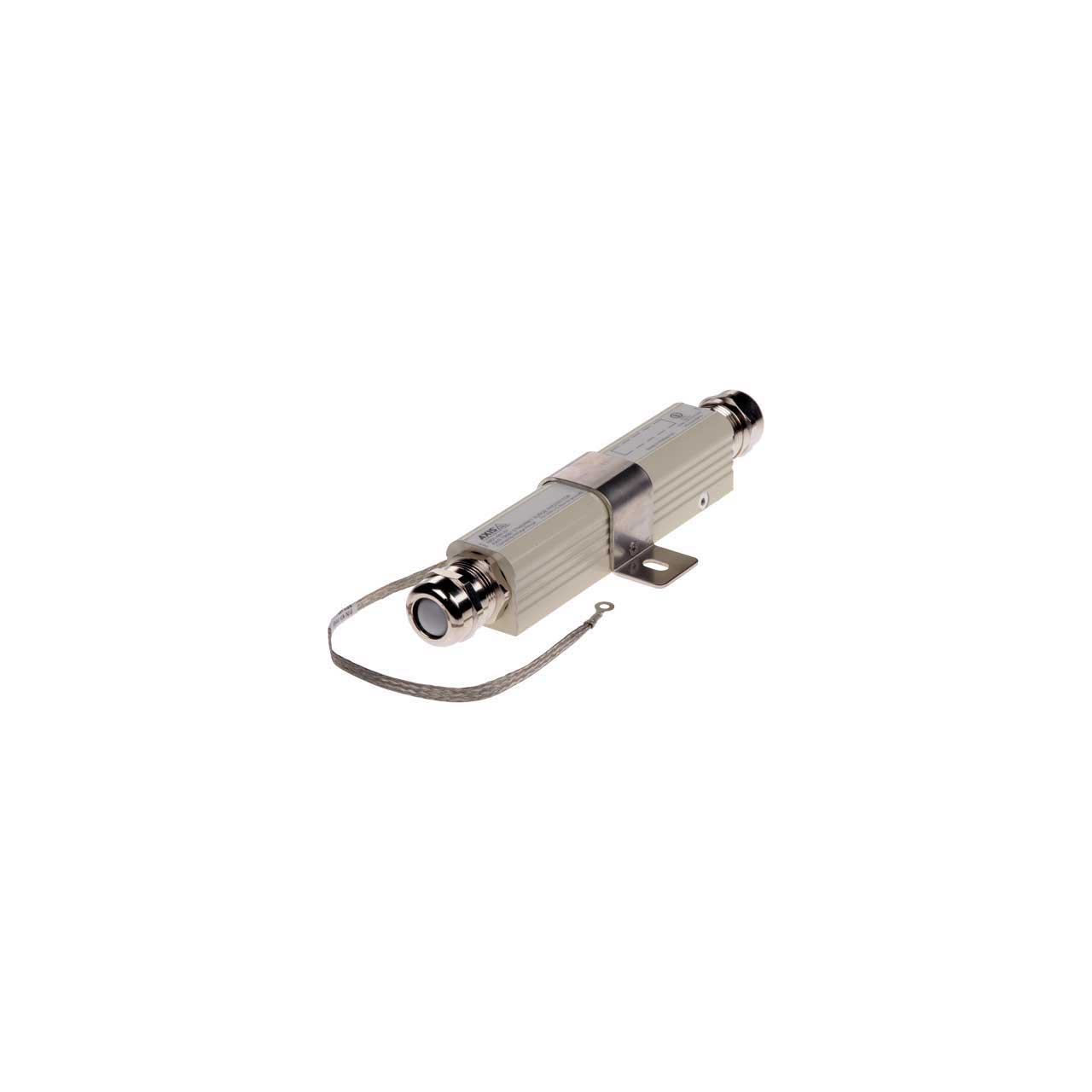

Axis Communications T8061 Ethernet Surge Protector - up to 1Gbps Data Rates and 10kV Surge

ITEM #: AXIS-T8061 MFG #: T8061

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$140.10

Our Price:

$126.09

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    T8061 - Overview

    AXIS T8061 Ethernet Surge Protector helps reduce downtime, service and maintenance of your system by shielding your outdoor PoE devices against transient voltage spikes in the Ethernet cable. It is a robust, high-quality product validated to work seamlessly with Axis devices. Enclosed in a weatherproof metal casing with an IP66 rating, AXIS T8061 is easy to mount on a wall or pole.

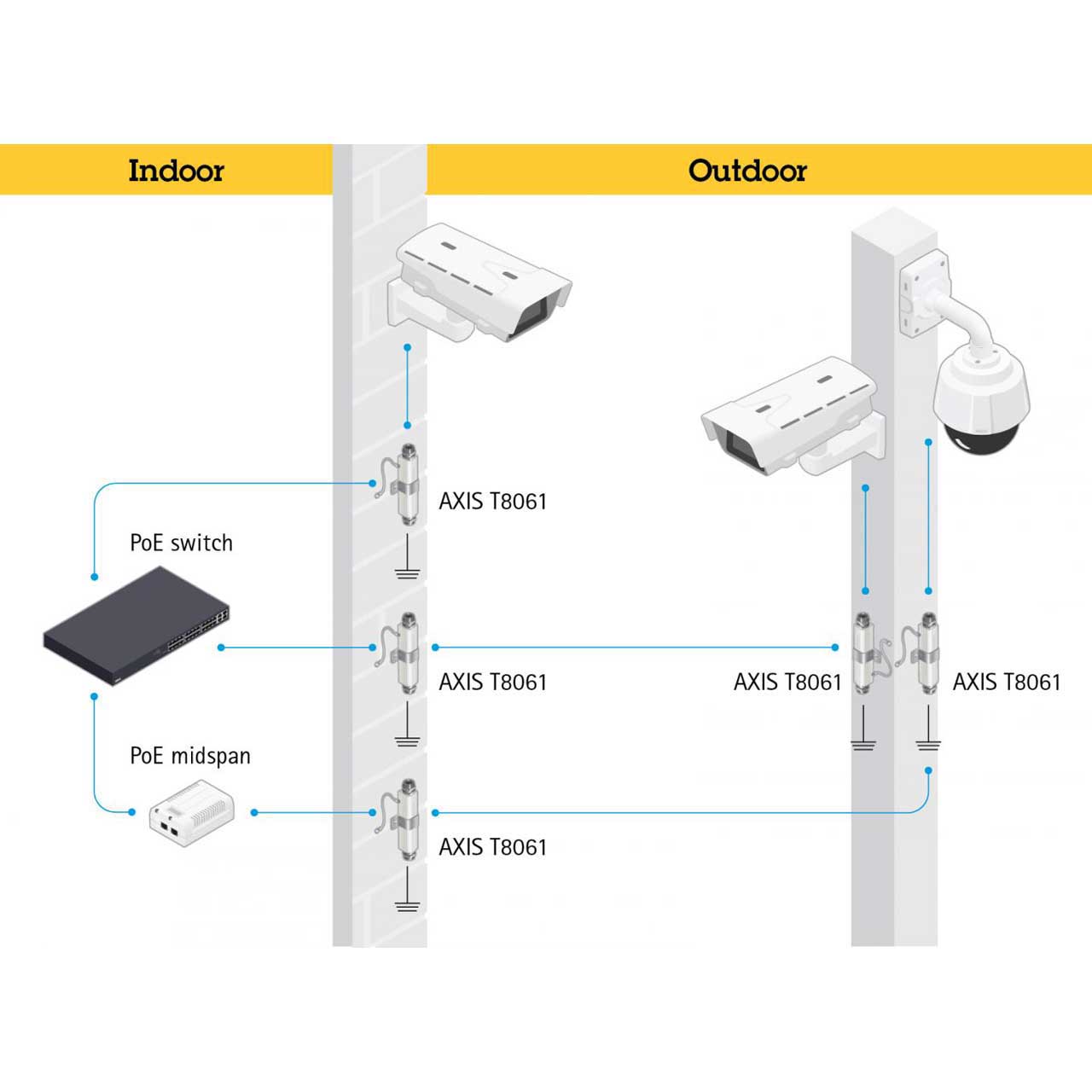

    Install AXIS T8061 before the cable enters the building or immediately adjacent to a wall or pole-mounted network cameras. With a network device and a surge protector from Axis, you get first-class support from a single point of contact.

    • Features:

      • Protects up to 10 kV surge
      • Supports data rates of up to 1 Gbps
      • Robust and waterproof-IP66 rated
      • Can be wall or pole mounted
      • Tested with Axis devices

    • Specifications:

      • Casing: Weatherproof metal enclosure
      • Dimensions: 1.18 x 1.18 x 7.48 in
      • Weight: 0.6 lb
      • Environment Indoor: Outdoor
      • Mounting option Wall: Pole (requires straps or similar)
      • Connectors: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
      • Power: Surge Handling Capability: 10 kV, 5 kA to ground in 8/20 µs, 800 V, 100 A PoE, Input Power: 95 W (max), Input Current: 2 A (max)
      • Operating Conditions -40 °F to 185 °F, Humidity 0 to 100 % (condensing)
      • Approvals: IEC 60529 IP66, NEMA 250 Type 4X, UL 497B, EN 50581, REACH, WEEE, Compatible with: GR1089, IEC 61643-21, ITU-T K.45

    • Item Includes:

      • 1x Axis Communications T8061 Ethernet Surge Protector

    • Warranty:

      • 3-year warranty

    • GTIN:

      7331021054899
