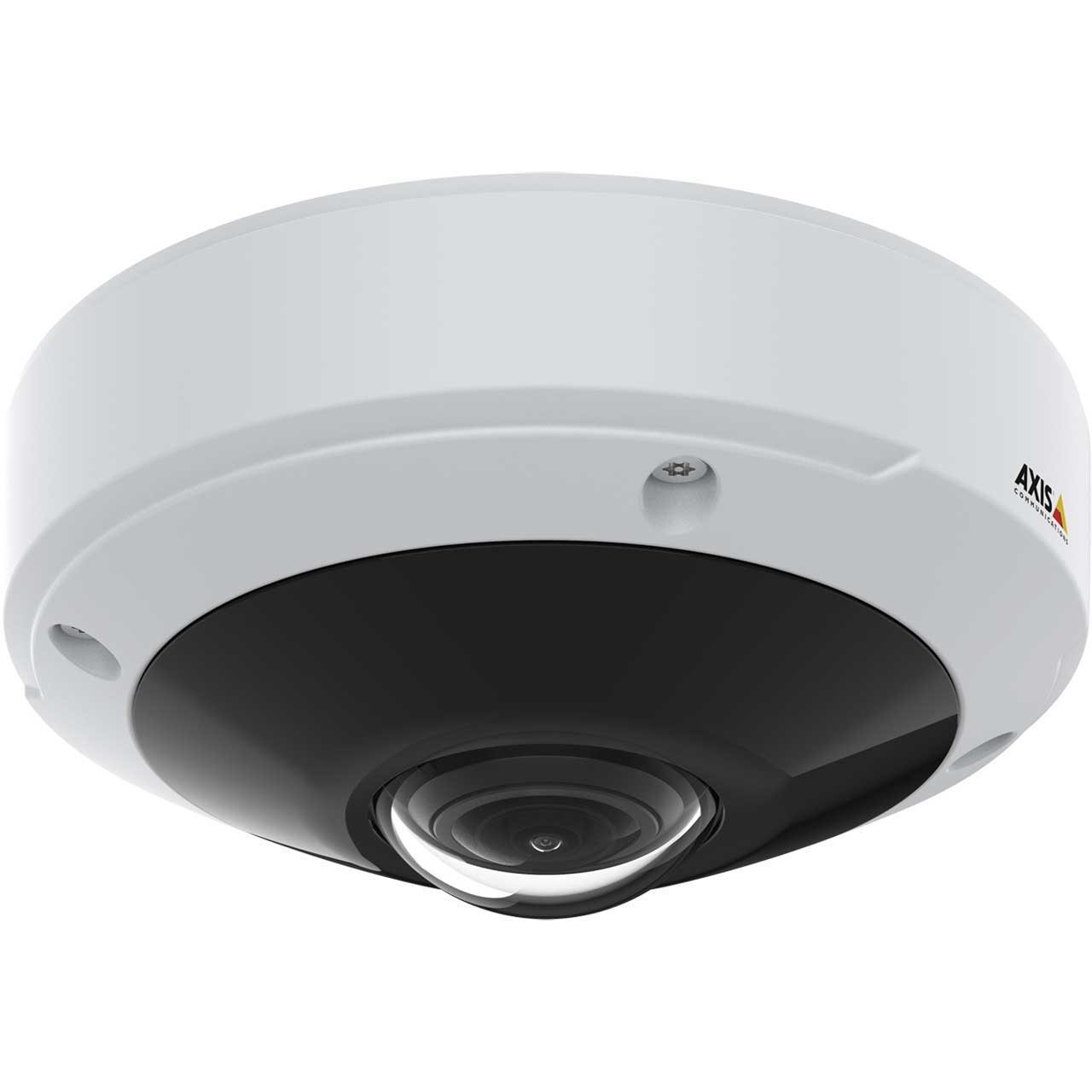

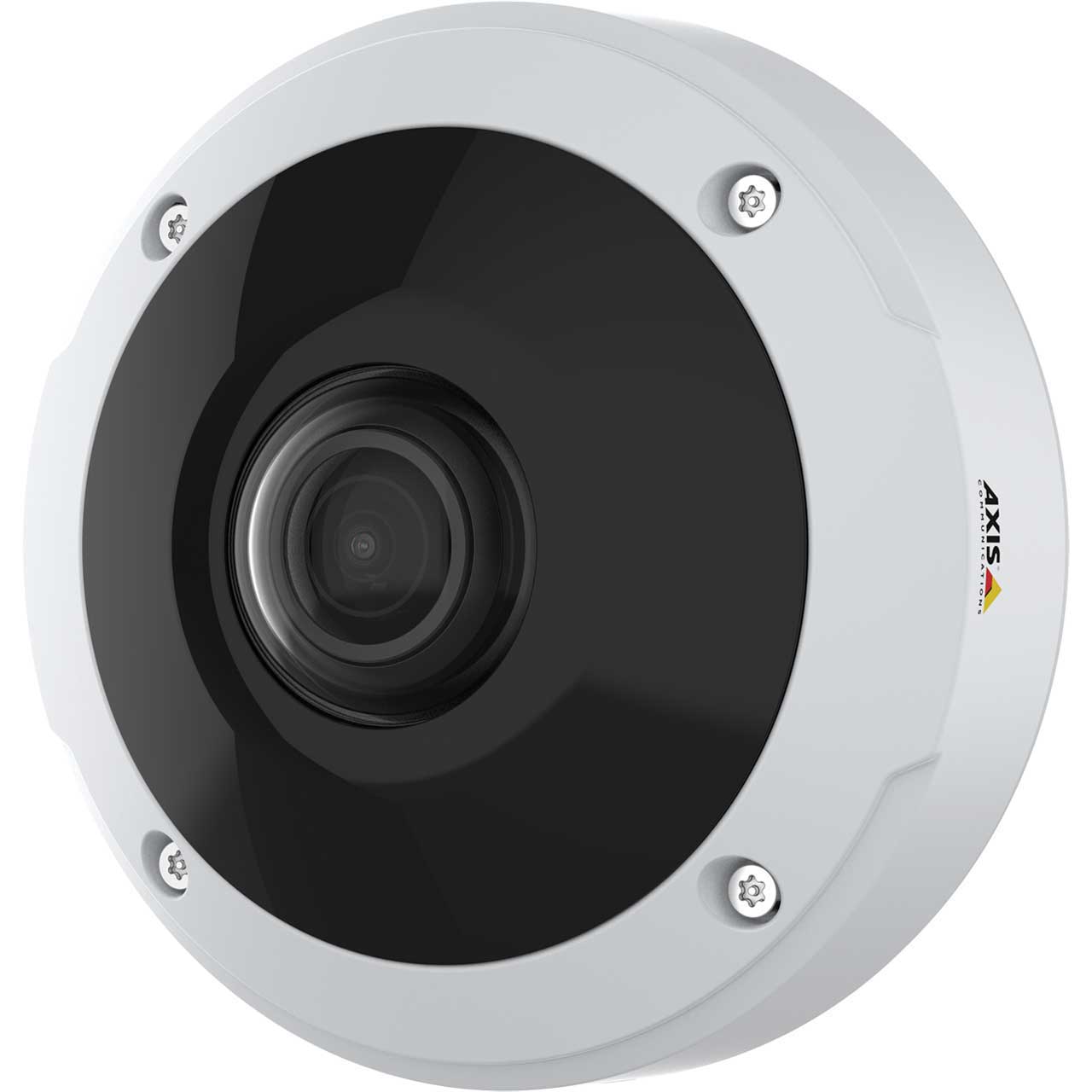

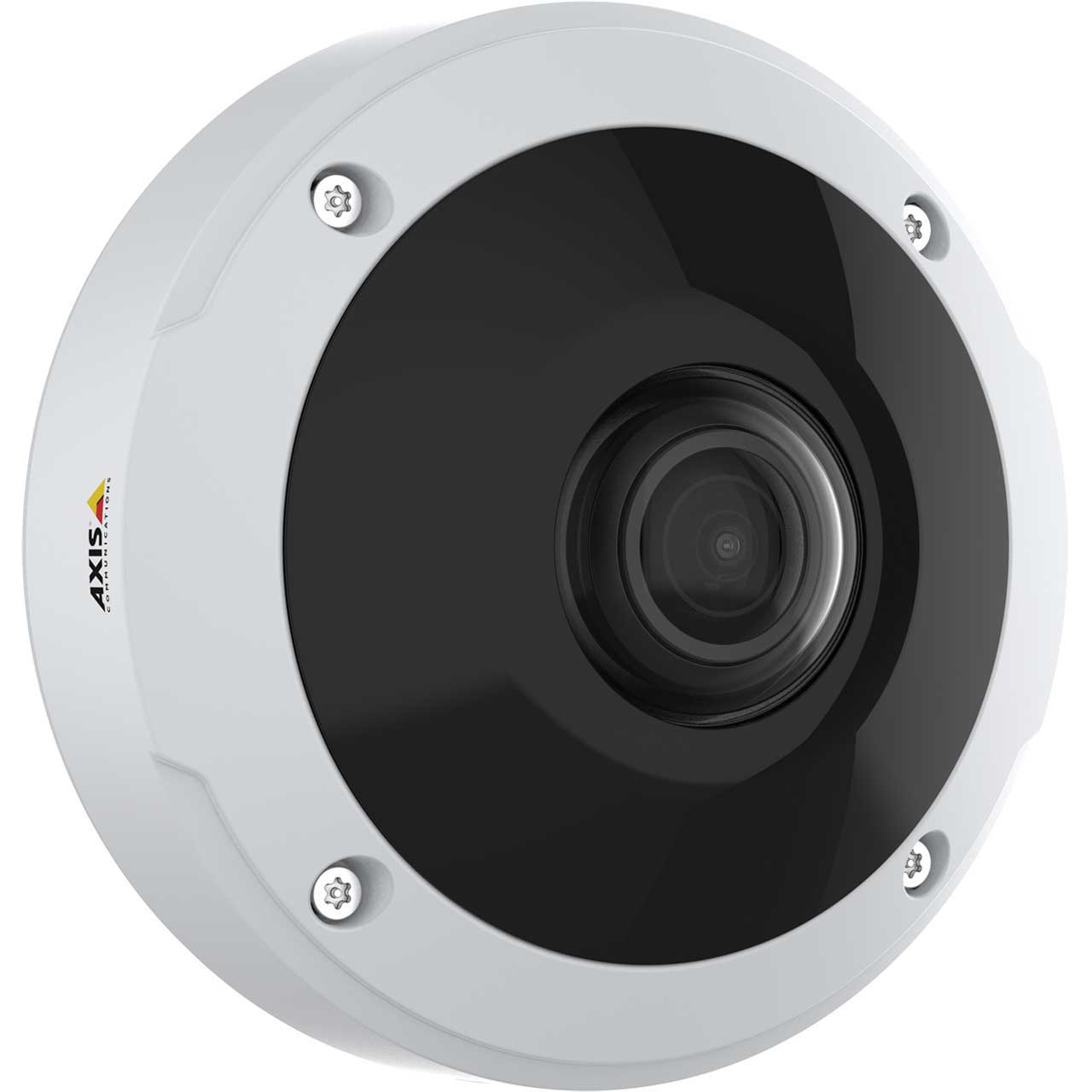

AXIS M3057-PLVE MKII 6 MP 2016x2016 Outdoor-Ready Dome Network Camera

ITEM #: M3057-PLVE-MKII MFG #: M3057-PLVE MKII

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$898.43

Our Price:

$808.59

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    M3057-PLVE MKII - Overview

    This compact, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview. Perfect for video surveillance, it's suitable for a wide range of scenarios.

    See everything- 24/7
    AXIS M3057-PLVE MK II delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It's perfect for video surveillance and you can use one video stream to produce any dewarped views you'd like. And, it's possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.

    Sharp images in any light
    With its 6 MP sensor, AXIS M3057-PLVE MK II offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene. Plus, there's no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20 m (65 ft) or more. Furthermore, it's possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.

    New generation camera
    AXIS M3057-PLVE MK II is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default. It's delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview- no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

    • Features:

      • Complete 180° and 360° overview
      • Lightfinder, Forensic WDR, and Optimized IR
      • Digital PTZ and dewarped views
      • Factory-focused with digital roll
      • Enhanced security features

    • Specifications:

      • Camera
      • Image sensor: 1/1.8" progressive scan RGB CMOS
      • Lens: 1.56 mm, F2.0, Horizontal field of view: 183°, Vertical field of view: 183°, Fixed iris, fixed focus, IR corrected
      • Day and night: Automatically removable infrared-cut filter
      • Minimum illumination: Color: 0.16 lux at 50 IRE, F2.0, B/W: 0.03 lux at 50 IRE, F2.0, 0 lux with IR illumination on
      • Shutter speed 1/16000 s to 1 s
      • Camera angle adjustment: Digital roll: ± 18

      • System on chip (SoC)
      • Model: ARTPEC-7
      • Memory: 1024 MB RAM, 512 MB Flash

      • Video
      • Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG
      • Resolution: Overview: 2016x2016 to 160x160, Panorama: 2560x1440 to 192x72, Double Panorama: 2560x1920 to 384x288, Quad view: 2560x1920 to 384x288, View area 1-4: 1920x1440 to 256x144, Corner right/left: 2368x1184 to 384x288, Double corner: 2016x2016 to 384x288, Corridor: 2560x1920 to 256x144
      • Frame rate: 360° overview only, up to 2016x2016 without WDR: 50/60 fps, @ 50/60 Hz, 360° overview and dewarped views up to max resolution with, WDR: up to 25/30 fps @ 50/60 Hz
      • Video streaming: Multiple, individually configurable streams in H.264, H.265 and, Motion JPEG, Axis Zipstream technology in H.264 and H.265, Controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265
      • Multi-view streaming: 360° overview, dewarped panorama, corridor, corner left/right and quad views. Up to 4 individually cropped out and dewarped view areas. All different views can be streamed simultaneously. When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream
      • Pan/Tilt/Zoom: Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tours

      • General
      • Casing IP66-, NEMA 4X- and IK10-rated
      • Polycarbonate hard coated dome, Aluminum
      • Color: white NCS S 1002-B
      • Sustainability: PVC free
      • Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, Typical 8.0 W, max 11.9 W
      • Connectors: Shielded RJ45 10BASE-T/100BASE-TX PoE, Terminal block for 1 alarm input and 1 output (12 V DC output, max. load 25 mA)
      • IR illumination: OptimizedIR with with power-efficient, long-life 850 nm IR LEDs, Range of reach 20 m (66 ft) or more depending on scene
      • Storage: Support for microSD/microSDHC/microSDXC card, Support for SD card encryption (AES-XTS-Plain64 256bit), Recording to network-attached storage (NAS)
      • Operating conditions: -40 °F to 122 °F, Start-up temperature: -22 °F to 122 °F), Maximum temperature (intermittent): 131 °F, Maximum temperature according to NEMA TS 2 (2.2.7): 165 °F, Humidity 10-100% RH (condensing)

    • Item Includes:

      • 1x Installation guide, Windows
      • 1x Decoder 1-user license
      • 1x Drill hole template
      • 1x Cable gaskets
      • 1x Connector guard
      • 1x I/O connector
      • 1x RESISTORX® TR20 bit
      • 1x Mounting bracket
      • 1x Cable hole lid
      • 1x View protector

    • Warranty:

      • 5-year warranty
