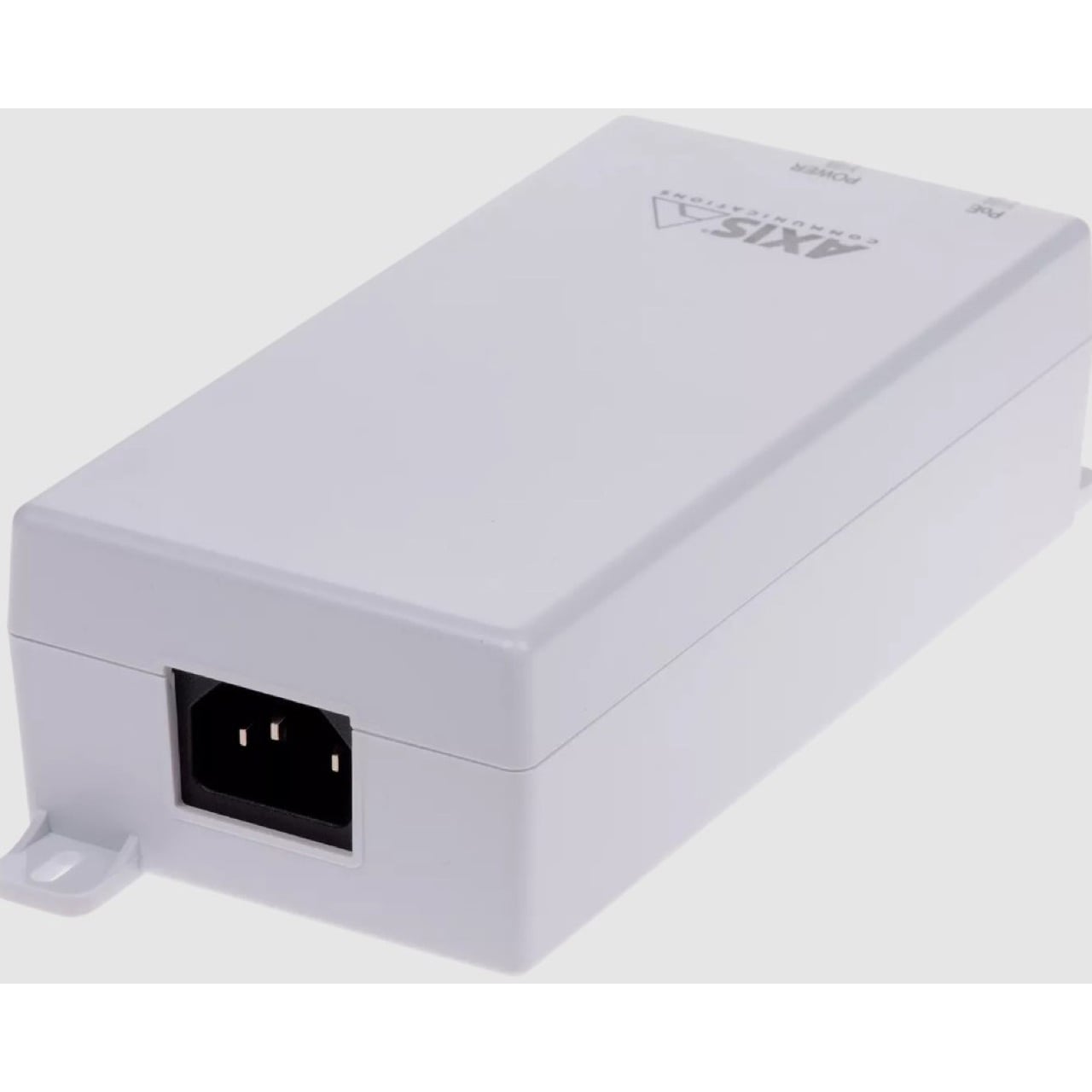

Axis T8154 60 Watt SFP Midspan PoE Injector for Network or Fiber Installations

02740-004 - Overview

• Features:

  • SFP slot for fiber
  • Integrated midspan
  • High PoE 60 W and 60W IEEE 802.3bt compatible
  • Support for all Axis network products


• Specifications:

  • Power: IEEE802.3bt Type 3 Class 6 compatible, High Power over Ethernet, max 60 W
  • Input:
    - AC input voltage: 100 to 240 V AC
    - AC frequency: 50-60 Hz
  • Output: 55 V DC (max 60 W)

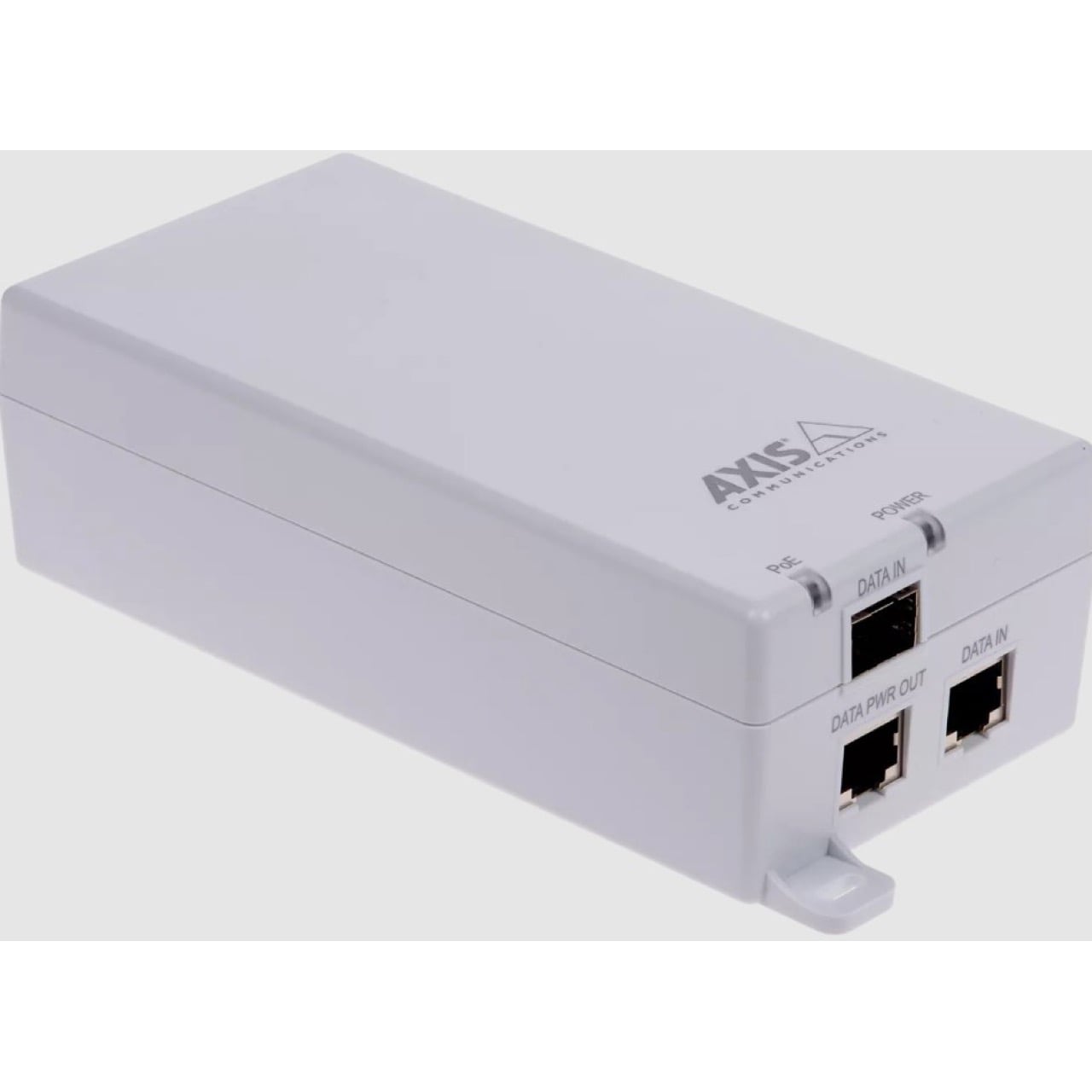

  • Connectors: Shielded RJ45, EIA 568A and 568B, SFP slot, Power connector C14
  • Dimensions: 2.0" x 3.1" x 7.2" (50 x 80 x 184 mm)
    Note: See attached Datasheet for full specs.
