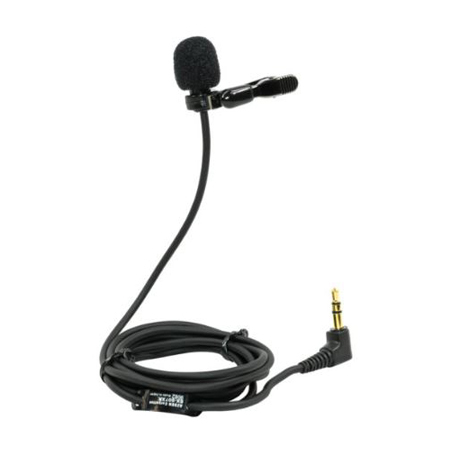

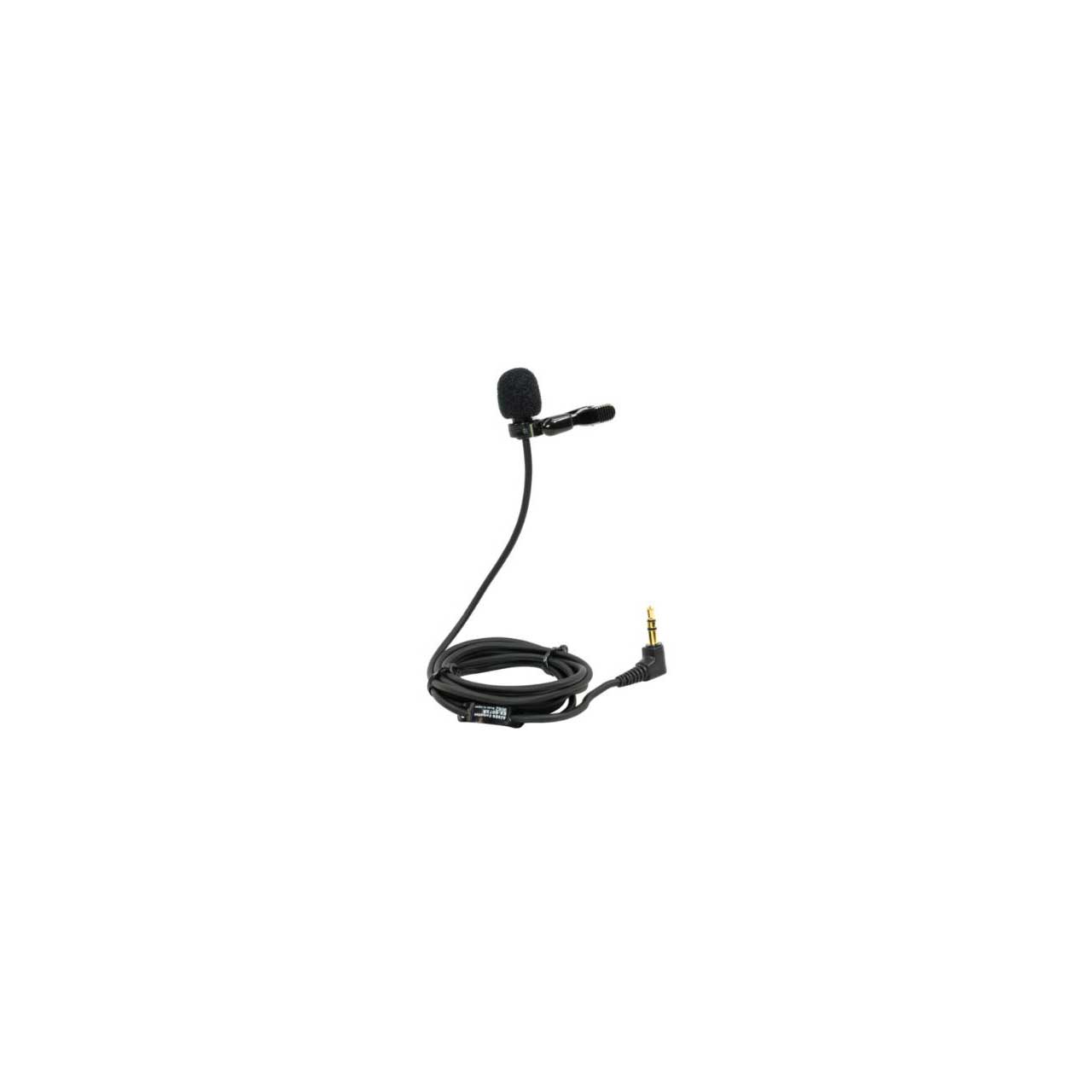

Azden EX-507XR Professional Omni-Directional Condenser Lavalier Mic with 3.5mm TRS

ITEM #: AZ-EX-507XR MFG #: EX-507XR

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-EX-507XR

EX-507XR - Overview

The EX-507XR lavalier microphone is a direct replacement mic for the PRO-XR wireless system, but with its 3.5 mm TRS output connector, its also compatible with many other 3rd party wireless systems, including ones from Rode, Sennheiser and Sony. In addition, it can be used with other Azden wireless systems such as the VHF Pro Series and the 310 and 330 UHF wireless series systems. The EX-507XR would also work well plugged directly into a camera or digital audio recorder.

This lav mic offers a full spectrum frequency response with a natural contour, and a highly sensitive, omni-directional microphone element. The 4-foot long cable (approximately) is plenty of length for use with a belt-clip transmitter and the right-angle plug helps to prevent accidental disconnection. Mic includes an alligator-style lapel clip for attachment to clothing and foam windshield.

Note: this model microphone is not compatible with the PRO-XD system. For that, please see the EX-507XD.

  • Features:

    • Omni-directional microphone element
    • Full spectrum frequency response
    • Highly sensitive
    • 4-foot long cable
    • Right-angle plug

  • Specifications:

    • Mic Element: Electret Condenser
    • Polar Pattern: Omni-Directional
    • Freq. Response: 20 Hz~20 kHz
    • Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa
    • Impedance: 2.2 kΩ @1 kHz
    • Power Requirement: Plug-in power DC 1-10 V
    • Connector Type: 3.5 mm TRS
    • Cord Length: 3.9 inches/1.2 m

  • Item Includes:

    • EX-507XR lavalier microphone
    • Alligator-style lapel clip for attachment to clothing
    • Foam windshield
