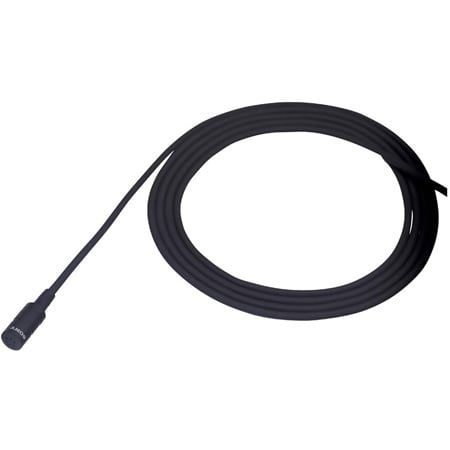

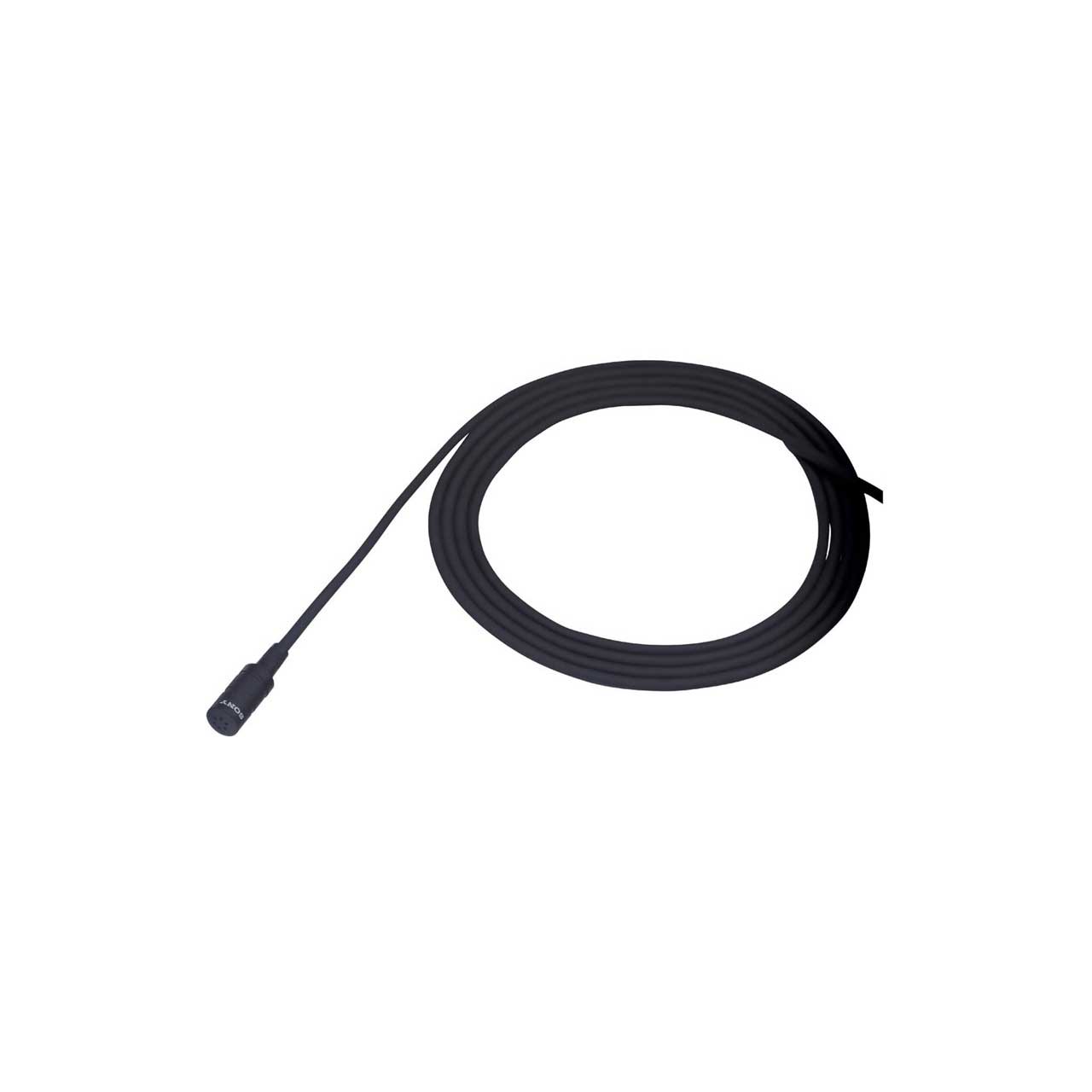

Sony ECM-77B Dual Power AA & Power Supply Omni-Directional Condenser Mini Lavalier Microphone with XLR

ITEM #: ECM-77B MFG #: ECM-77B/9X

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$512.00

Our Price:

$329.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ECM-77B/9X - Overview

    Perfect for television applications, Sony's ECM77B Omni-Directional Electret Condenser Microphone is a miniature lavalier microphone designed to be inconspicuous. This tiny mic runs on either phantom power or AA battery operation. The ECM77B comes with an XLR connector.

    • Features:

      • Ultra miniature, omnidirectional electret condenser lavalier
      • Inconspicuous design for film and TV production
      • Also works well for musical recording of violins & violas
      • Complete with in-line battery unit for 2-way powering
      • High-performance frequency response: 40 -20,000 Hz
      • Black finish
      • Two-way powering system: AA-size battery or external power supply
      • Very small size
      • Includes 9.8' or 3 meter cable w/power module & XLR end, metal mesh wind screen, holder clips & carry case
      • 1 year warranty

    • Specifications:

      • Two-way powering system: AA-size battery or external power supply
      • Capsule Type: Electret Condenser
      • Frequency Response: 40 Hz to 20 kHz
      • Directivity: Omni-directional
      • Sensitivity: -36.5 dB (15mV)
      • Dynamic Range: 90 dB
      • S/N Ratio: 64 dB or more
      • Inherent Noise (0dB=20æPa): 30 dB SPL or less
      • Induction Noise from External Magnetic Field: 5 dB SPL or less
      • Wind Noise: 40 dB SPL or less (with windscreen, at 2 m/s)
      • Max SPL (dB SPL)(0dB=20æP): 120 dB SPL
      • Connector: B type. Supplied with XLR connector in power supply unit (single AA size battery)
      • Cable Length: 9.8 feet
      • Power Requirements: DC 1.5 V, AA size battery or +48V phantom power
      • Dimensions: 1/4 diameter X 1/2 inch (Microphone head)
      • Dimensions: 13/16 diameter X 5 1/4 inch (Power unit XLR type)
      • Weight: 4.3 oz (Includes Mic and Power Supply)

    • Item Includes:

      • S.H. tie clip (x 1)
      • S.V. tie clip (x 1)
      • D.H. tie clip (x 1)
      • M. windscreen (x 1)
      • Operating instructions (x 1)
      • Microphone case (x1)

    • GTIN:

      0027242632486
