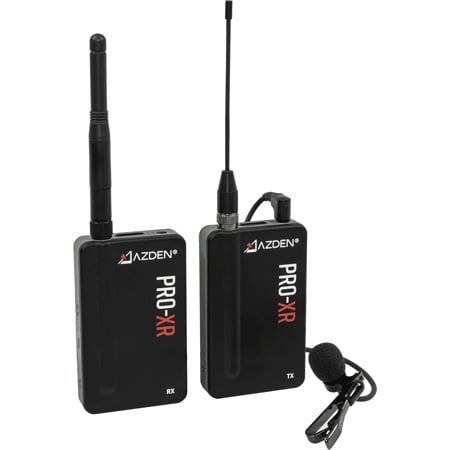

Azden PRO-XR 2.4 GHz Wireless Microphone System with Signal Redundancy Technology

PRO-XR - Overview

• Features:

  • For digital cameras and mobile devices
  • Proprietary digital technologies avoid 2.4 GHz interference
  • Adjustable transmitter output power
  • External antenna design
  • Up to 500' range
  • Includes high-quality lavalier microphone
  • Includes smartphone mount
  • Rechargeable lithium-ion batteries
  • Run-time up to 20 hours on RX and 14 hours on TX
  • Six-step adjustable output gain
  • Headphone and microphone outputs / Line-in auxiliary input
  • 2-year warranty with online registration


• Specifications:

  • System
  • Operating Freq.: 2.4 GHz ISM Band
  • Signal-To-Noise: 86dB (Max. input: -22dBv A-weighted) , Line: 86 dB (Max. input: 0dBv A-weighted)
  • Dynamic Range: Mic: 90dB, Line: 87dB
  • Operating Range: up to 350 feet in optimal conditions
  • Freq. Response: Mic: 60Hz - 20 kHz, Aux: 30 Hz - 20 kHz
  • Bit Rate: 384kbps
  • System Latency: 4.5ms
  • Battery Life Span: 500 cycles with >70% of peak performance
  • Battery Type: Lithium-ion polymer, 3.7 V, 1200 mAh, 4.44 Wh
  • Power Supply: USB 5V

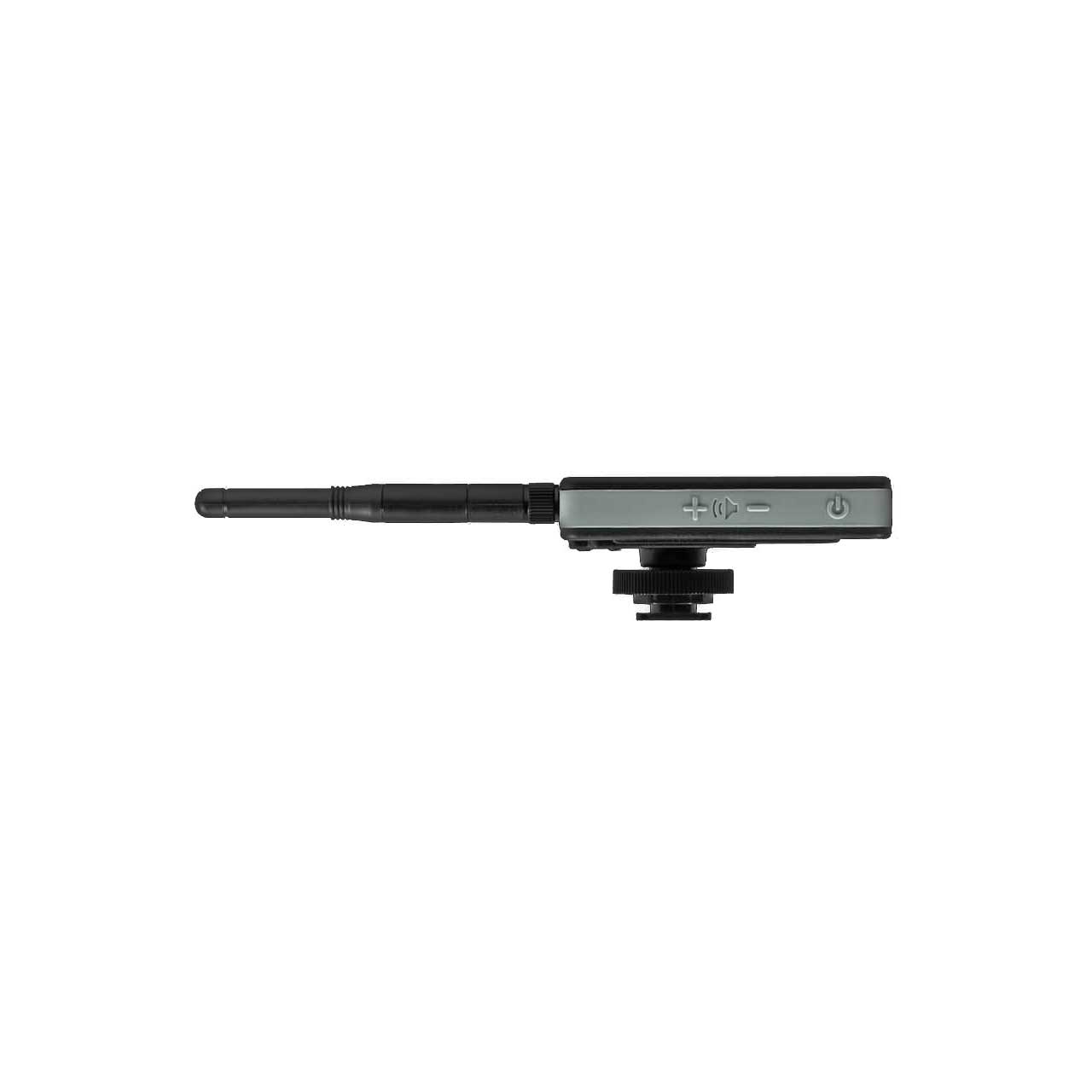

    Receiver
  • Max Output Level: 1.5 dBV
  • Mic Output: Φ3.5mm dual-mono TRS
  • Headphone Output: Φ3.5mm stereo TRS
  • Output Impedance: Mic: 2kΩ; Headphone: 10Ω
  • Battery Life: 20 hrs
  • Charge Time: 2.5 hours
  • Dimensions (WxHxD): 1.89 x 3.11 x 0.55" (48 x 79 x 14mm)
  • Weight: 0.17Lbs (76g)

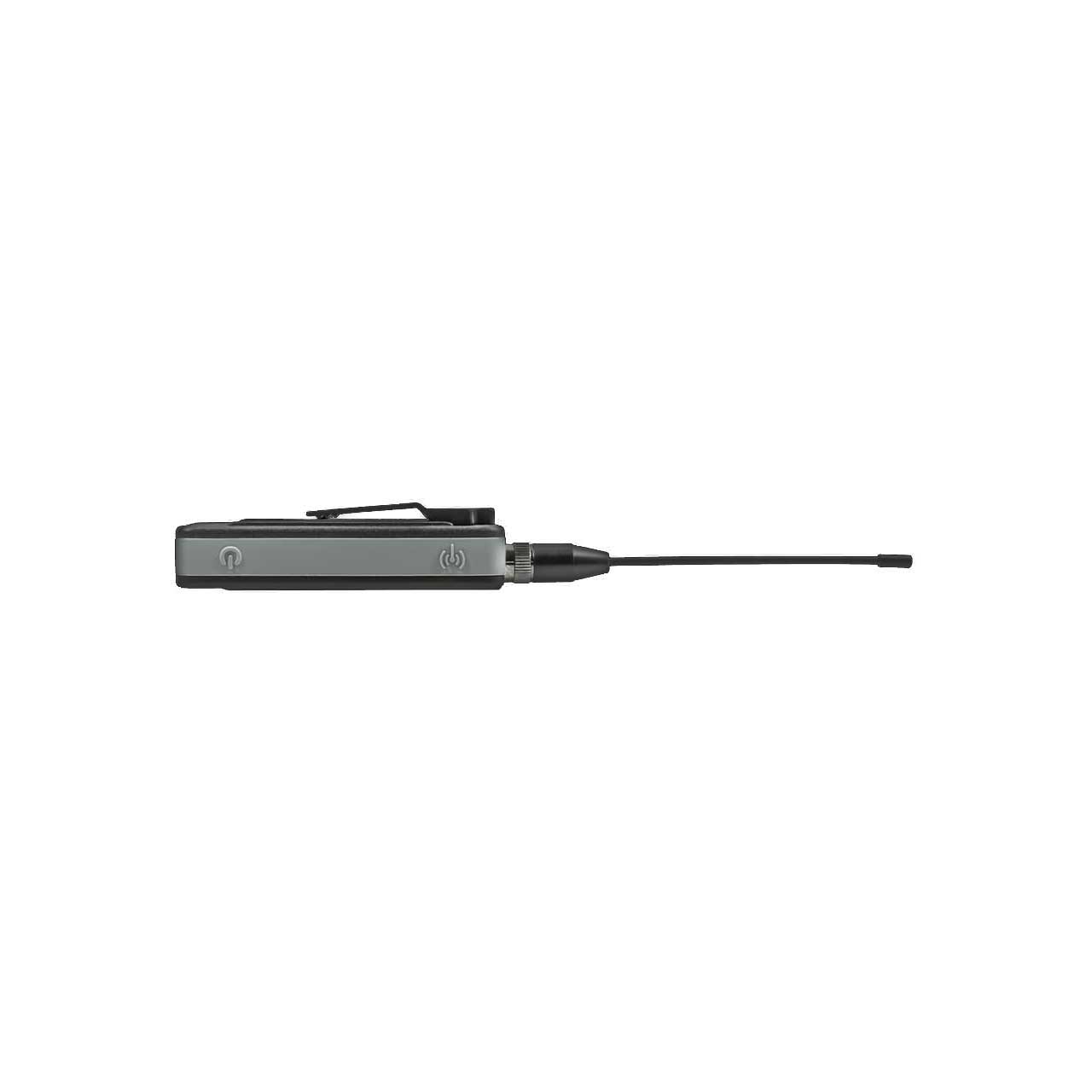

    Transmitter
  • RF Output Power: 20/50/100 mW
  • Mic Input: Φ3.5 mm dual-mono TRS
  • Aux Input: Φ3.5 mm stereo, line level
  • Input Impedance: Mic: 9.1kΩ / Aux: 100kΩ
  • Max Input: Mic: -22 dBV / Aux: -2 dBV
  • Battery Life: 14 hrs @ 20 mW / 12 hrs @ 50 mW / 10 hrs @ 100 mW
  • Charge Time: 2.5 hours
  • Dimensions (WxHxD): 1.89 x 3.11 x 0.55" (48 x 79 x 14mm)
  • Weight: 0.14Lbs (65g)

    Microphone
  • Mic Element: Electret Condenser
  • Polar Pattern: Omni-Directional
  • Freq. Response: 20 Hz~20 kHz
  • Sensitivity: -38 dB @1 kHz, 0 dB=1 V/Pa
  • Impedance: 2.2 kΩ @1 kHz
  • Power Requirement: Plug-in power DC 1-10 V
  • Connector Type: Φ3.5mm TRS
  • Cord Length: 3.94' (1.2m)


• GTIN:

  0095528701102
