Azden SMX-100 Professional Stereo Shotgun Microphone - 5-Pin XLR Out

ITEM #: AZ-SMX-100 MFG #: SMX-100

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    SMX-100 - Overview

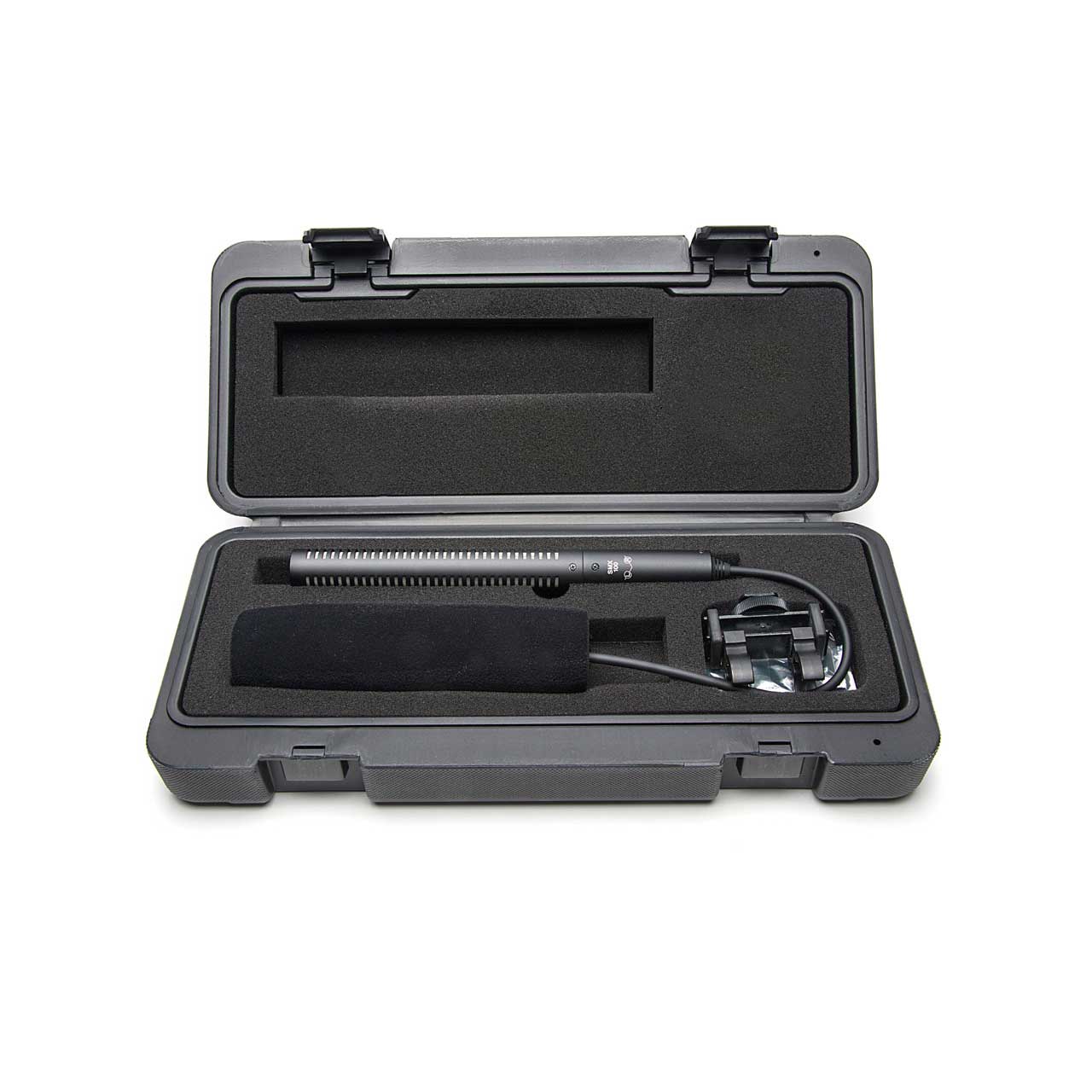

    The SMX-100 is a high quality stereo shotgun microphone. Designed for broadcasters, videographers and audio professionals, the SMX-100 offers wide frequency response in a compact, lightweight camera-mount design. The M-S pick-up configuration means recorded signals are stereo and mono compatible making the SMX-100 an excellent choice for all video-based audio applications. External phantom power between 11 and 52 VDC is required to operate the microphone, which terminates with a hard-wired 5 pin XLR connector. The SMX-100 is 8.5” long and comes complete with a custom carrying case, high density foam windscreen and shock-mount microphone holder.

    • Features:

      • Designed for broadcasters, videographers and audio professionals
      • Stereo microphone
      • Wide frequency response
      • High max SPL at 120dB
      • Phantom powered condensor
      • 5-pin XLR output
      • Comes with shock mount and windscreen
    • Specifications:

      • Frequency Response: 20-18,000Hz
      • Sensitivity: Uni-directional -33dB @ 1kHz Re: 1v/PA
      • Impedance: 180 Ohms at 1kHz
      • Max SPL Input Level: 120dB (1kHz @1% T.H.D.)
      • Signal To Noise Ratio: 70dB
      • Power: Phantom 11-52VDC
      • Weight: 110g (3.88oz)
      • Size: 21mm x 180mm (0.83" x 8.66”)
      • Connector: 5-Pin XLR

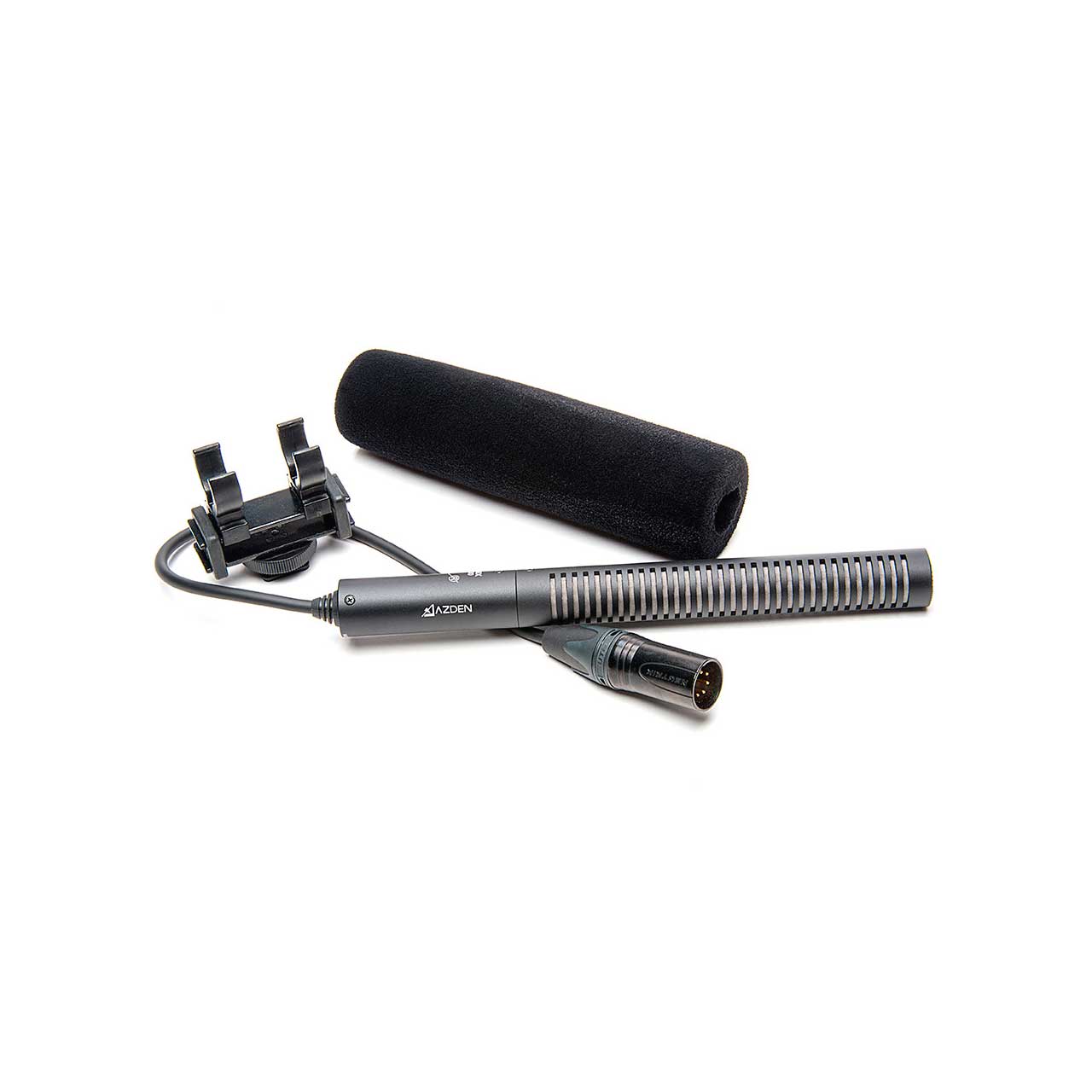

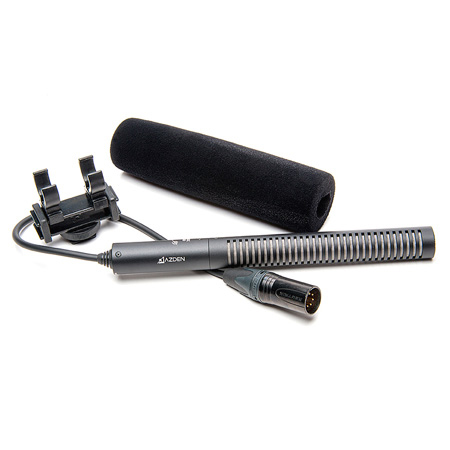

    • Item Includes:

      • SMX-100 Microphone
      • Shock mount mic holder
      • High density foam windscreen
      • Custom Carry Case
      • Manual
    • GTIN:
