    B030-DP16-17DIP - Overview

    Connects 16 DisplayPort Computers or Servers to a Single Monitor, Keyboard and Mouse
    The Tripp Lite B030-DP16-17DIP NetDirector® DisplayPort KVM switch combines a rack-mountable keyboard, 17-inch LCD, touchpad, built-in IP remote access and 16 DisplayPort inputs into a compact housing that occupies only 1U of rack space. Control, boot and reboot up to 16 DisplayPort computers or servers at the same time remotely 24/7. No adapters are needed for connecting DisplayPort-enabled equipment.

    Offers Both Local and Remote Control Options
    From across the room, down the street or halfway around the globe, you can access and control up to 16 connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-DP16-17DIP lets you handle complex problems without needing to be on-site, which saves money and time. It supports IPv4, IPv6, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method). AP Windows- and Java non-browser client applications allow the KVM switch to be remotely accessed via the network without a browser.

    17 in. LCD Supports Crystal-Clear 1080p Video

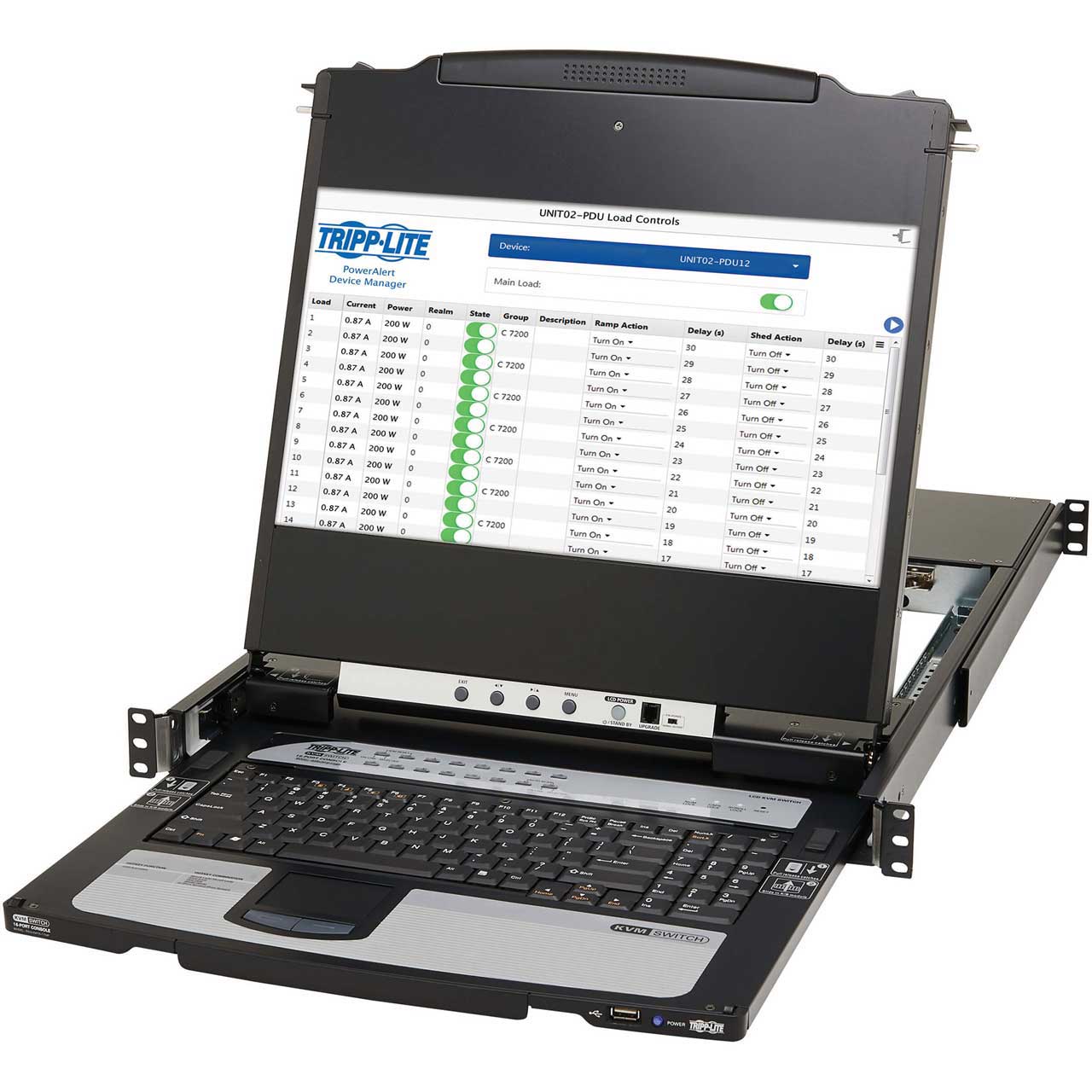

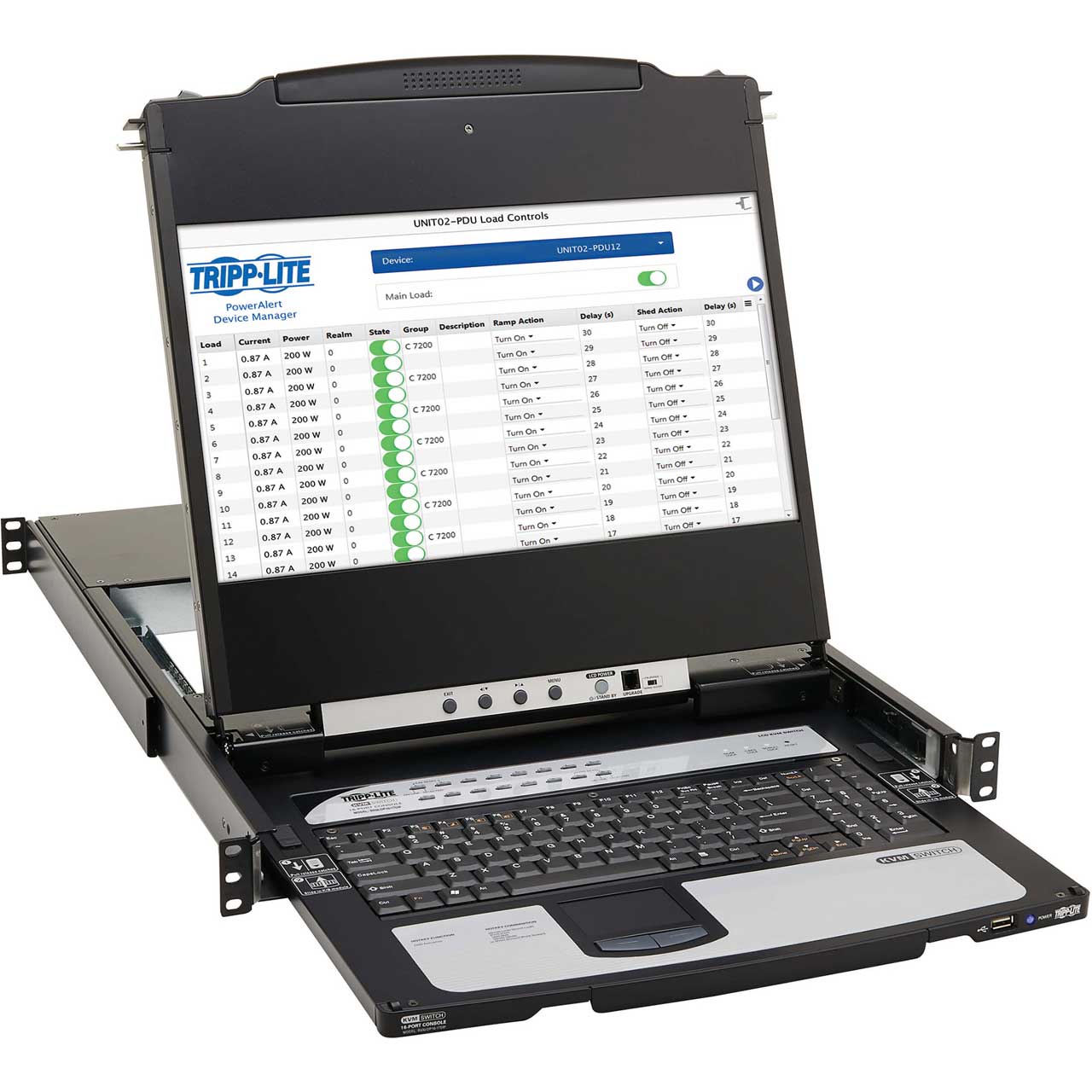

    The dual-rail B030-DP16-17DIP supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. The wide display flips up to provide access to connected computers, making multitasking easier and more convenient, and folds down to prevent the console from blocking adjacent rack equipment when not in use. The LCD and the keyboard/touchpad are on separate rails, so the LCD can remain open while the keyboard/touchpad is stored out of the way, keeping the rack aisle clear.

    Switching Between Computers Is Fast and Easy

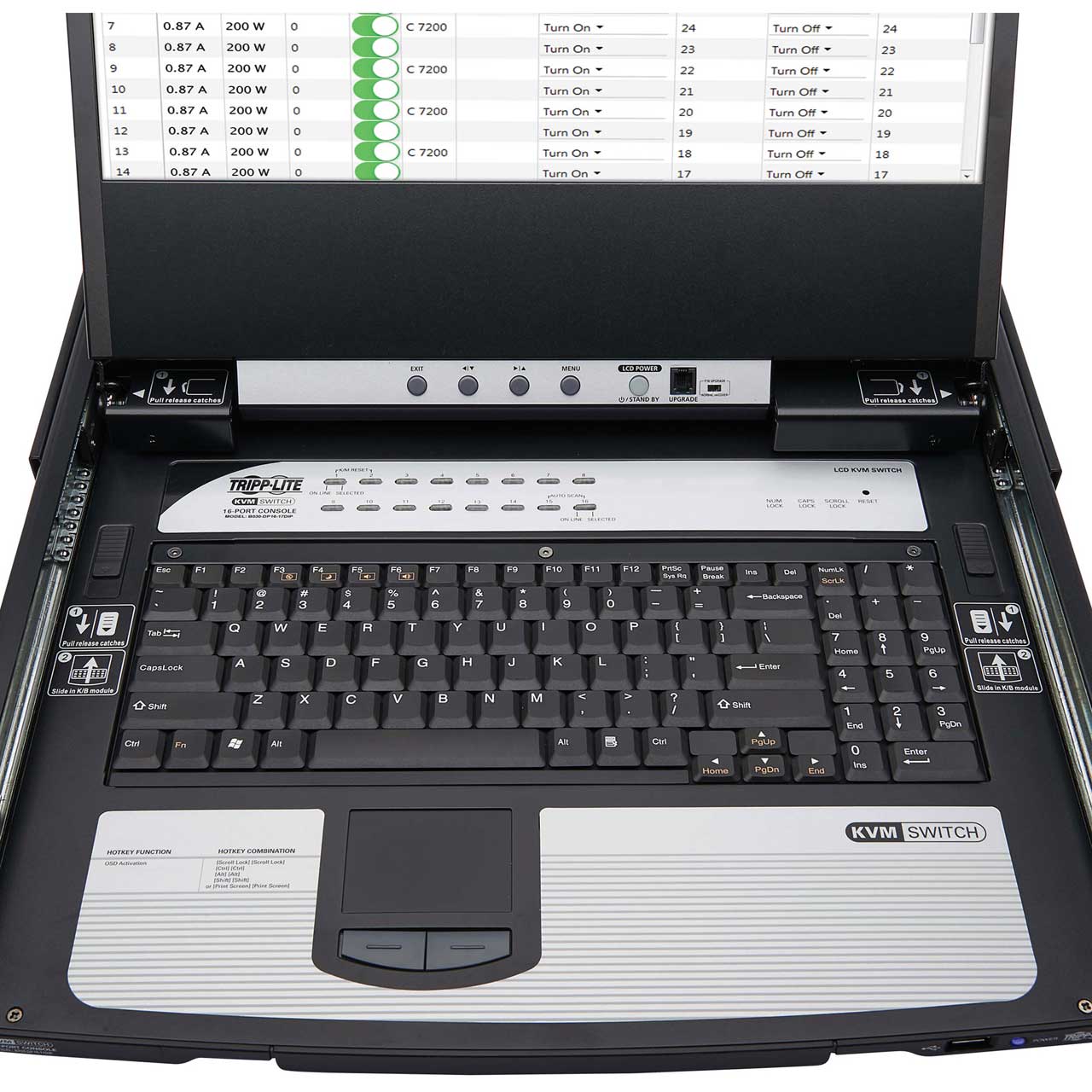

    Use the on-console push buttons, keyboard hotkey commands or multi-lingual local console On-Screen Display (OSD) to quickly toggle between connected computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Computers or servers can be quickly added or removed without having to power down the KVM switch. Also features a USB 1.1 hub port on the front of the console for the connection of a USB peripheral device such as a flash drive or external mouse.

    Multi-Level Password Security Keeps Your Private Data Private
    The B030-DP16-17DIP offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Up to 64 users can be authorized and 32 remote users logged on concurrently. Remote authentication support is provided via RADIUS, LDAP, LDAPS and MS Active Directory. The B030-DP16-17DIP also incorporates advanced encryption technologies: 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, 128-bit SSL and 1024-bit RSA.

    TAA-Compliant for GSA Schedule Purchases
    The B030-DP16-17DIP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

    Typical Applications
    Access and control, either locally or remotely, up to 16 computers and servers with DisplayPort video ports

    System Requirements
    Resolution settings of all connected displays must not exceed 1920 x 1080 @ 60 Hz
    DisplayPort graphics card
    USB keyboard/mouse ports
    Windows, macOS, Linux, UNIX or Novell operating system
    DisplayPort monitor and USB keyboard/mouse (optional external console)

    • Features:

      • Allows remote access of computers from anywhere 24/7 via LAN, WAN or Internet
      • 17 in. LCD with wide display supports HD video resolutions up to 1920 x 1080 @ 60 Hz
      • Dual-rail design allows LCD to stay open while keyboard/touchpad slides into the rack
      • Multiple levels of password protection prevent unauthorized access to servers
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • 1-year limited warranty

    • Specifications:

      • Max Supported Video Resolution: 1920 x 1080 (including 1080p) @60Hz Both Local & Remote
      • Voltage Compatibility (VAC): 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
      • Input Frequency: 50/60Hz
      • Input Current: 1A
      • Power Input Receptacle: IEC-320-C14
      • Redundancy - Dual Power Inputs: No
      • LED Indicators: (x16) On Line, (x16) Selected, (x1) Power, (x3) Caps/Num/Scroll Lock, (1) LCD Monitor Power Off, RJ45 Port: (x1) Link, (x1) Data Transfer
      • Color: Black
      • Material of Construction: Metal
      • Rackmountable: Yes
      • Unit Dimensions (hwd / in.): 1.73 x 18.90 x 26.77
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 31
      • Operating Temperature Range: 32 to 104 F (0 to 40 C)
      • Storage Temperature Range: -4 to 140 F (-20 to 60 C)
      • Relative Humidity: 0 to 80% RH, Non-Condensing
      • IP Remote Access : Yes
      • Network Speed: 10/100 Mbps

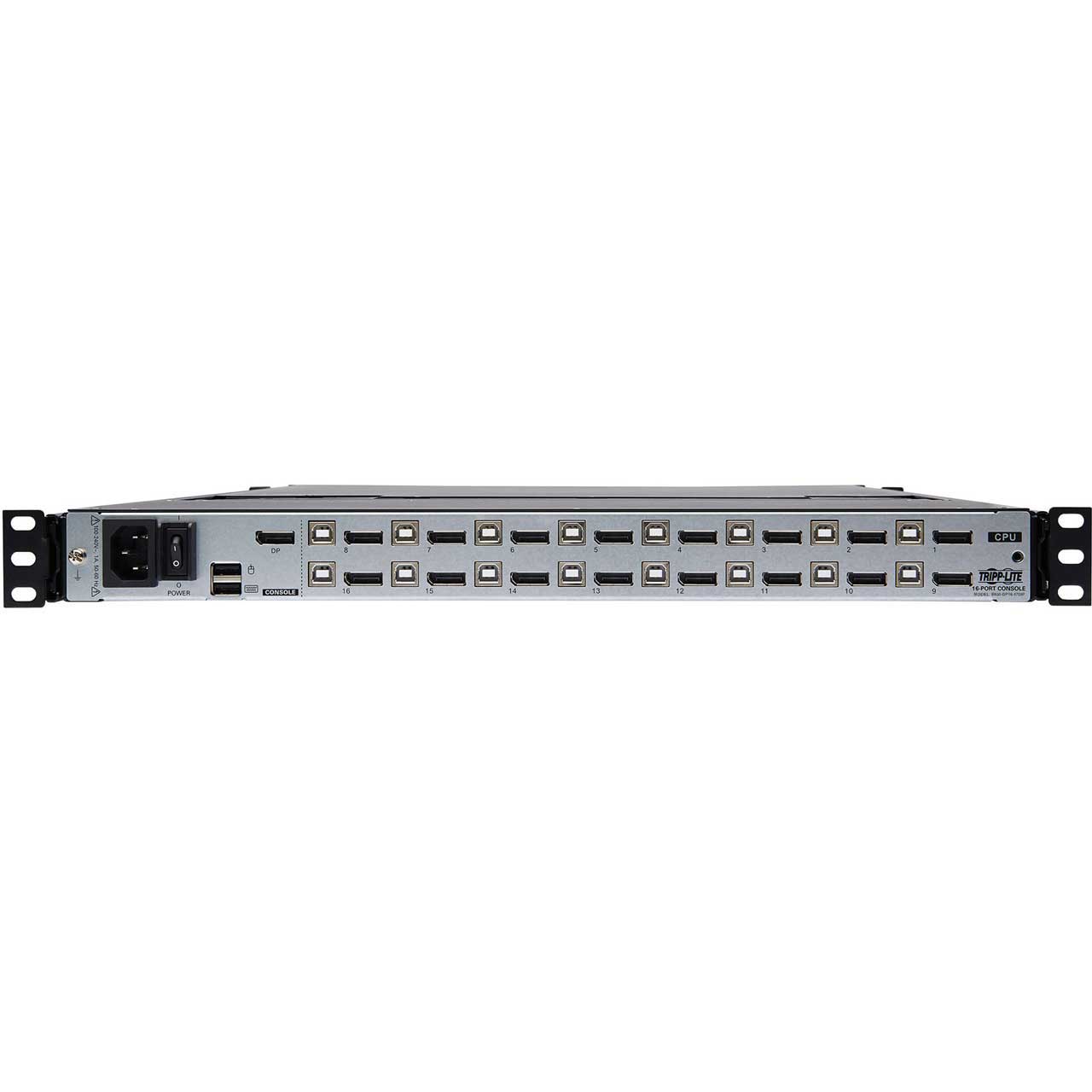

        Connections
      • Ports: 16
      • PC/Server Connections: DisplayPort; USB
      • Side A - Connector 1: (16) DisplayPort (Female)
      • Side A - Connector 2: (16) USB B (Female)
      • Side B - Connector 1: DisplayPort (Female)
      • Side B - Connector 2: (2) USB A (Female)
      • Side B - Connector 3: RJ45 (Female)
      • Side B - Connector 4: USB A (Female)

      • Computer Keyboard and Mouse Interface: USB
      • Computer Monitor Interface: Displayport
      • Console Keyboard and Mouse Interface: USB
      • Console Monitor Interface: Displayport
      • Autoscan (Y,N) : Y
      • Autoscan Duration : 1-255 seconds; User-definable (default 5 seconds)
      • Number of Users: 1
      • NIAP-Certified Secure : No
      • On-Screen Display (OSD): Yes
      • Port Selection: GUI; Hotkey; OSD; Pushbutton
      • Displayport Specification: 1.1
      • HDCP Specification: 1.4
      • USB Hub Ports: Yes
      • Number of USB Hub Ports: 1
      • USB Specification: USB 1.1 (up to 12 Mbps)
      • Authentication Supported: LDAP; LDAPS; MS Active Directory; RADIUS
      • Cat5 KVM Switch: No
      • Recommended Category Cable: Cat5e/6
      • Console Screen Size (inches): 17

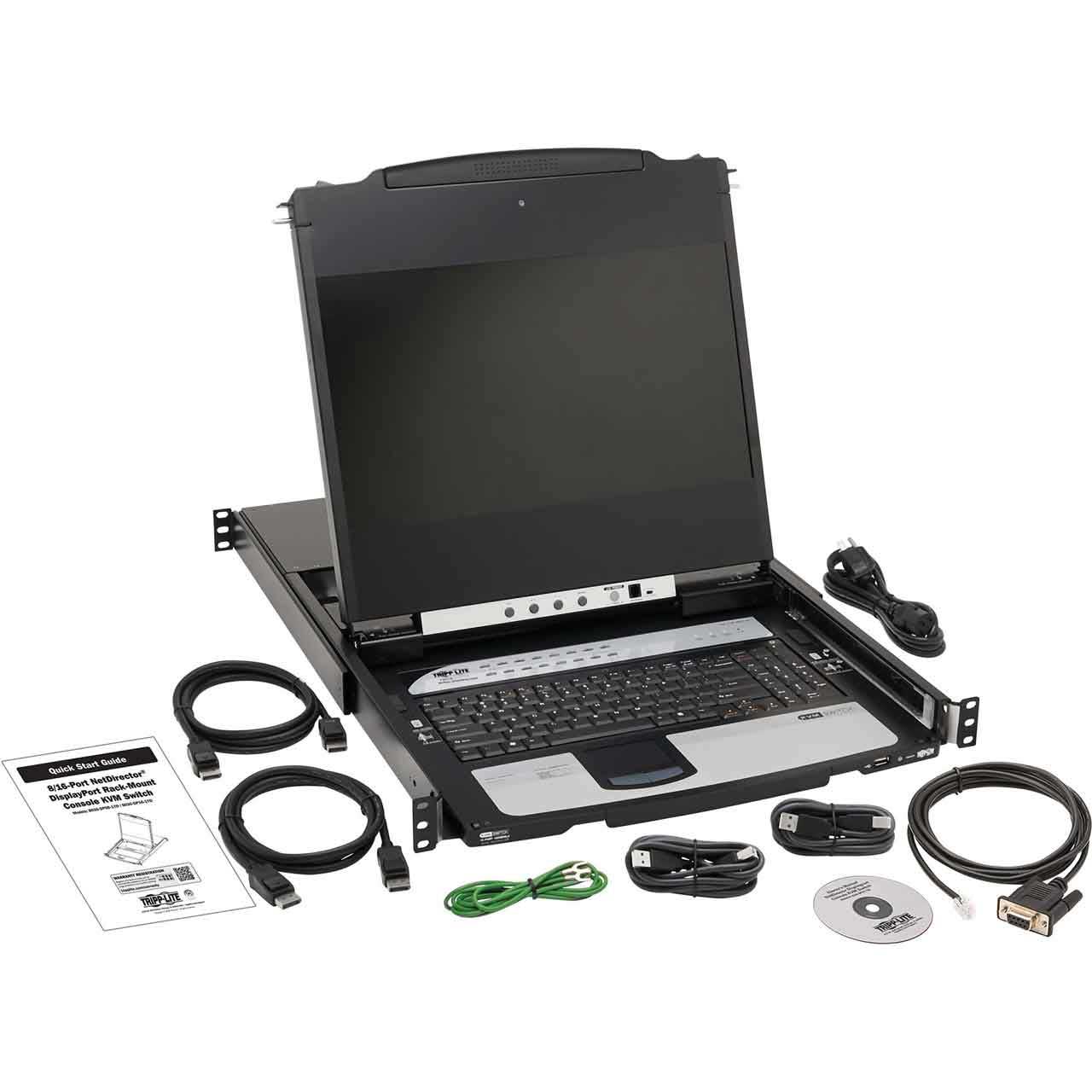

    • Item Includes:

      • 1x B030-DP16-17DIP 16-Port DisplayPort KVM Switch Console
      • 2x DisplayPort cables, 6 ft.
      • 2x USB 2.0 A/B cables, 6 ft.
      • 1x RJ11 firmware upgrade cable
      • 1x C13 to NEMA 5-15P power cord
      • 1x Grounding wire
      • 1x CD with owner’s manual
      • 1x Quick Start Guide

    • GTIN:

      0037332258717
