Switchcraft B3M Male 3-Pin Round Metal Shell XLR Panel Mount
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Switchcraft B3M Male 3-Pin Round Metal Shell XLR Panel Mount

    Manufacturer: Switchcraft

    Item #: B3M   •   MFG #: B3M







    B3F Receptacle
    Panel-mount female receptacle. Mounts with spanner nut from front of panels up to .4375 inches (11.11 mm) thick. Slot in threaded part of housing permits non-turn mounting. Requires 1.25-inch (31.75 mm) diameter minimum mounting hole. Spanner nut is die-cast zinc with satin nickel finish.

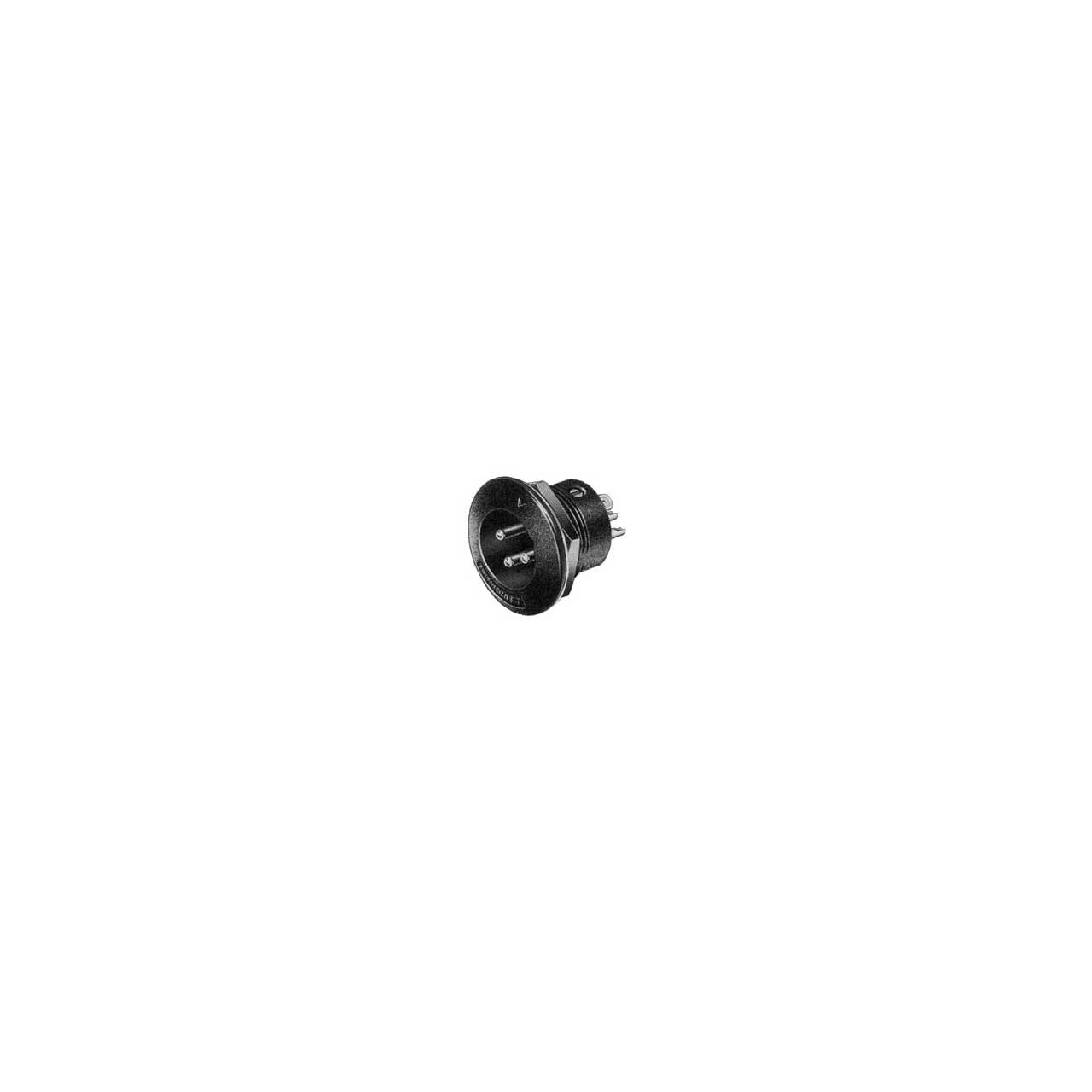

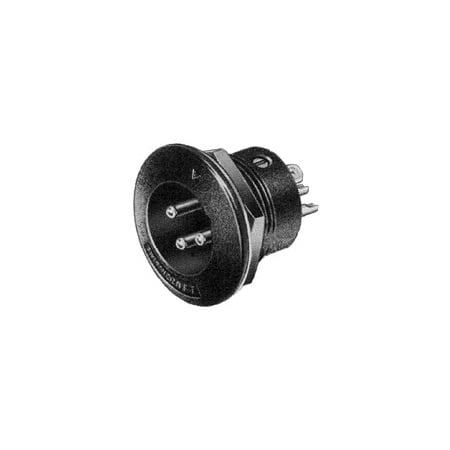

    B3M Receptacle
    Panel-mount male receptacle. Mounts with lock nut from front of panels up to .250-inch (6.35 mm) thick. Requires .812-inch (20.64 mm) diameter mounting hole. For non-turning mounting, can be keyed to ODO shaped panel hole, or S3519 mounting adapter can be used. Satin nickel finish.


    Add Accessories for your B3M:
