Barix Annuncicom MPI400 Dante Intercom/Paging Device with Dante License and Singlewires Informacast License

ITEM #: BARIX-MPI400-D-I MFG #: 2023.9414P

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$614.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


2023.9414P - Overview

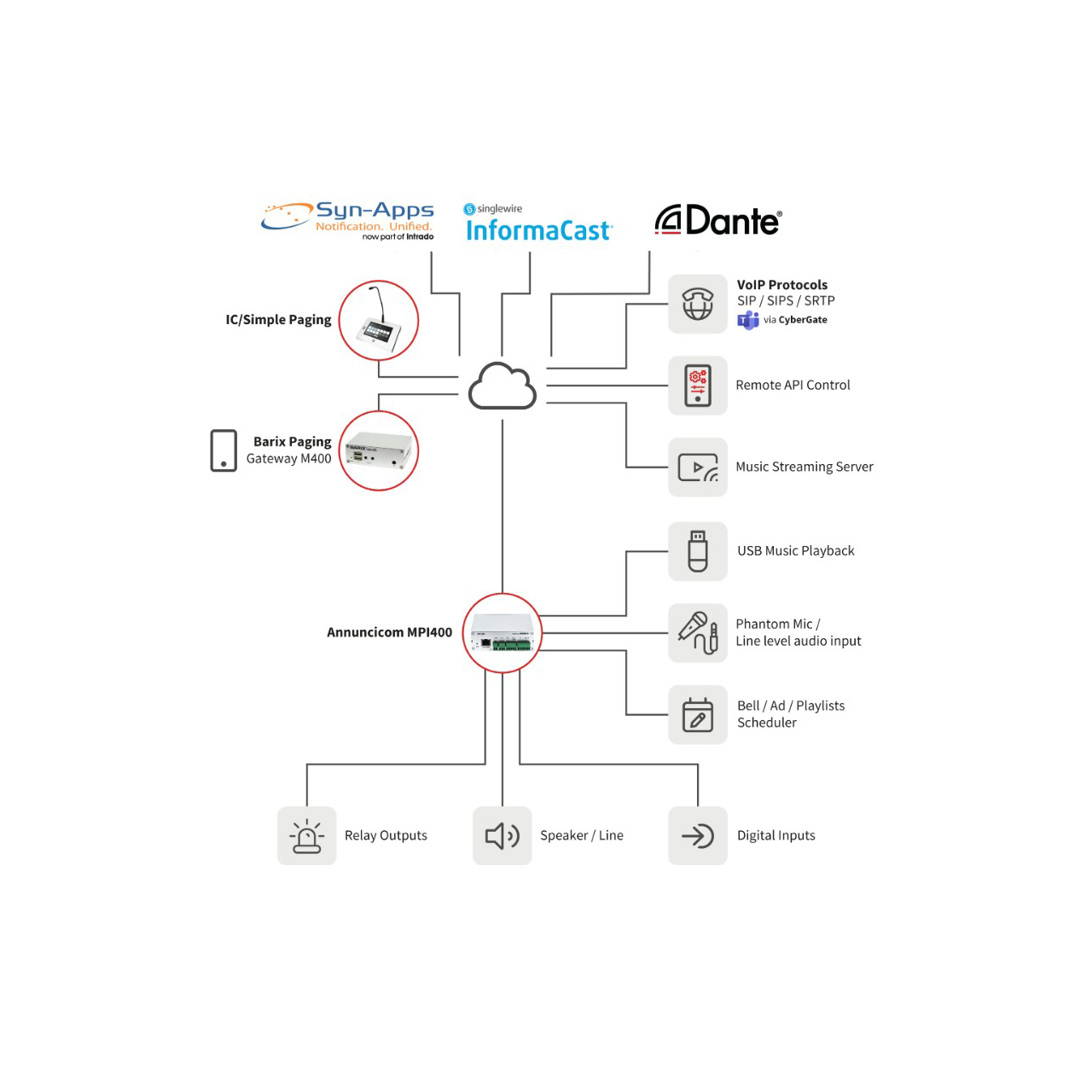

The Barix Annuncicom MPI400 is a versatile Audio over IP device designed to serve as an end point or gateway between IP based intercom (VoIP/SIP or streaming) and traditional paging/intercom systems, microphone/speakers or an amplifier. The modern, robust & powerful hardware/software architecture provides a future proof platform that meets modern internet security requirements and can easily be adapted to individual customer needs. A wide variety of audio environments, such as Dante, SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command or scheduled. Thanks to the priority handler, the Annuncicom MPI400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device.

Applications Include:
- Paging/ intercom device with talkback for classrooms or factory buildings
- Door Intercom station
- Paging/Intercom endpoint for public transportation
- Help Point/SOS call box device
- Generic, bidirectional half and full-duplex VoIP module for Paging and Intercom applications
- IP based Audio Surveillance
- Digital Annunciator, Message Player
- VHF Radio interface to IP networks
- Dante support - requires extra license (Included with this item)
- MS Teams endpoint via CyberGate service

  • Features:

    • SIP VoIP client support
    • IP Streaming via HTTP, UDP, RTP, Multicast, Uni- or Broadcast
    • Variety of Audio codecs supported (e.g. AAC+, MP3, PCM, G.711, G.722, OPUS .)
    • Internet security supported (HTTPS, SRTP, SIPS)
    • 2x Low voltage Relay Outputs to activate amplifier upon SIP call received
    • 2x Dry Contact Inputs, expandable via USB for example to establish a connection or to select a target
    • 2x Microphone Inputs
    • Line Level Input (mono, unbalanced)
    • Audio Output (mono, balanced) or amplified output 1W @8 Ohm
    • PoE and 24VDC redundancy powered

  • Specifications:

      Power Interface
    • 24V DC, ±20%, 12W max. on detach. screw terminal block
    • IEEE 802.3af PoE

      Network Interface
    • 10/100Mbps auto-sensing
    • RJ-45 connector with integrated Link/Activity LED
    • IPv4/IPv6 capable

      Protocols
    • TCP/IP, HTTP, UDP, RTP, SIP, DHCP, Multicast capable
    • Dante Support - Requires extra license
    • Singlewire InformaCast compatibility - requires extra license
    • SynApps Revolution compatibility

      USB Interface
    • 2x USB 2.0 Type A interfaces

      Discrete I/O

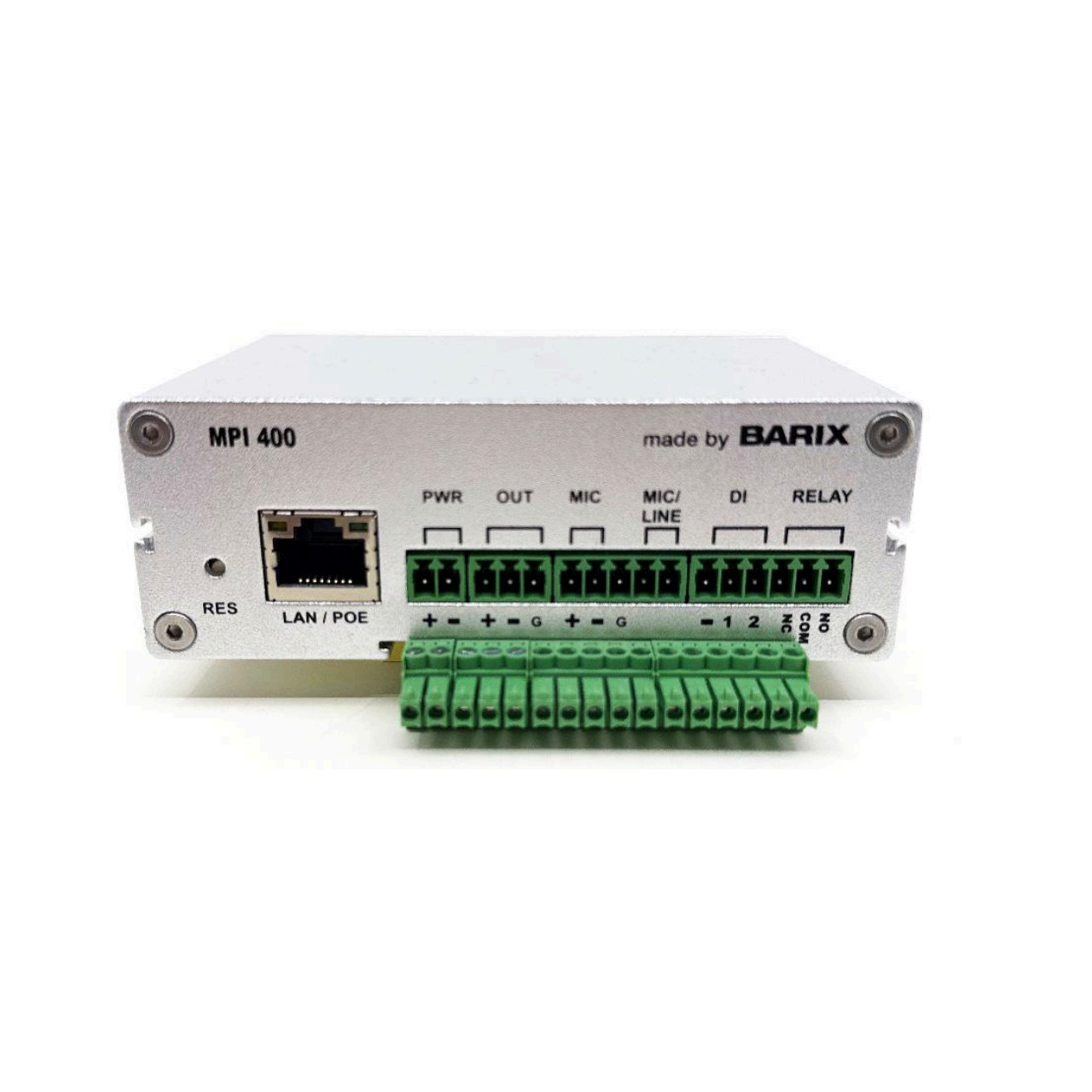

    • On Detach. Screw Terminal Block:
      - 1x Normally open relay 30V 0.5A
      - 1x Normally closed relay 30V 0.5A
      - 2x Digital dry contact inputs

      Audio Input Interfaces
    • On Detach. Screw Terminal Block:
      - Line level input +4dBu max, mono, unbalanced
      - Microphone input, balanced, 18V phantom powered
      - Microphone input, electret, unbalanced, 2.1V bias

      Audio Output Interfaces
    • On Detach. Screw Terminal Block:
      - Audio output (mono), suitable to drive a speaker or a balanced output (exclusive output). Speaker: 1W @8ohms Line out: symmetric/balanced, non-isolated, with DC offset, 10dBu (unbalanced: 4dBu) volume level software controlled
      - 3.5mm headphone output

      IP Audio Formats
    • FDX/HDX SIP client support
    • HTTP(S) and (S)RTP Streaming
    • Large variety of codecs can be supported (e.g. MP3, PCM, G.711, G.722, AAC+, OPUS)

      User Interface
    • Web interface for configuration
    • 2x Multicolor LED Status indicators
    • Reset & Factory Defaults Button Mechanical
    • Aluminum Case
    • Weight: 0.6lbs (265g)
    • Dimensions: 4.25" x 1.5" x 3.1" (108mm x 38mm x 78.7mm)
    • Rack and Wall Mountable Using Accessories

  • Item Includes:

    • 1x Barix Annuncicom MPI400 Dante Intercom/Paging Device with Dante License and Singlewires Informacast License

  • Warranty:

    • 2 Year Limited Warranty
