Barnfind BARNMINI-07-2935 4 Channel CWDM Mux - Frequency 1290-1350nm

ITEM #: BARNMINI-07-2935 MFG #: BARNMINI-07-2935

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$400.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BARNMINI-07-2935 - Overview

    These standalone solutions are ideal for smaller jobs where the BarnOne frames may not be required - they represent the "Swiss army knife" of the conversion and signal transport part of the industry.

    A rackmount solution is available allowing you to mount several units together or, you can use these little boxes as "throw-downs" behind racks and inside ceilings and floors to solve conversion and signal transport challenges as needed.

    The BarnMinis are ideal standalone solutions where no control is required and solve everything from a simple task to more comprehensive solutions where the BarnMini s are used in conjunction with BarnOne' frames to empower complete distributed systems in lager facilities.

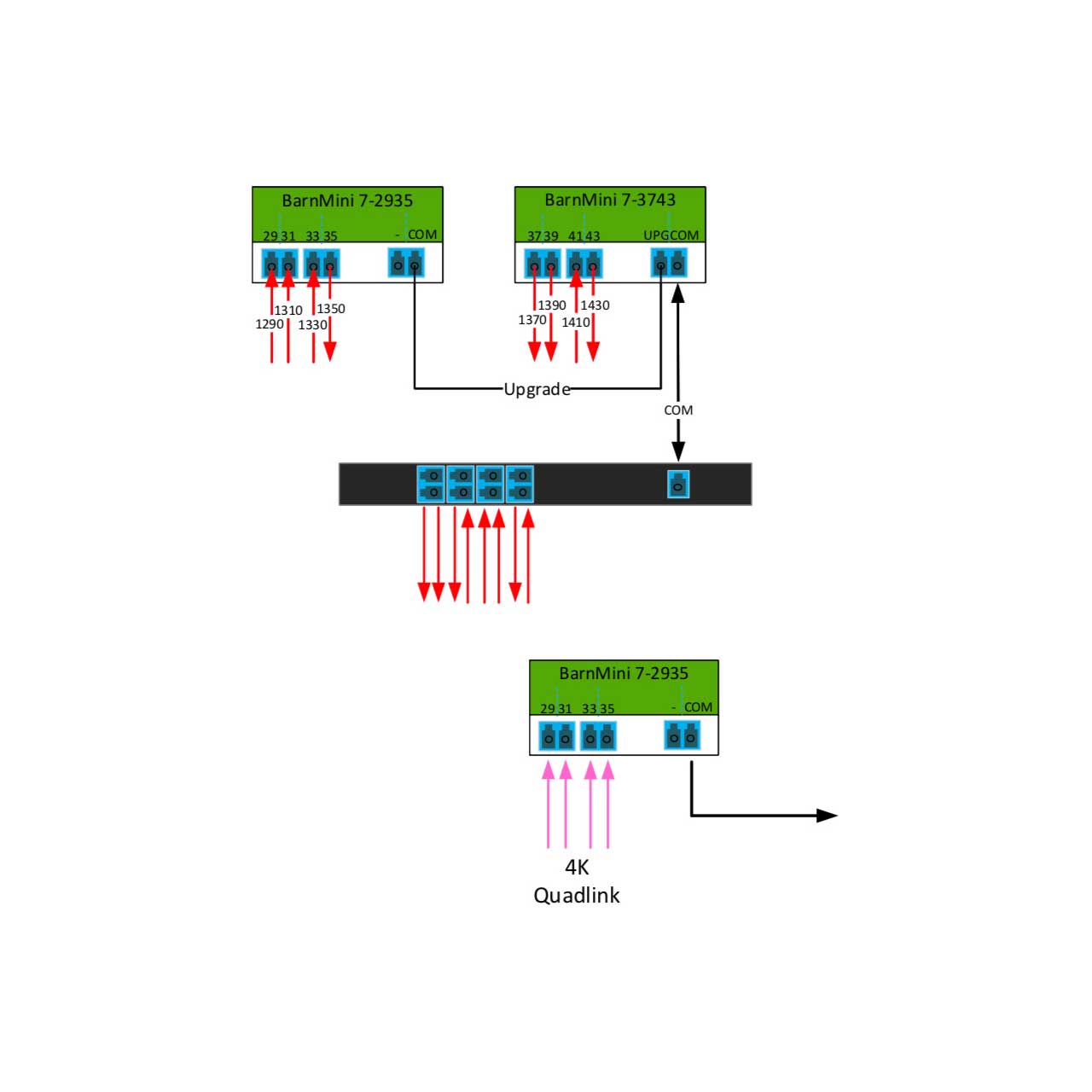

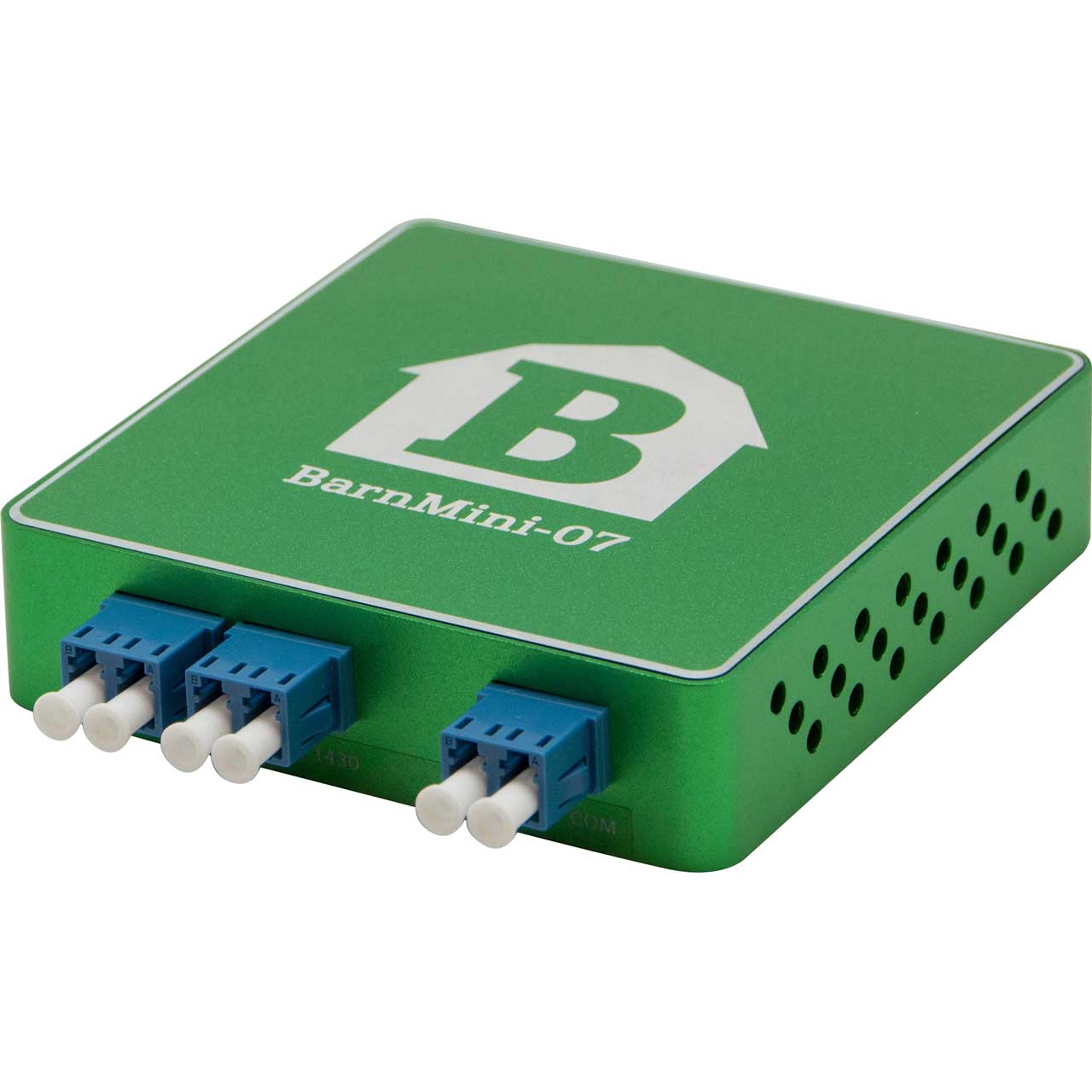

    The BarnMini-07-2935 is a 4-channel CWDM mux that can be used e.g. for transportation of 3G-quad over different mediums. This is a compact, efficient and affordable mux. It fits into the BarnMini BTF-Mini-16 frame. The BarnMini-07 saves you both rack space and money.

    • Features:

      • Use any SFPs from Barnfind or any other SFP supplier as long as they are MSA compatible.
      • All BNCs and SFP outputs are re-clocked.
      • Unique HDMI to SDI solutions with any fiber distance depending on SFP selection.
      • Multimode to Singlemode conversion in one Mini.
      • BarnMini Housing in 2.5RU for up to 16 x different BarnMinis.
      • All BarnMini modules are operational from 5V to 24V.
      • Can be used as a standalone box or in advanced systems with
      • BarnOne or any 3rd party solution.
      • AC adapter is included.
      • Rock solid mechanics and technology. The BarnMinis are designed to work in harsh environments.

    • Specifications:

      • Optical Ports
      • LC/PC connectors
      • Center Wavelength BM-07 2935: 1290, 1310, 1330, 1350nm
      • Channel clear passband +/- 6,5nm
      • Insertion Loss <1,2dB
      • Passband ripple <0,5 dB
      • Adjacent Channel Isolation >30dB
      • Non-Adjacent Channel Isolation >45dB
      • Polarisation dependant loss 0,02dB
      • Directivity >50dB
      • Return loss >45dB
      • Polarisation Mode Dispersion <0,2ps

        Power supply
      • 12-24V DC. Power supply included

        Physical size
      • 3.6 inch x 3.8 inch x 0.8 inch (92mm x 98mm x 22mm)
      • 0.4lbs (200g)

    • Item Includes:

      • 12-24V DC. Power supply included
