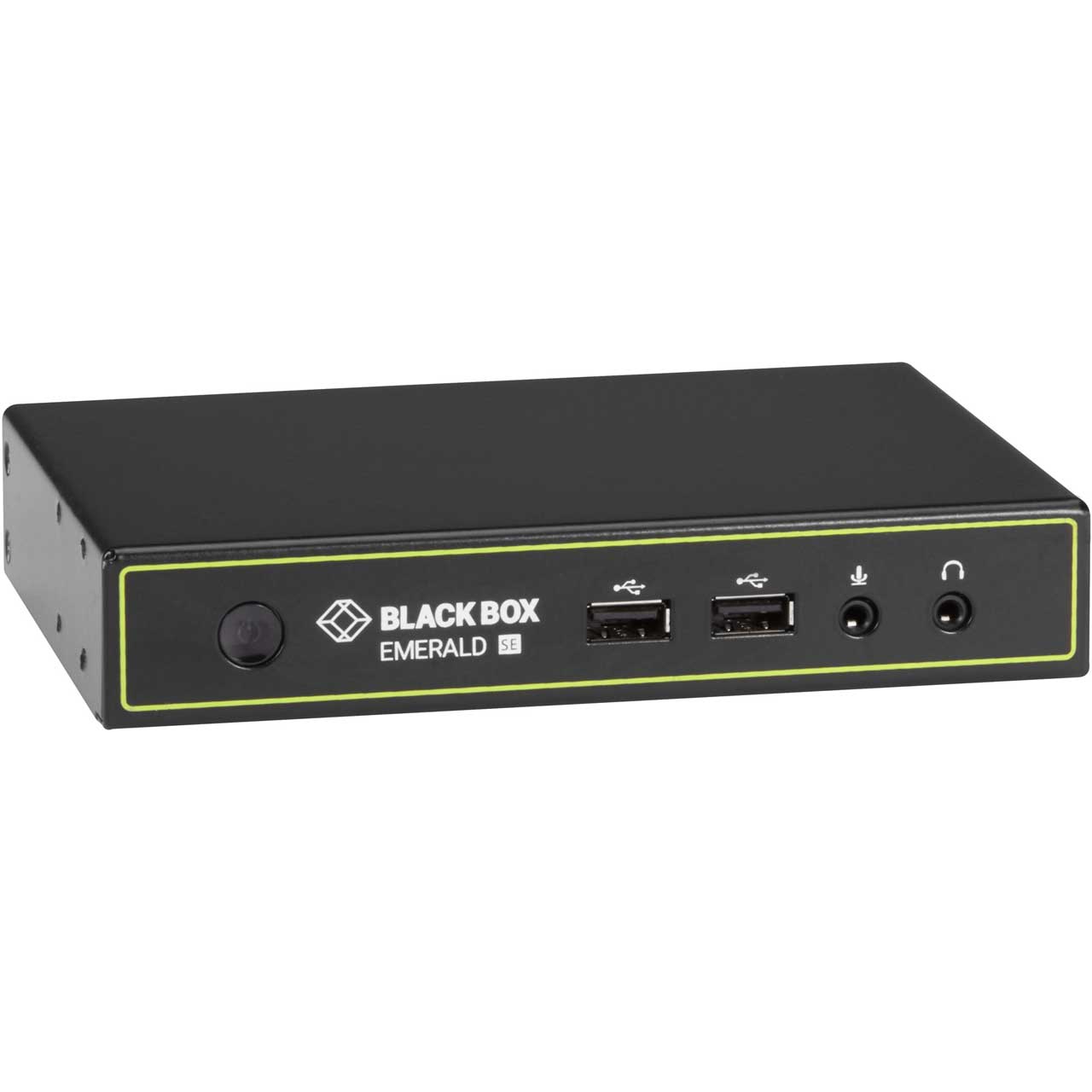

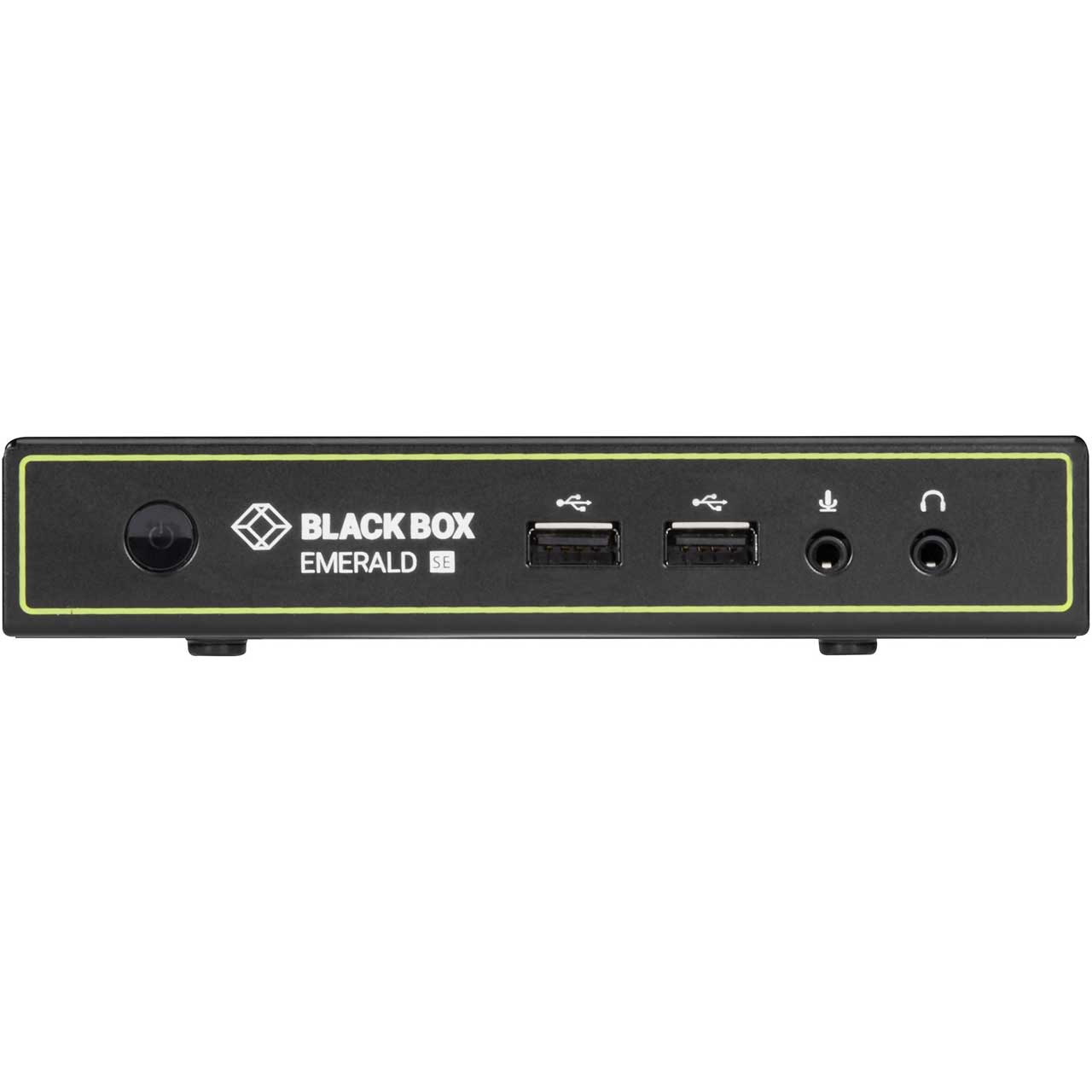

Black Box EMD2000SE-R Emerald Se HD DVI KVM-over-IP Matrix Switch Receiver - Full HD DVI USB 2.0 Serial Audio


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    EMD2000SE-R - Overview

    High-performance KVM
    Black Box EMD2000SE-R Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network, while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows an easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.

    Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB, serial and stereo audio. Link them in a point-to-point KVM extension over CATx up to 130 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.

    Optional upgrade license bundles
    The Emerald SE is completely customizable and lets you gradually add new, helpful features to your extenders.

    The current upgrade license bundle includes:
    Pixel-Perfect Video: Extend and display mathematically lossless video pixel by pixel
    VM Access over PCoIP: Use the PCoIP protocol to access VMs
    Virtual Machine Sharing: Share virtual machine access amongst a group of users
    Bonding: Group multiple transmitters and receivers to provide multi-head support for your workspace

    Virtualization support
    Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft® HyperV® and Citrix®, using RDP 8.1/RemoteFX.

    Limitless scaling
    Your Emerald KVM network may start small, but it's scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla™ KVM management solution.

    • Features:

      • Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers Q3:U3
      • Optional upgrade license bundles available: add pixel-perfect video transmission, PCoIP access to virtual machines, Glide & Switch and bonding
      • Visually lossless full HD DVI video up to 1920x1200
      • Low IP bandwidth requirements with less than 40-Mbps required for 1080p video
      • Supports USB HID, transparent USB 2.0, serial and audio
      • Manage bandwidth and user access, deploy new endpoints, update firmware and more from the receiver's OSD
    • Specifications:

      • Power
      • Consumption (Typical): Unit: 6.5 watts with keyboard and mouse attached;
      • Power supply is 20W to support USB-based powered devices
      • Power Supply Type: TUV, UL

      • Storage Temperature: -4 to +140° F (-20 to 60° C)
      • Humidity: 5 to 95%, noncondensing
      • Operating Temperature: 32 to 104° F (0 to 40° C)

      • Dimensions: 1.15"H x 6.2"W x 4.2"D (2.92 x 15.75 x 10.67 cm)
      • Weight: 1.18 lb. (0.54 kg)

      • Input: 100-240 VAC, 50/60 Hz
    • Warranty:

      • 1 Year
    • GTIN:
