Black Box KVXLCH-100 KVX Series KVM Extender over CATx - 4K/Single-Head/HDMI/USB 2.0/Serial/Audio/Local Audio

ITEM #: BBX-KVXLCH-100 MFG #: KVXLCH-100

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$660.24

Our Price:

$627.23

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    KVXLCH-100 - Overview

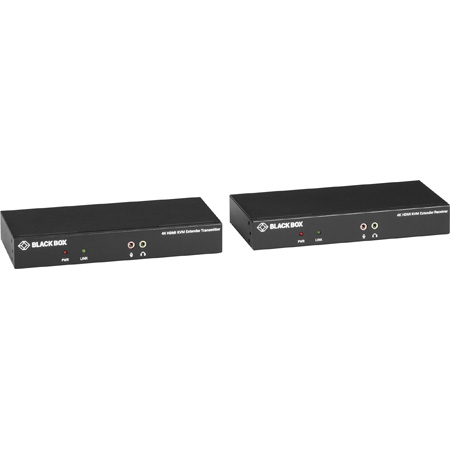

    The Black Box KVXLCH-100 KVX HDMI/DisplayPort Single Head KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

    You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

    KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

    KVX is TAA compliant and backed by free lifetime technical support.

    KKVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

    • Features:

      • HDMI video resolution up to UHD 4K
      • Remote access up to 100 meter
      • Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over CATx
      • Transparent USB 2.0 extension supports HID devices, mass storage devices
      • Supports RS-232 peripheral (serial) devices
      • Bi-directional audio via speaker/mic connection
      • Local video port loopback for monitoring on transmitter (TX) unit
      • Supports EDID pass-through

    • Specifications:

      • Housing Material: Metal Chassis
      • DDC Support: DDC, DDC2, DDC2B
      • Dimensions (Receiver): 0.83" H x 3.27" W x 7.09" D
      • Dimensions (Transmitter): 0.83" H x 3.27" W x 7.09"
      • Distance: CATx cable: Up to 328 ft. (100 m)
      • Indicators: (1) Power LED (red), (1) Link LED (green)
      • MTBF: Transmitter (TX): 137,540 Hours, Receiver (RX:) 165,620 Hours
      • Operating Humidity: 0 to 80%, noncondensing
      • Operating System: OS Independent
      • Operating Temperature: 32 to 122°F
      • Power: External 5-VDC, 2-A Power Supply
      • Resolutions: 3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
      • Storage Temperature: -4 to +140°F
      • Weight (Receiver): 0.83 lb
      • Weight (Transmitter): 0.82 lb

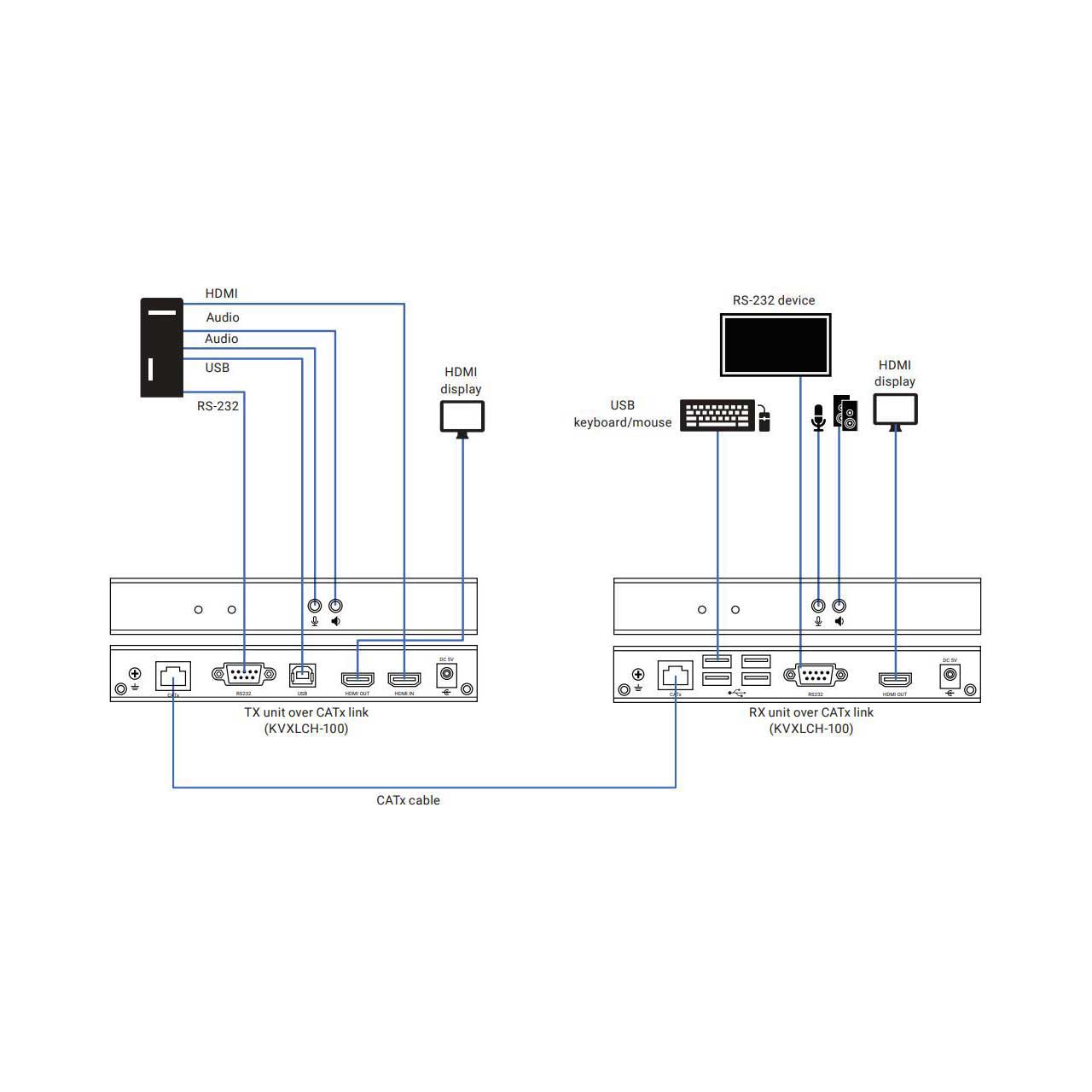

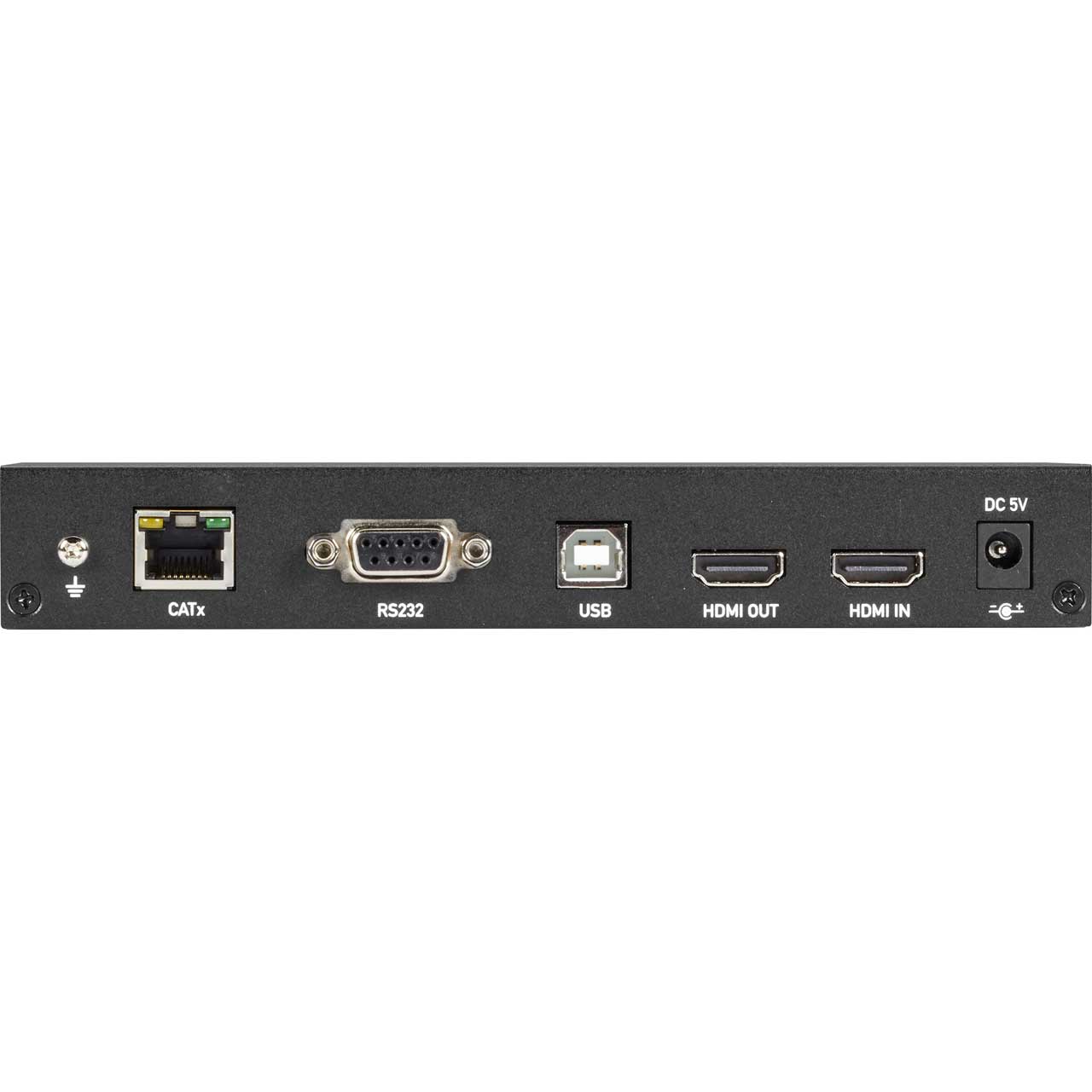

        CATx Transmitter - Host Connection
      • Video Input: (1) HDMI female;
      • Serial Control Port: (1) DB9 female;
      • Link Port: (1) RJ-45 female;
      • USB: (1) USB Type B female;
      • Audio: (1) Line in, (1) Line out;
      • Local Video Output: (1) HDMI female

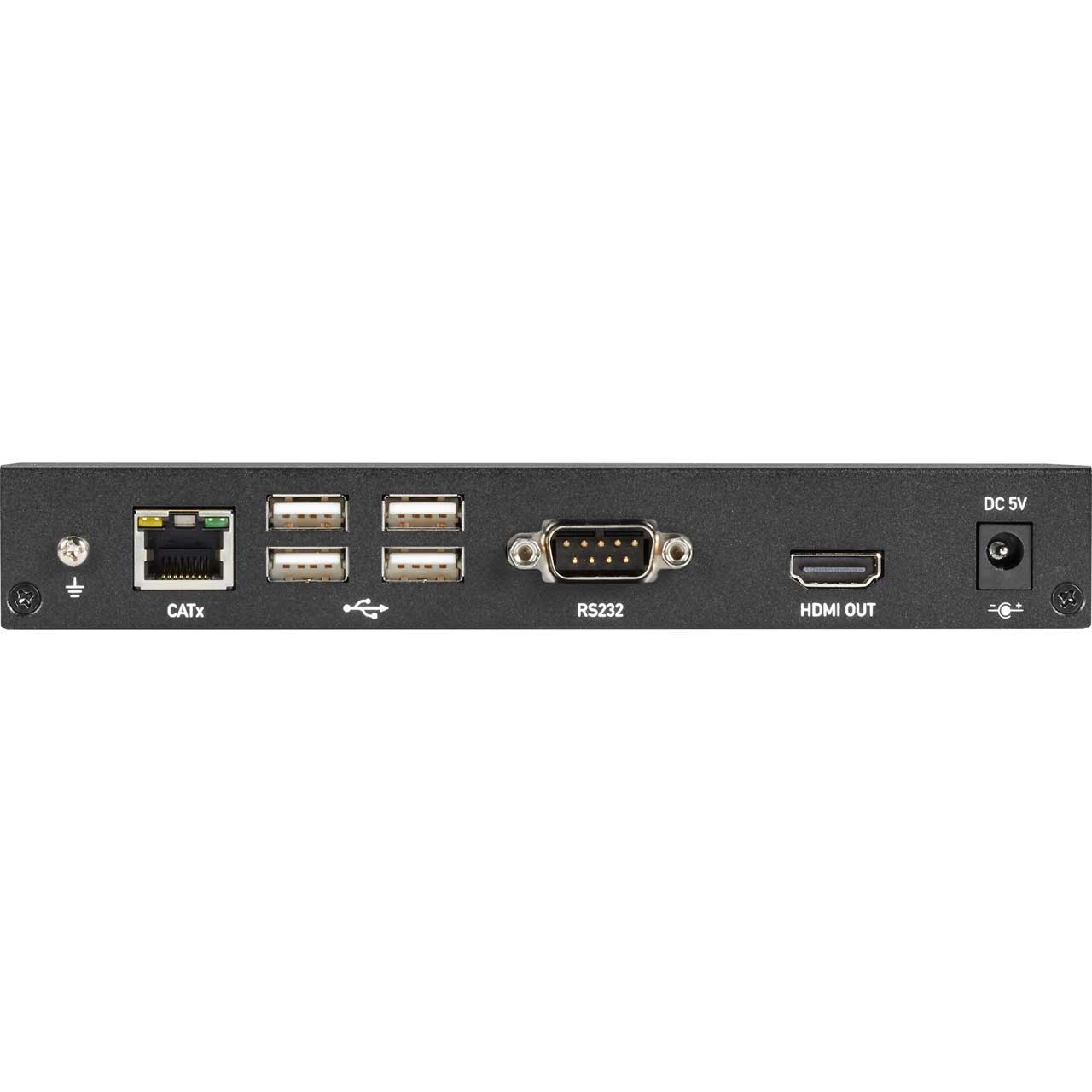

        CATx Receiver - Console Connection
      • Video Output: (1) HDMI female;
      • Serial Control Port: (1) DB9 male;
      • Link Port: (1) RJ-45 female;
      • USB: (4) USB Type A female;
      • Audio: (1) Mic In, (1) Speaker Out

    • Item Includes:

      • 1x HDMI KVM Extender Transmitter
      • 1x HDMI KVM Extender Receiver
      • 2x Power Supplies (includes US, EU, UK, AU plug types)
      • 1x 4K HDMI cable (4-ft./1.2-m)
      • 1x 3.5mm audio cable (6-ft./1.8-m)
      • 1x USB-B to USB-A cable (6-ft./1.8-m)

    • Warranty:

      • 2-year Double Diamond Warranty (standard)

    • GTIN:

      0822088133650
