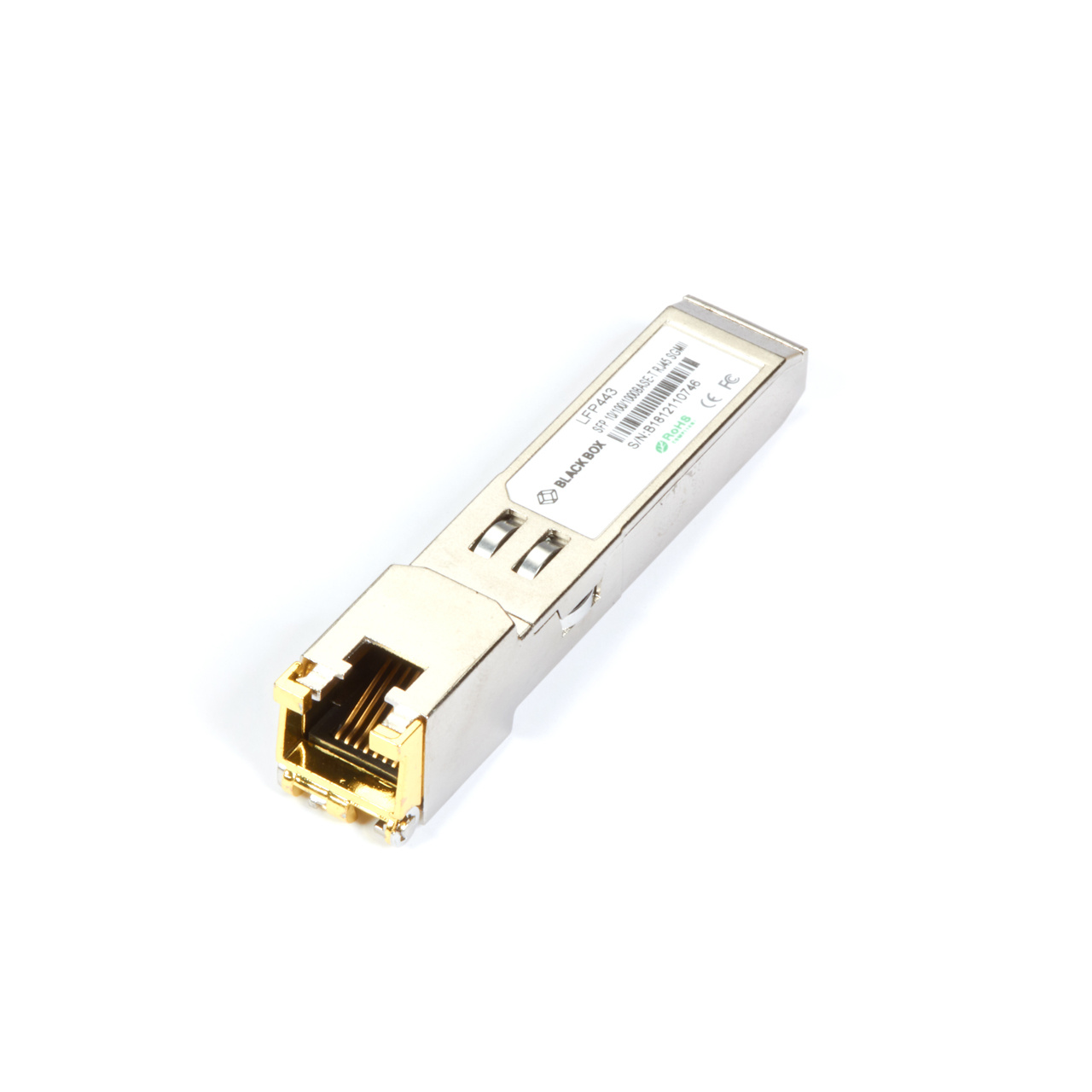

Black Box LFP443 Gigabit SFP Module - 1.25-Gbps Copper RJ45 - 100m/SGMII Interface

LFP443 - Overview

• Features:

  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Low power dissipation(1.05W typical)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10/100/1000 BASE-T operation in host systems with SGMII interface
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Case Operating Temperature:
    - Commercial: 32°F - 158°F (0°C - 70°C)
    - Extended: 14°F - 176°F (-10°C - 80°C)
    - Industrial: -40°F - 185°F (-40°C - 85°C)


• Specifications:

  General
  • Distance: 100m, maximum
  • Speed: 1.25 Gbps
  • Connectors: 1x RJ45

    Power
  • Power: 1.1W
  • Input: 3.3V
  • Source: From SFP cage

    Physical
  • Fiber Type: CATx
  • Dimensions (HxWxD): 0.6" x 0.6" x 2.7" (14mm x 14mm x 68mm)
  • Weight: 0.036lbs (0.016kg)
  • Operating Humidity: 5% - 85% non-condensing
  • Operating Temperature: 32°F - 158°F (0°C - 70°C)
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)

    Approvals
  • Listings: CE, FCC
