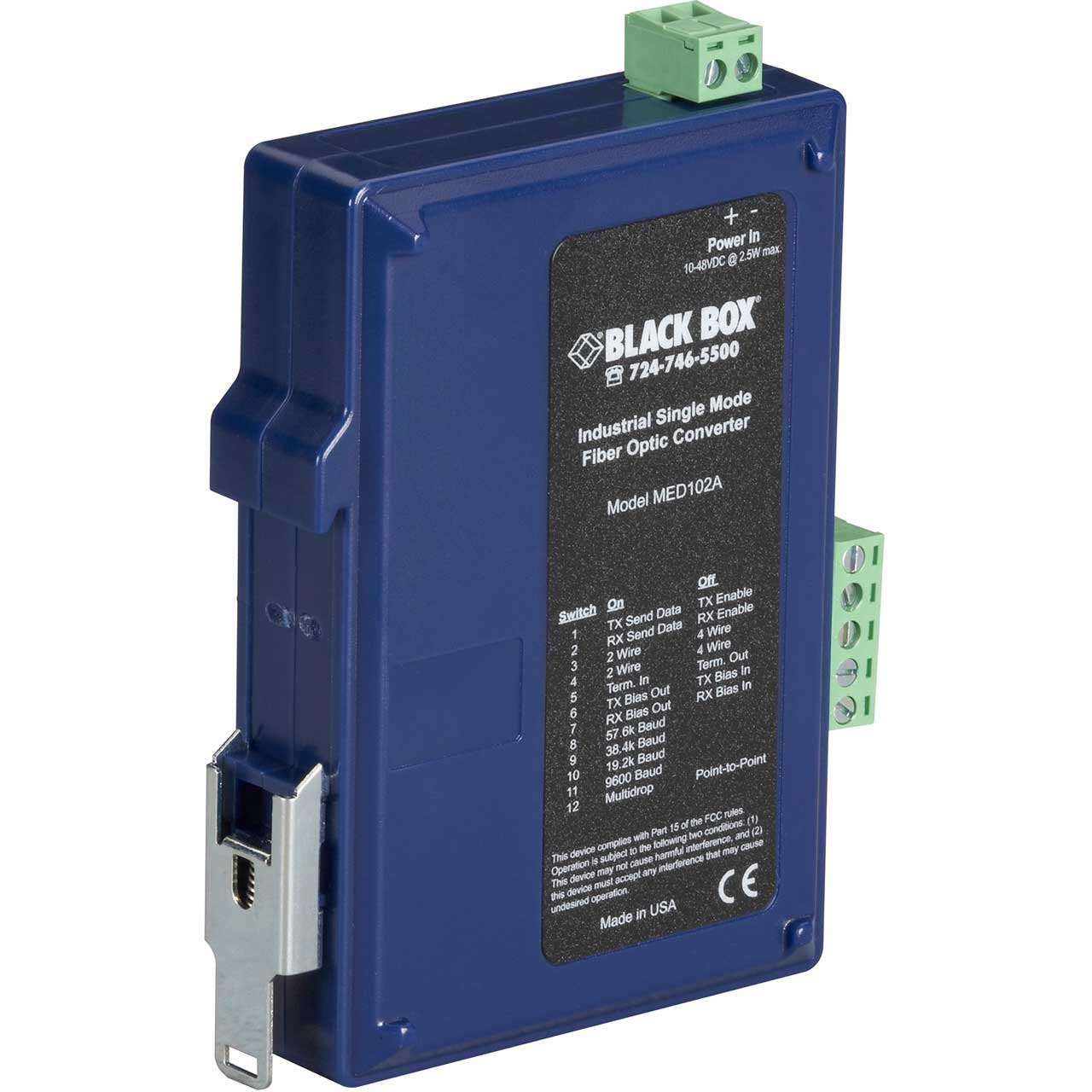

Black Box MED102A Async RS232/422/485 Fiber Extender - TB/SM SC

ITEM #: BBX-MED102A MFG #: MED102A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$542.79

Our Price:

$515.65

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MED102A - Overview

    The BlackBox MED102A is their premium serial to single-mode fiber optic converter. It provides versatile connections between asychronous full- or half-duplex serial equipment using duplex single-mode fiber optic cable. The converter can also be set up in a multi-drop configuration to allow one serial device to communicate with multiple devices on a fiber ring. It supports mixed standards, which allows you to replace other converters and isolators and add the EMI/RFI protection inherent to fiber optic communications.

    • Features:

      • Communicate signals in a point-to-point or ring topology.
      • Communicate signals in a point-to-point or ring topology.
      • Ideal for fiber applications that use different interface protocols.
      • Extended ambient operating range -40 to +176° F (-40 to +80° C)
      • Data-derived or RTS transmit/receive switching (RS-485)
      • Indicator LEDS monitor signal and power

    • Specifications:

      • General
      • Bus Compatibility: MODBUS ASCII or RTU
      • CE: Yes
      • Data Rate: Up to 115.2 kbps
      • Enclosure: IP30 Plastic Case
      • Interface: RS-232/422/485
      • Isolation: 2 KV RMS for 1 Minute 3 Way
      • Power: Input: 10 to 48 VDC, external; Consumption: 1.4 W
      • Range: 9 mi. (14.4 km)

        Item Specifications
      • Connectors: (1) 2-position terminal block, (1) 5-position terminal block, (1) duplex single-mode SC
      • Dimensions: 3.5"H x 1.2"W x 5.0"D (8.9 x 3 x 12.8 cm)
      • Weight: 0.5 lb. (0.2 kg)

    • Item Includes:

      • 1x Black Box MED102A Async RS232/422/485 Fiber Extender - TB/SM SC
