Atlona AT-AVA-EX70C-BP-KIT Avance 4K/UHD HDMI Transmitter and Receiver Kit with RS-232 and IR Pass-through

ITEM #: AT-AVAEX70CBPKIT MFG #: AT-AVA-EX70C-BP-KIT

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$883.00

Availability: In Stock
iAvailability Description Popup


    AT-AVA-EX70C-BP-KIT - Overview

    The Atlona AT-AVA-EX70C-BP-KIT is an Avance™ Series HDBaseT extender kit that supports control pass-through and bidirectional remote power capabilities. The kit transmits 4K/UHD 60 Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60 Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single Category 6/6A cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. Audio Return Channel (ARC) is available on the HDMI connections to minimize cabling in audio return applications. The AT-AVA-EX70C-BP-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-BP-KIT delivers a cost-effective solution for extension of video, audio, control, and bidirectional power at resolutions up to 4K/UHD.

    Applications

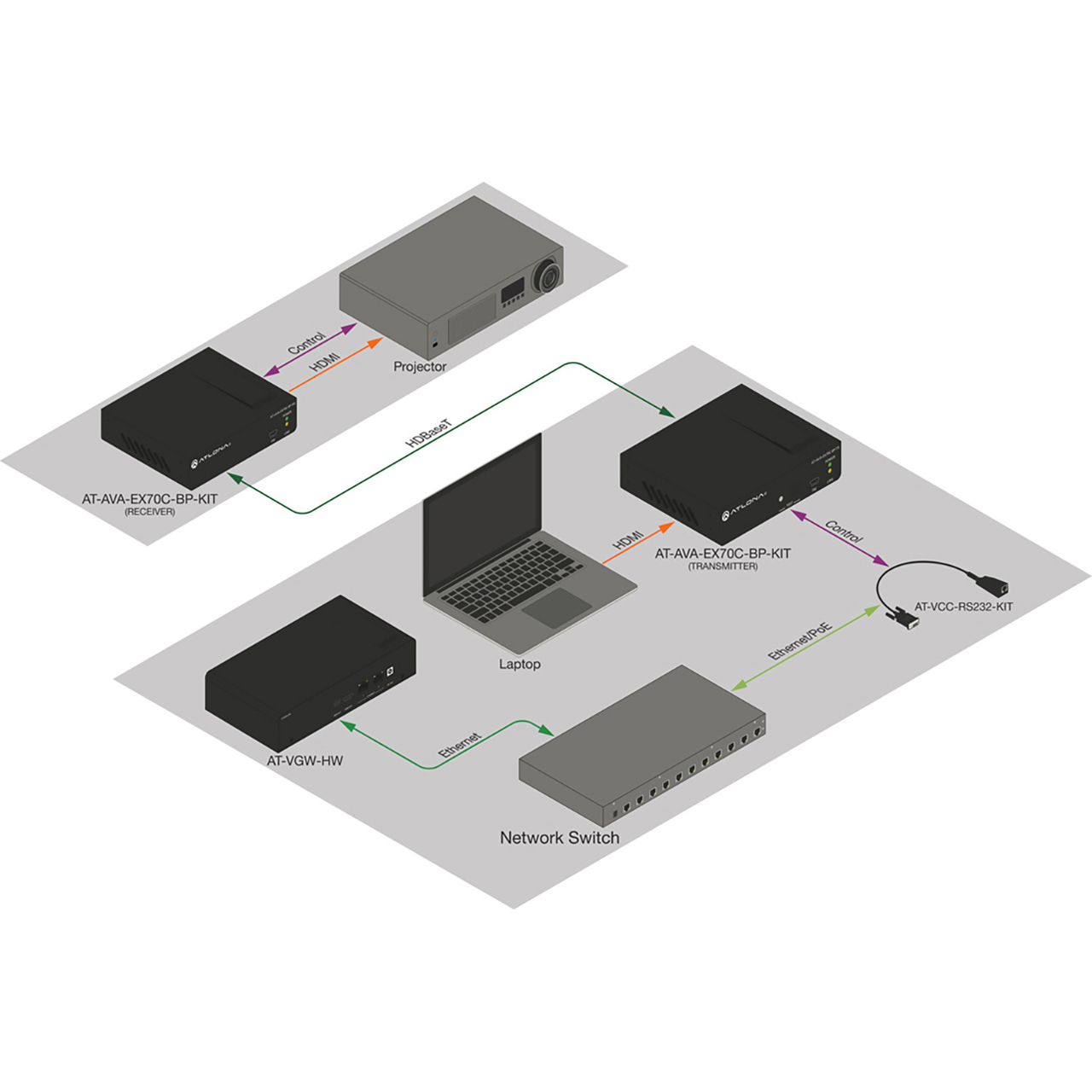

    Conference Room - Transmit 4K/UHD content from a laptop or room PC to the flat panel display at the front of the room.
    Classroom - Transmit 4K/UHD content from an instructor computer to a projector or flat panel display.
    Residential - Advanced integration features ensure transmission of content to a remote TV at resolutions up to 4K/UHD.

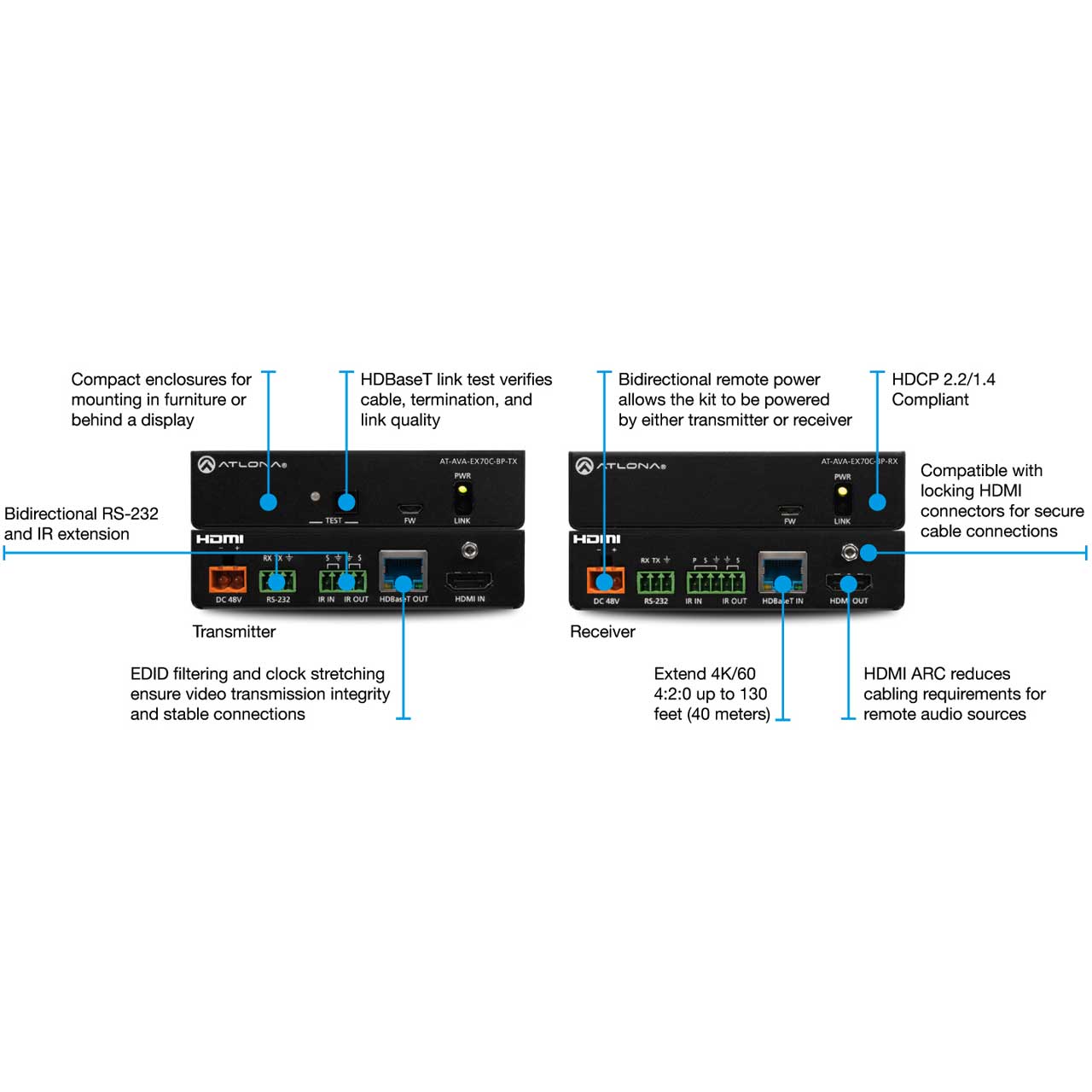

    • Features:

      • Extends 4K/UHD 60 Hz 4:2:0 up to 40 meters (130 feet) with Category 6/6A
      • Extends 1080p 60 Hz up to 70 meters (230 feet) with Category 6/6A
      • Extends bidirectional RS-232 and IR control signals over HDBaseT
      • Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT
      • HDMI Audio Return Channel (ARC) minimizes cabling in applications where an audio return channel from the display is required
      • EDID filtering prevents extension of unsupported resolutions to increase the integrity of video transmission
      • HDMI Clock stretching provides more stable connections with problematic HDMI sources
      • HDBaseT link test verifies cable, termination, and link quality for more reliable installations
      • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
      • Front panel Power and Link status LEDs
      • Rear panel connections simplify wire management and save installation time
      • Front panel USB port for firmware updates
      • Multi-channel audio compliant for all PCM, Dolby, and DTS formats
      • Compact enclosures can be mounted in furniture, behind a display, or above a projector
      • Rack mounting available with the optional AT-RACK-1RU-ME multi-extender rack mount shelf
      • Kit includes transmitter, receiver, power supply, wall/table mounting brackets, and installation guide
      • Award-winning 10 year limited product warranty ensures long-term product reliability and performance

    • Specifications:

      • Video
      • Signal: HDMI w/ARC
      • Copy Protection: HDCP 1.4/2.2
      • Pixel Clock: 300MHz
        UHD/HD/SD Resolutions:
      • [email protected](1)/50(1)/30/25/24Hz
      • [email protected](1)/50(1)/30/25/24Hz
      • [email protected]/59.9/50/30/29.97/25/
      • 24/23.98Hz
      • [email protected]/29.97/25Hz
      • [email protected]/59.94/50Hz
      • [email protected]
      • [email protected]
      • [email protected]/59.96Hz
      • [email protected]
        VESA (All resolutions are 60Hz):
      • 2560x1600
      • 2048x1536
      • 1920x1200
      • 1680x1050
      • 1600x1200
      • 1440x900
      • 1400x1050
      • 1280x1024
      • 1280x800
      • 1366x768
      • 1360x768
      • 1152x864
      • 1024x768
      • 800x600
      • 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit

        Audio
      • HDMI / HDBaseT: PCM 2.0 - Dolby Digital - DTS Digital Surround
      • Pass-Through Formats: LPCM 5.1 - LPCM 7.1 - Dolby Digital Plus - Dolby TrueHD - DTS-HD Master Audio - Dolby Atmos - DTS:X
      • Bit Depth: up to 24-bit
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

        Resolution / Distance
      • HDMI In/Out: 4K/UHD: 15 feet / 1080p: 30 feet
      • CAT5e: 4K/UHD 115 feet / 1080p: 200 feet
      • CAT6/6a/7: 4K/UHD 130 feet / 1080p: 230 feet

        Control
      • RS-232 Pass through, up to 115200 baud
      • IR Pass through, 30kHz to 60kHz
      • CEC Pass through

        Buttons and Indicators
      • TEST button 1 - momentary, tact-type
      • Power indicator 1 - LED, green
      • Link indicator 1 - LED, yellow
      • Test indicator 1 - LED, multi-colored

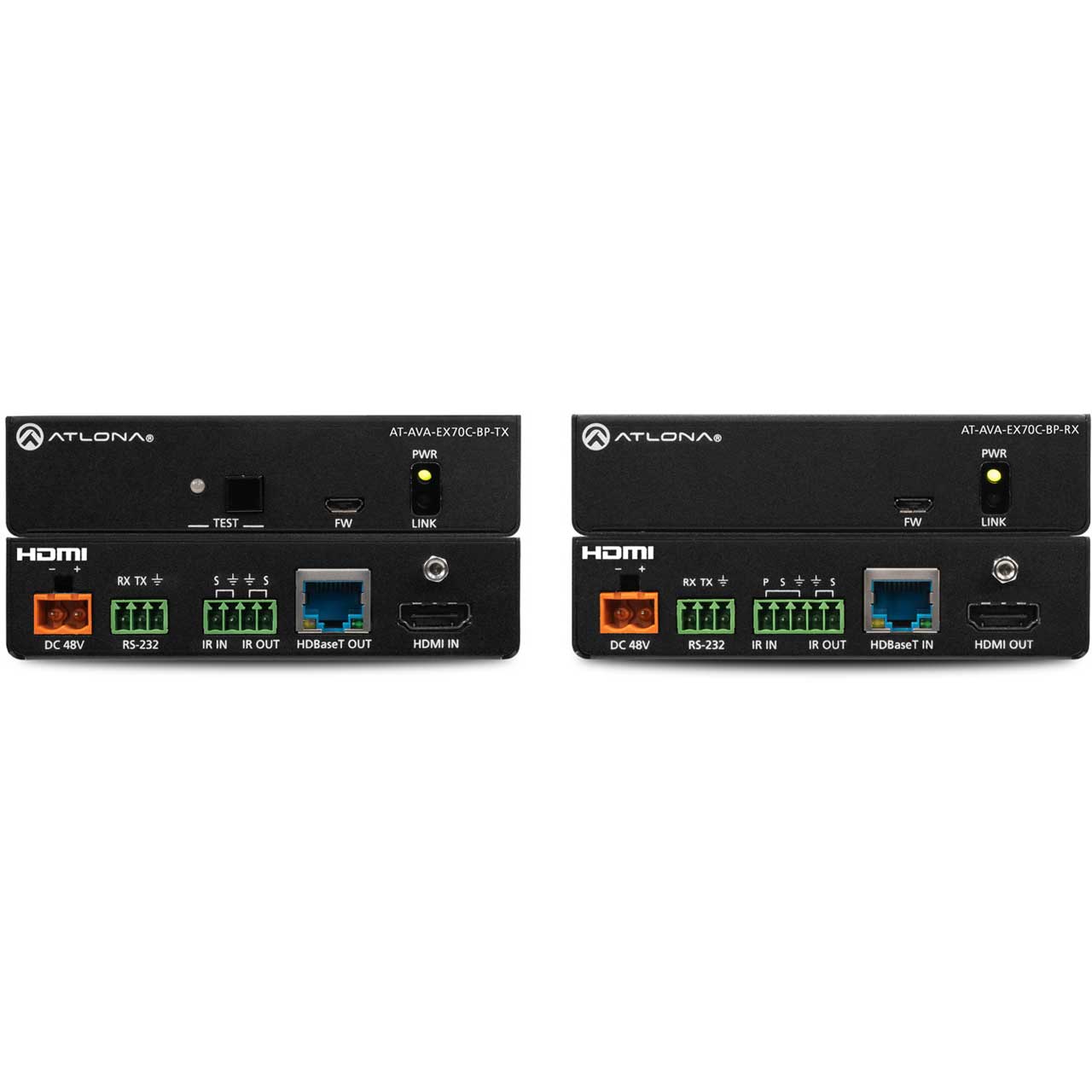

        Connectors
      • HDMI In (TX) 1 - Type A, 19-pin female
      • HDBaseT Out (TX) 1 - RJ45, female
      • HDMI Out (RX) 1 - Type A, 19-pin female
      • HDBaseT In (RX) 1 - RJ45, female
      • FW - Firmware (RX and TX) 1 - Micro-A USB
      • PWR (RX and TX) 1 - 2-pin 48V captive screw connector
      • RS-232 (RX and TX) 1 - 3-pin captive screw connector
      • IR (RX and TX) 1 - 4-pin captive screw connector (TX) 1 - 5-pin captive screw connector (RX)

        Temperature
      • Operating: 32 to 122F
      • Storage: -4 to 140F
      • Humidity (RH): 20% to 60%, non-condensing

        Power
      • Consumption (KIT): 13.32 W
      • Supply: Input: AC100~240V 50/60Hz
      • Output: DC 48V/0.83A

        Dimensions (H x W x D)
      • Unit: 1.02 x 4.29 x 3.70"
      • Power Supply: 1.42 x 1.81 x 4.41"
      • Weight TX: 0.60 / RX: 0.65 lb

    • Item Includes:

      • 1x AT-AVA-EX70C-BP-TX
      • 1x AT-AVA-EX70C-BP-RX
      • 1x 2-pin captive screw connector
      • 2x 3-pin captive screw connector
      • 1x 4-pin captive screw connector
      • 1x 5-pin captive screw connector
      • 1x IR emitter
      • 4x Mounting brackets
      • 8x Mounting screws
      • 1x 48V DC power supply
      • 1x IEC cable
      • 1x Installation Guide

    • GTIN:

      0846352006662
