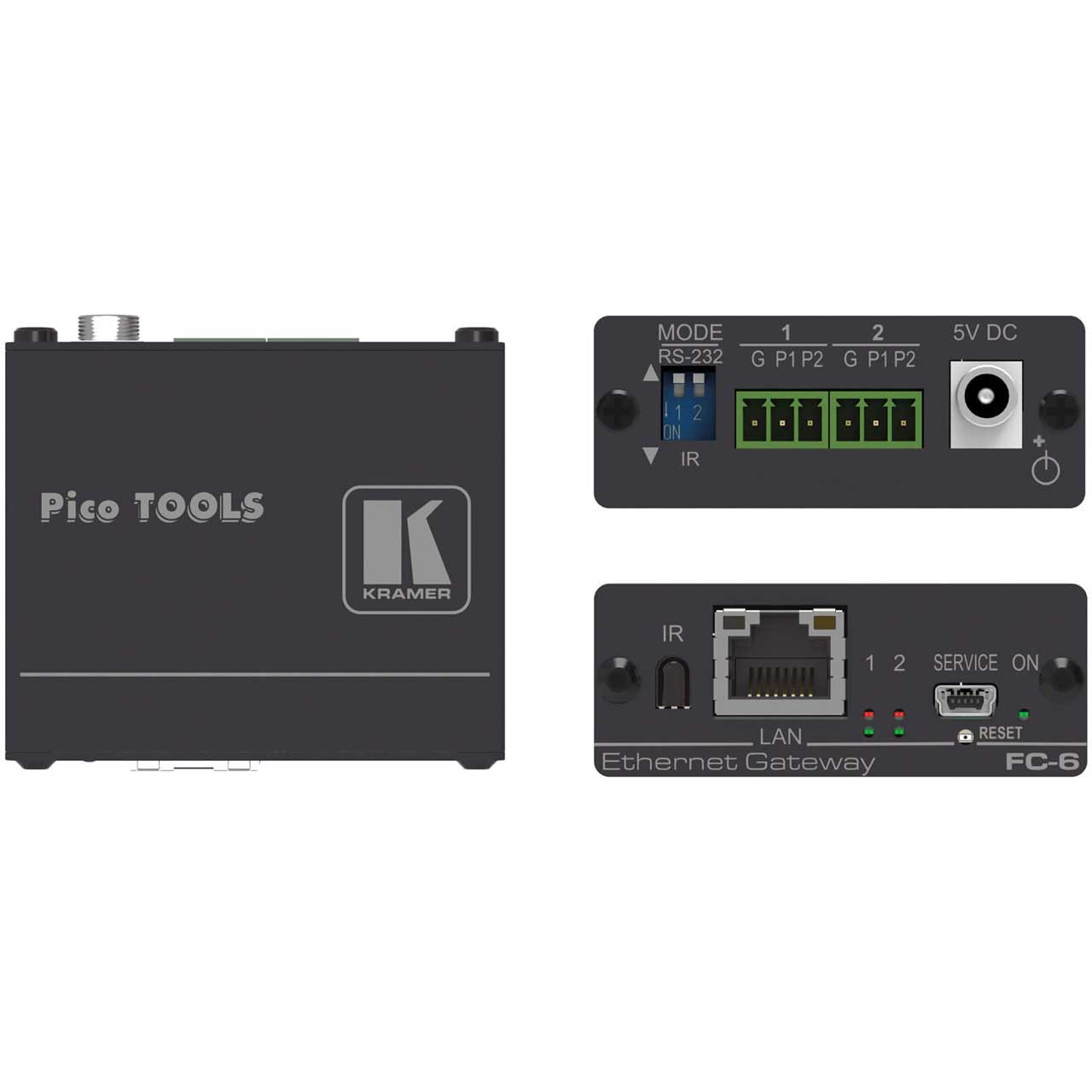

Kramer FC-6 2-Port Multi-Function Serial/IR RS-232/IR Control Gateway

FC-6 - Overview

USB-based powering

• Features:

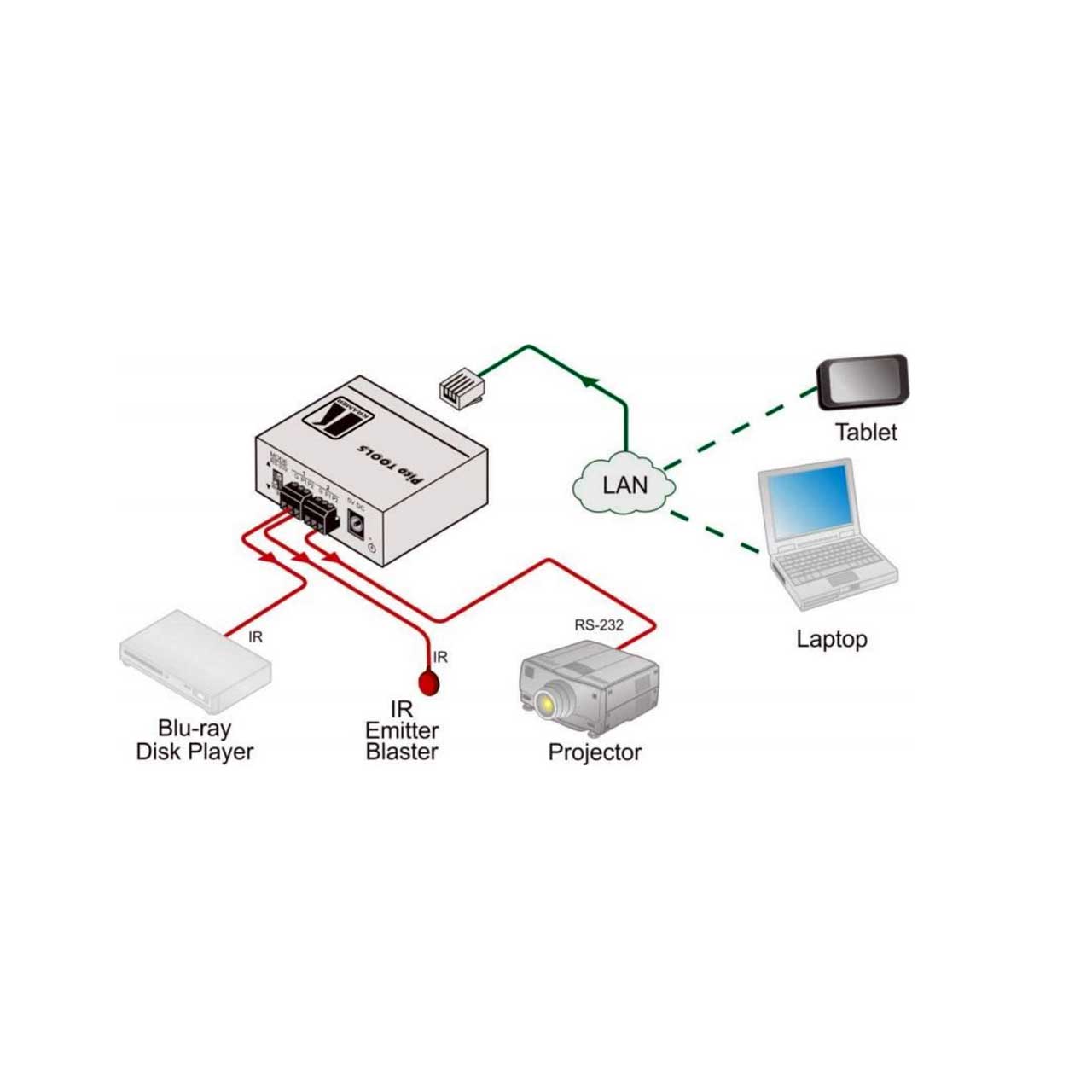

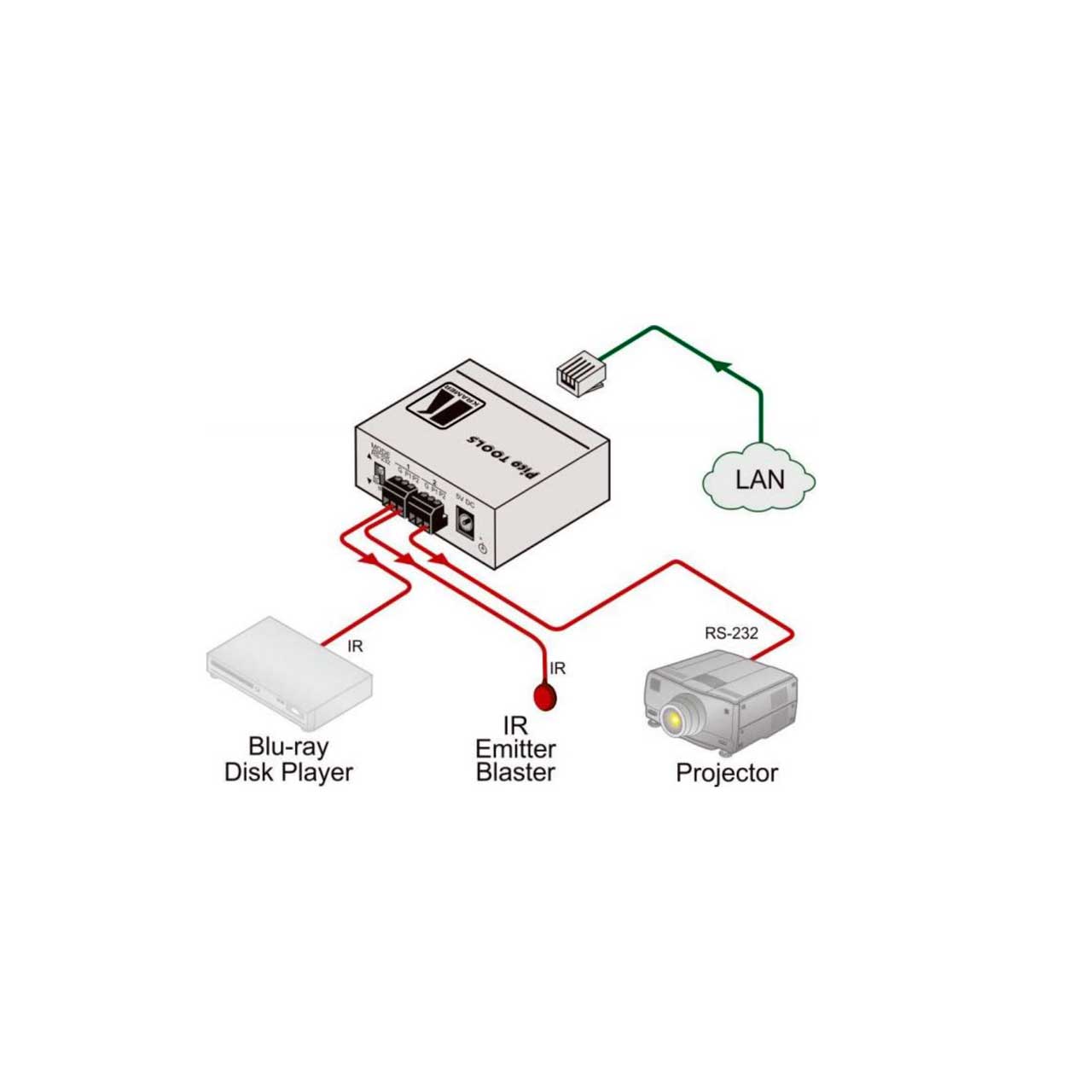

  • Dual-Function I/O Ports - Remote IP-Based control of devices connected to the control gateway dual-function I/O ports, with selectable port configuration to bidirectional RS-232 or IR control.

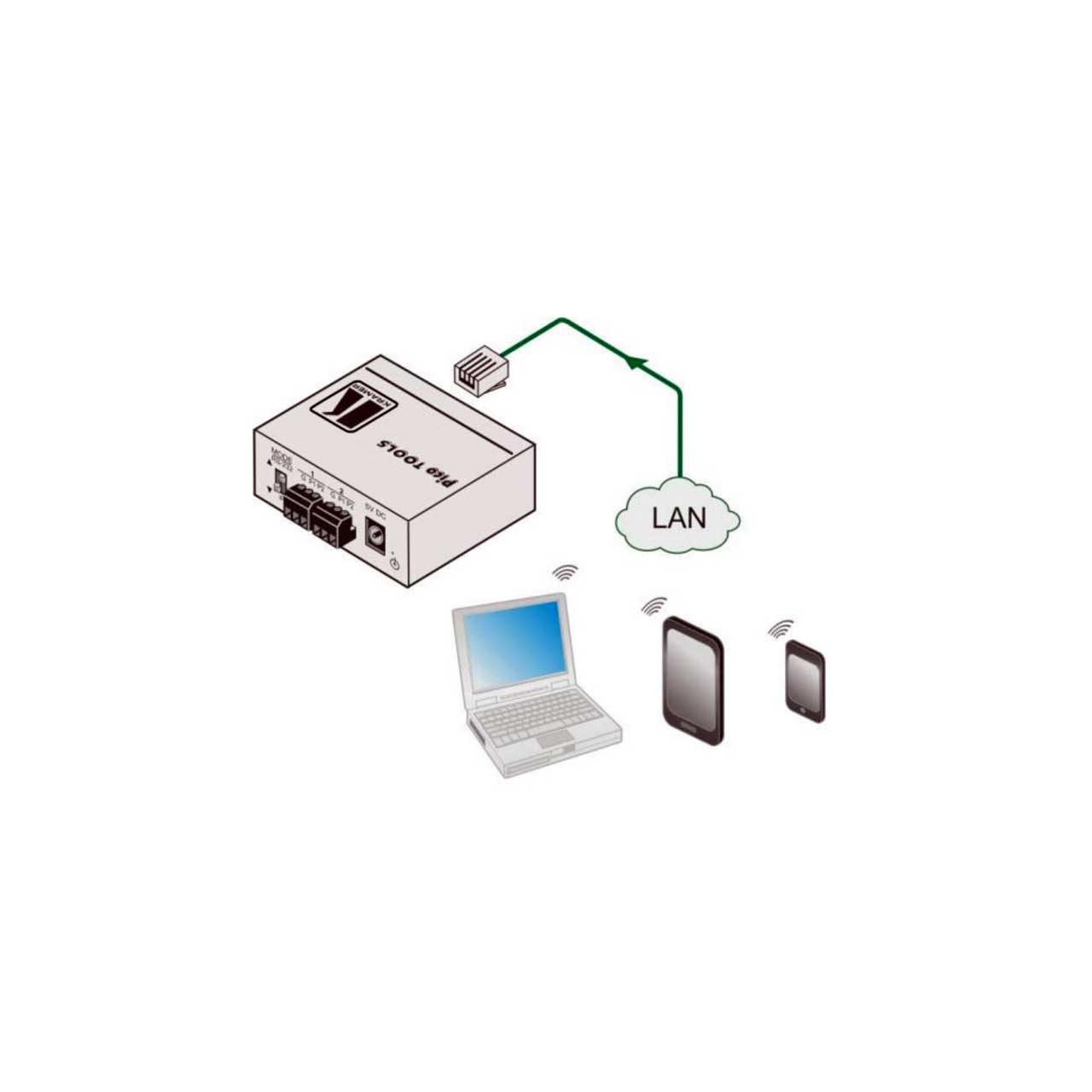

  • Multiple IP Connected Clients - Remotely connected over customer Ethernet network, concurrently controlling any devices connected to control gateway I/O ports.
  • Easy & Reliable Installation - Plug and Play IP installation with dynamic (DHCP) address resolution and auto device discovery over customer LAN. Resilient powering with USB and optional PSU (not included). Compact, designed for piggy-back installation, such as behind a TV or display, with the ability to draw power from a device USB port.
  • Remote Management - Built-in web UI for remote browser-based management and support, by multiple IP-clients over customer LAN. Easy firmware upgrades, either remotely via customer LAN, or locally via device USB port.
  • Pico TOOLS™ - Mount 4 units side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • PORTS
  • 2 RS-232/IR multi-function ports on 3-pin terminal blocks, each selectable as one of:
  • 1 bidirectional RS-232 serial
  • 2 IR emitter ports,
  • 1 Ethernet on an RJ-45 female connector,
  • 1 built-in IR sensor for learning,
  • 1 mini USB connector for local services


  • SUPPORTED SERIAL PORT BAUD RATES
  • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps


  • RS-232 COMMUNICATION
  • Transparent up to 115200bps


  • IR EMITTER CABLE RANGE
  • 80m (260ft)


  • SUPPORTED IR OUTPUT FREQUENCIES
  • 20kHz to 1.2MHz


  • SUPPORTED IR INPUT FREQUENCIES
  • 20kHz to 60kHz


  • MAXIMUM DATA HANDLING OF DEVICE
  • Up to 150kbps summed on all ports


  • MAXIMUM SIMULTANEOUS IP-CLIENT CONNECTIONS
  • 40


  • POWER SOURCE
  • 5V DC, 2A


  • POWER CONSUMPTION
  • 5V DC, 300mA


  • ENCLOSURE TYPE
  • Pico Tools, aluminum


  • COOLING
  • Convection ventilation


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • FC-6 Gateway
  • USB A to USB Mini Cable (1)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078072
