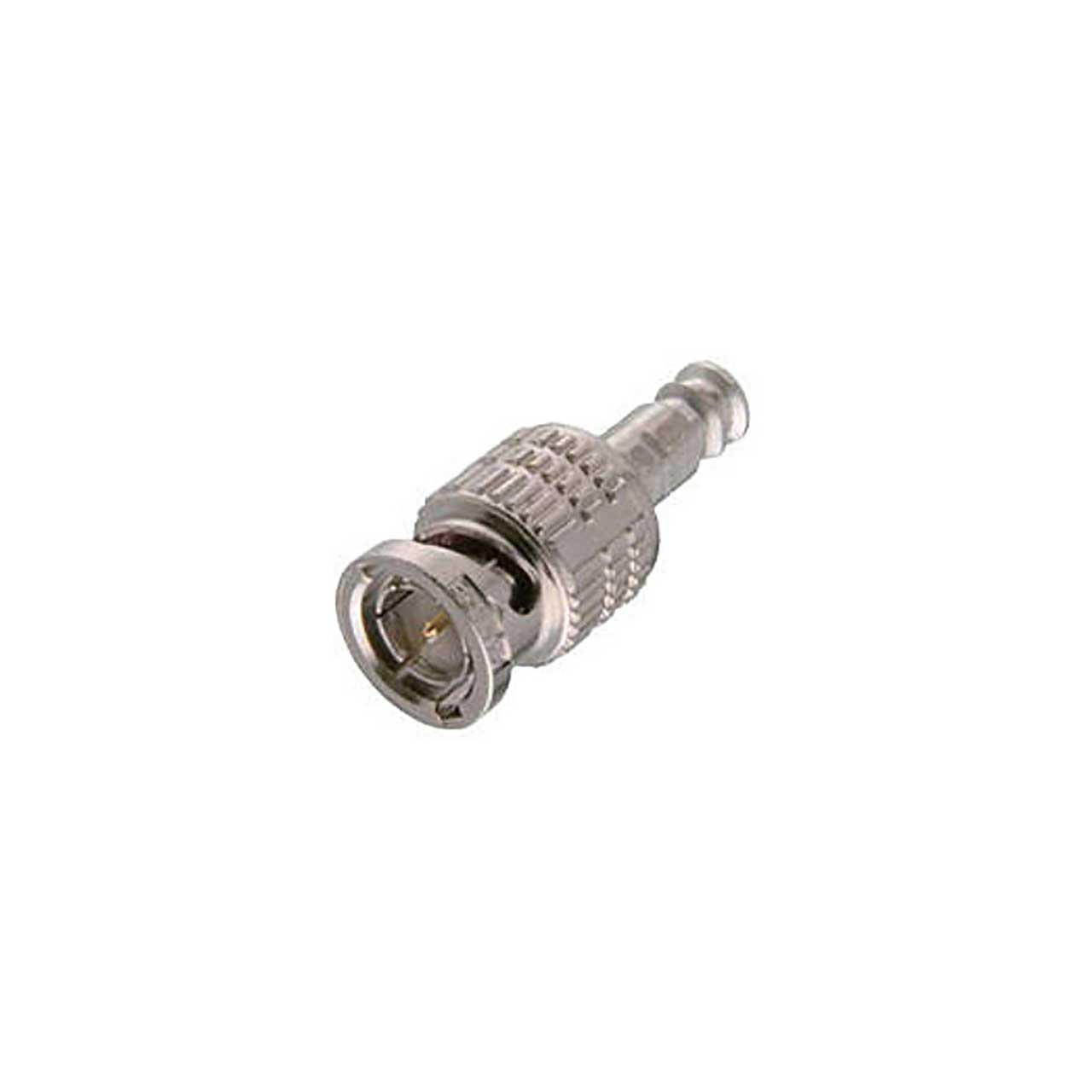

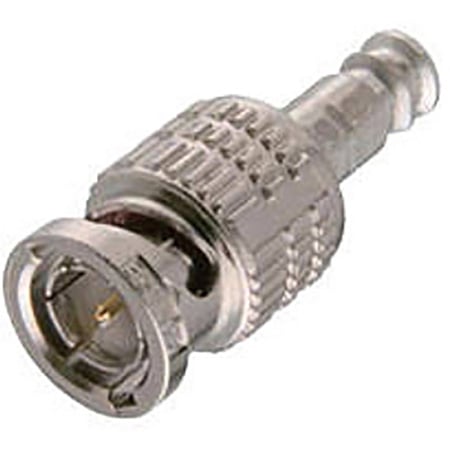

Canare BCP-B25HW 75 Ohm BNC Crimp Connector for L-2-5CHW cable


free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BCP-B25HW - Overview

    Part of the Canare BCP Series of high quality 75 Ohm crimp plug BNC connectors, the Canare BCP-B25HW is rated for all SMPTE 424M & 292M applications to confidently transmit 3G-SDI bit-rates in 1080p video production. Canare BCP BNC connectors feature an elongated body for better finger grip and a unique position mark on the body allows the connector bayonet fit to be checked easily.

    The BCP-B25HW BNC connector is designed for Canare L-2.5CHW coaxial to deliver a combination of superior cable pull strength you won't find with other connectors. Its gold plated center pins 'snaps' into place to ensure perfect alignment with connected video gear and patch panels. Easy assembly can be achieved using Canare Strip & Crimp Tools to make a perfect fit everytime.

    • Features:

      • SMPTE 424M & 292M Compliant
      • Serial Digital Video
      • HDTV Upgrades
      • NTSC Analog
      • Test Equipment
      • Satellite Headends
      • TELCOM
      • True 75 ohm construction Crimp Pin & Sleeve.
      • High performance of 1.1 or less VSWR up to 3GHz.
      • Elongated Body for better finger grip.
      • Position mark on body allows the connector fit to be checked easily.
      • Superior cable pull strength.
      • Gold plated center pins 'snap' into place.
      • Connector Body has been die-cast, achieving a lower price with higher performance.
      • Easy Assembly using Canare Strip & Crimp Tools.

    BCP-B25HW - Required Accessories
