Canare L-2.5CHWS Ultra-Slim Mini RG-59 12G-SDI/4K UHD Mobile Video Coaxial Cable - Black - 656 Foot Pull Box

ITEM #: L-2-5CHWS-200M MFG #: L-2.5CHWS 200M

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    L-2.5CHWS 200M - Overview

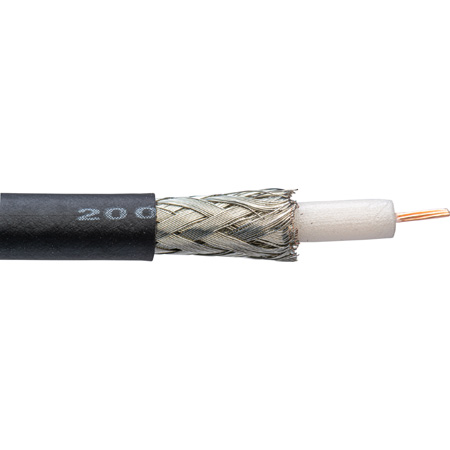

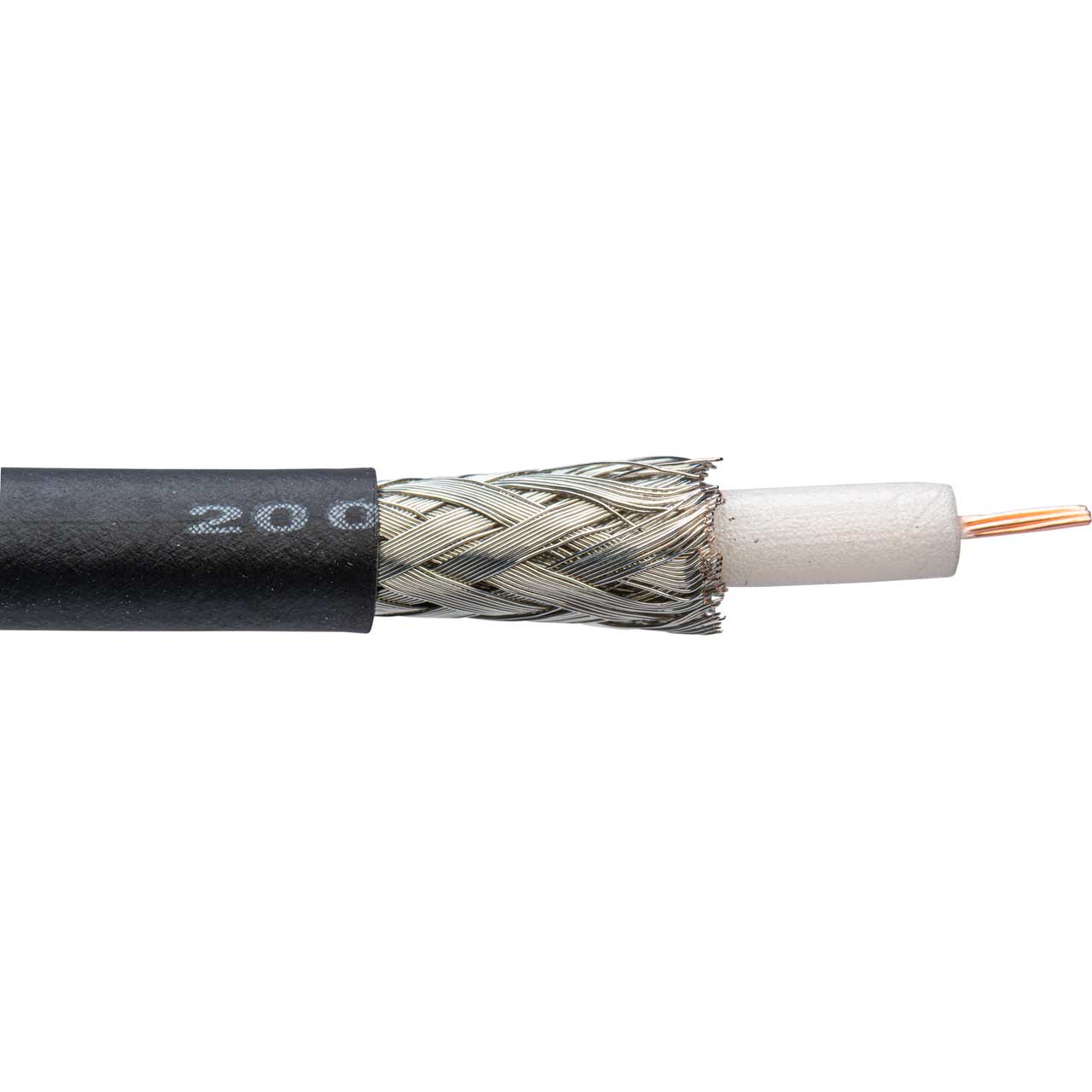

    The Canare L-2.5CHWS 12G-SDI rated coaxial features a stranded center conductor which makes it ideal for use in mobile HD applications where repeated bending may be a factor. Its high-density double braided shield and 75 Ohm Coaxial construction deliver low loss performance for the most demanding broadcast applications. It is also one of Canare's thinnest and lightest 12G-SDI coaxial cables with a nominal O.D. of 0.165".

    Note: cable stripper TS100E cannot be used with this cable. Use Canare TS100U

    • Features:

      • Mini-RG59 Equivalent 12G-SDI Coax Video Cable
      • Flexible and durable, Best suited to mobile HD application.
      • Designed for withstanding repeated bending.
      • Stranded center conductor.
      • High-density double-braided shield.
      • Highly-foamed insulation.
      • Pull Box for fast deployment.
    • Specifications:

      • Length: 656 foot (200M)
      • Nominal O.D. 0.165 inch
      • Weight: 15 lbs
      • Inner conductor comp (AWG): 24
      • Inner conductor O.D.: 0.02 inch
      • Insulation O.D.: 0.102 inch
      • Outer Conductors Shield Coverage & Comp: 0.10A/8/16(95% or more); 0.10A/9/16(94% or more)
      • Static capacity: 53 pF/m
      • Characteristic impendance: 75 Ω
      • Attenuation: 37.4 dB/100m (328ft 750MHz)
      • Jacket: PVC dielectric strength: 1000V AC/min
      • Color: Black
