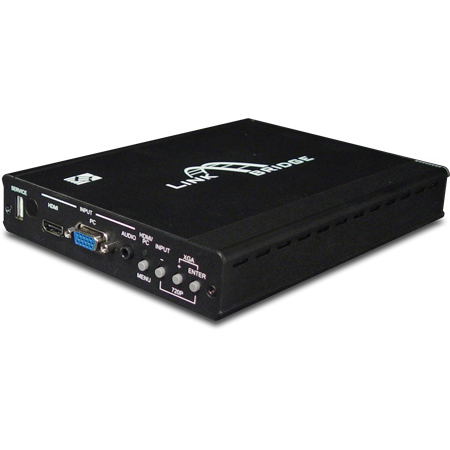

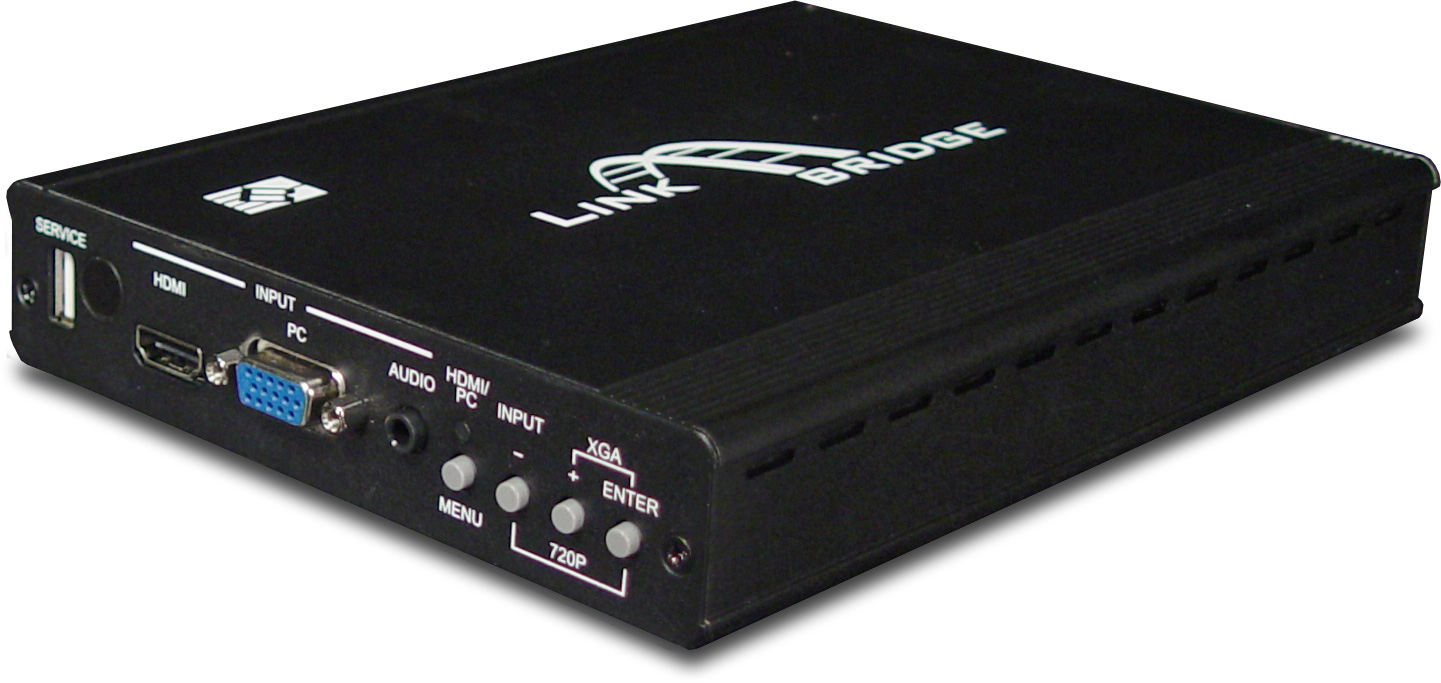

Link Bridge LBC-H/V-T-SCL HDMI Plus VGA Video Transmitter with Embedded Audio & RS-232 IR & Ethernet

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Link Bridge LBC-H/V-T-SCL HDMI Plus VGA Video Transmitter with Embedded Audio & RS-232 IR & Ethernet

    Item #: BD-LBC-HV-T-SCL   •   MFG #: LBC-H/V-T-SCL



    List Price:$888.80
    Our Price:$619.95

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      LBC-H/V-SCL-T units are ideal for high use applications such as conference rooms, class rooms and in the demanding environment of the surgical operating room, able to replace multiple hardware units in a single enclosure. The widest range of conversion possibilities makes this product perfect
      for converting disparate sources to a common format, or handling whatever formats the integrated
      environment might require. Easy to use and fully controllable via a buit in front control panel or via RS232 communications. The LBC-H/V-SCL-T is easily integrated into a facility and can be rapidly configured by any user or can also accept automation commands from an external control system.


      • Features

        • Link Bridge™ Multi-Format Scaler System, HDBaseT Tx
        • Supports Input VGA/DVI Resolutions up to 1920×[email protected] 60Hz
        • High performance Multi-Format Video Scaler with OSD Menu Control
        • Supports VGA/HDMI input switching via front panel button or RS232 control
        • USB Port for Firmware Upgrade
        • Zero Compression and Zero Bit Reduction
        • Provides output picture adjustment on contrast, brightness, hue,saturation, sharpness, RGB level, and scan size
        • Consolidates different video inputs into one unified DVI format
        • Supports 5 play HDBaseT, Video/Audio+LAN+IR+RS232+PoH over 100m

      • Specifications

        • INPUT SIGNAL
          Signal Format: HDMI/ VGA/ Audio
        • Input Ports: HDMI, HD-15 VGA, 3.5mm (L/R)
        • Graphic Resolution: Up to 1080p & 1920 x 1200, 60 Hz
        • Frequency Bandwidth: 10.2Gbps
          DATA
          Network: LAN
        • Data Rate: 100Mbps
        • Connector: RJ45
        • IR: Infrared
        • Data Rate: 30 - 50KHz
        • In/ Out connectors: 3.5mm stereo
        • Serial Control: RS232
        • Data Rate: Up to 57.6Kbaud
        • Connector: DB9 Serial
          HDBT TRANSMISSION
          HDBT Cable Type: CAT 5e/6 or higher
        • Number of Cables: 1
        • Connector/ Distance: RJ-45/ 100m
        • PHYSICAL
          Dimension: 5.71” (W) x 7.91”(D) x 1.18”(H)
        • Power Consumption: +24VDC @ 2.7 Amps (Max.)
        • Operating Temperature: 0 to +40° C
        • Humidity: 20 to 90% RH, Non-Condensing
