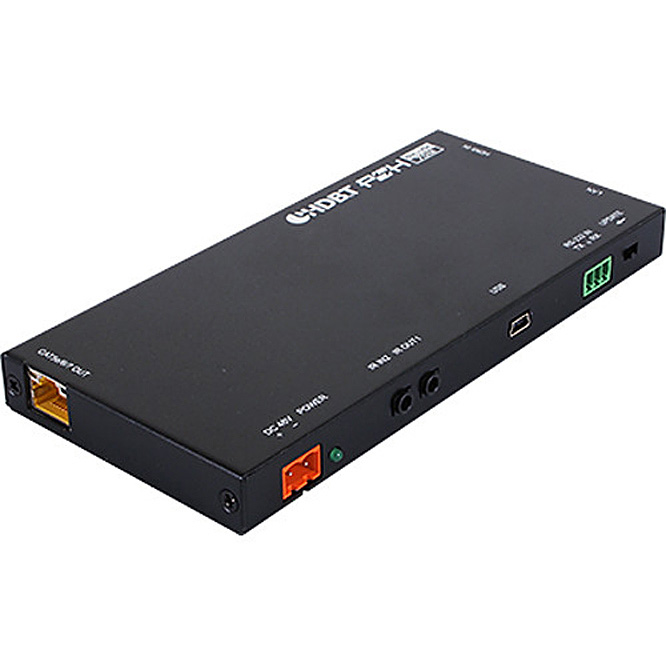

Link Bridge LBC-HDBT-T-KM-48 HDBaseT HDMI Transmission with 48V PoH Over 70m and USB Keyboard/Mouse
  • Link Bridge LBC-HDBT-T-KM-48 HDBaseT HDMI Transmission with 48V PoH Over 70m and USB Keyboard/Mouse
  • Link Bridge LBC-HDBT-T-KM-48 HDBaseT HDMI Transmission with 48V PoH Over 70m and USB Keyboard/Mouse

Questions? Ask a Markertek Expert:
800-522-2025 Email

Link Bridge LBC-HDBT-T-KM-48 HDBaseT HDMI Transmission with 48V PoH Over 70m and USB Keyboard/Mouse

Item #: BD-LBCHDBTTKM48   •   MFG #: LBC-HDBT-T-KM-48



List Price:$522.17
Our Price:$369.95

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

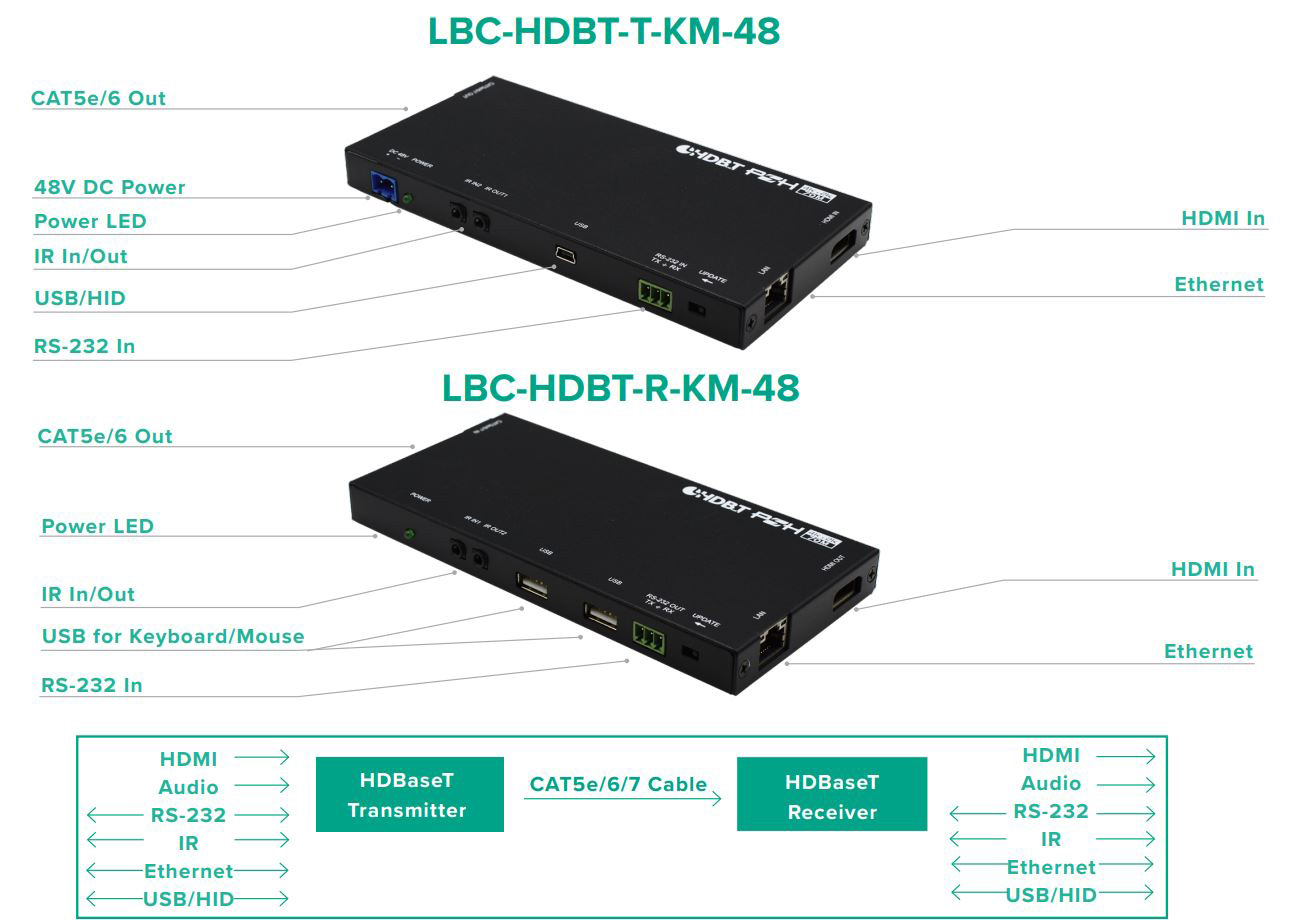

    The HDBaseT LBC-HDBT-T-48-KM HDMI Transmitter from Link Bridge transmits HDMI signals up to 328' over a single Cat5e/6 cable. It supports full HDTV video resolutions up to 4K2K at 30 Hz, and provides fully uncompressed video and audio with zero loss of quality. It also supports true DDC/EDID/HDCP transmission and USB 2.0 keyboard and mouse.


    • Features

      • Extend HDMI Signals up to 70 meters Over One CAT 5e/6 Cable
      • Supports Full HDTV Video Resolutions up to [email protected]
      • Fully Uncompressed Video & Audio Provides Zero Loss of Quality
      • Supports True DDC/EDID/HDCP Transmission
      • Video/Audio+IR+Data+Ethernet, Over 1 CAT 5e/6 Cable
      • Supports 48V from transmitter (PSE) to receiver (PD)
      • HDMI 1.4 and HDCP 2.2 compliant
      • Supports both RS232 and IR Control Data
      • Supports USB Keyboard and Mouse

    • Specifications

      • Video/Audio
      • HDMI: Version 1.4 with 3D, 4K×2K support
      • Video Resolution: Up to 4K2K @ 30Hz
      • Protocol: DDC/EDID Capable, HDCP 2:2
      • Video Bandwidth: 300MHz / 10.2Gbps
      • Audio Formats: Supports up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
      • Audio Sampling Rate: 32KHz to 192KHz
      • HDMI/Audio Connector: HDMI Female plug
        Data
      • Serial Control: RS232
      • Data Rate: Up to 57.6Kbaud
      • Connector: Terminal Block
        IR, Ethernet, and USB
      • Data Rate: 30 - 50KHz
      • In/Out Connectors: 3.5mm Stereo
      • Ethernet Speed: 100 Mbps
      • LAN Connector: RJ45
      • Function: For USB 2.0 Keyboard/Mouse
      • Connector: USB Type A
      • Channel Count: Tx(1), Rx(2)
        HDBT Transmission
      • Cable Type: CAT 5e/6 or higher
      • Number of Cables: 1
      • Connector/ Distance: RJ-45/Up to 70m
        Physical
      • Dimensions (Standalone): 6.42”(W) x 3.07”(D) x 0.63”(H)
      • Power Consumption: +48 VDC @ 0.9 Amps (Max.)
      • Operating Temperature: 0 to +40°C
      • Humidity: 20 to 90% RH, Non-Condensing
