    AC-CXWP-USBC-T - Overview

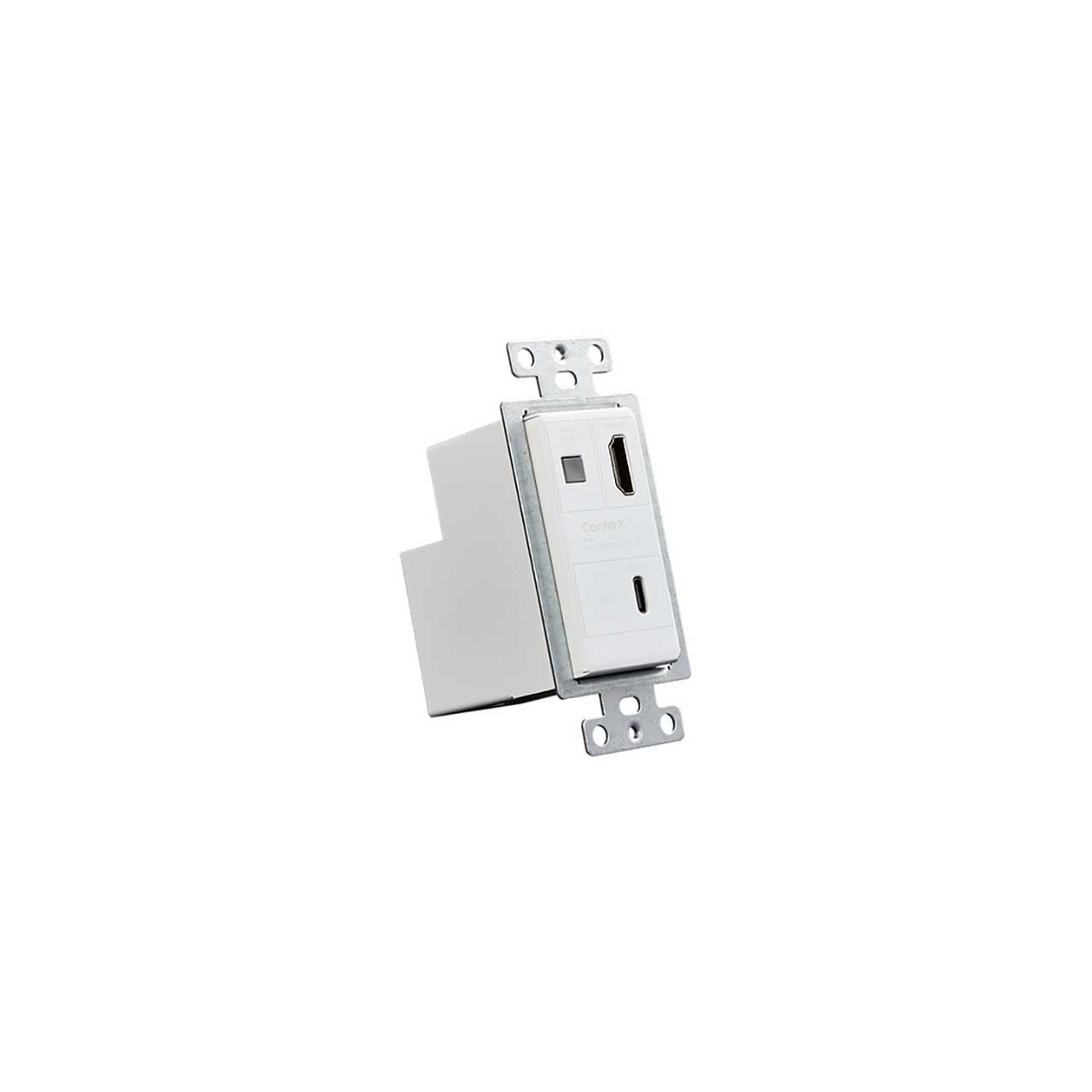

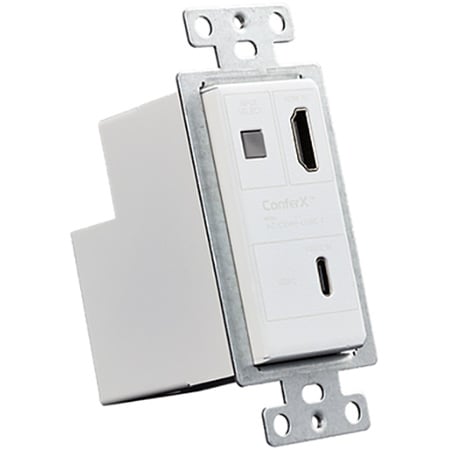

    The AVPro Edge AC-CXWP-USBC-T single gang, HDBaseT wall plate transmitter is a part of ConferX's line of professional audio video products. Installing this sleek transmitter is a breeze as it's built to fit in any standard single gang mug ring, but its sleek design is only the beginning. If using the AC-EX100-UHD-R3, the AC-CXWP-USBC-T is able to transmit an HDMI or USB-C signal over CAT 6a for up to 100 meters when using 1080p, and up to 70 meters with working with 4K. The entire ConferX line of products are built to military grade standards to ensure stable connections for long periods of time. We are so sure about that, it comes with their no nonsense 10-year warranty.

    USB-C, the newest version of USB is now found as the standard for Apple computers, Samsung phones, Nintendo gaming consoles and many other products. With this wall-plate transmitter you are able to connect to any USB-C device with a USB-C 3.1 cable and transmit video.

    Note: there are many USB-C cables available for purchase. Make sure you use one that states it's USB-C 3.1. Some USB-C cables are just meant for charging, those cables will not work for sharing video.

    Simplify installations in schools, offices, meeting rooms and huddle rooms. Once integrated into your client's system he now has the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. With the AC-CXWP-USBC-T you get a sleek look your client will like, a stable connection that lasts and a product that works seamlessly with any source you throw at it.

    • Features:

      • HDMI 2.0 Input
      • USB-C 3.1 Gen2 Input for up to 10Gbps Video Distribution
      • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
      • HDR 4:2:2 12 Bit Support
      • HDCP 2.2 & Earlier Supported
      • 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
      • No Local Power Necessary (Powered by AC-EX100-UHD-R or other POE devices)

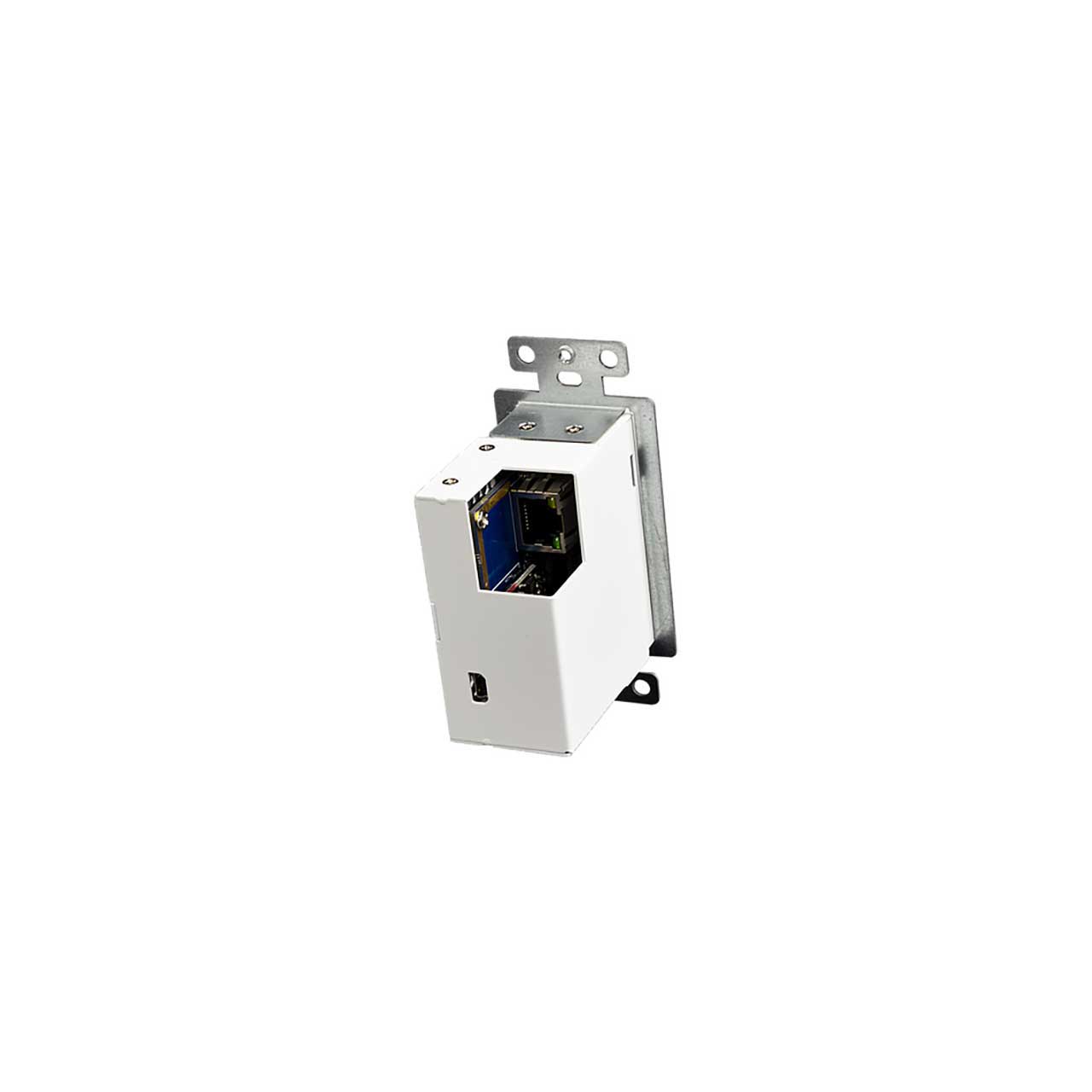

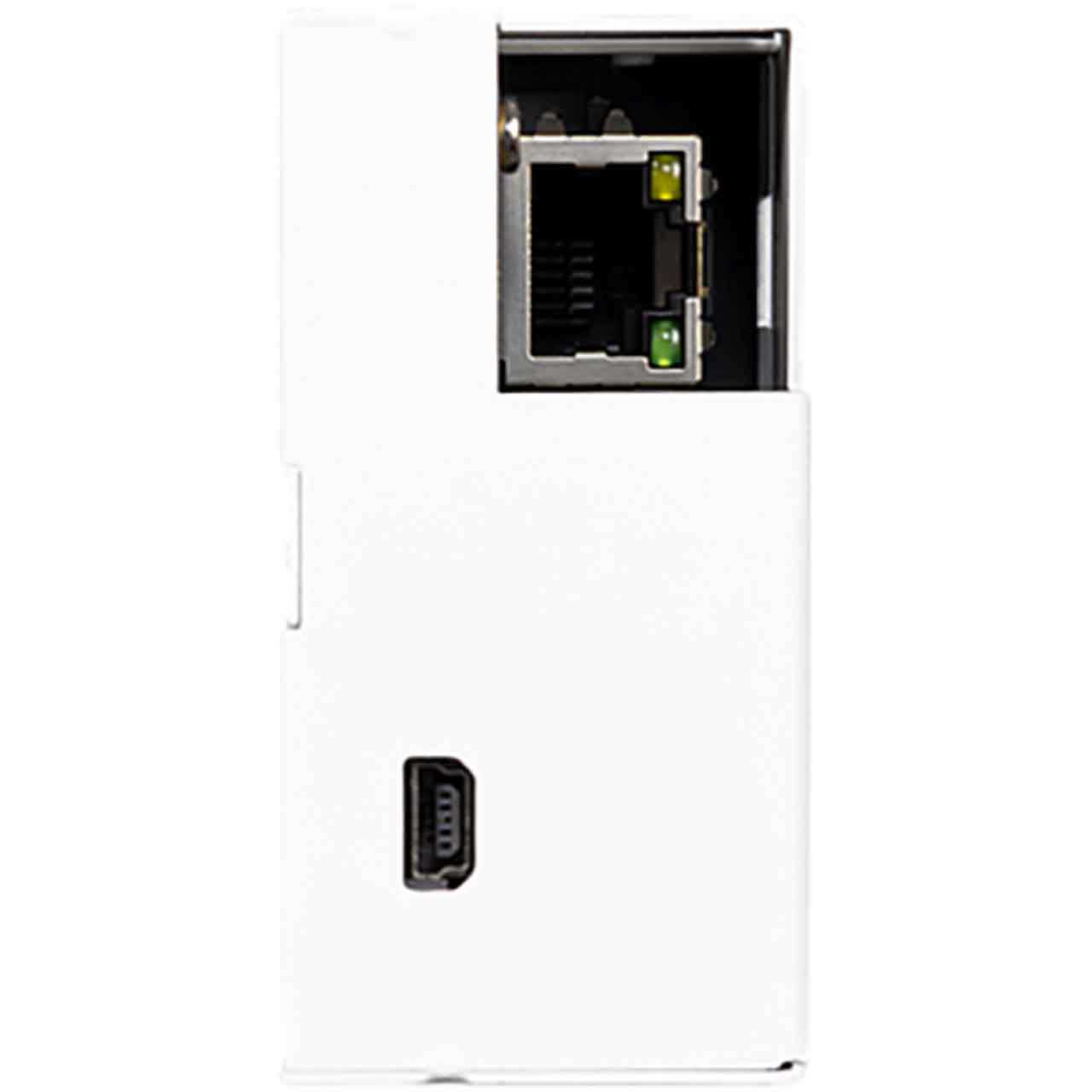

      • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
      • Rugged, long-life chassis
      • Plug & Play auto input sensing
      • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.
      • Single UTP/STP LAN cable (CAT-6A) for all signals
      • ESD protection circuitry (Inputs / Outputs) till 7KV.
      • Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
      • HDCP 2.2 & Earlier Supported
      • Single Gang (Decora), Low heat, rugged, long-life chassis
    • Specifications:

      • Video:
      • Video Resolutions: Up to 4K 60Hz 4:2:0 & 4k30 4:4:4
      • VESA Resolutions: Up to 2560x2048 (QSXGA)
      • HDR Formats/Resolutions: 4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit
      • Color Space: YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
      • Deep Color: Up to 12 bit (4K)

      • Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

      • Distance 1080p: 100m (330 feet) (With CAT 6a/7)
      • Distance 4k & HDR: 70m (230 feet) (with CAT 6a/7)

      • Compatible Receivers: AC-EX100-UHD-R3 (100M), AC-EX70-SC2-R (70M), AC-CX100-RAMP (100M)
      • Bandwidth: 10.2 Gbps
      • CEC: Yes
      • HDCP: HDCP 2.2 and Earlier

      • HDMI (Input): Type A
      • USB-C Port (Input): USB-C (USB 3.1 GEN 2 or higher for 4k)
      • HDBaseT (Output to Reciever): RJ45

      • Operating Temprature: 23 to 125°F (-5 to 51°C)
      • Storage Temperature: -4 to 140°F (-20 to 60°C)
      • Humidity Range: 5-90% RH (No Condensation)

      • Power Consumption (Total): 8 watts (16.5 when paired with receiver)
      • Power Supply: Input: AC 100-240V ~ 50/60Hz / Output: DC 5V (mini USB)

      • Dimensions (Single Unit Only) (Length/Width/Height): 2.75 x 2.55 x 1.22 (without wall decora cover)
      • Wall Space: Single gang
      • Compatiable Box Types: mud rings, stud mouint, clamp mount, metal & plastic boxes, lv boxes
      • Dimensions (Packaged Length/Width/Height): 6.25 x 5.375 x 3.5
      • Weight (Unit): 0.4lbs (0.18Kg)
      • Weight (Packaged): 0.5lbs (0.23Kg)
    • Item Includes:

      • 1x AC-CXWP-USBC-T Transmitter Unit

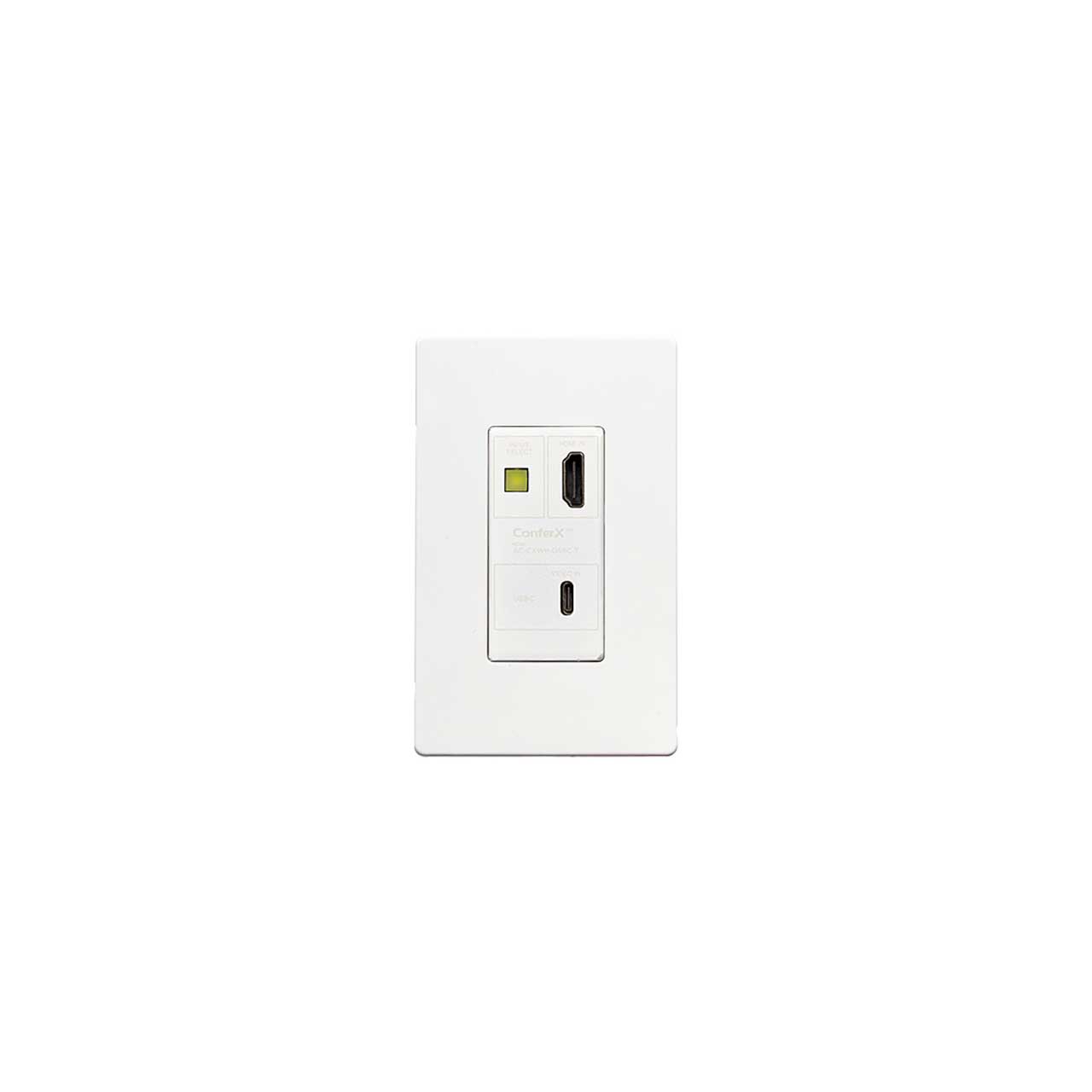

      • 1x Decora Wall Plate Cover (White)
    • Warranty:

      • 10-year warranty
