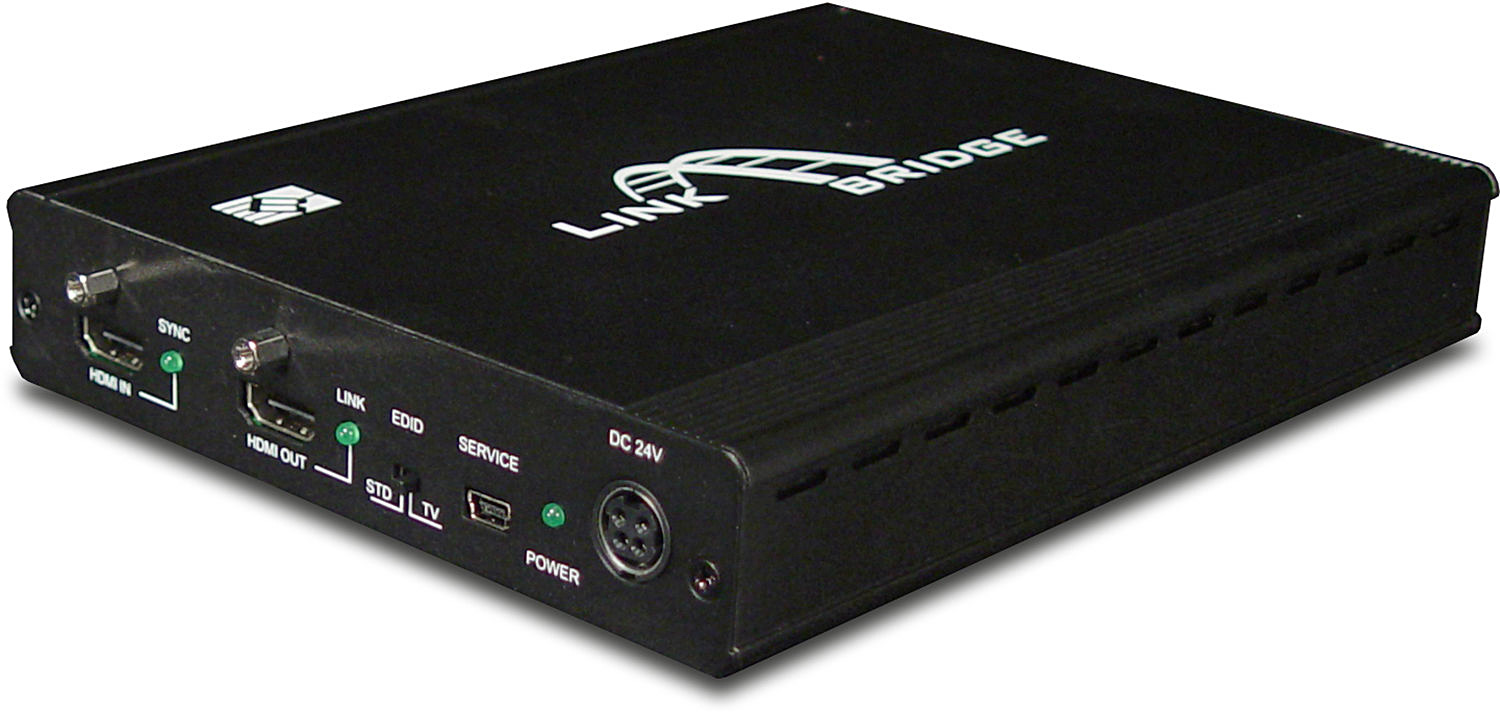

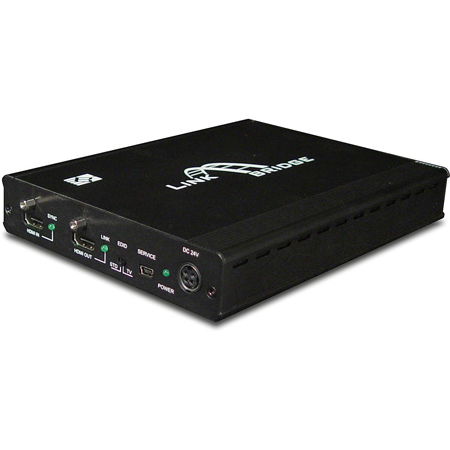

Link Bridge LBC-SPH4-1H3B-EIR 1x4 HDMI Splitter to 1 HDMI & 3 HDBaseT

LBC-SPH4-1H3B-EIR - Overview

• Features:

  • Extend HDMI Signals up to 100 meters Over One CAT 5e/6 Cable
  • Supports 4K2K & Full HDTV Video Resolutions up to 720p/1080i/1080p@60 Hz
  • Fully Uncompressed Video & Audio Provides Zero Loss of Quality
  • Supports True DDC/EDID/HDCP Transmission Over One Ethernet Cable
  • Video/Audio+IR+LAN, Over 1 CAT 5e/6 Cable
  • Supports PoC (Power over Cable) with compatible receivers
  • Provides 3x HDBaseT output transmission ports
  • Supports network rates up to 100Mbps and IR Control Data


• Specifications:

  • Video/Audio
  • HDMI: Version 1.4 with 3D, 4Kx2K support
  • Video Resolution: 4K2K & up to 1080p@60Hz or 1920x1200@60Hz
  • Protocol: DDC/EDID/HDCP Capable
  • Video Bandwidth: 340MHz / 10.2Gbps
  • Audio Operating Mode: Stereo Audio
  • Audio Formats: Supports up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
  • Audio Sampling Rate: 32KHz to 192KHz
  • HDMI/Audio Connector: HDMI Female plug

    Data
  • Network: LAN
  • Data Rate: 100Mbps
  • Connector: RJ45
  • IR Control: Infrared
  • Data Rate: 30 - 50KHz
  • In/Out Connectors: 3.5mm Stereo

    HDBT Transmission
  • Cable Type: CAT 5e/6 or higher
  • Number of Cables: 1
  • Connector/ Distance: 3x RJ-45 / Up to 100m

    Physical
  • Dimensions (W x D x H): 5.71" x 7.83" x 1.18"
  • Power Consumption: +24VDC @ 2.7 Amps (Max.)
  • Operating Temperature: 0 to +40°C
  • Humidity: 20 to 90% RH, Non-Condensing
