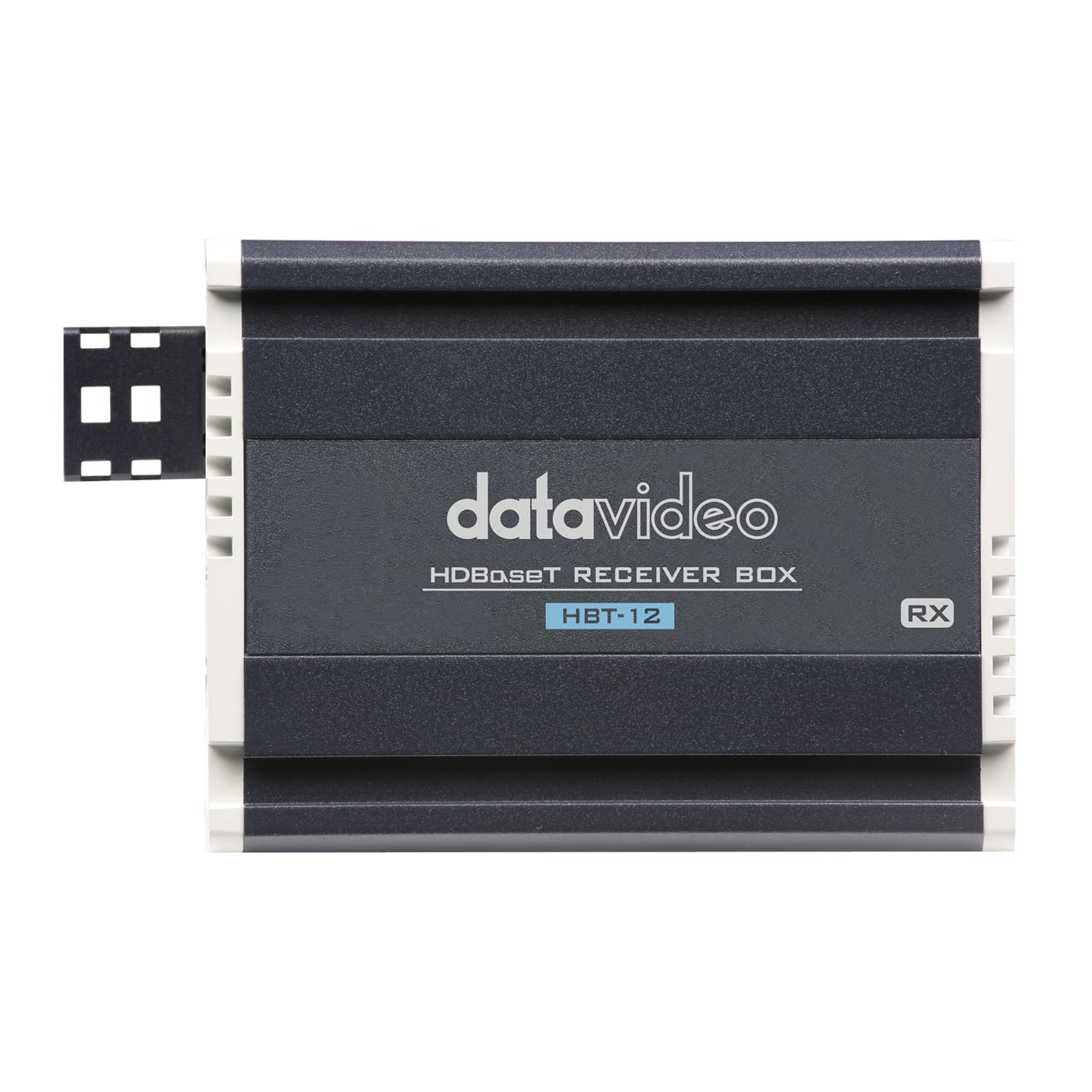

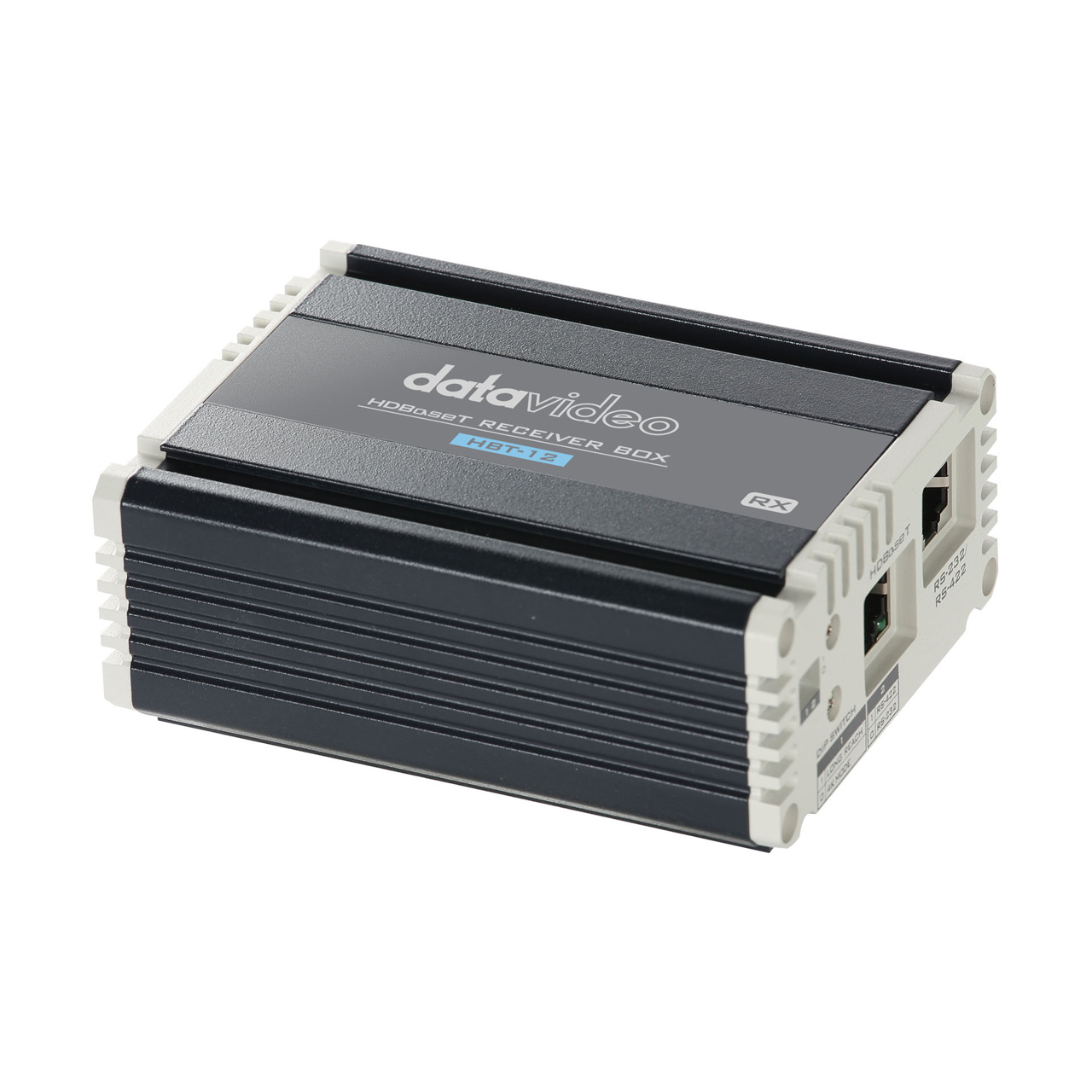

Datavideo HBT-12 HDBaseT Receiver Box

HBT-12 - Overview

• Features:

  • Long Distance 4K Solution and Carry Everything in One Ethernet Cable: The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.
  • With the 56V Power Connected to One End of the HBT-12 HDBaseT Receiver: The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).
  • HDBaseT Connection Between the Transmitter and the Receiver can be Established Using a Single Ethernet Cable: HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
  • Long Distance 4K Solution: Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.
  • Aluminum Alloy and Heavy Duty Design: Super sturdy and durable. HBT-12 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
  • HBT-12 is Compatible with the Following Transmitters:
    - HBT-5
    - HBT-15
    - PTC-140T
    - PTC-145T
    - PTC-150T
    - PTC-155T
    - PTC-285T
    - PTC-305T
    - PTC-325T
    - PTR-10T MARK II


• Specifications:

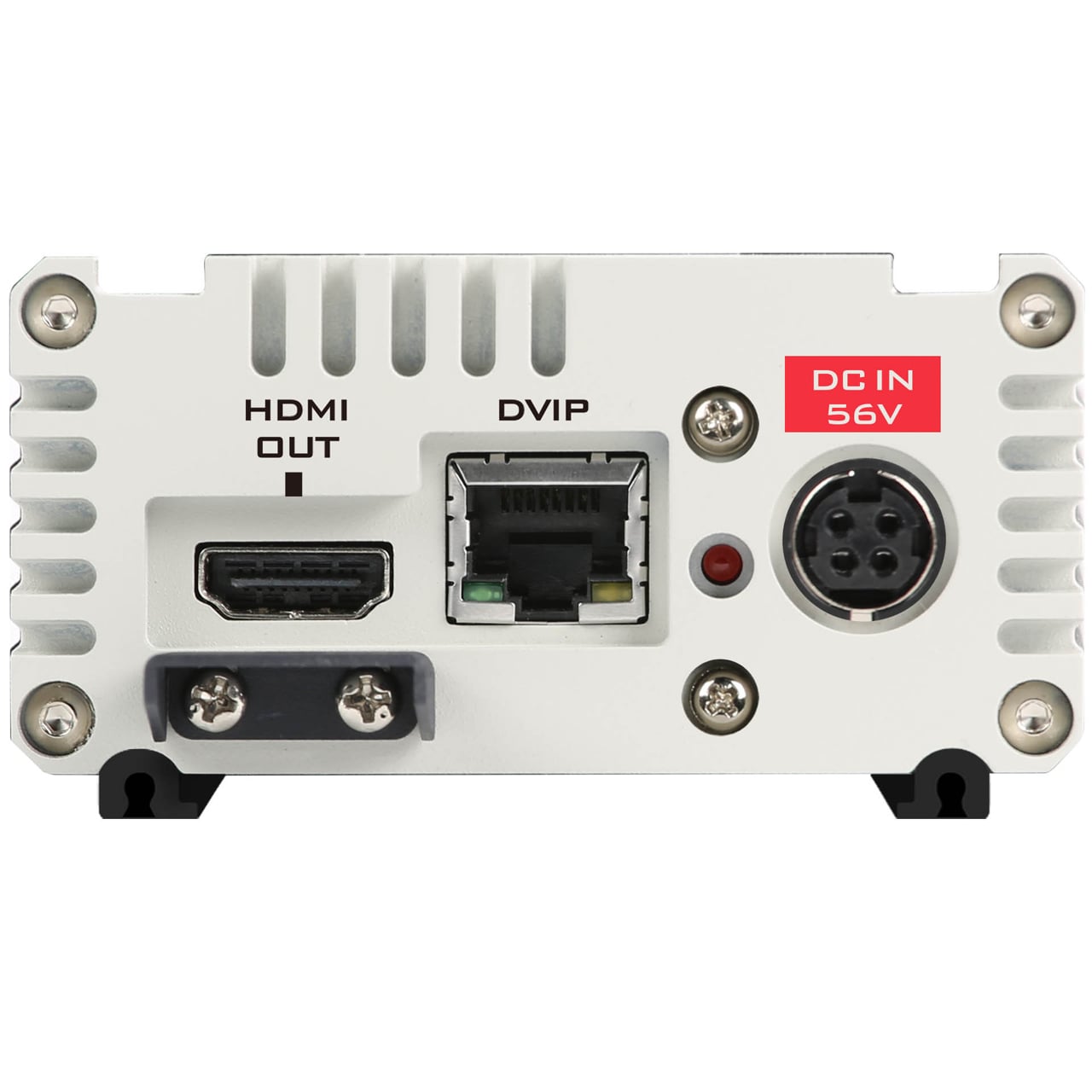

  • Video/Audio Input: 1x HDBaseT RJ45
  • Video/Audio Output: 1x HDMI
  • Supported Video Format:
    - 3840x2160p: 30/29.97/25/24/23.98
    - 1080p: 60/59.94/50/30/29.97/25/24/23.98
    - 1080i: 60/59.94/50, 720p: 60/59.94/50
  • DVIP: 1x RJ45 (input)
  • RS-422/RS-232: 1x RJ45 (input)
  • Power: DC IN - DC 56V
  • PoE Output: 65W
  • HDBaseT Distance:
    - 1080p@60 100m by CAT.7 cable
    - 4K2K@30 70m by CAT.7 cable
  • Dimensions (LxWxH): 5.2" x 3.3 x 1.8" (132mm x 85mm x 45mm)
  • Weight: 0.9lbs (400g)
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)


• Item Includes:

  • 1x HBT-12 main unit
  • 1x AC cord
  • 1x DC 56V power adapter


• Warranty:

  • 1 Year Limited Warranty
